Description:

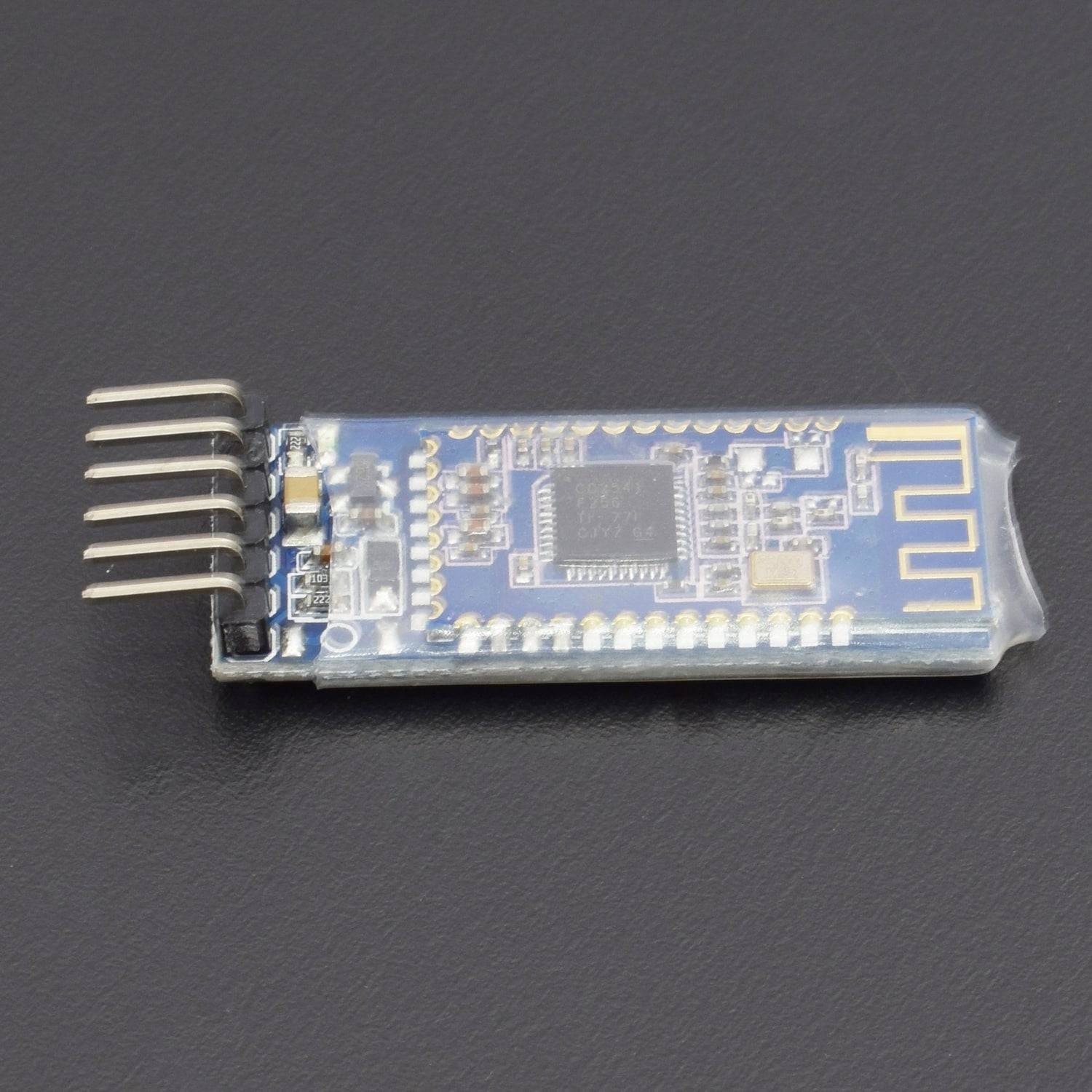

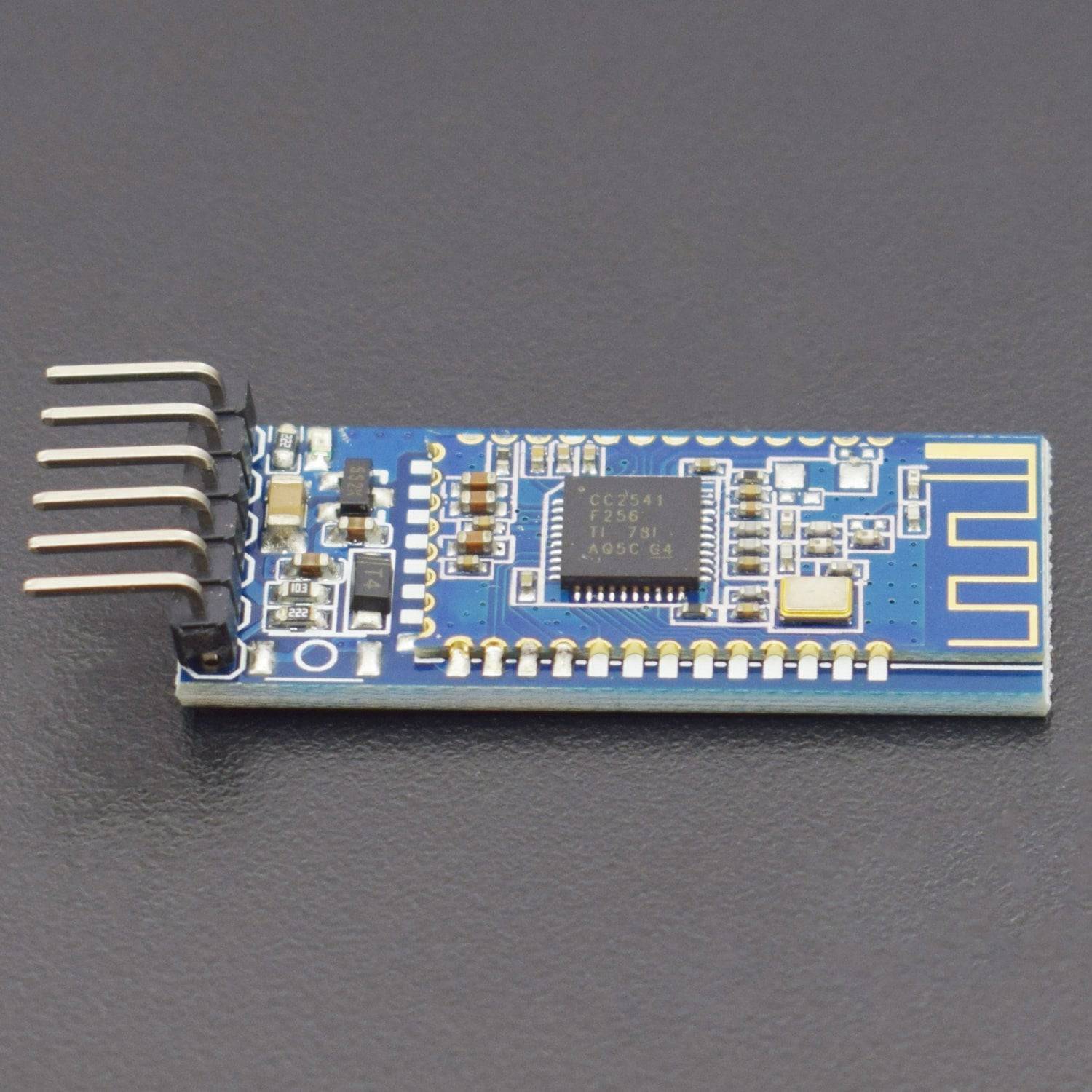

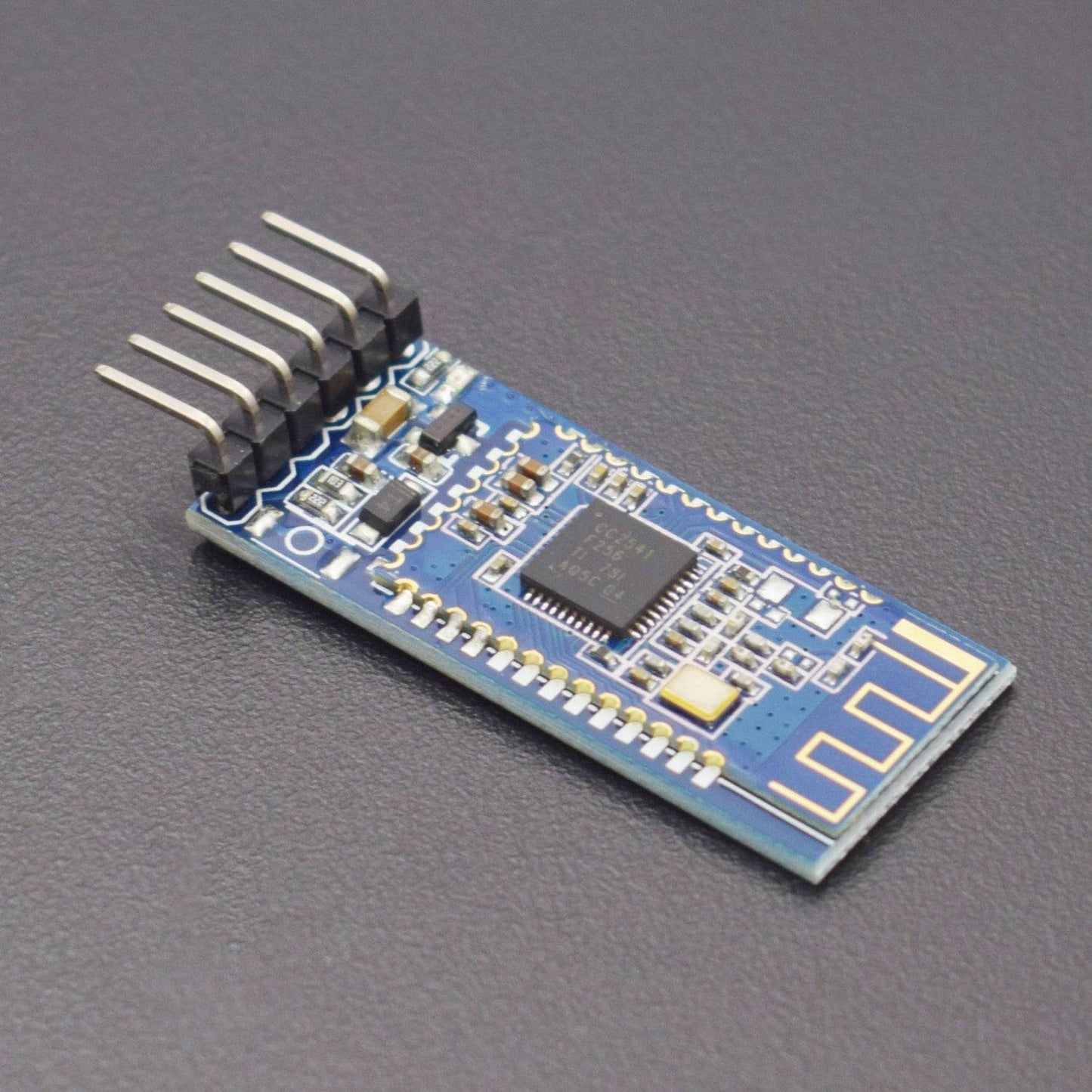

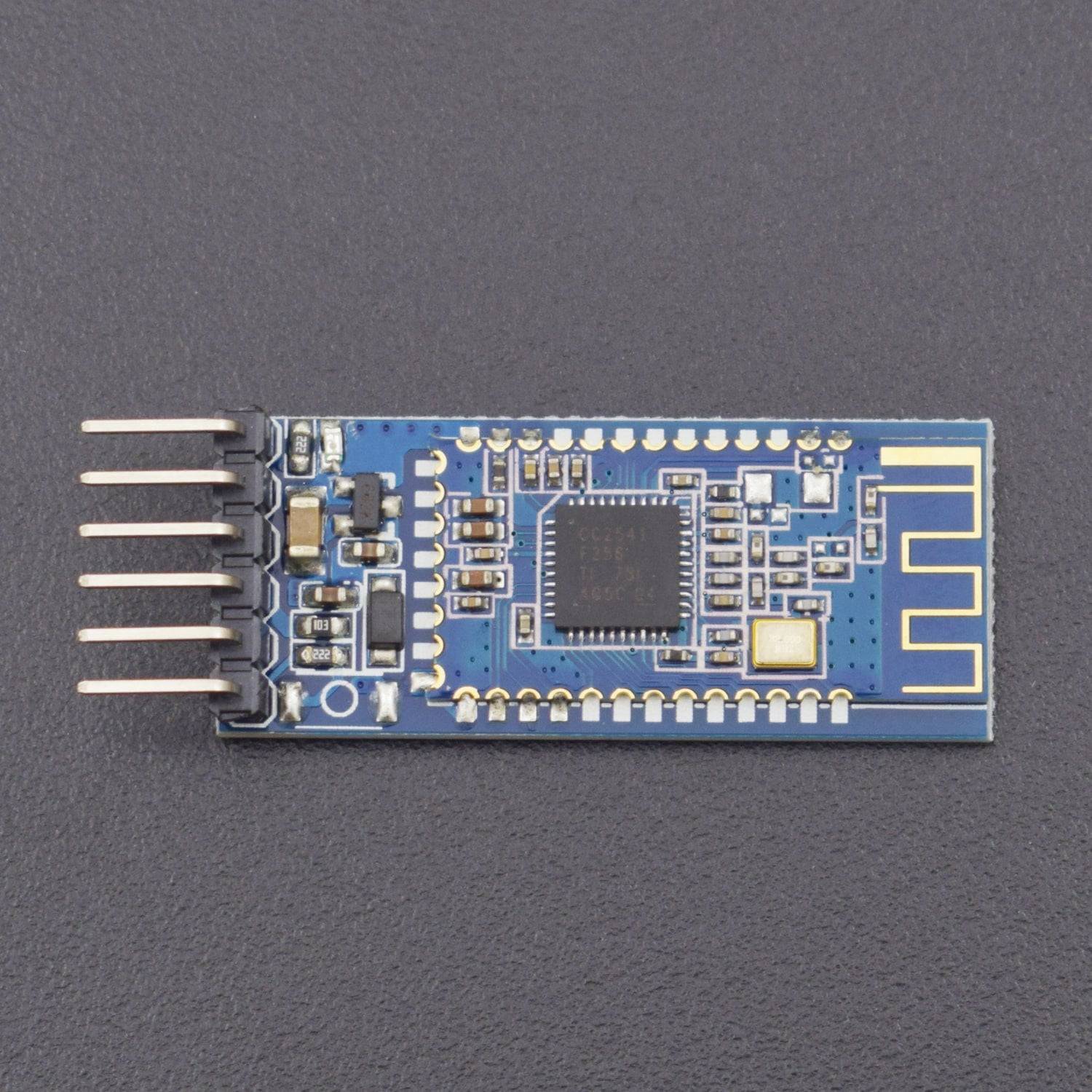

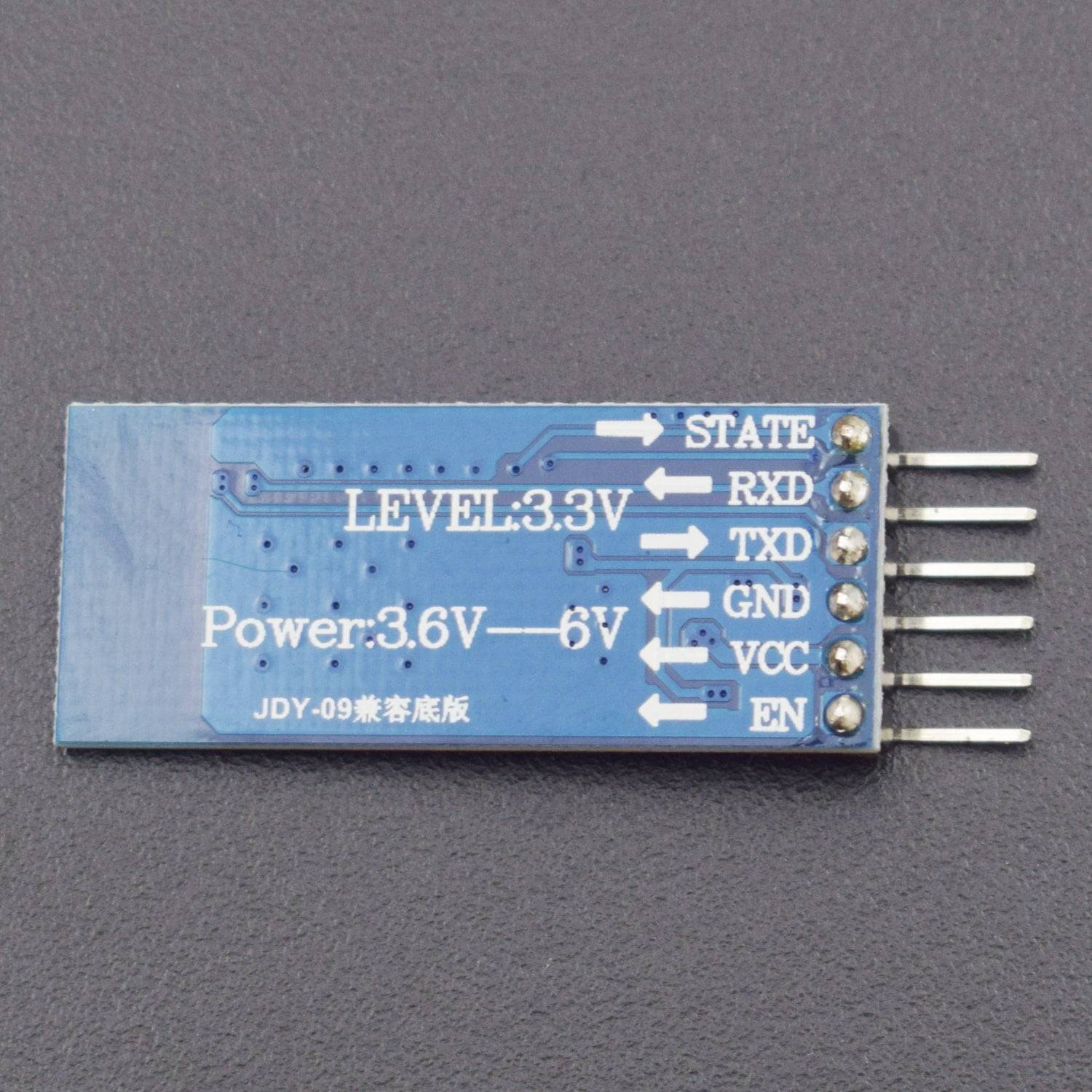

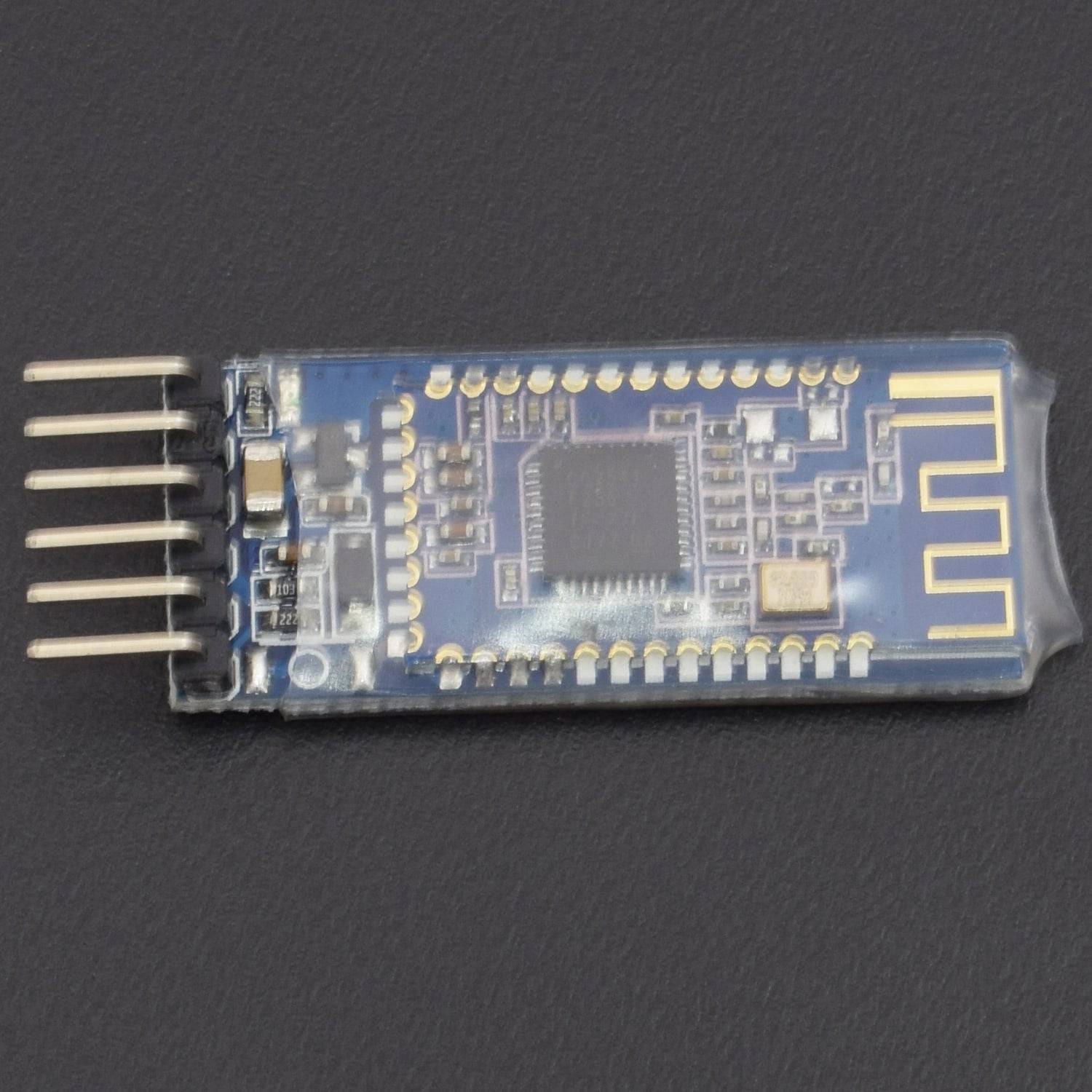

The HM-10 Bluetooth module combines the powerful and programmable Texas Instruments CC2541 Chipset with the required components to start right away with your BLE development. The module offers an onboard voltage regulator and is TTL-level and 5 V tolerant.
The Bluetooth-SoC can be accessed via the UART interface and supports AT-Commands for setup. It supports full Bluetooth 4.0 standard and can be used for your Arduino or microcontroller to Android or iOS communication projects. This module can be used to replace HC-05, HC-06, and HC-07 devices. This module can also be configured and used as an iBeacon for use with Apple devices.
Specifications:
- Flash:256Kb
- RF Power:≤4dBm, Class 2.
- Working frequency:2.4GHz ISM band.
- Sensitivity:≤-84dBm at 0.1% BER.
- Security: Authentication and encryption.
- Working temperature:-5 ~ +65 Centigrade
- Power: 0.5 mA for standby, Active 8.5 mA.
- Modulation method: GFSK(Gaussian Frequency Shift Keying).
- Speed: 2.1Mbps(Max) / 160 kbps (Asynchronous), 1Mbps/1Mbps(Max) (Synchronous).
- Bluetooth 4.0 BLE module supports central and peripheral mode switch, easy to modify by AT commander.
- It can be easily used for Android phones and iPhone, PCs, other Bluetooth devices.
Package included:
1 X HM-10 Bluetooth module
