HM-10 Portable 4.0 BLE Bluetooth 4.0 Uart Transceiver Module CC2540 CC2541-NA158

HM-10 Portable 4.0 BLE Bluetooth 4.0 Uart Transceiver Module CC2540 CC2541-NA158

NA158

156 in stock

Rs. 310.00
Rs. 310.00
Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details
  • Input Supply voltage (V) : 5
  • USB Protocol : USB V2.0
  • Operating Frequency : 2.4GHz ISM band
  • Modulation Mode : GFSK
  • Transmitting Power (dBm) : ≤4
  • Coverage Range (m) : 60
  • Sensitivity : ≤-84dBm at 0.1% BER

Description

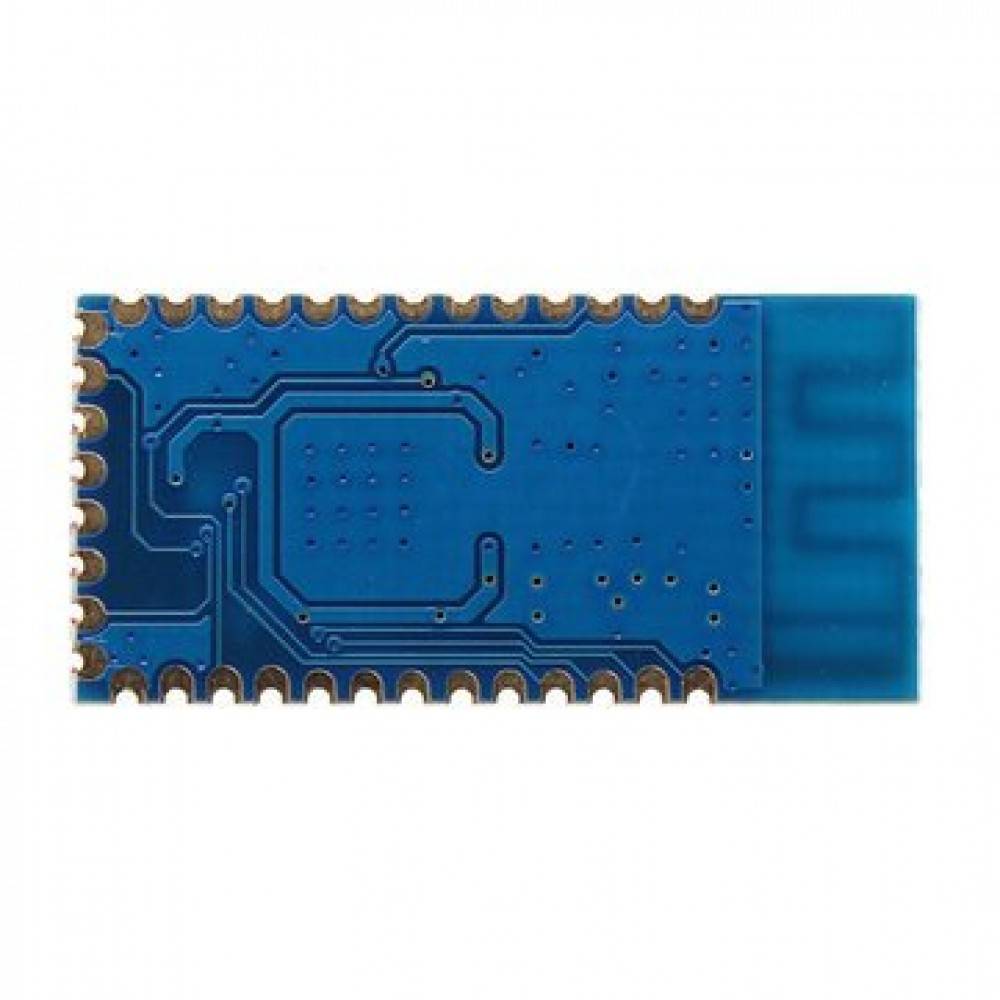

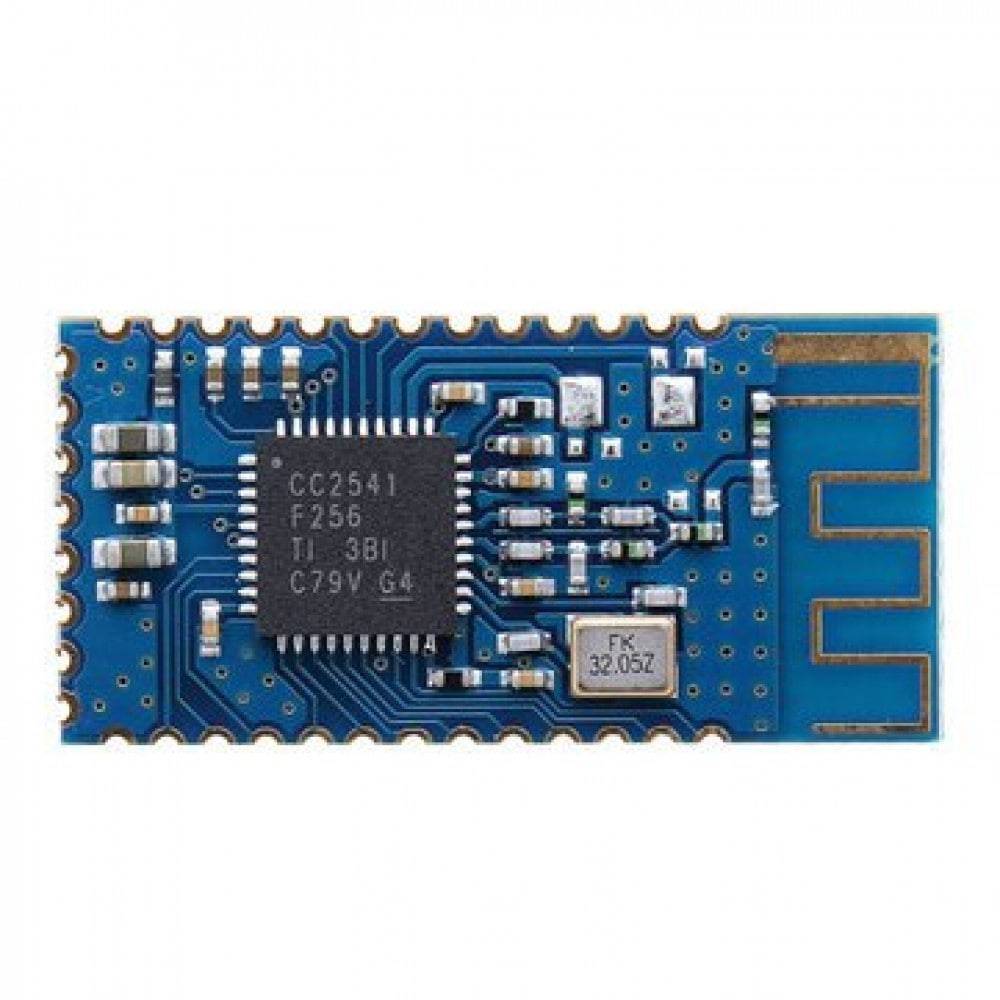

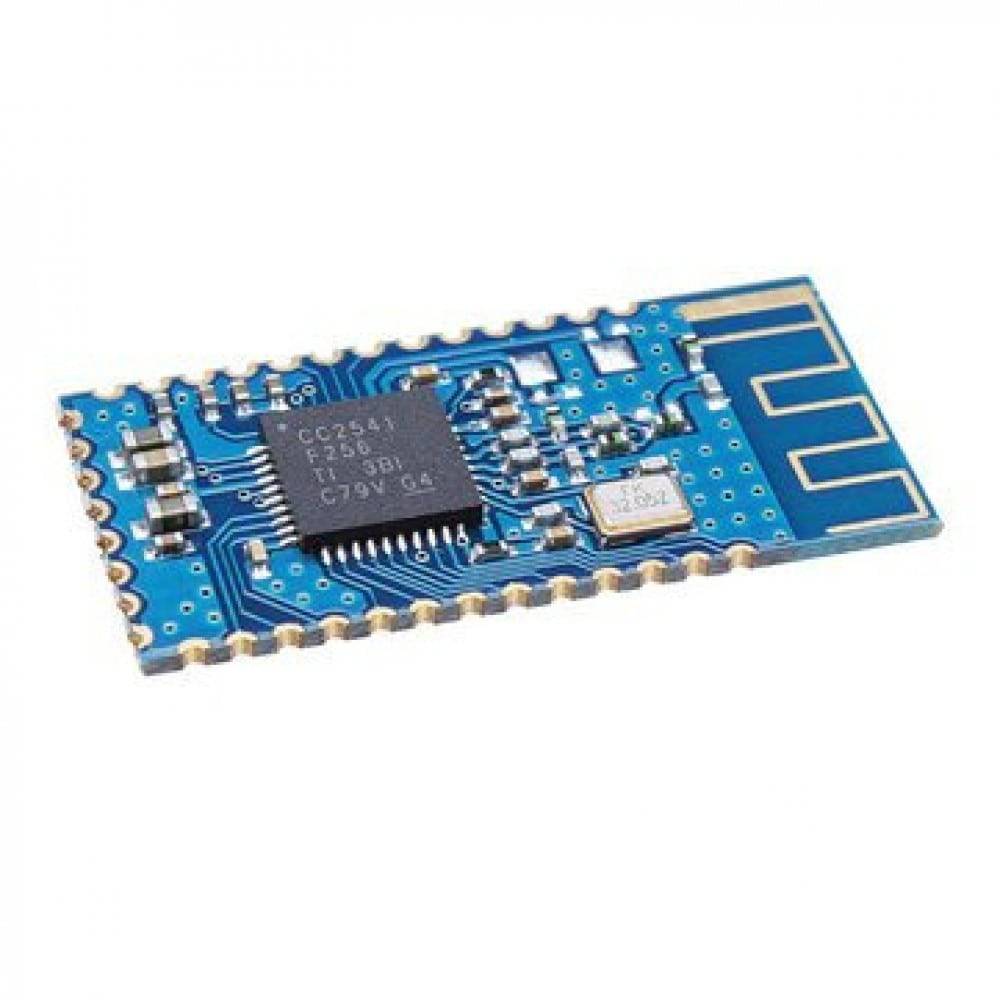

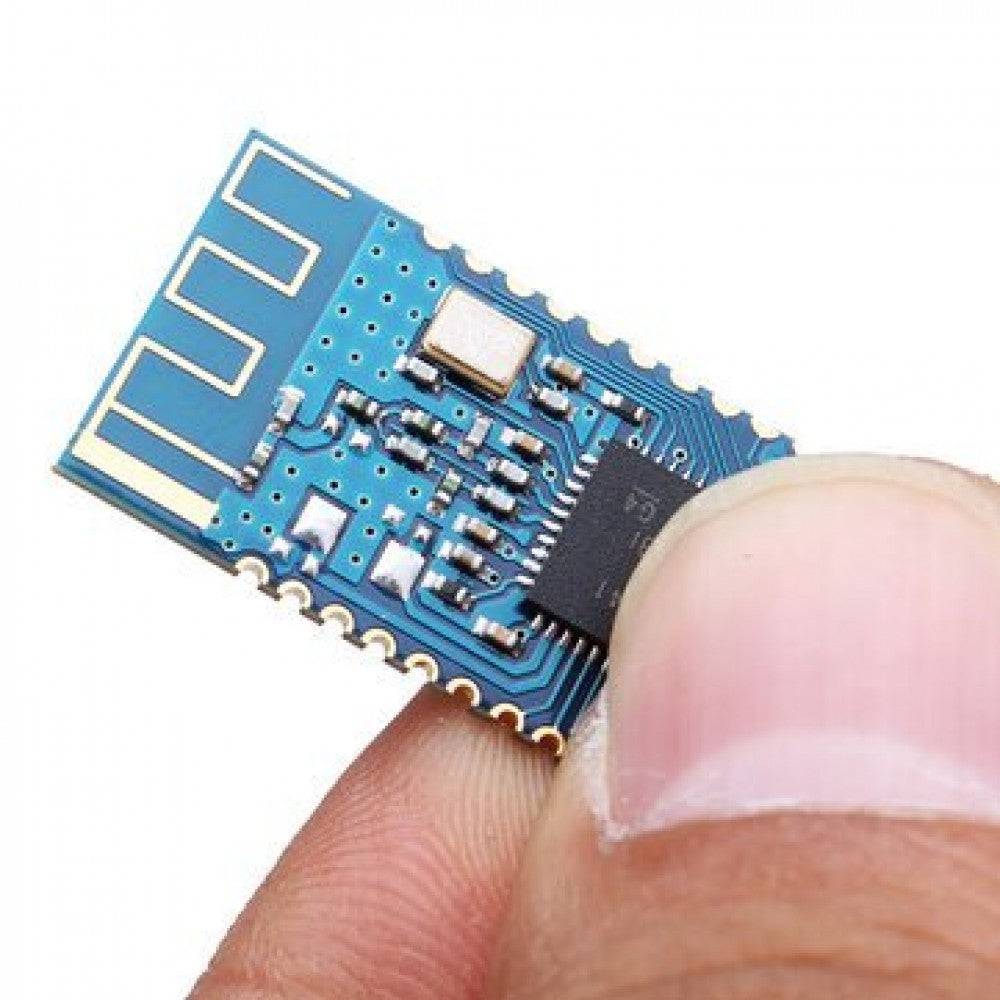

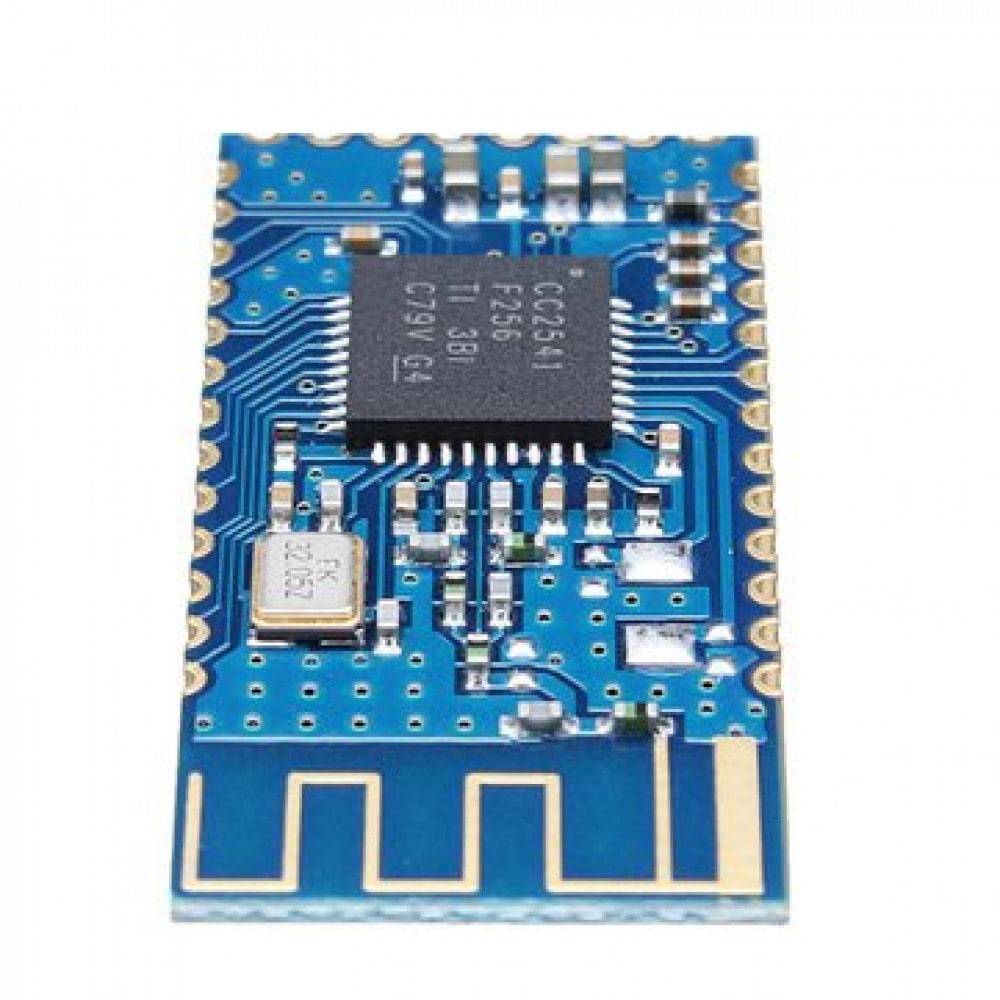

  • HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module is a BLE module for an embedded system to get BLE wireless communication with BLE capable devices (e.g. Android, iPhone, and iPad).
  • It is fully configurable by a rich and well-documented AT command-set and allows transparent data communication via serial UART (default baud rate 9600bps). The Bluetooth 4.0 HM-10 is basically a breakout board for cc2541, it broke out the LED pins, RX/TX, and also added the voltage regulator that regular 5v to 3.3 v.
  • HM-10 and HM-11 series Bluetooth modules use TI CC2540 chip, configure 256KB space, and support the AT command. Users can change the role (master, slave mode) and the serial port baud rate, equipment name, matching password and other parameters on-demand. It is very flexible to use.
  • The most complete, most convenient, and most stable Bluetooth data transmission, remote control and data acquisition module. Master-slave in one, transparent transmission, replacing the serial port. Remote control, transparent transmission, MCU are unnecessary. Remote data acquisition, transparent transmission, MCU is unnecessary.

Pin Description of HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module

  • STATE: state test pins, connected to an internal LED, generally keep it unconnected.
  • BRK: break connect, it means breaking the Bluetooth connection, generally keep it unconnected.
  • VCC: positive pole of the power source.
  • GND: Ground.
  • TXD: serial interface, transmitting terminal.
  • RXD: serial interface, receiving terminal.

Technical Details:

  • Input Supply voltage (V) : 5
  • USB Protocol : USB V2.0
  • Operating Frequency : 2.4GHz ISM band
  • Modulation Mode : GFSK
  • Transmitting Power (dBm) : ≤4
  • Coverage Range (m) : 60
  • Sensitivity : ≤-84dBm at 0.1% BER

Physical Attributes:

  • L x W x H (mm): 47 x 17 x 8
  • Weight (gm) : 4

Package Included :

1 X HM-10 Portable 4.0 BLE Bluetooth 4.0 Uart Transceiver Module CC2540 CC2541
