- Input Supply Voltage: 5V DC
- Communication Speed: 230400 baud maximum
- Connection Speed (Kbps): Up to 230.4
- DHCP: Yes
Description:
The WI04 module provides designers with a ready-made component that provides a fully integrated solution for applications, using the IEEE802.11 standard in the 2.4-2.5GHz ISM frequency band, including 802.11b/g/n and also provides IEEE802.3, which can be quickly and easily included in product designs. The modules integrate all of the RF components required. UART to WIFI Wireless Module,UART to Ethernet Module,Ethernet to WIFI Module,UART server module,Make your Serial Device connected to the Internet easily. Double Data Rate All transparently. Guarantee the highest limit of Usability and Compatibility.
Specification:
- Input Supply Voltage: 5V DC
- Communication Speed: 230400 baud maximum
- Connection Speed (Kbps): Up to 230.4
- DHCP: Yes
Features:
- The highest baud rate is up to 230.4 Kbps of serial communication. and the highest rate of TTL serial port is 500KBPS.
- Each module in strict test and power correction, Ensure consistency of the product.
- The free conversion of double serial ports、double Ethernet ports and WIFI. Catering to your extensive demands. 802.11 b/g/n WIFI support.
- Operating Temperature: Industry: -25~75°C
- Built-in 360MB MIPS CPU, 16M RAM,4M FLASH, Wireless baseband, RFFE, and a variety of peripheral buses.
- Support the IEEE 802.11 b/g/n.Support transparent protocol data transmission mode.
- Support General encryption methods and algorithms of WIFI, WEP/WAP-PSK/WAP2-PSK/WAPI, Encryption type: WEP64/WEP128/TKIP/AES.
- Provide the AT + instruction set configuration, Provide a friendly Web configuration page, configured via Web.
- HLK - EM04 module optional built-in onboard or external antenna.
- Support WIFI work in AP model and node mode, The real hardware AP, Supports iPhone and all android phones connected WIFI. Supports AP and station simultaneous online.
- Optional TCP Server/TCP Client/UDP mode,Support network protocols:TCP/UDP/ARP/ICMP/HTTP/DNS/DHCP.
- Support DHCP to automatically obtain IP, Support when working in AP mode assigned IP from the device.
- The rate of the serial port is adjustable,1200-230400.
Package Included :

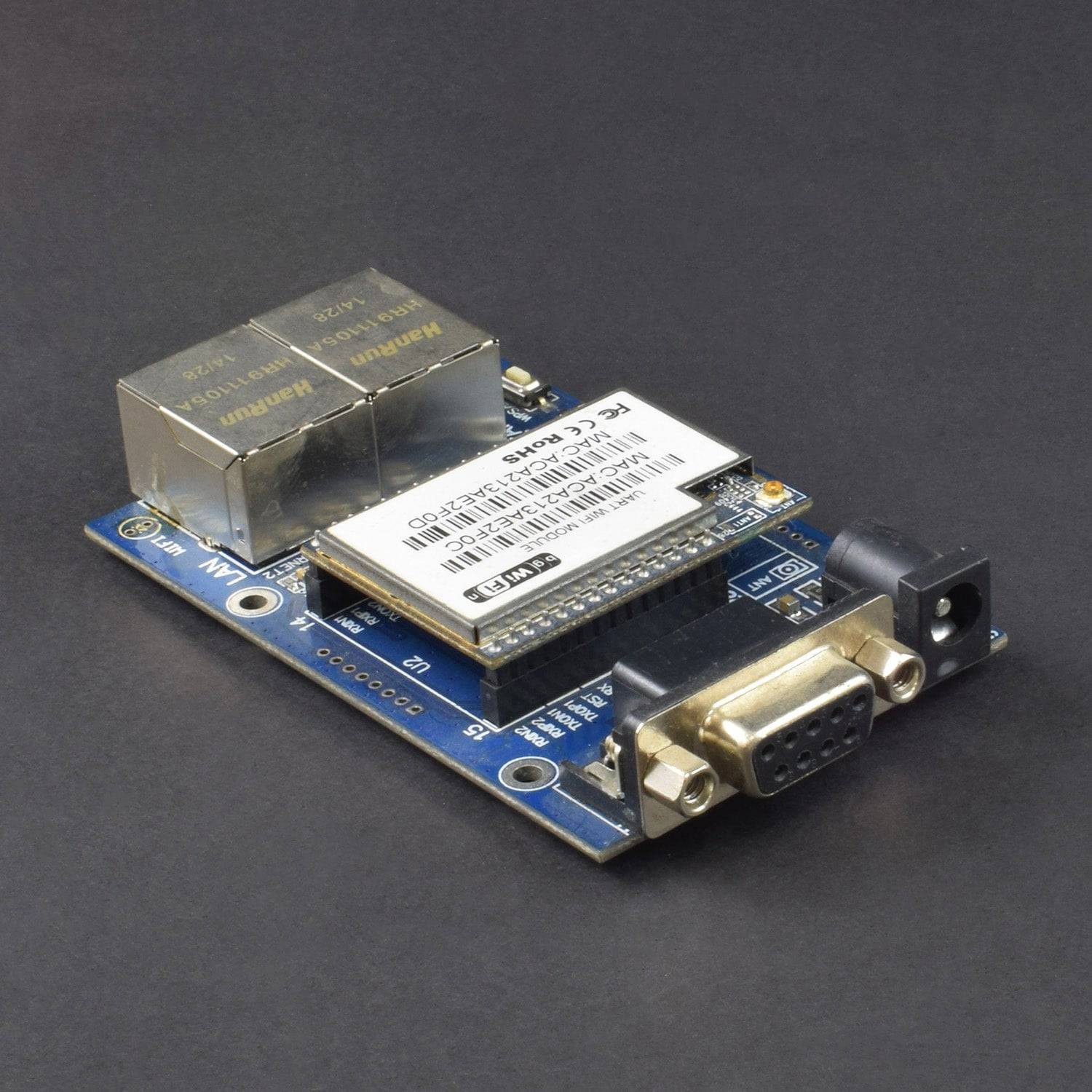

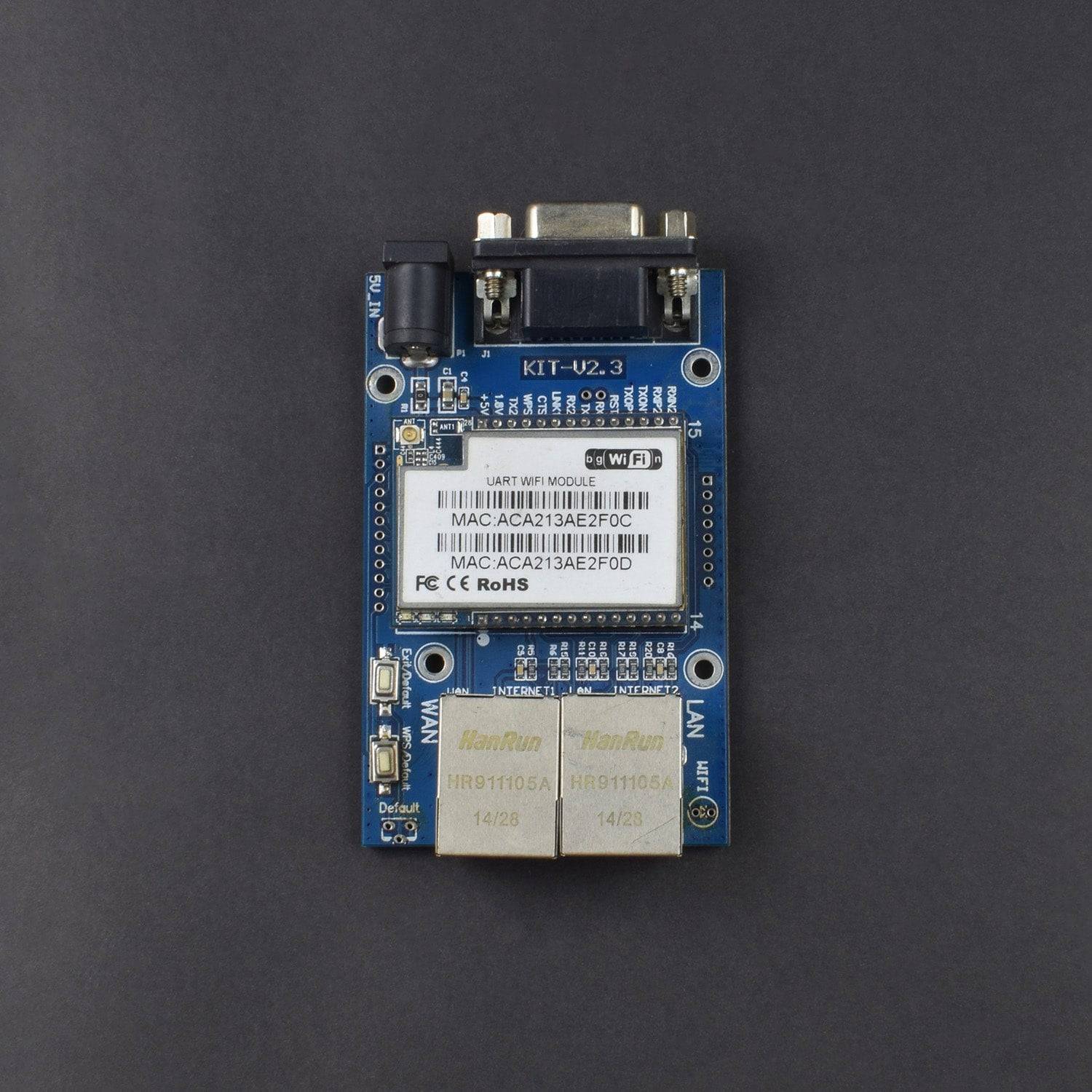

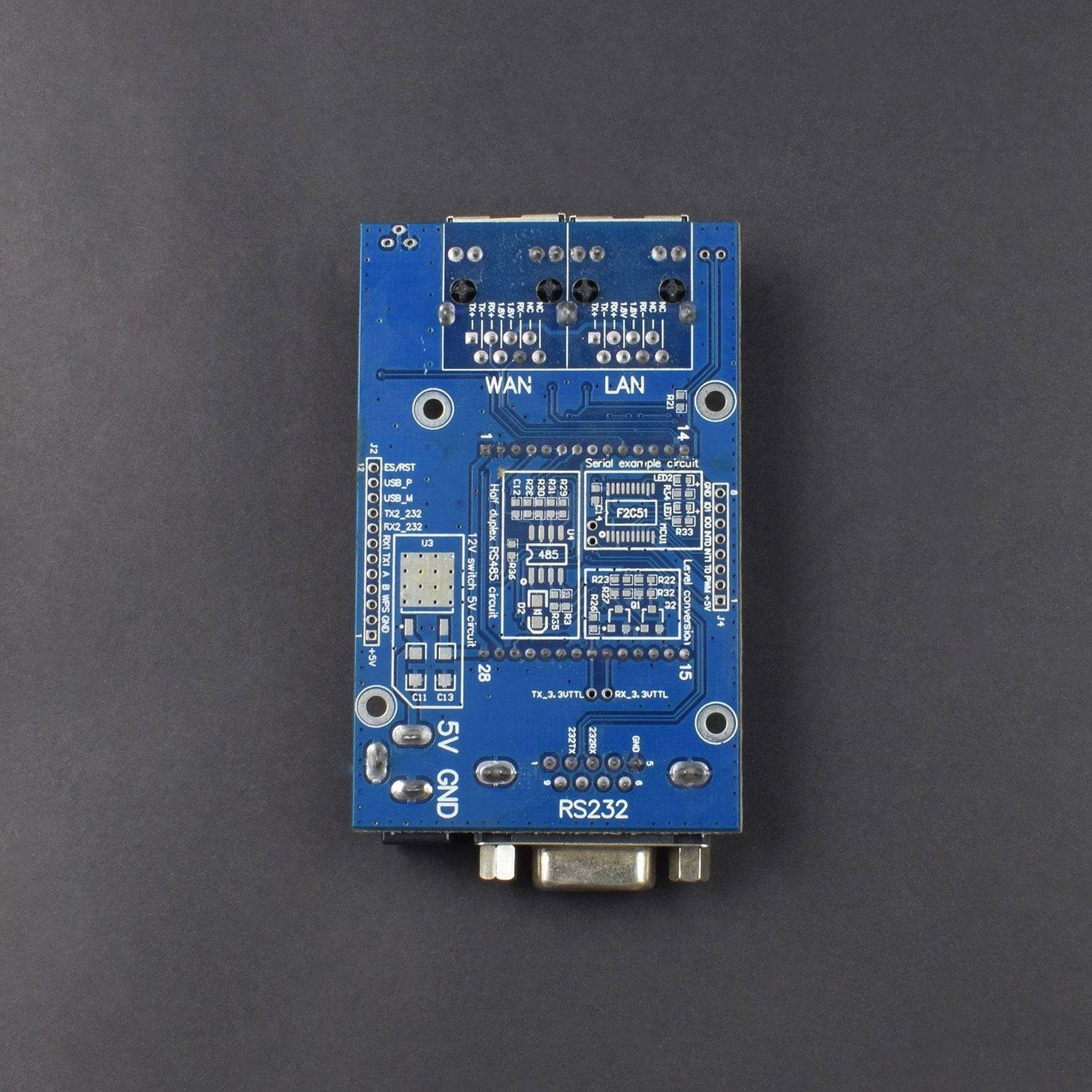

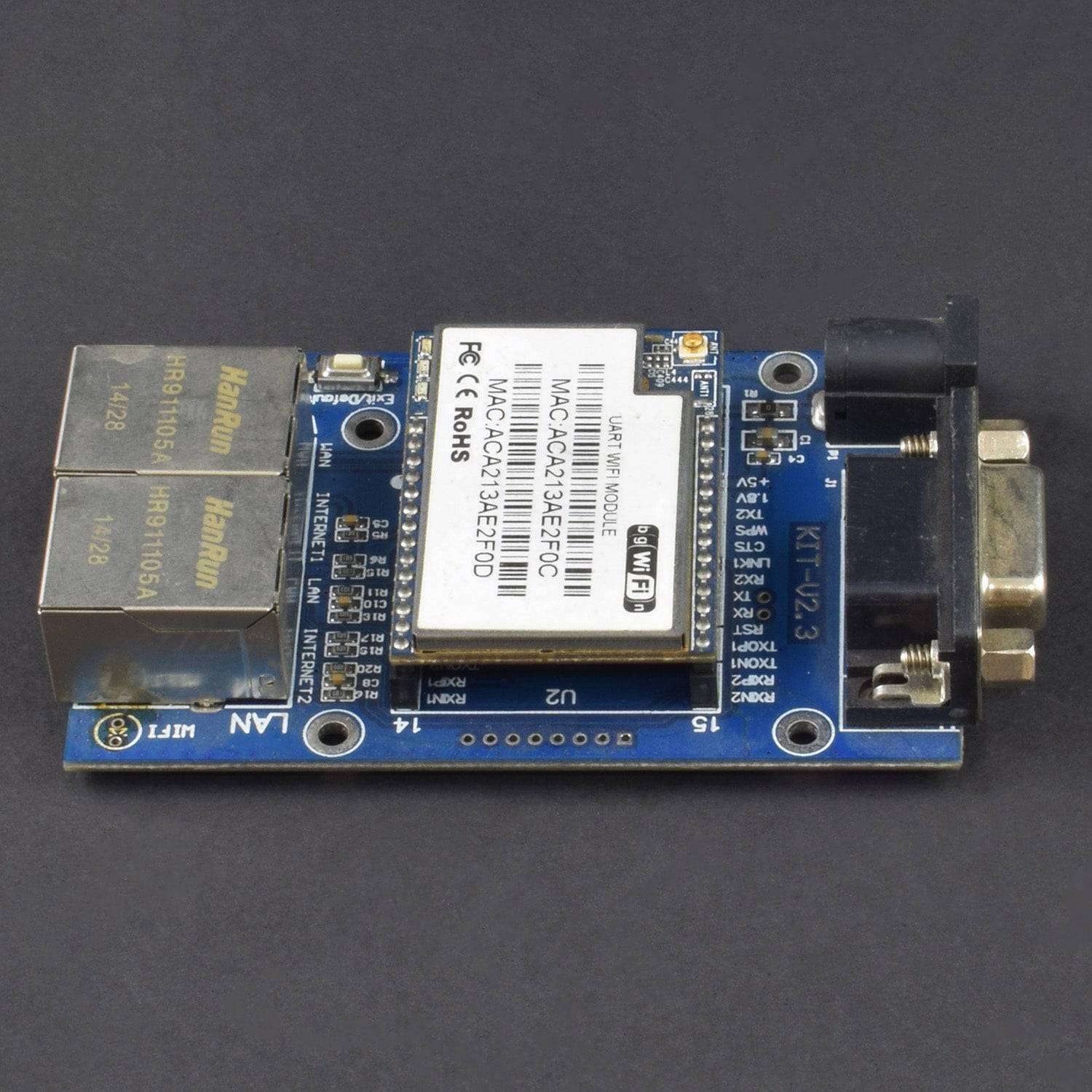

1 x HLK-RM04 RM04 UART Serial Port to Ethernet WiFi Wireless Module with Board Development
