Description:

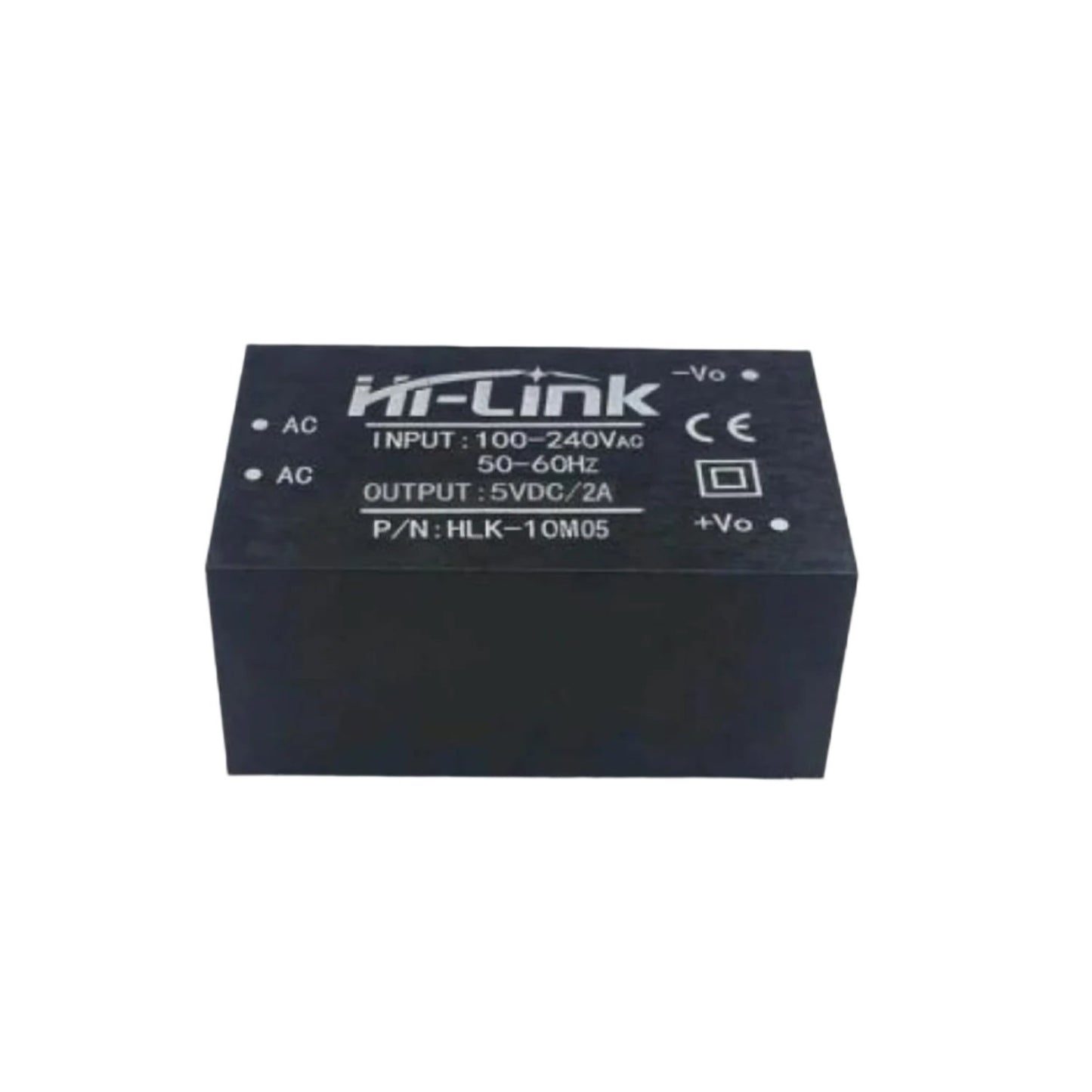

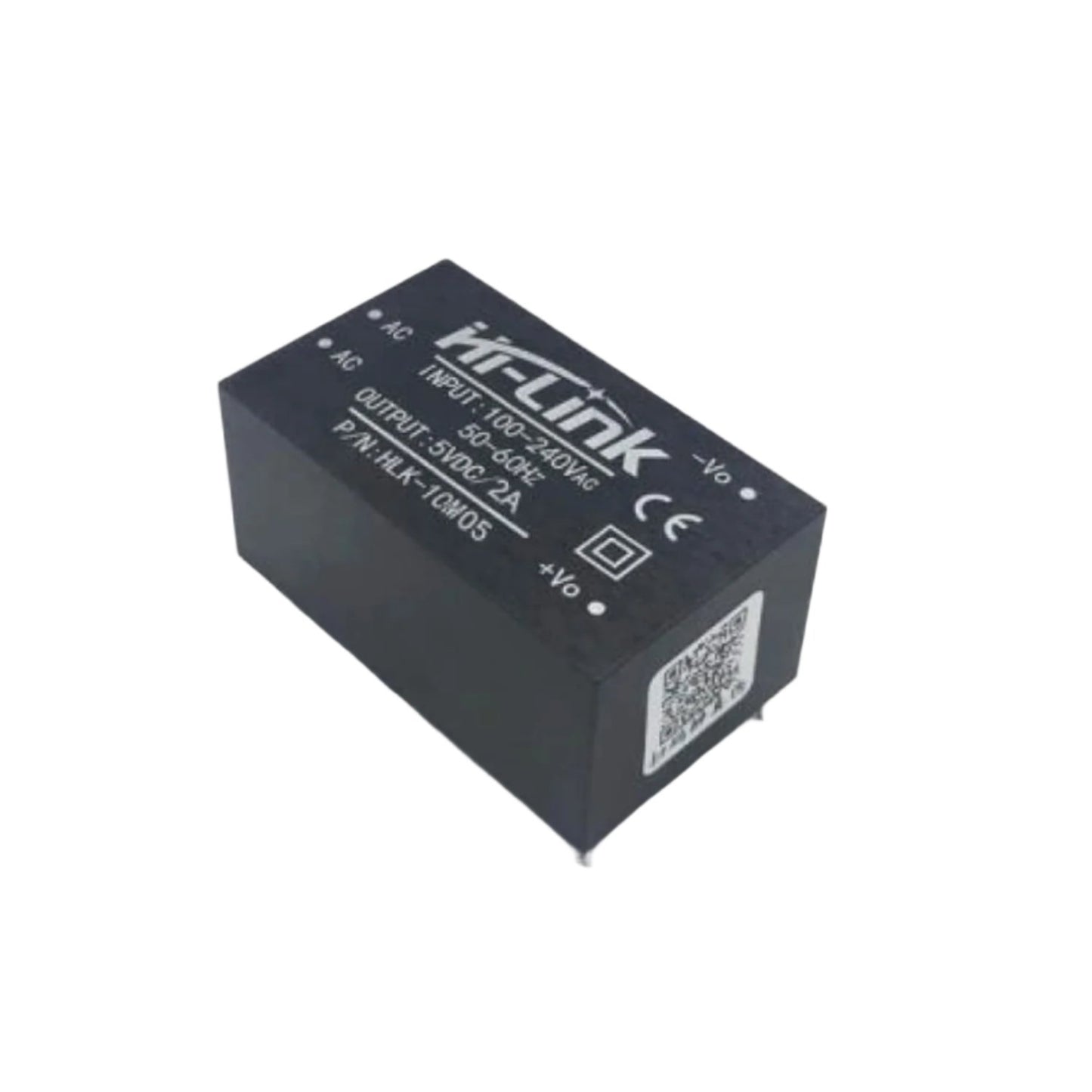

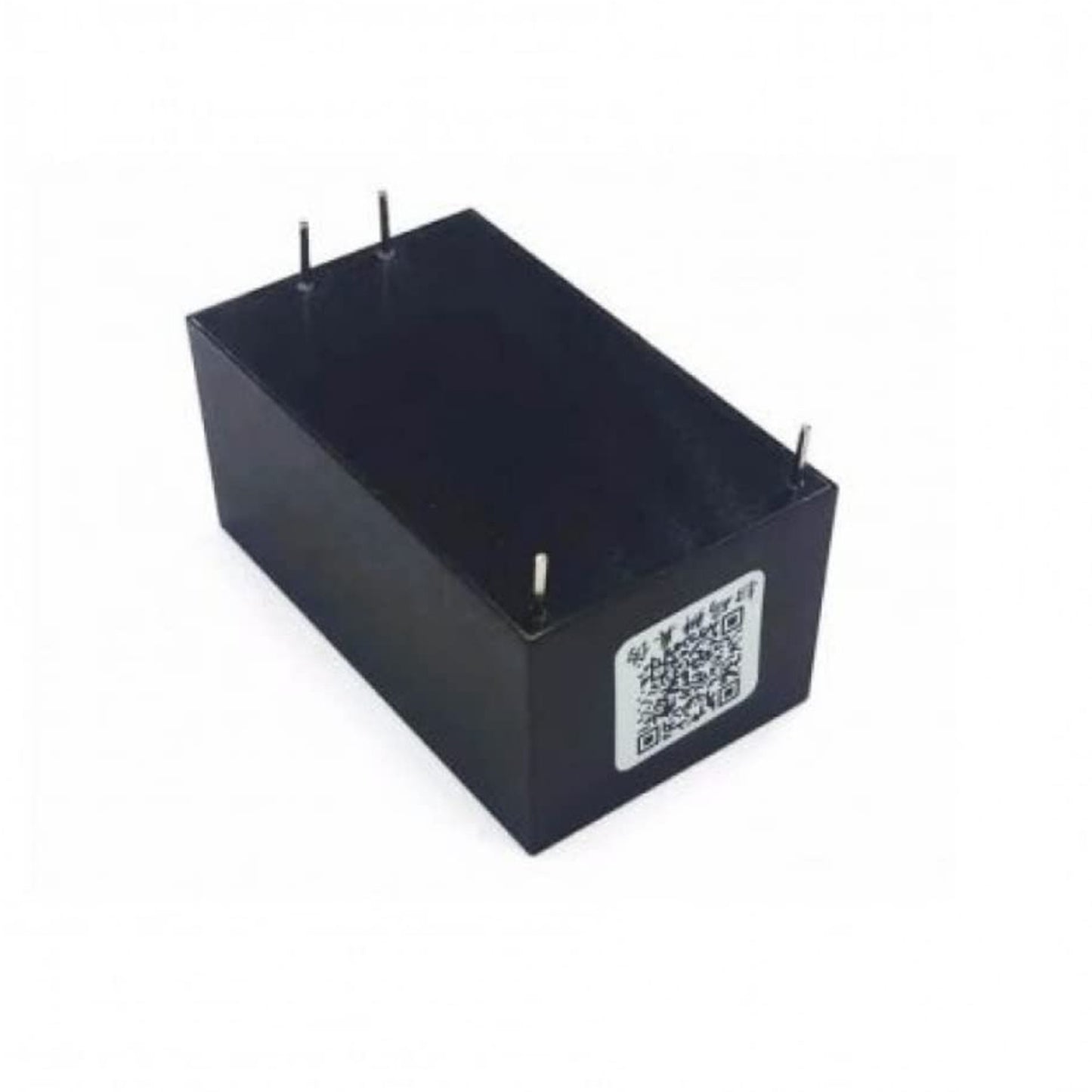

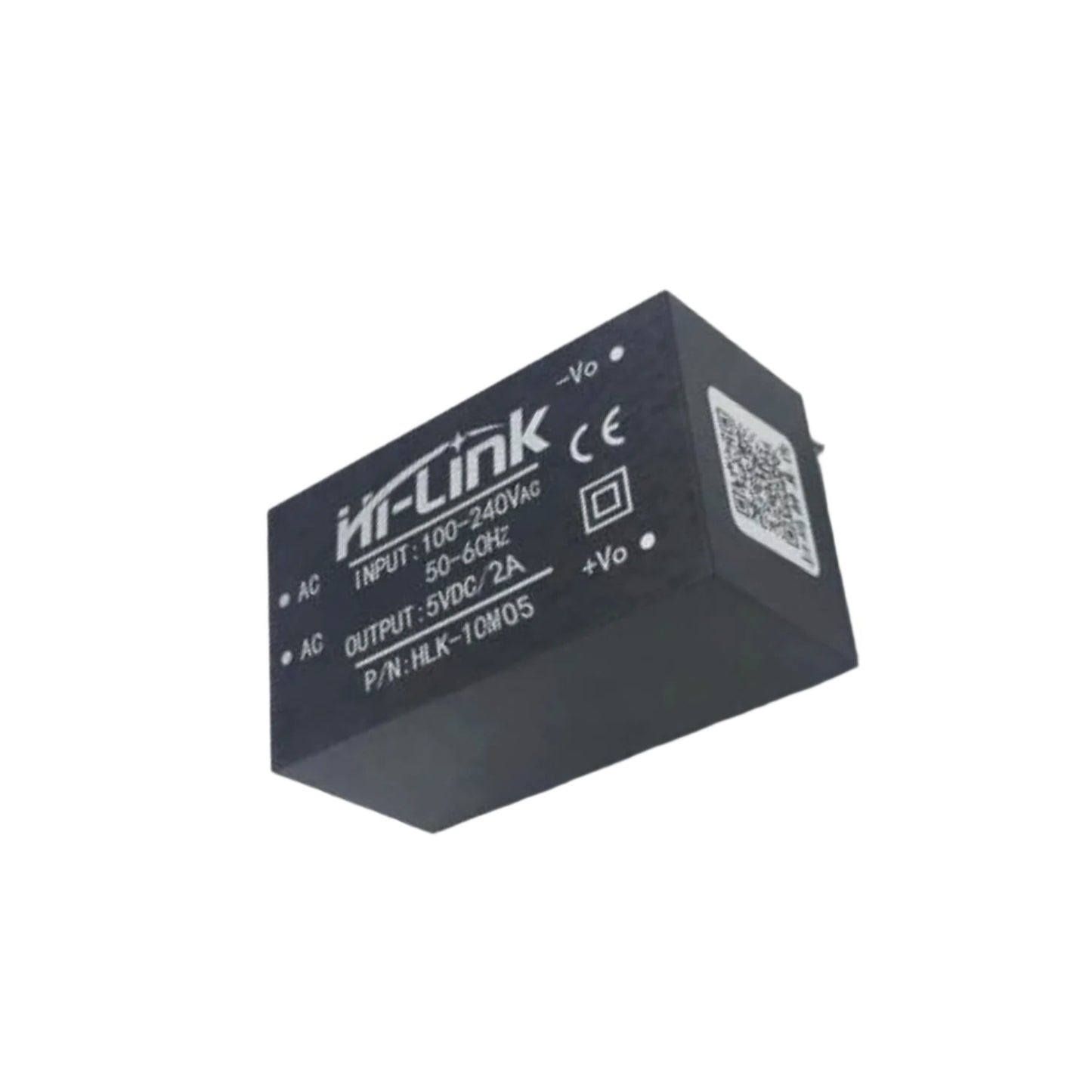

Hi-Link HLK-10M05 Power Supply Module your projects efficiently with the HLK-10M05 - 5V 10W AC-DC Step Down Mini Power Module. This compact and reliable module provides stable 5VDC output from AC mains, making it ideal for LED lighting, industrial automation, embedded systems, etc. AC-DC Power Supply Module. It is widely used in a smart home, automation and control, communication equipment, instrumentation, and other industries.
Specifications:
- Model Number: HLK-10M05
- Output Power(W): 10
- Output Type: Single
- Input Voltage(V): 100-240
- Output Voltage(V): 5
- Output Current(mA): 2000
- Working Temp(C): -25 – +60
- Working Humidity: 5-95
Features:
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection, no-load loss 0.1W
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- All voltage input (AC: 100 ~ 240V)
- Meet UL, CE requirements,
- Ultra-thin, ultra-small
Package Included:
1 x Hi-Link HLK-10M05 Power Supply Module 5V 10W AC-DC Power Adapter Hi-Link Power Supply Reliable AC-DC Power Supply Module Compact Power Supply For DIY Electronics
