- Ideal for protecting sensitive printed circuit board (PCB) components such as gold leads and gold fingers during the process of wave soldering.
- Color: mainly tawny. Material: durable polyimide and silicone
- Size: Width: about 48mm; Length: about 33m /100ft. Heat resistance: about 280°C.
- Also extensive use as electrical insulation for transformer, motor, coil, capacitor and frequency conversion power supply in electronic industry.
Description:
high temperature tapes are made from polyimide film with silicone adhesive. They are compatible with a wide temperature range as low as -73°C (-99°F) and as high as 260°C (500°F).For applications where extremes of heat and vibration are the norm, designers rely on it because of its ability to maintain its unique combination of mechanical properties under the harshest of conditions.
Specification:
- Substrate material: Polyimide polymers film
- Glue Type: Silicone
- Substrate material thickness: 0.025mm
- Thickness with adhesive: 0.05mm
- Size: (48mm*33m)
- Elongation: 35 %
- Temperature Range:-73°C – 260°C (-99°F - 500°F)
Applications:
- Automotive sensor and manifolds
- Insulating circuit boards
- Etching
- Fiber Optics Cable
- High temperature powder coating
- Semiconductor manufacturing
Package Included:

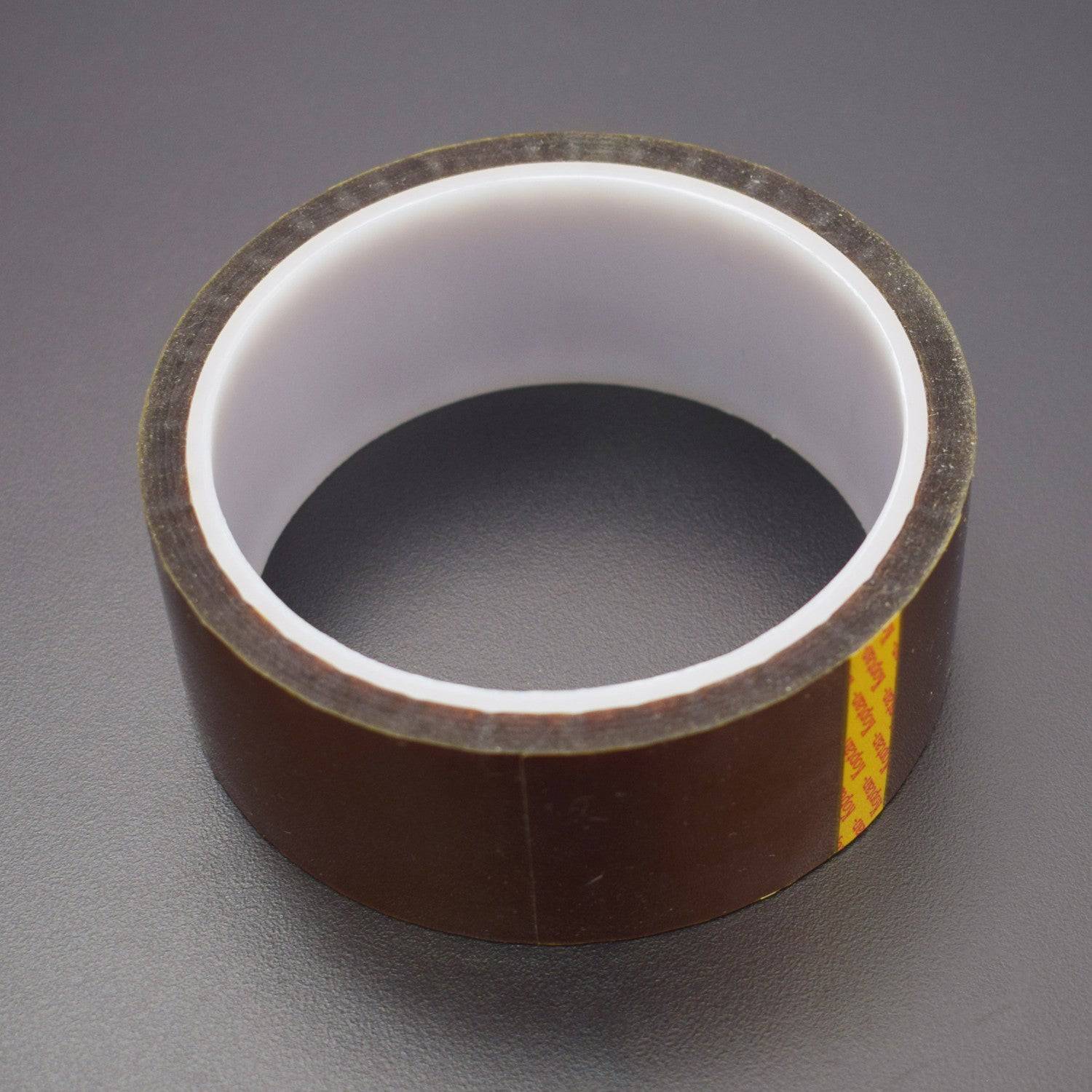

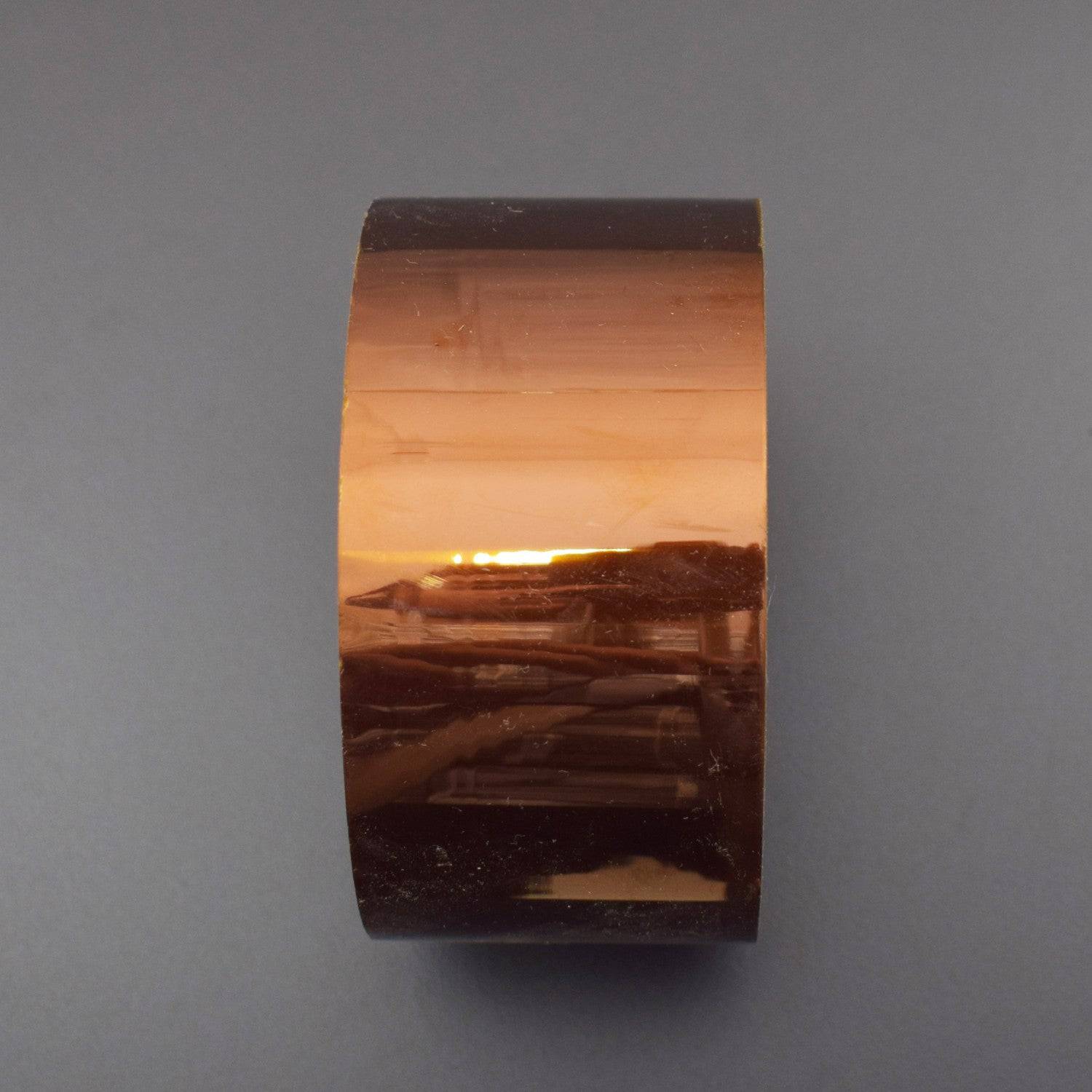

1 x Heat Resistant Tape 48mm*33m Roll
