Description:
This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 12V to 80V and output voltage is 0-100% of the input voltage. This speed controller support soft start and soft stop, which is quite convenient to set.
Specification:
- Input Voltage: DC 12V-80V
- Output Voltage: 0-100% of the input voltage
- Maximum Current: 30A
- Control Power: 12V 250W or less, 24V 350W or less, 48V 500W or less
- Speed Range: 0~100%
- PWM Frequency: 21kHz
Features:
- Motor speed controller support soft start and soft stop, which reduces the mechanical stress on the motor and shaft.
- Designed with a digital display panel for easy reading and convenient setting of speed adjustment.
- Suitable for 12V motors with power less than 50W, 24V motors with power less than 350W, and 48V motors with power less than 500W.
Instructions:
- Install the control panel on the panel interface.
- Connect the DC motor (or DC load) and DC power to the terminals indicated on the wiring diagram.
- Make sure the correct polarity of the connection.
- Note: It is recommended to add a properly rated fuse in line with the positive supply to protect the circuit from any possible short circuits.
- Turn on the power. LED lights, the power is ok.
- Press the [MENU] key and the up and down keys to configure the functions.
- Press the [RUN / STOP] key to start and stop the engine.
Package Included:

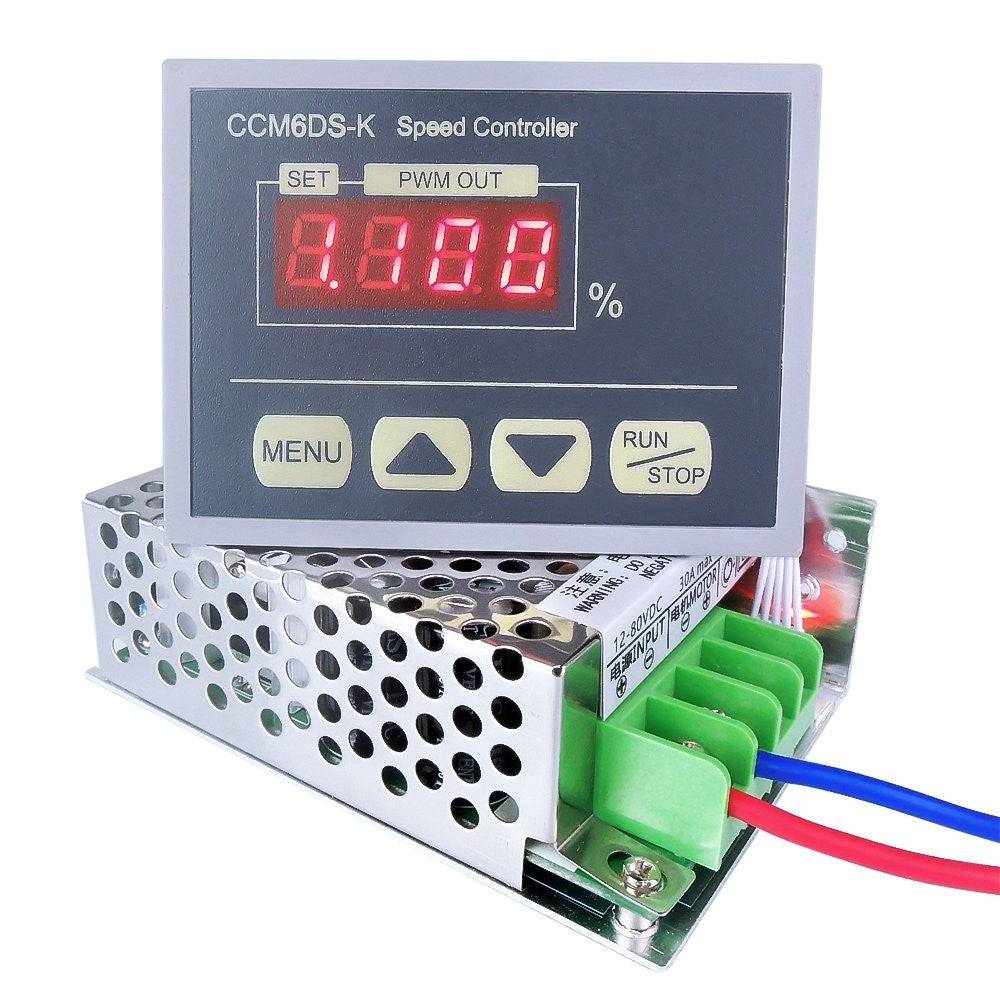

1 x High Power 12V-80V DC 30A LED Digital Display PWM HHO RC DC Motor Speed Controller
