Description:

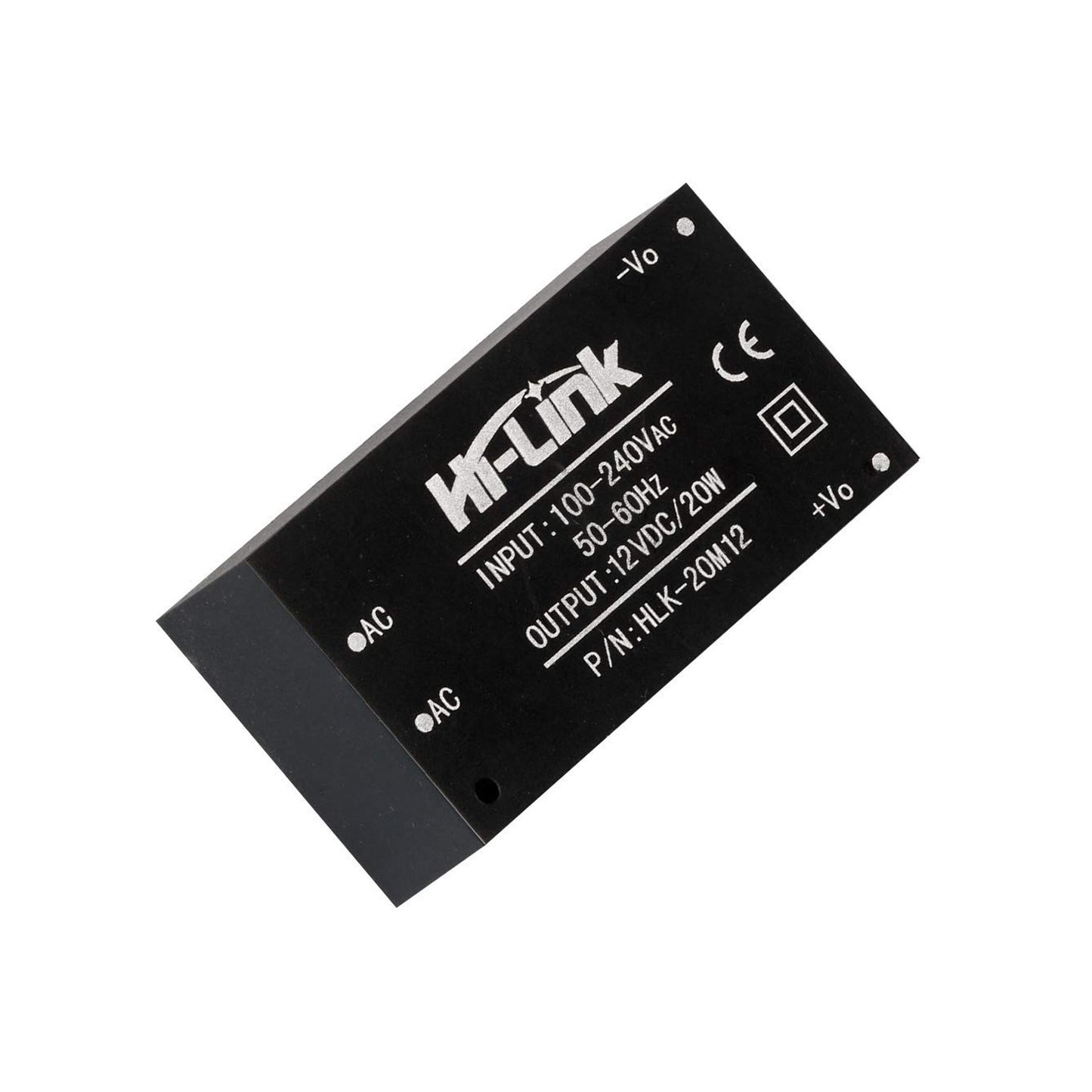

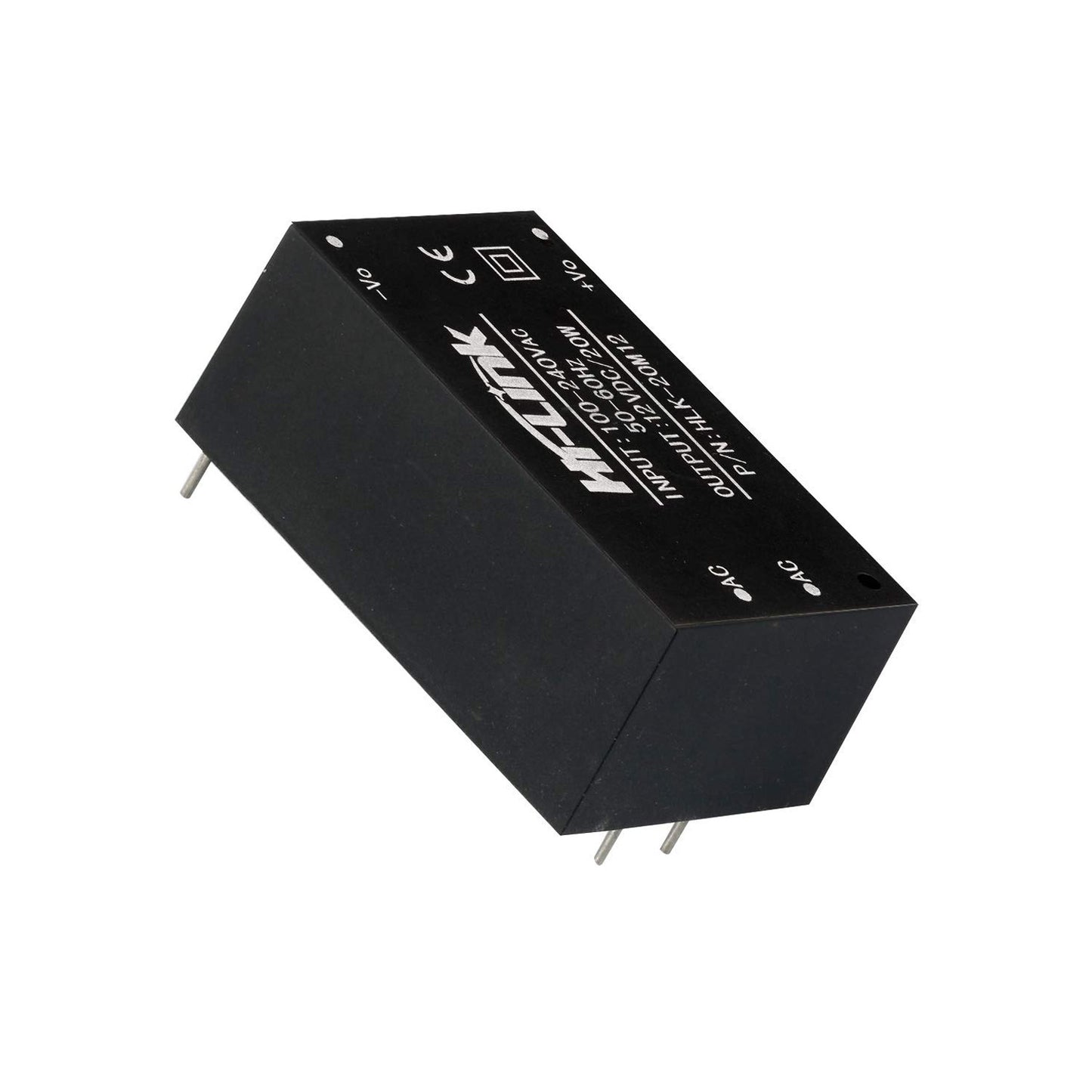

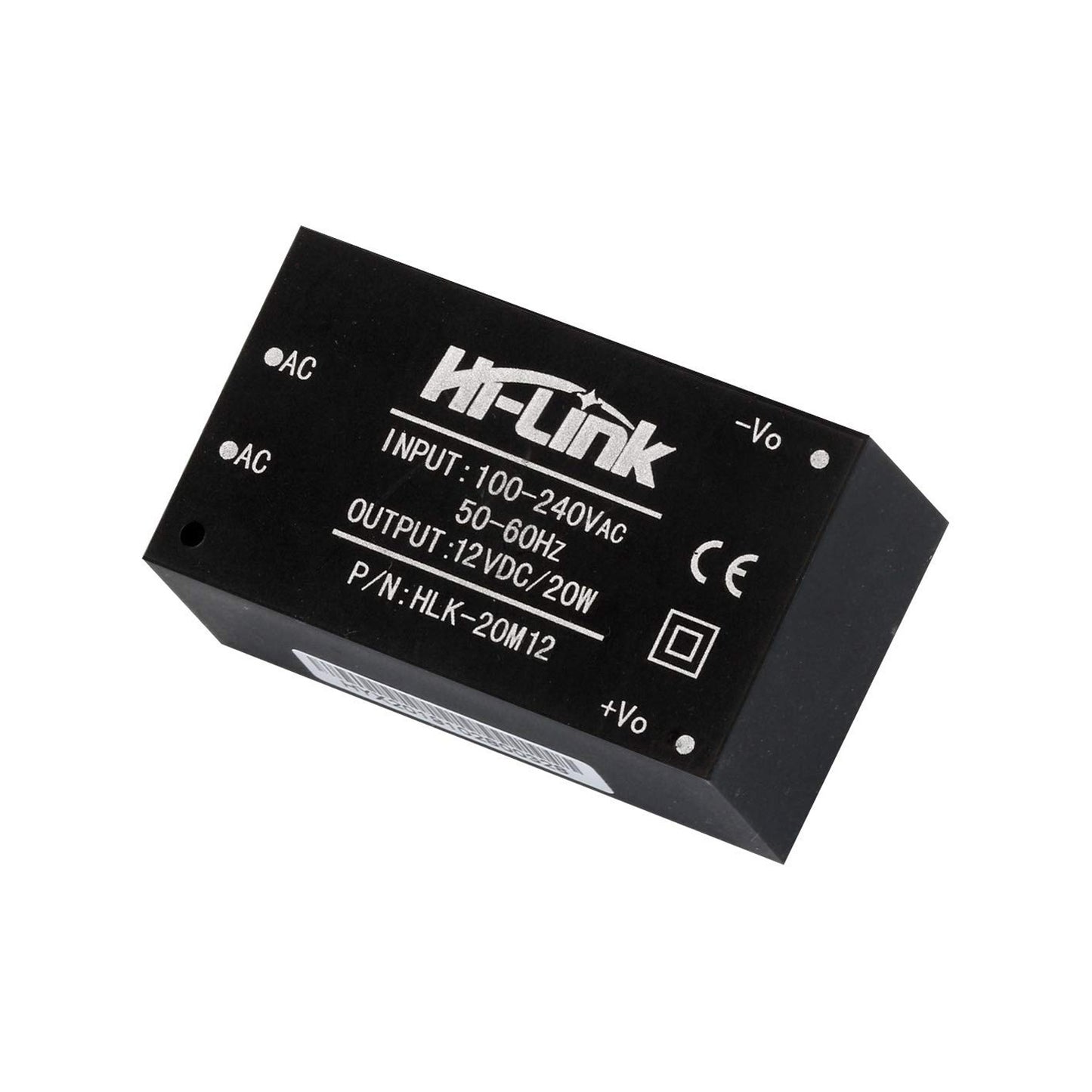

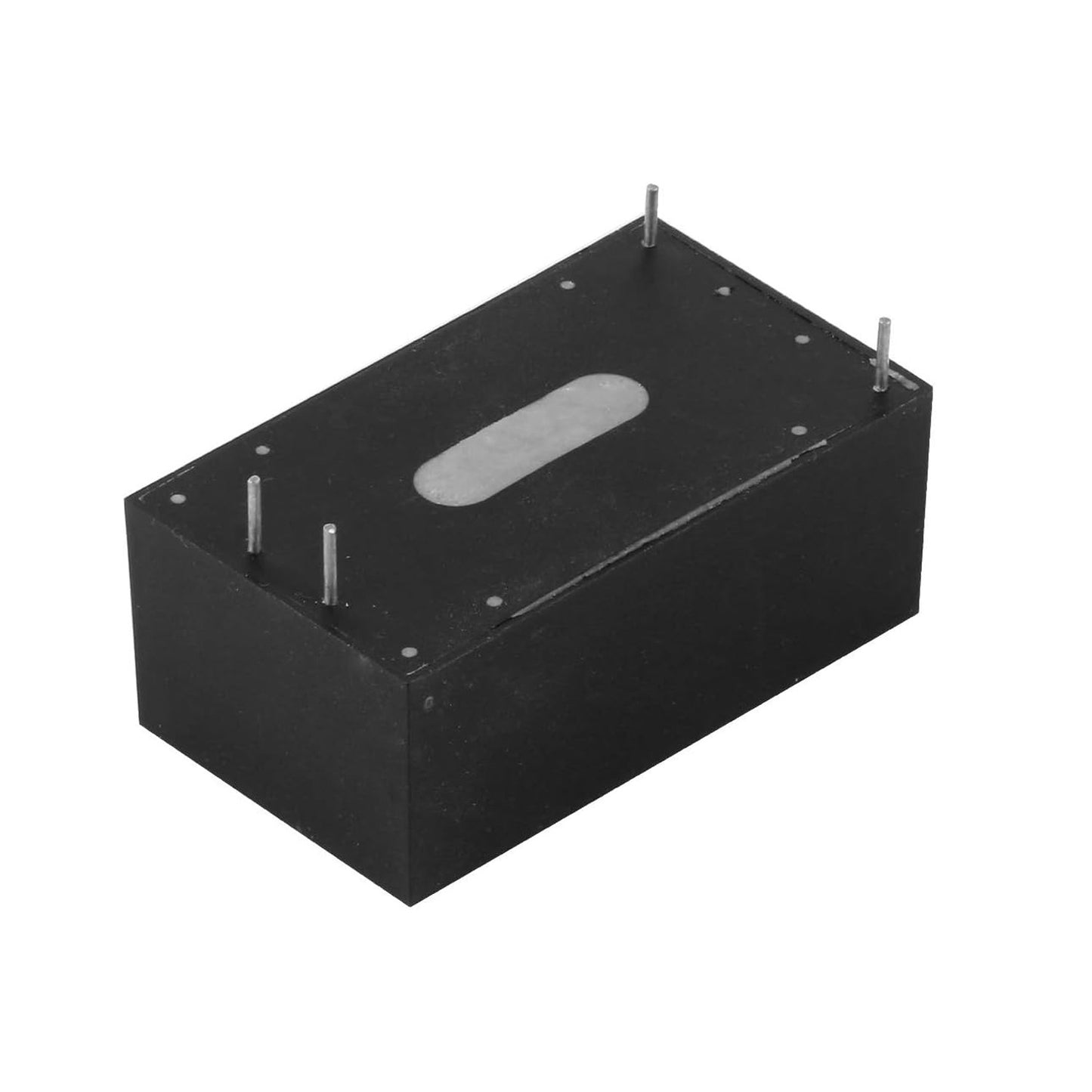

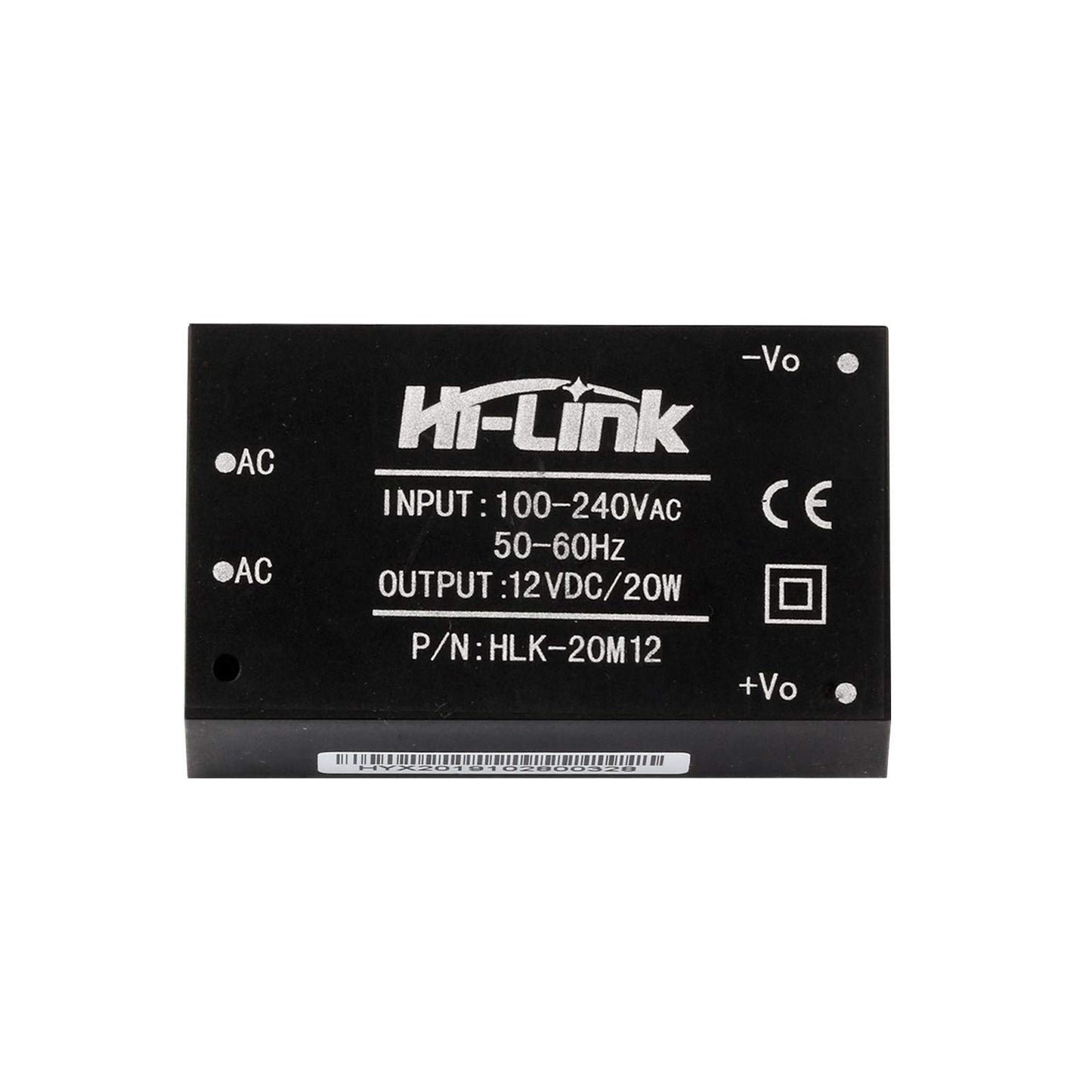

HLK-20M12 AC-DC Power Supply Module is a plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 12V DC from 100V AC to 240V AC and has a power rating of 20 watts.
The 20W ultra-small series power supply module is a small-volume, high-efficiency power module for customers designed by Hi-Link. It has the advantage of a global input range, low-temperature rise, low power consumption, high efficiency, high reliability, etc.
Specifications:
-
Model Number: HLK-20M12
-
Output Power: 20W
-
Output Type: Single
-
Input Voltage: 100-240V
-
Output Voltage: 12V
-
Output Current: 1600mA
- Working Humidity: 5-95
Features:
- The Product is Designed To Meet The Requirements Of The EMC And Safety Test
- Low Power Consumption, Environmental Protection, No-Load Loss 0.1W
- High Efficiency, High Power Density
- Low Ripple And Low Noise
- Output Overload And Short Circuit Protection
- Meet UL, CE Requirements,
- Ultra-Thin, Ultra-Small
Package Included:
1 x Hi-Link HLK-20M12 AC-DC Power Supply 12V 20W Power Supply AC to DC Converter Switching Power Supply Module Reliable 12V 20W Step-Down Power Supply Module Isolated Switching Power Supply For Industrial Applications
