Description:

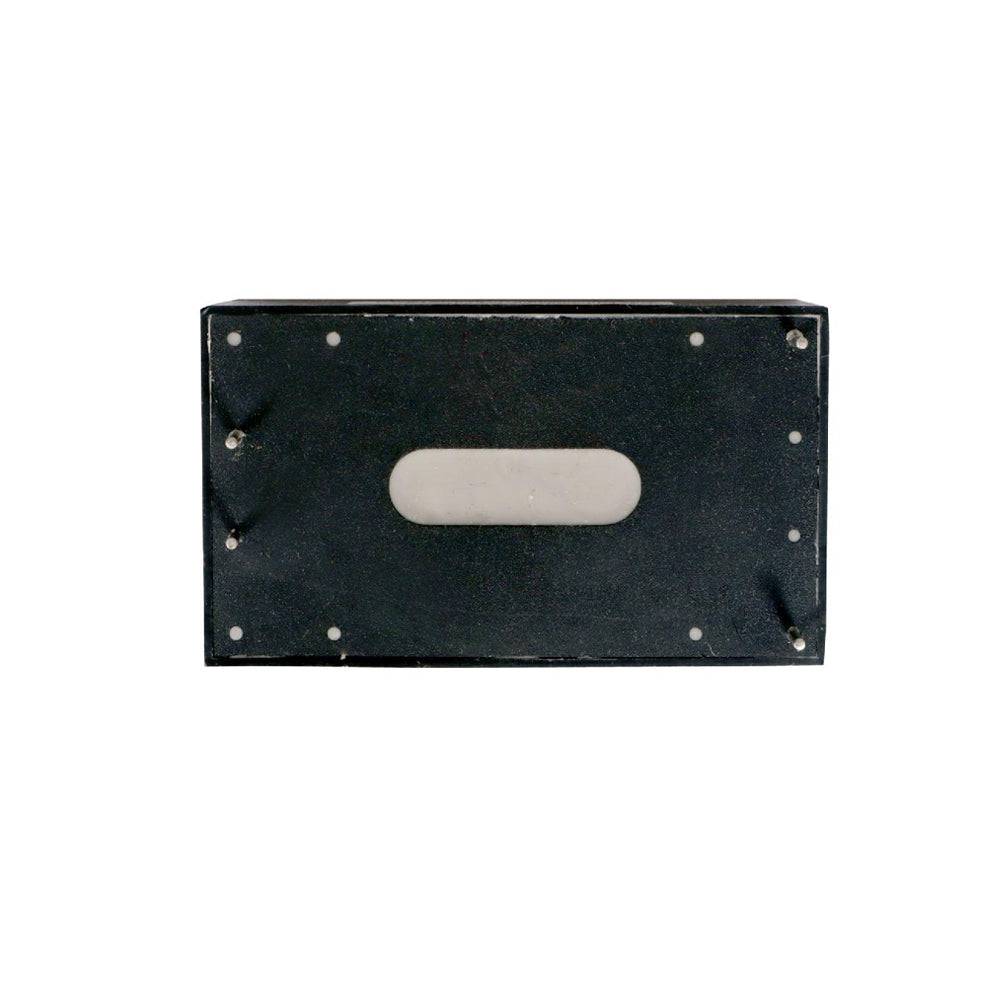

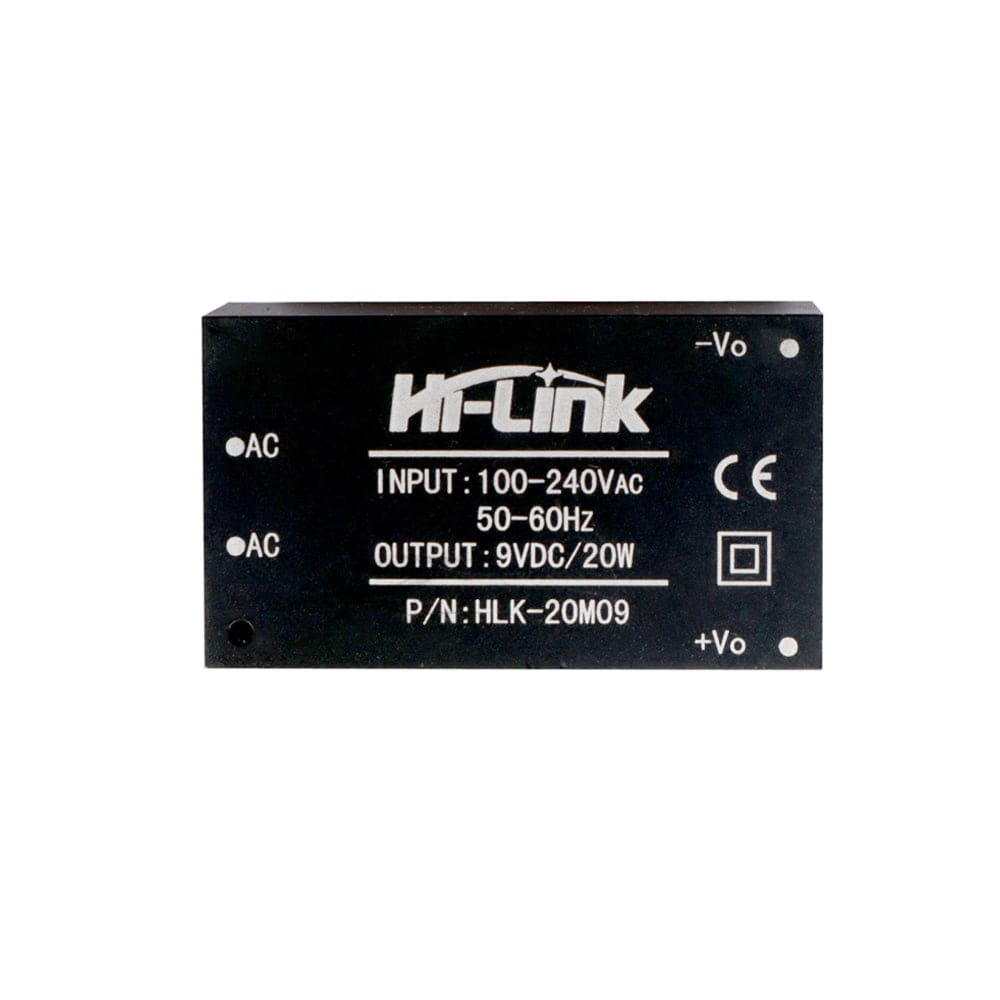

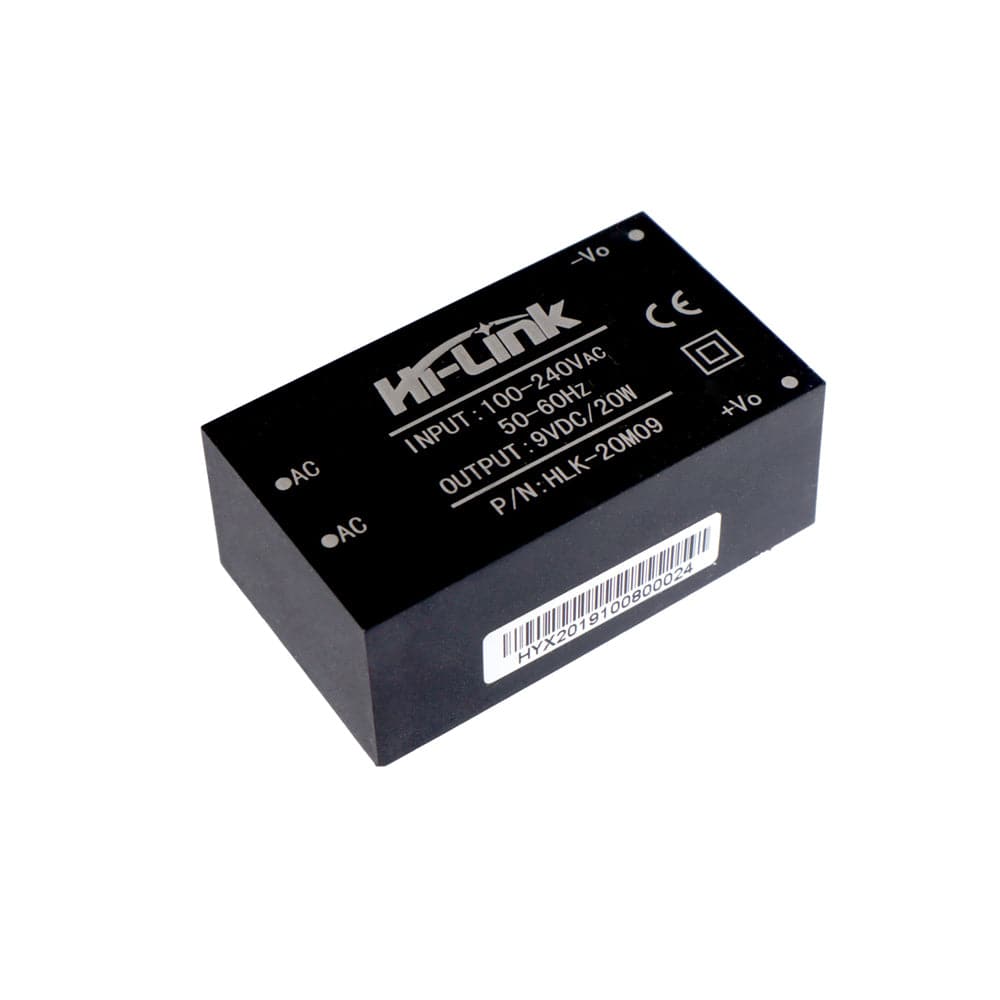

Hi-Link HLK-20M09 Power Supply Module is a plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 9V DC from 100V AC – 240V AC and has a power rating of 20 watts. This makes it perfect for small projects that need a 9-volt supply from mains. These modules have many advantages, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.
The 20W ultra-small series power supply module is a small-volume, high-efficiency power module for customers designed by Hi-Link. It has the advantage of a global input range, low-temperature rise, low power consumption, high efficiency, high reliability, etc. It has been widely used in smart homes, automation control and other industries.
Specifications:
- Model Number: HLK-20M09
- Output Power: 20W
- Output Type: Single
- Input Voltage: 100-240V
- Output Voltage: 9V
- Output Current: 2200mA
- Working Temp: -25~+60°C
Features:
- High efficiency, high power density
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
- Output overload and short circuit protection
Package Included:
1 x Hi-Link HLK-20M09 9V/20W Switch Power Supply Module HLK-20M09 AC to DC Power Supply Module
