- Input voltage: 3.3~6V
- Bluetooth version: V2.0+EDR
- Operating voltage: 3.3V
- Default Baud Rate: 9600,8,1,n.
- Signal coverage: 30ft
Description:

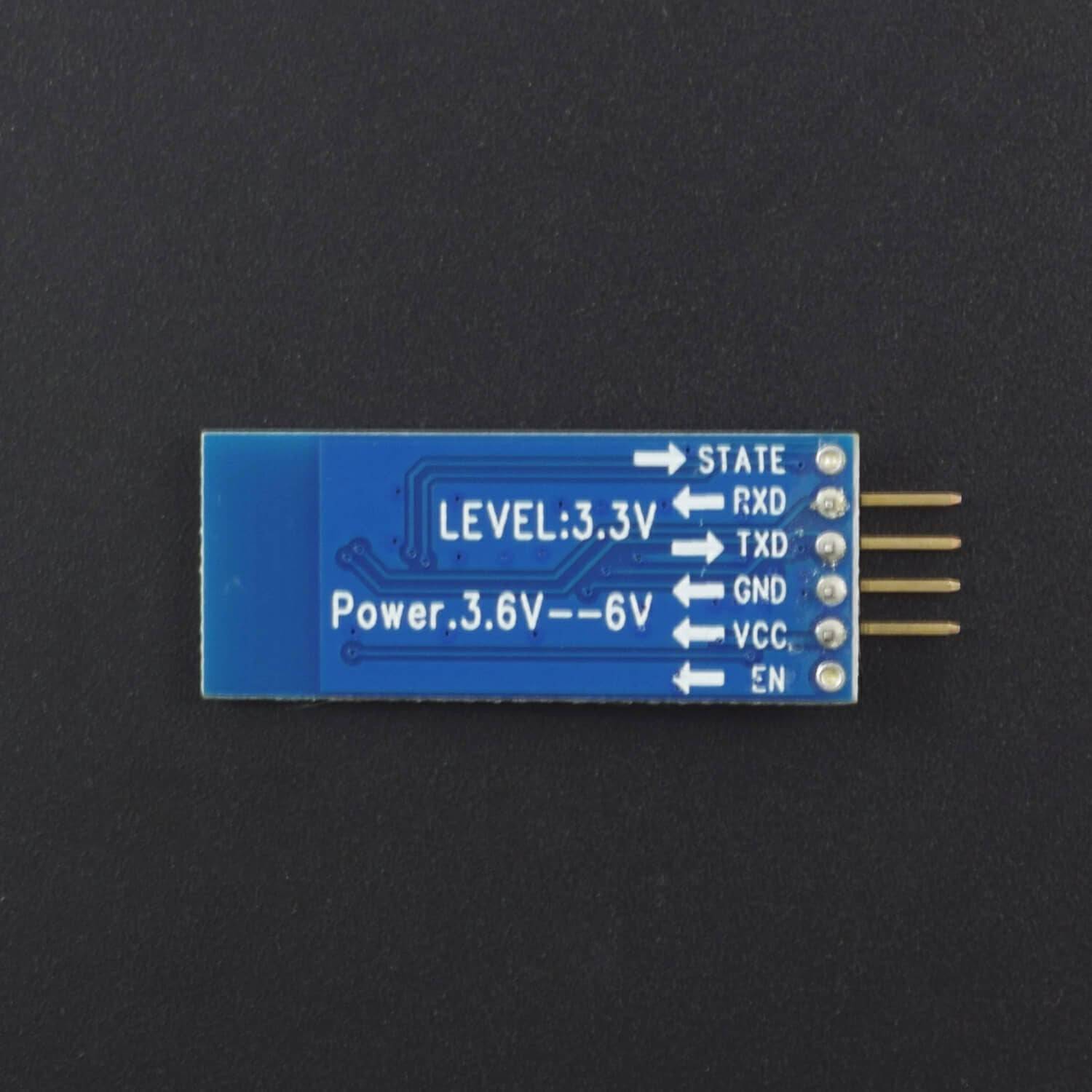

The core module HC-06 main modules, leads the interface includes VCC, GND, TXD, RXD, KEY pin high trigger to clear the pairing information research led indicate Bluetooth connection status, flash unpaired slow flash indicates paired but not slave connection, Always follow machine connected. Backplate settings LDO input voltage of 3.6~~6V unpaired current is about 30mA paired 10mA, input voltage prohibit more than 7V absolute prohibition of reverse power. Interface level 3.3V can be directly connected the various SCM (51, AVR, PIC, ARM, MSP430, etc.), the 5V MCU also can be connected directly, without MAX232 cannot go through the MAX232. Open to an effective distance of 10 meters, over 10 meters is also possible, but not of this the quality of the connection of the distance do to ensure. The pair later when full-duplex serial use, do not need to know anything about the Bluetooth protocol, but only supports 8 data bits, 1 stop bit, no parity communication format, which is the most commonly used communication format does not support other formats. Support to establish a Bluetooth connection through AT commands set the baud rate, passkey, set parameters are saved after. Bluetooth connection is automatically switched to the pass-through mode. Wireless serial Bluetooth port with the free extension cable. With a transparent shrink tube, dust and beautiful, and there is a certain degree of anti-static capabilities.
Specification:
- Input voltage: 3.3~6V
- Bluetooth version: V2.0+EDR
- Operating voltage: 3.3V
- Default Baud Rate: 9600,8,1,n.
- Signal coverage: 30ft
Features:
- Hc-06 is best option when short distance wireless communication is needed. The module is used for wireless communications of less than 100 meters.
- The module is very easy to interface and to communicate.
- The module is one of the cheapest solutions for wireless communication of all types present in the market.
- The module consumes very less power to function and can be used on battery operated mobile systems.
- The module can be interfaced with almost all controllers or processors as it uses UART interface.
Application:
- Hobby projects
- Engineering applications
- Robotics
- Mobile Phone Accessories
- Servers
- Computer Peripherals
- Sports and Leisure Equipment
- USB Dongles
Tips:
- TXD: the sender, usually expressed as its sender, the normal communication must be connected to another device RXD.
- RXD: the receive side, generally expressed as the receiving end of their normal communication to another device connected to TXD.
Package Included:

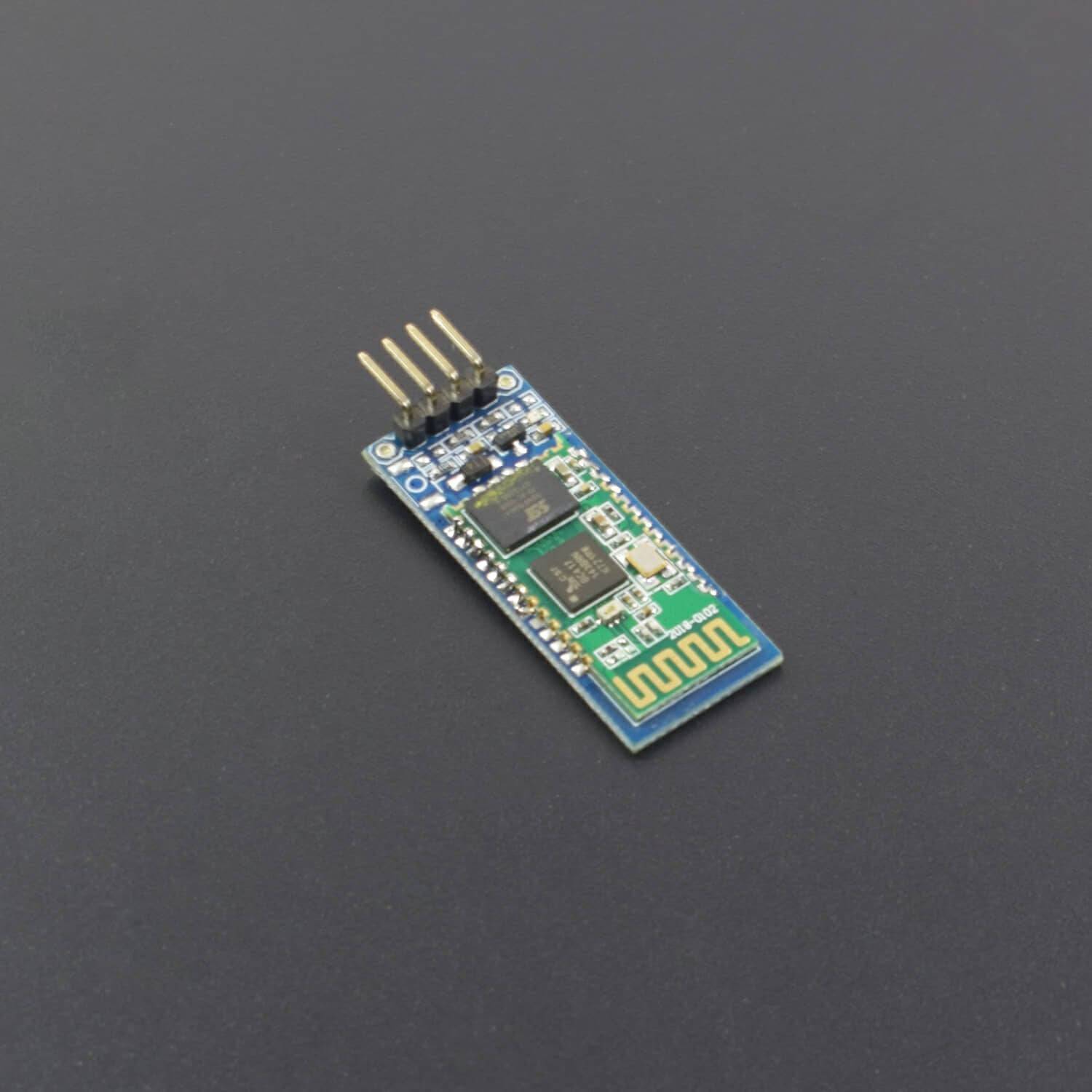

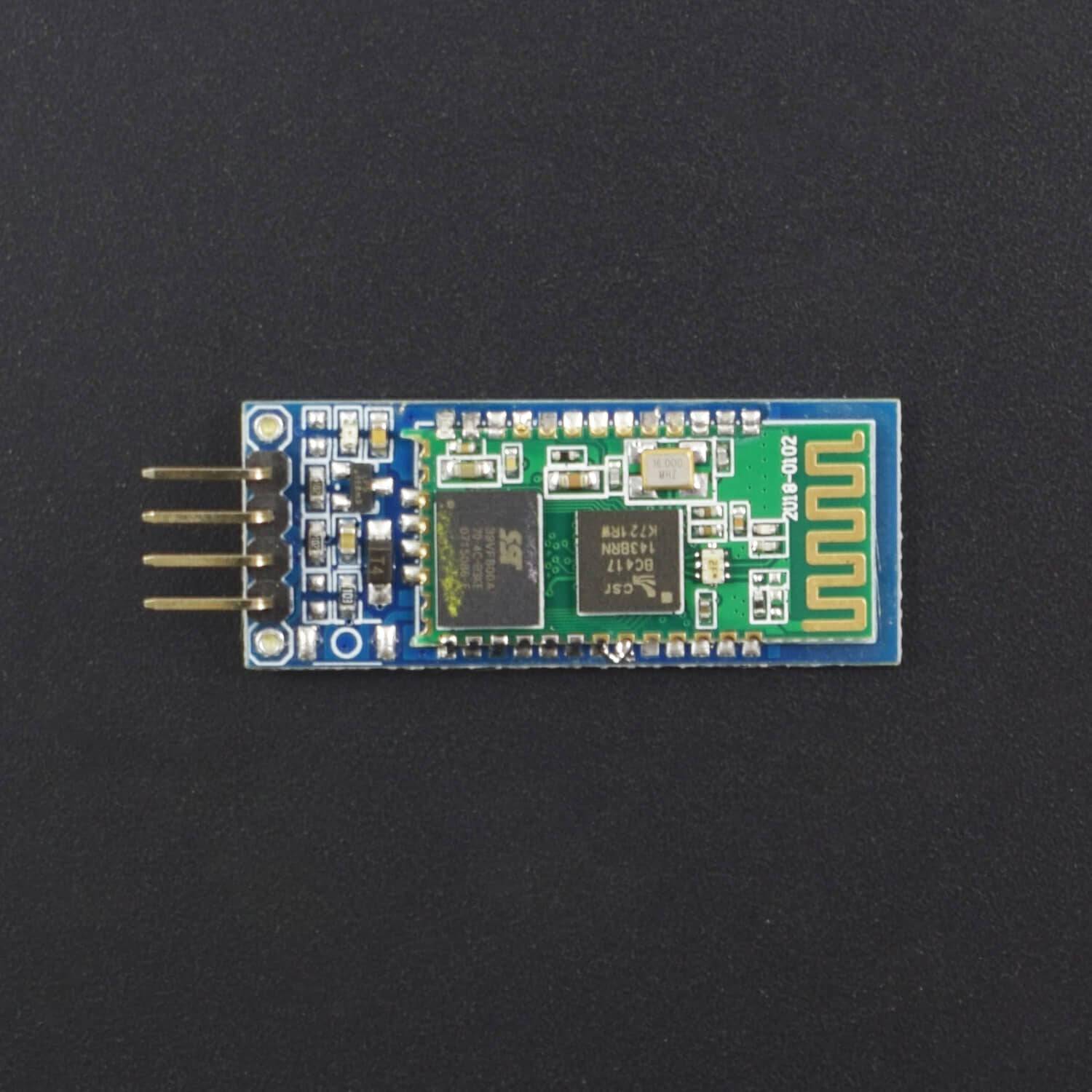

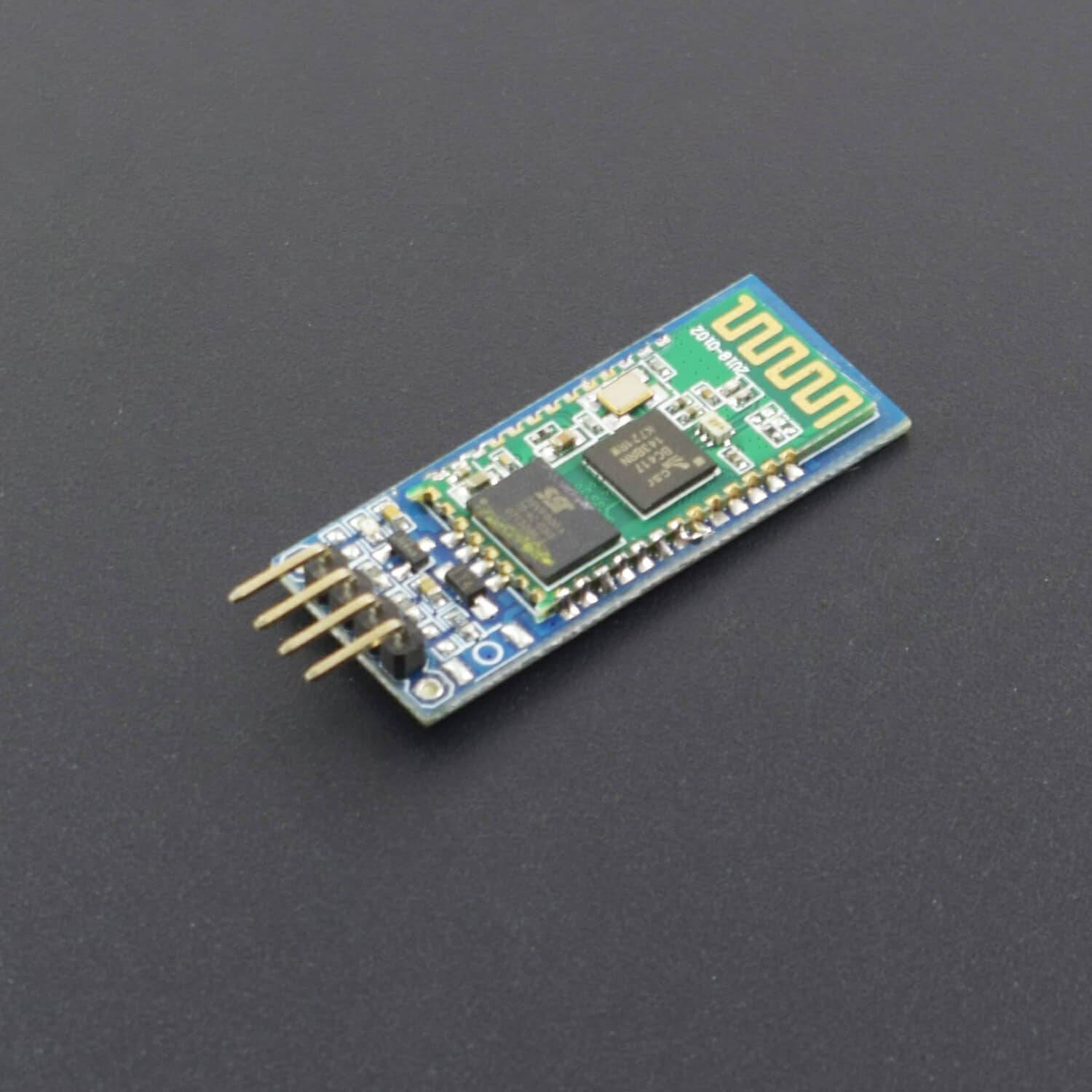

1 x HC06 Bluetooth Transceiver Module With TTL Output HC-06 Bluetooth Module
