HC-42 6pin Serial Port Module Effortless Bluetooth 5.0 BLE Integration For Long-Term Wireless Data Transfer - RS2930

HC-42 6pin Serial Port Module Effortless Bluetooth 5.0 BLE Integration For Long-Term Wireless Data Transfer - RS2930

RS2930

In stock

Rs. 659.00
Rs. 659.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

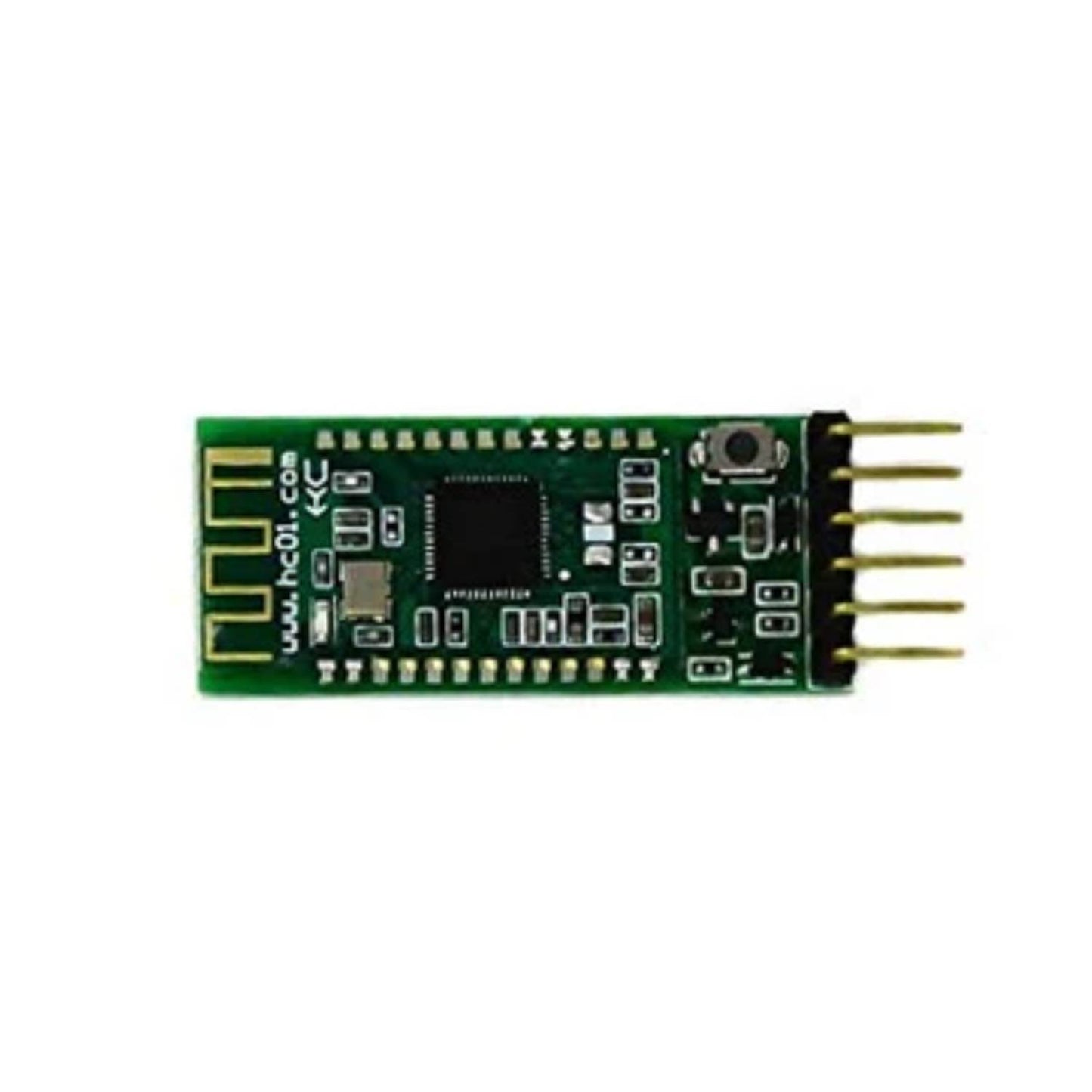

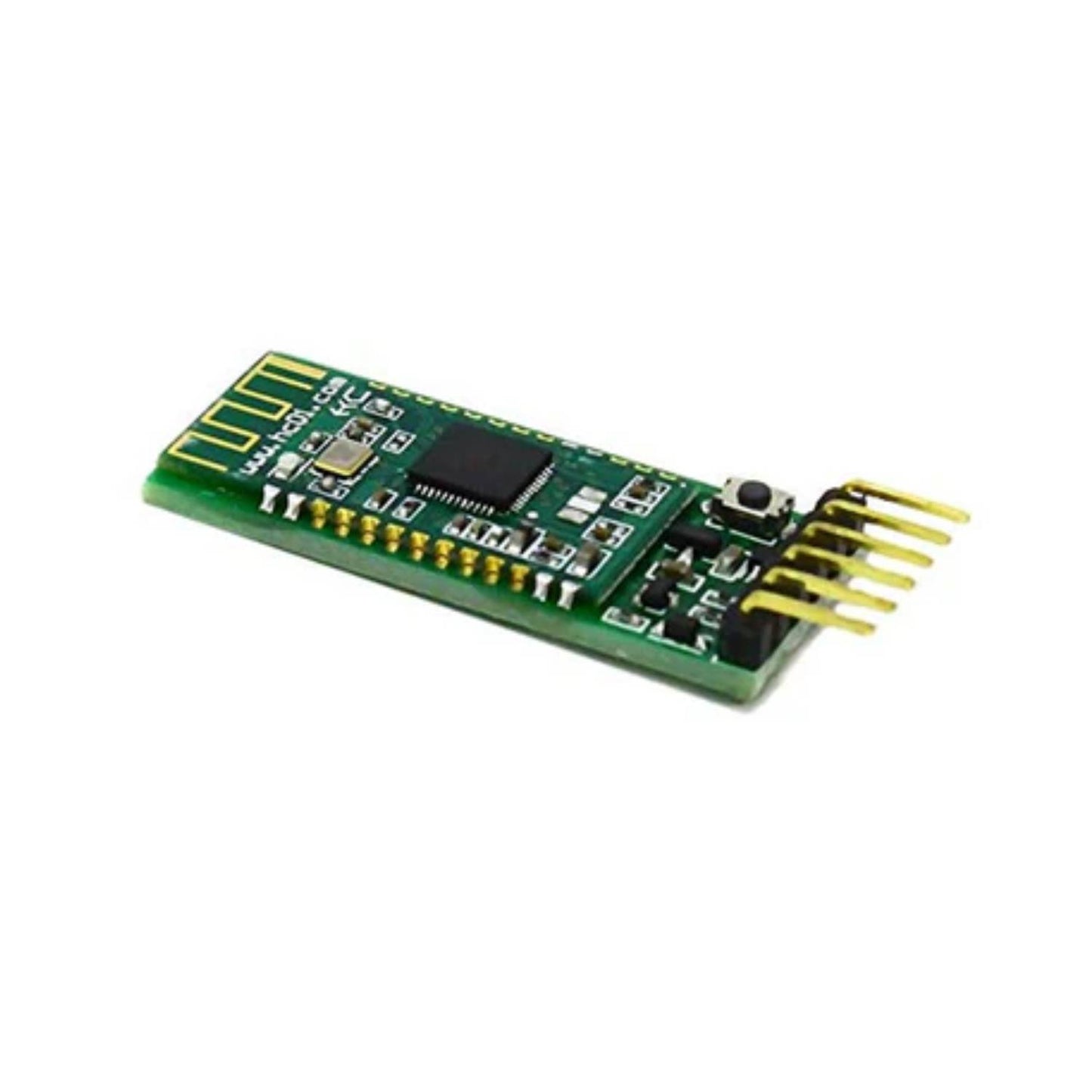

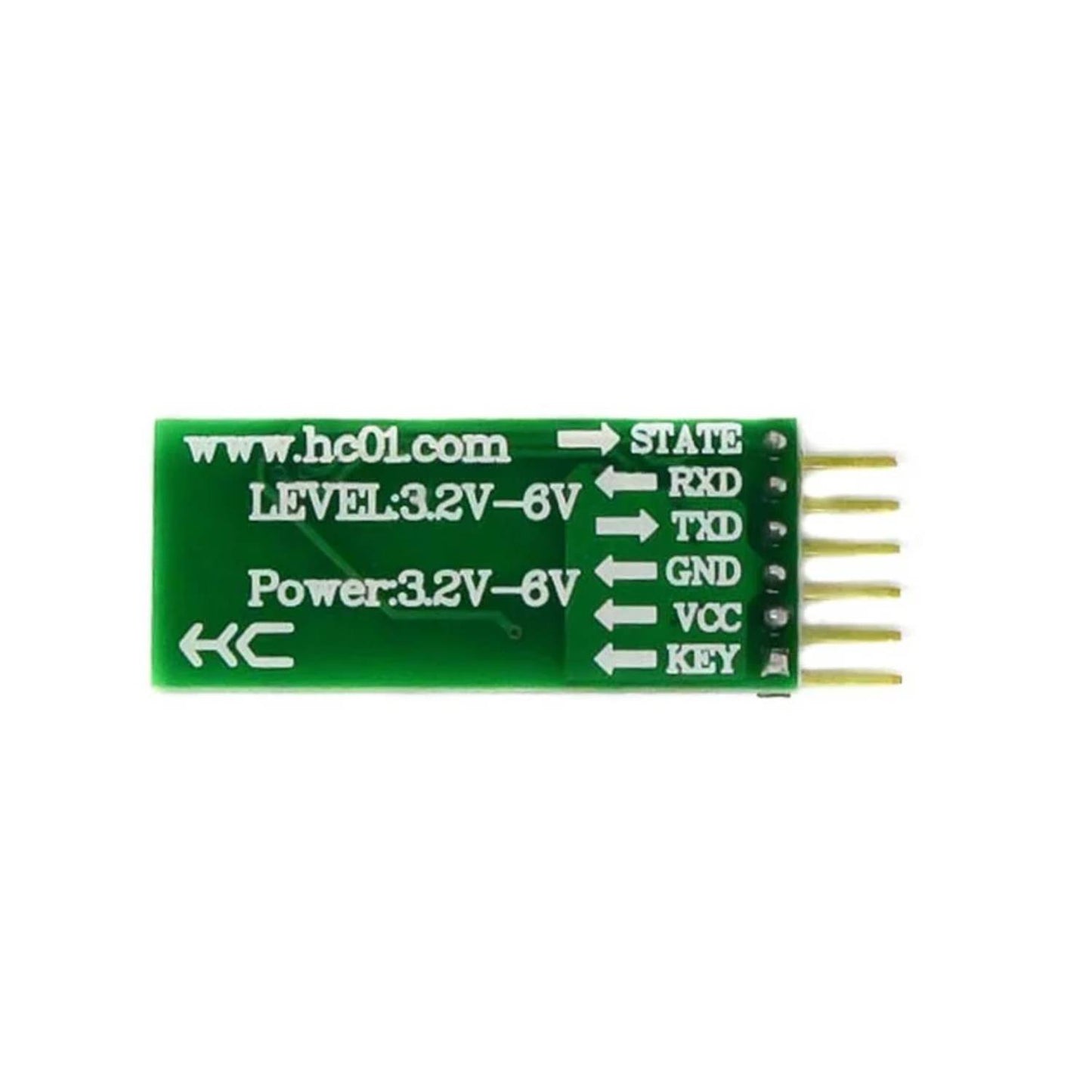

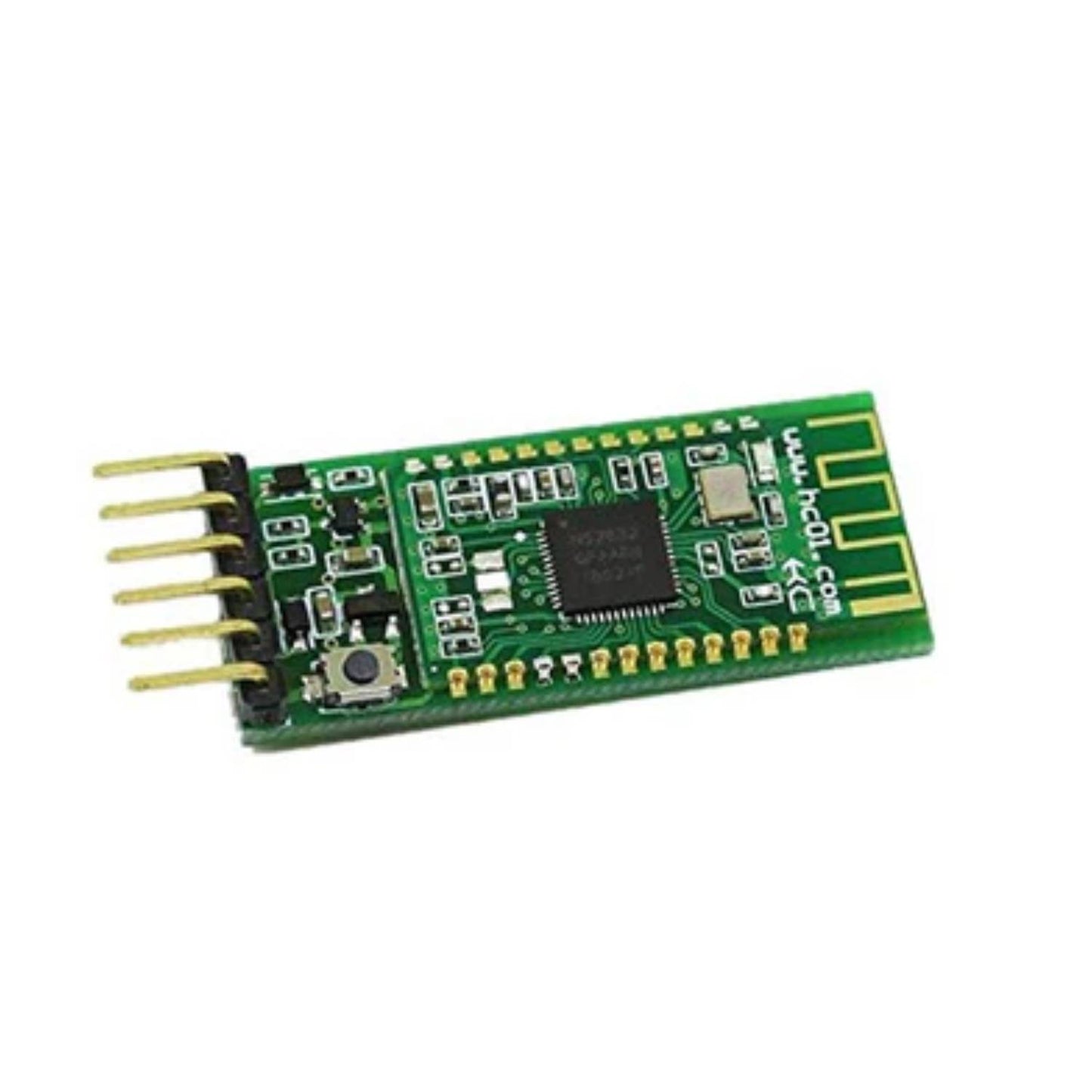

HC-42 Bluetooth Module You can easily send data serially to, for example, your phone, tablet, or Other (HC-42) Bluetooth modules. HC-05 could be set to master or slave by a user. HC-06 can only be master or slave which could be customized.

Specifications:

  • Working Temperature: -25℃~+75℃
  • Part Number: HC-42D
  • Version: BLE 5.0
  • Module Size: 37mm *15.6 mm
  • Frequency Band: 2.4G
  • Air Rate: 1Mbps/2Mbps
  • Working Voltage: 1.8~3.6V
  • Antenna: PCB internal antenna
  • Shutdown Current: 0.3μA
  • Communication Interface: UART
  • Sensitivity: -96dBm@1Mbps
  • Level: 1.8~3.6V， Same to Working Voltage
  • Working Humidity: 10％~90％
  • Transmit Power: -40~4dBm
  • Storage Temperature: -40℃~+85℃
  • Reference Distance: 40m/2Mbps（BLE 5.0）
HC-42 Bluetooth 5.0 BLE Serial Module: 6-Pin, Long-Range Data Transfer
HC-42 6-Pin Serial Port Bluetooth 5.0 BLE Module for Wireless Data
HC-42 BLE 5.0 Serial Module: 6-Pin, Effortless Long-Term Wireless Integration

Package Included:

1 x HC-42 Bluetooth Module
