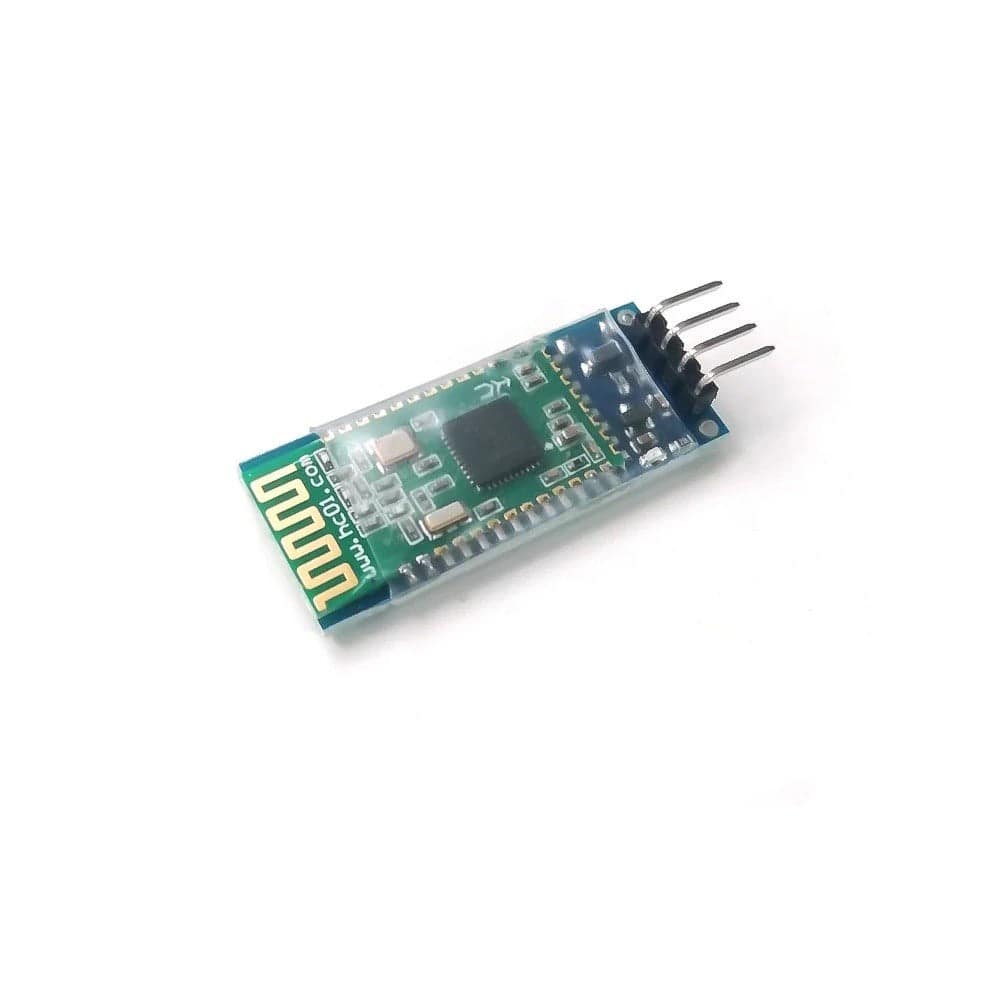

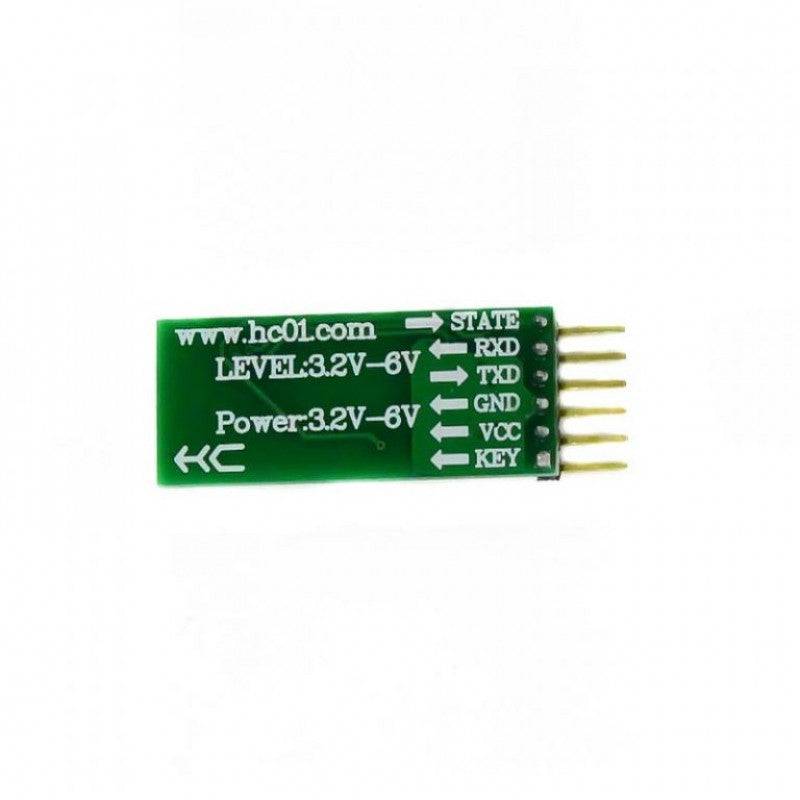

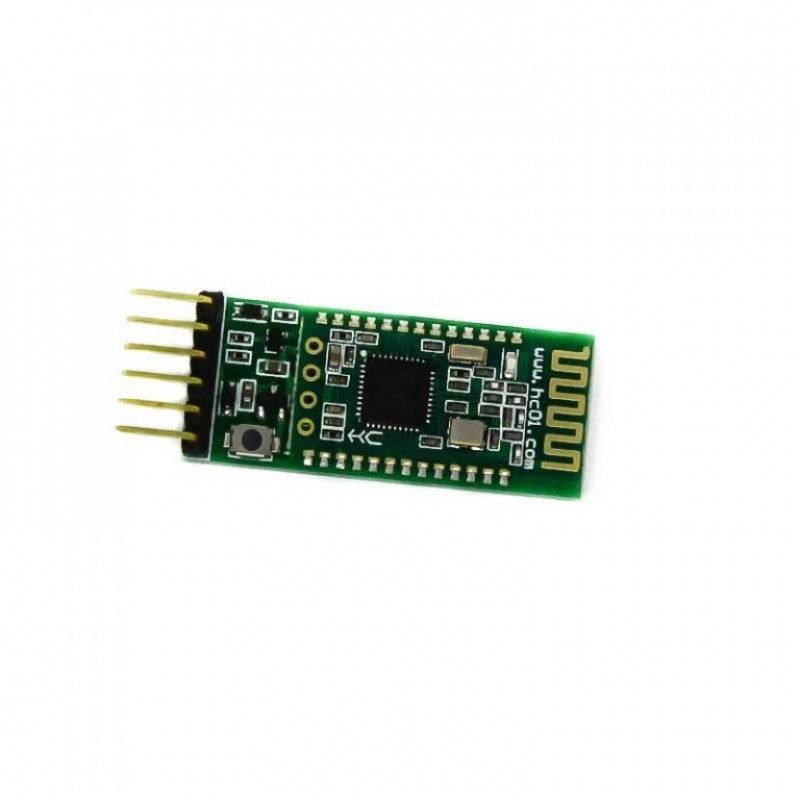

HC-08 4pin Bluetooth Module without Reset Switch- RS2939

HC-08 4pin Bluetooth Module without Reset Switch- RS2939

SKU:RS2939

In stock

Regular price Rs. 695.00
Regular price Sale price Rs. 695.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
  • Frequency: 2.4GHz ISM
  • Protocol: BLE 4.0
  • Bluetooth Version: 4.0
  • Power Supply: 3.6 V~ 6V

Description:

HC-08 Bluetooth UART communication module is a new generation of Bluetooth V4.0 BLE Bluetooth protocol based on the transmission module. Wireless working frequency is 2.4GHz ISM, modulation is GFSK. The maximum transmit power module 4dBm, the receiving sensitivity is -93dBm, and iphone4s can achieve 80 meters of super long-distance communication under an open environment. The module uses the CC2540 chip, the configuration of the 256K Byte space, supports AT command, the user can according to need to change the role and the serial baud rate, equipment name and other parameters, the use of flexible. The module is mainly used for short-range data wireless transmission, such as Bluetooth wireless data transmission, Industrial remote control, telemetry, traffic, underground positioning, alarm, smart home etc. It can also be used as an Industrial serial port Bluetooth, a Drop-in replacement for wired serial connections.

Note: Default pairing code is 1234

Specification:

  • Frequency

2.4GHz ISM

  • Protocol

BLE 4.0

  • Bluetooth Version

4.0

  • Power Supply

3.6 V~ 6V

  • Max Transmitting Power

Max. 4dBm

  • Modulation System

GFSK

  • Serial Baud Rate

1200 to 115200 bps

  • Reference Distance

80 meters

  • Speed

1Mbps (Max)

  • Sleep Mode Current

0.4uA (MODE 2)

  • Communication Port

UART 3.3V TTL

  • Working Temperature

-20 ~ +75°C

Features:

  • Based on the TI CC2540 chipset
  • Bluetooth class 2
  • Industrial level SPP Bluetooth module
  • Integrated chip antenna
  • Industrial temperature range from -40 to +85
  • Support for on-board applications
  • Modulation method: GFSK
  • Transfer rate: Asynchronous: 6 KBPS Synchronous: KBPS

Package Included:

1 x HC-08 4pin Bluetooth Module without Reset Switch
