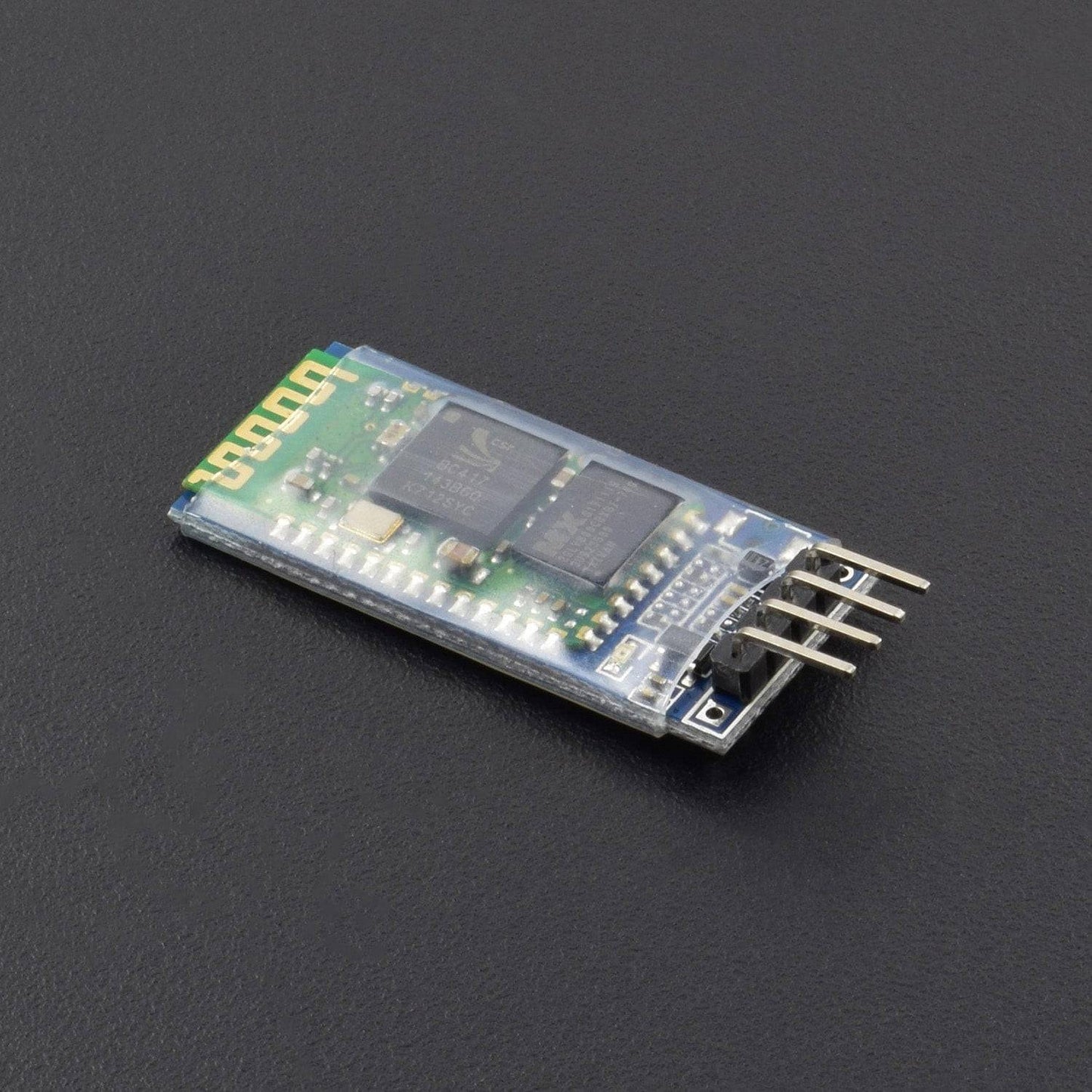

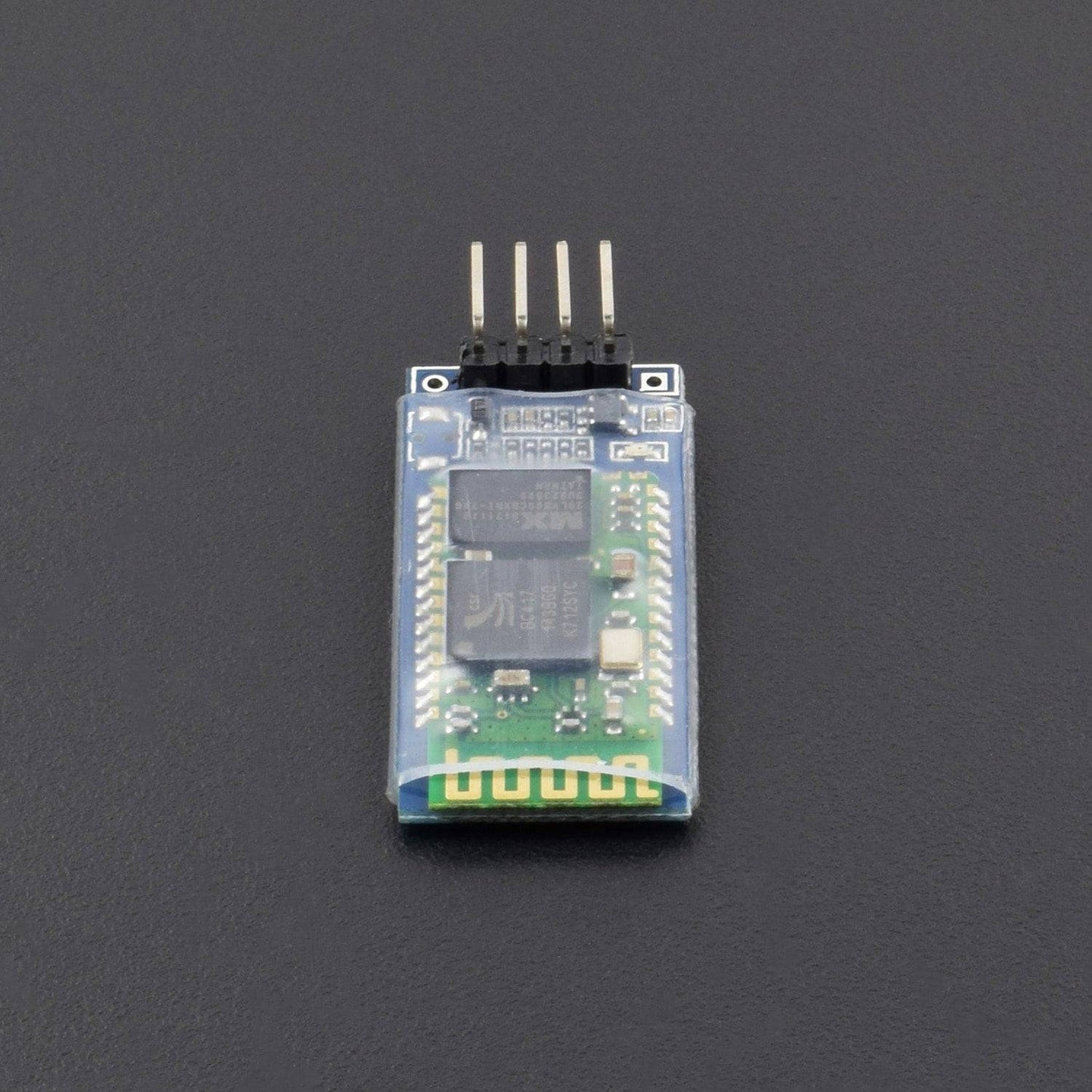

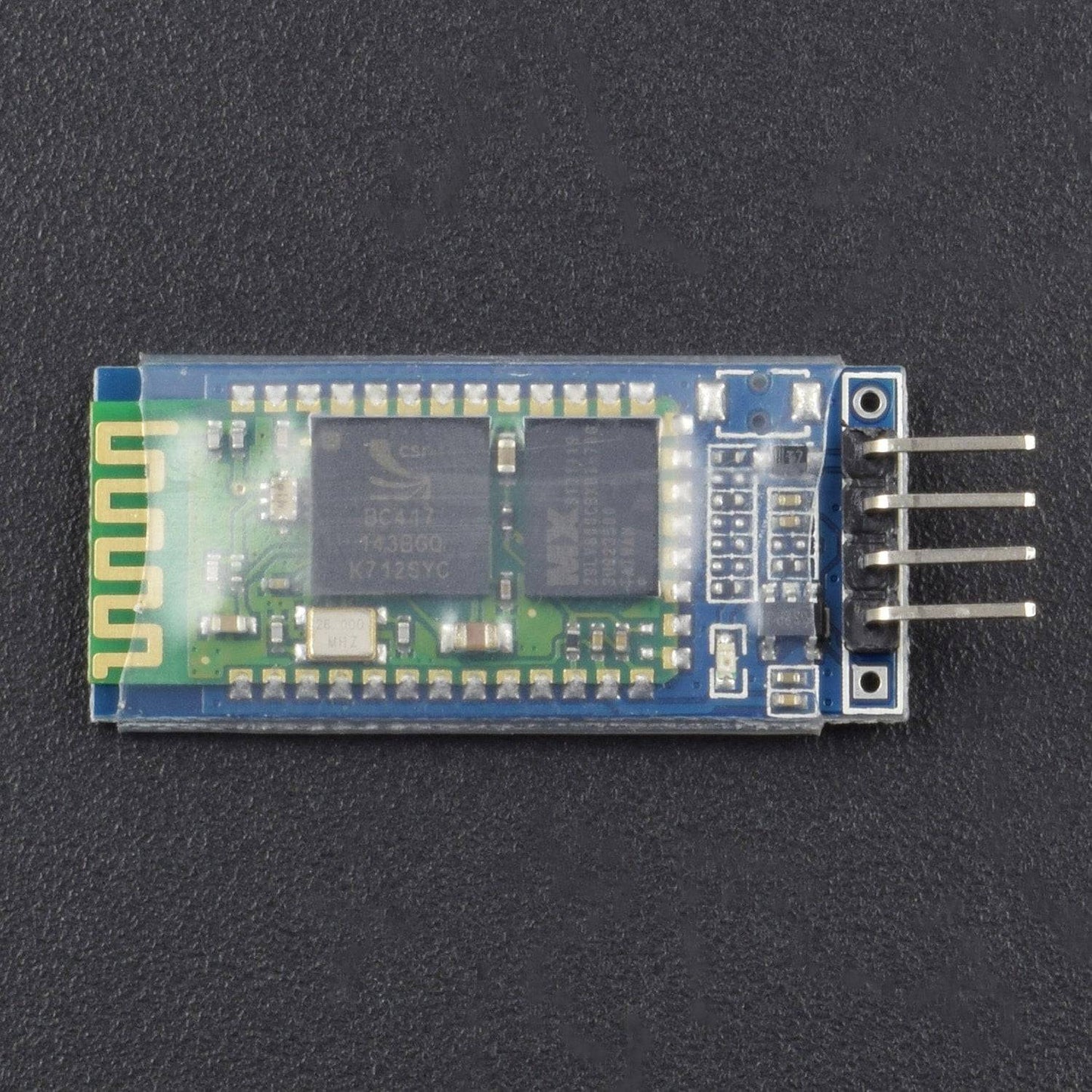

HC-07 Wireless Bluetooth Master + Slave Board Module Set 4 PIN -AA097

HC-07 Wireless Bluetooth Master + Slave Board Module Set 4 PIN -AA097


In stock

Regular price Rs. 400.00
Regular price Sale price Rs. 400.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Bluetooth 2.0 with EDR
  • 2Mbps-3Mbps modulation
  • Built-in 2.4GHz antenna
  • External 8Mbit FLASH
  • Low voltage: 3.3V Working (3.1V ~ 4.2V)

Description :

  • Optional PIO control
  • Standard HCI port (UART or USB)
  • USB protocol: Full Speed USB1.1, Compliant With 2.0
  • RoHS Process
  • Digital 2.4GHz wireless transmitter close
  • CSR Bluetooth chip technology
  • Adaptive Frequency Hopping Technology
  • Small size, (44mm × 16mm × 4mm)
  • Bluetooth Class 2 power levels
  • Storage temperature: -40 to +85 degrees Working temperature: -25 to +75 degrees
  • Hip-wave interference: 2.4MHz, 3 dBm transmit power

Product Features:

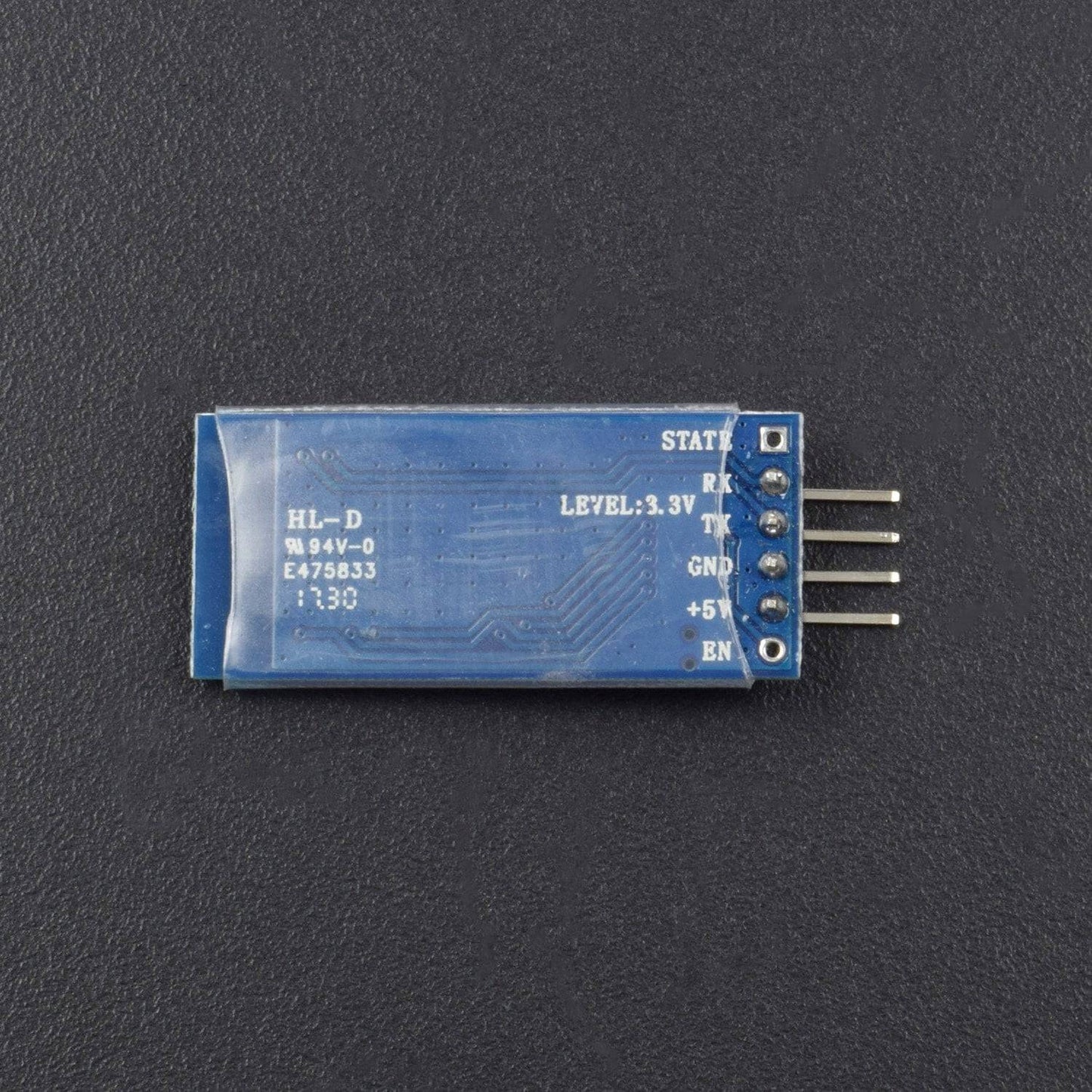

  • the core module HC-07 leads from the module interface including VCC, GND, TXD, RXD, can be directly connected to the microcontroller serial
  • led indicate Bluetooth connection status, flashing Bluetooth connectivity, lit the Bluetooth connection and open a port
  • backplane set anti-reverse diode with 3.3V LDO, the input voltage of 3.6 ~~6V current is about 30mA unpaired, paired about 10mA, input voltage prohibit more than 7V!
  • the interface level 3.3V can be directly connected the various SCM (51, AVR, PIC, ARM, MSP430, etc.), the 5V MCU also can be connected directly, without MAX232 cannot go through the MAX232!
  • open to the effective distance of 10 meters, over 10 meters is also possible, but not of this the quality of the connection of the distance do to ensure
  • after the pair when the full-duplex serial port to use, do not need to know anything about the Bluetooth protocol, but only supports 8 data bits, 1 stop bit, no parity communication format, which is the most commonly used communication format does not support other formats.
  • support for Bluetooth connection is not established by the AT command set the baud rate, name, passkey, set parameters are saved after. Bluetooth connection is automatically switched to the pass-through mode
  • compact (3.57cm * 1.52cm), the factory chip production to ensure the placement quality. And sets of transparent heat shrink tubing, dust and beautiful, and anti-static.
  • the link from the machine, computer, Bluetooth with Bluetooth function from the function with a variety of hosts, the majority with a Bluetooth-enabled cell phone, PDA, PSP and other intelligent terminal pairings from not pairing between the machine.

Package Included:

1 x HC-07 Wireless Bluetooth Module
