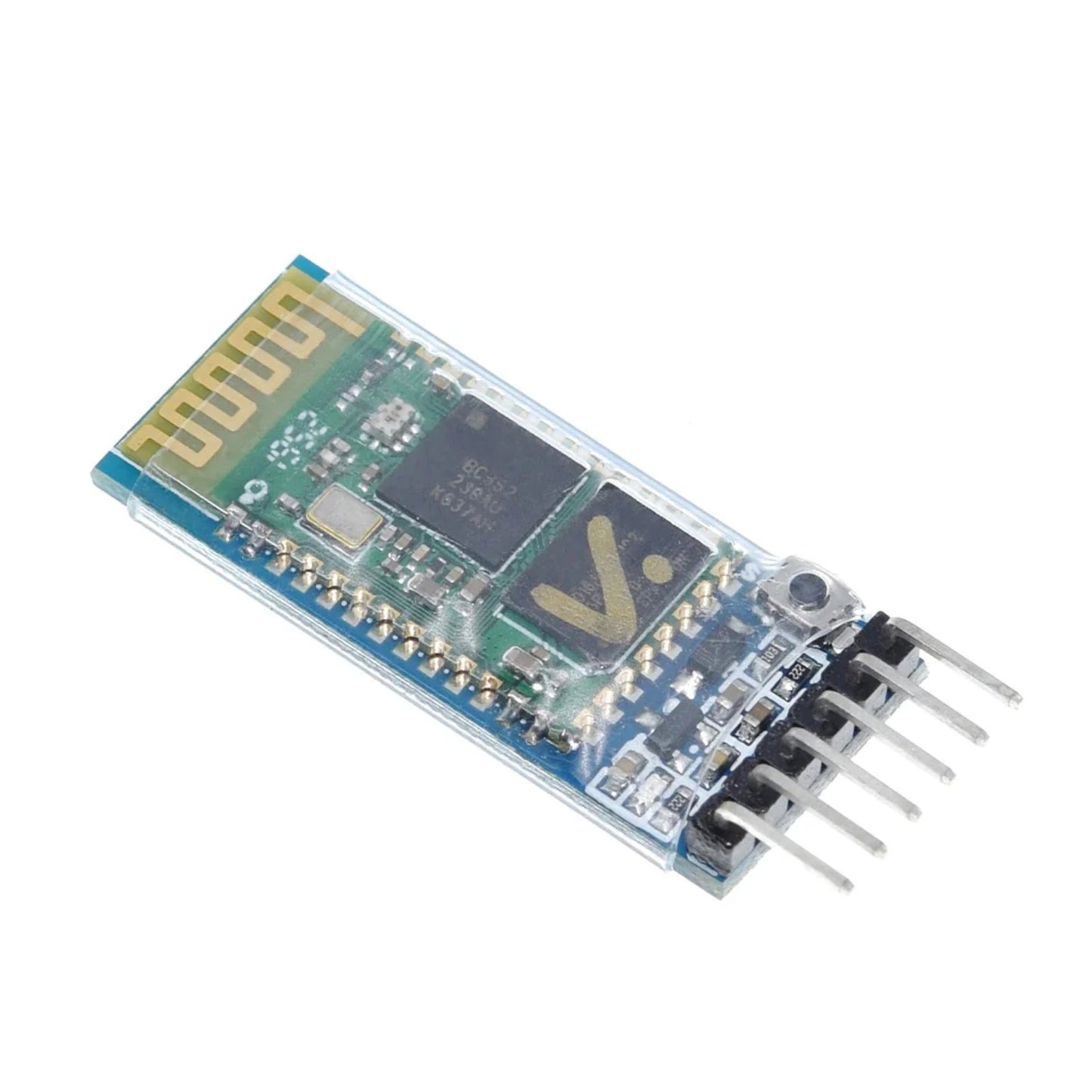

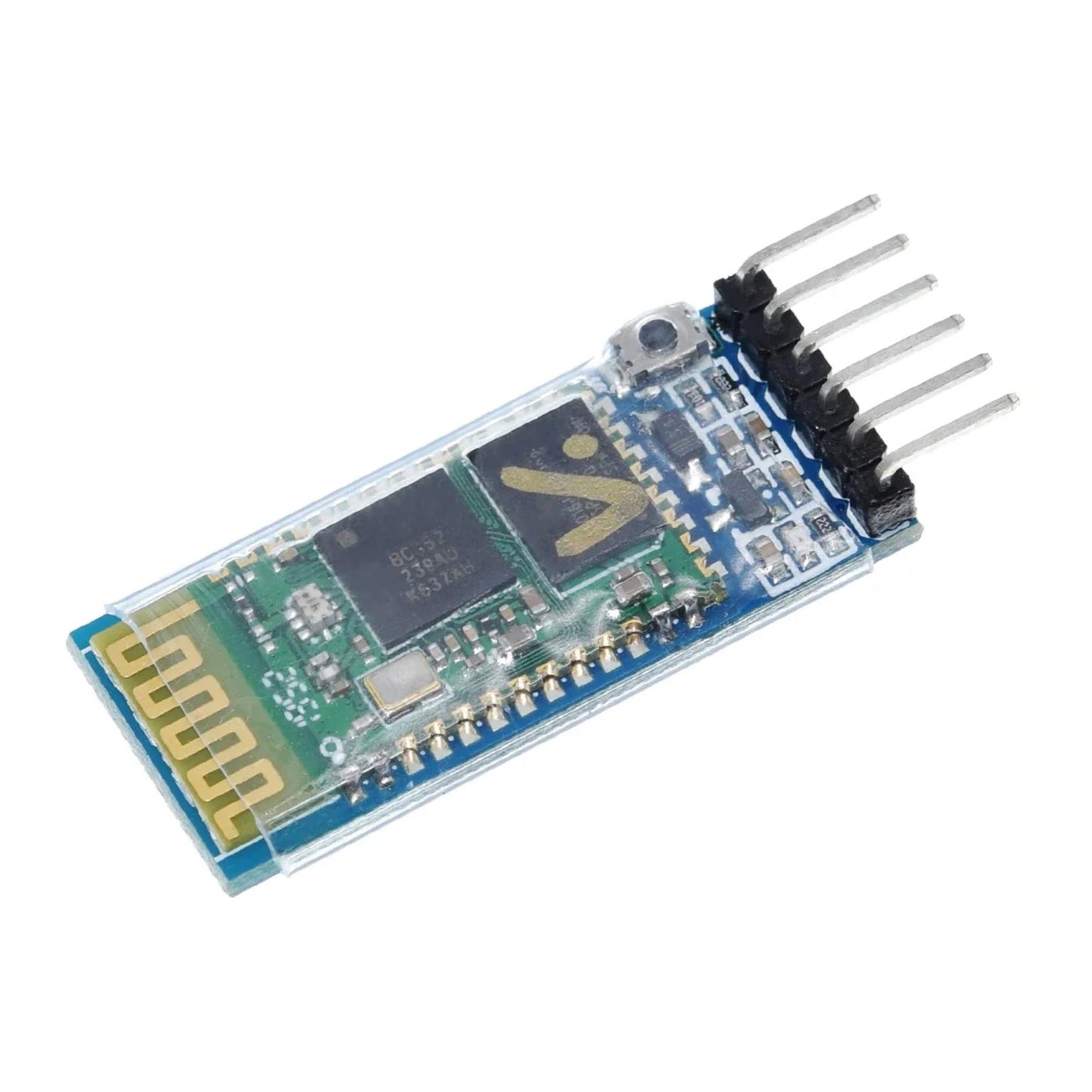

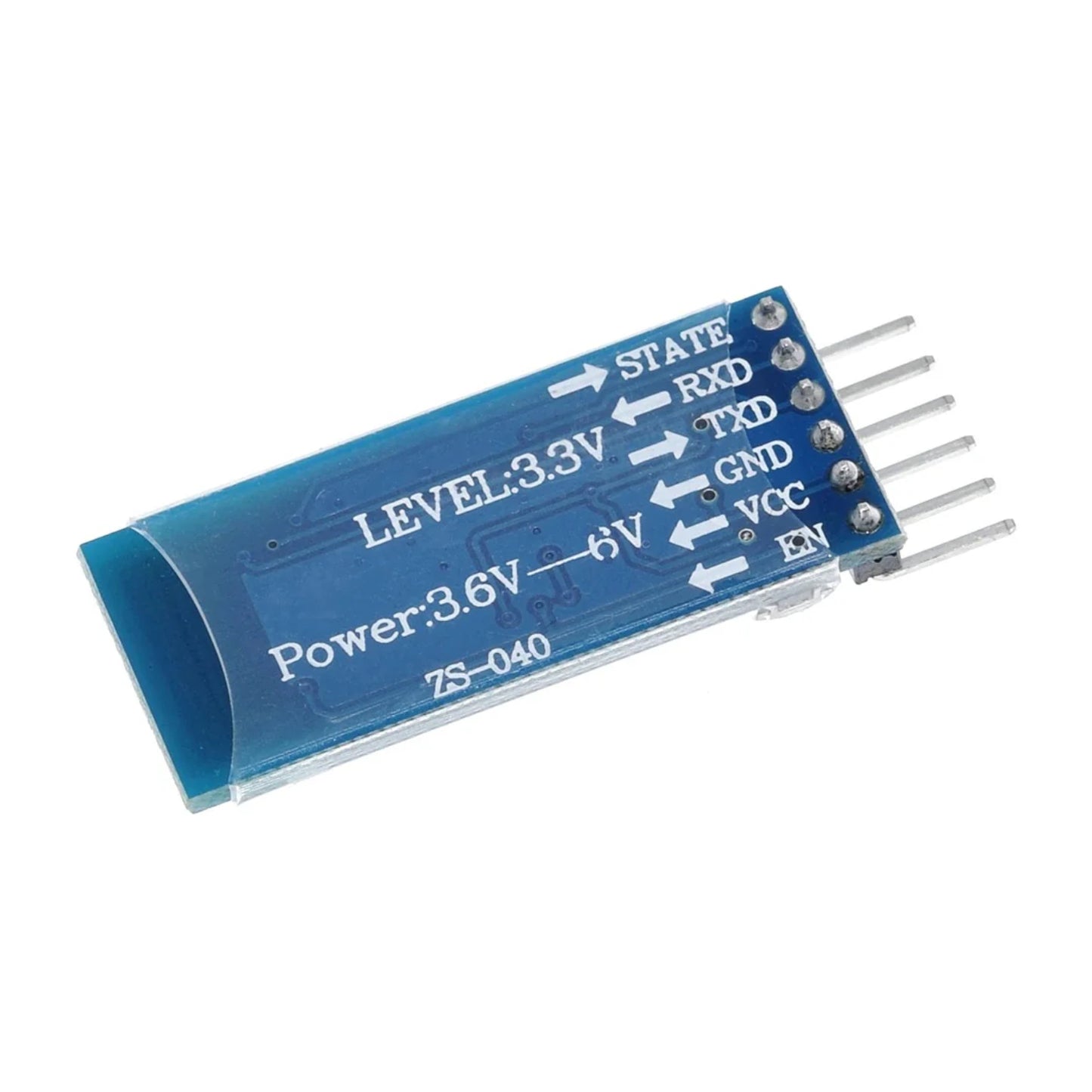

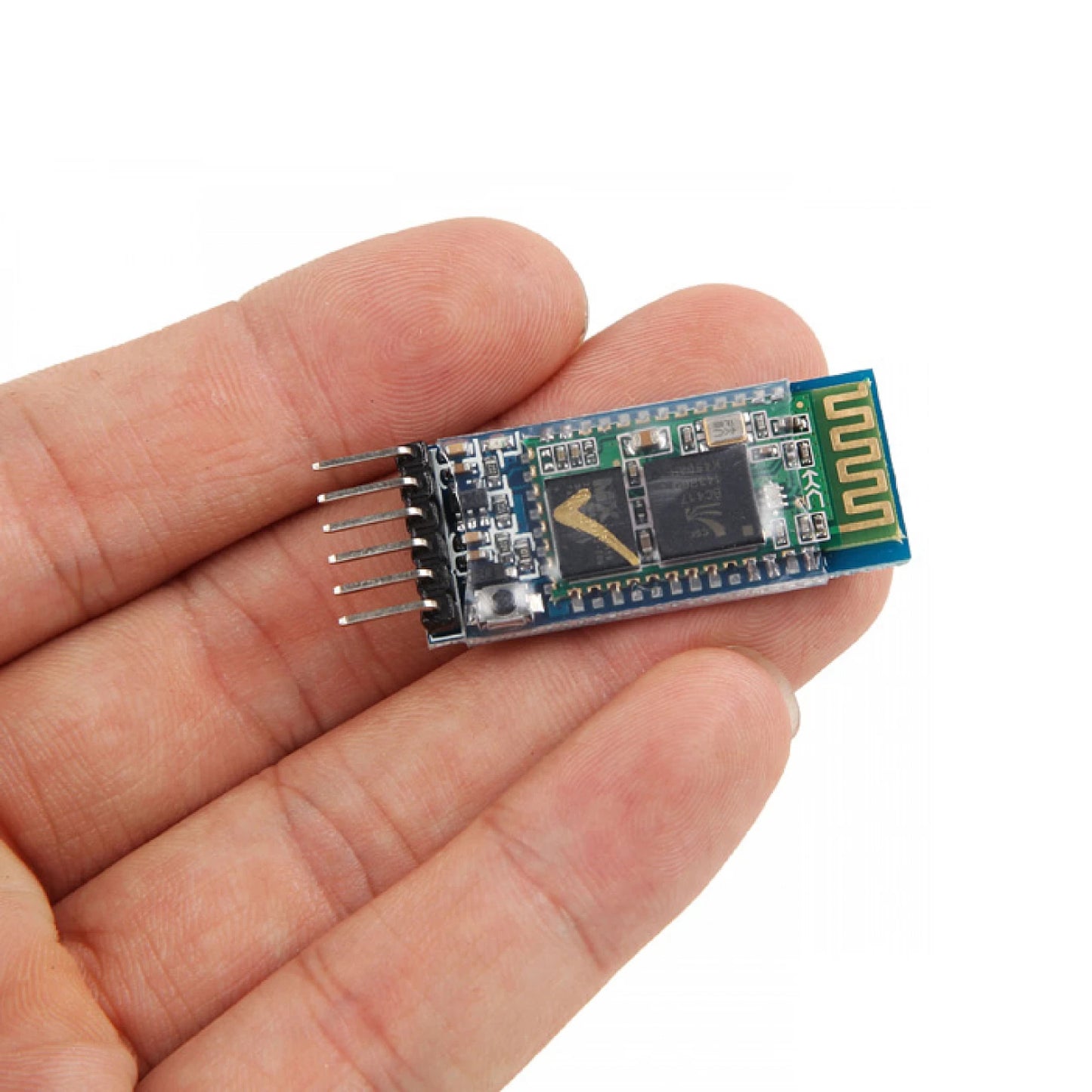

HC-05 Bluetooth Module with TTL Output - AA095

HC-05 Bluetooth Module with TTL Output - AA095

SKU:AA095

47 in stock

Regular price Rs. 195.00
Regular price Sale price Rs. 195.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Input Supply voltage: 3.6~6V
  • Input current: 50mA
  • Maximum Operating Range: 10m7
  • Operating Frequency: 2.4GHz ISM band

Description:

HC-05 6 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller. It uses the UART protocol to make it easy to send and receive data wirelessly.

The HC-06 module is a slave-only device. This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only devices such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.

Specification:

Input Supply voltage

3.6 ~ 6V

Input current

50mA

Maximum Operating Range

10m

Operating Frequency

2.4GHz ISM band

Modulation

GFSK (Gaussian Frequency Shift Keying)

Emission power

4dBm, Class 2

Sensitivity

-84dBm at 0.1% BER

Operating Temperature (℃)

-20 ~ +75

Features:

  • Working current: matching for 30 mA, matching the communication for 8 mA.
  • Dormancy current: no dormancy.
  • Used for a GPS navigation system, water, and electricity gas meter reading system.
  • With the computer and Bluetooth adapter, PDA, and seamless connection equipment.
  • Bluetooth module HC-08 Master and slave Two in one module.
  • Use the CSR mainstream Bluetooth chip and Bluetooth V2.0 protocol standards.
  • Potter default rate of 9600, the user can be set up.
  • Bluetooth protocol: Bluetooth Specification v2.0+EDR
  • Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
  • Security: Authentication and encryption.
  • Profiles: Bluetooth serial port.

Application:

  • Embedded Projects.
  • Industrial Applications.
  • Computer and Portable Devices.
  • GPS receiver.

Package Included:

1 x HC-05 Bluetooth Module with TTL Output
