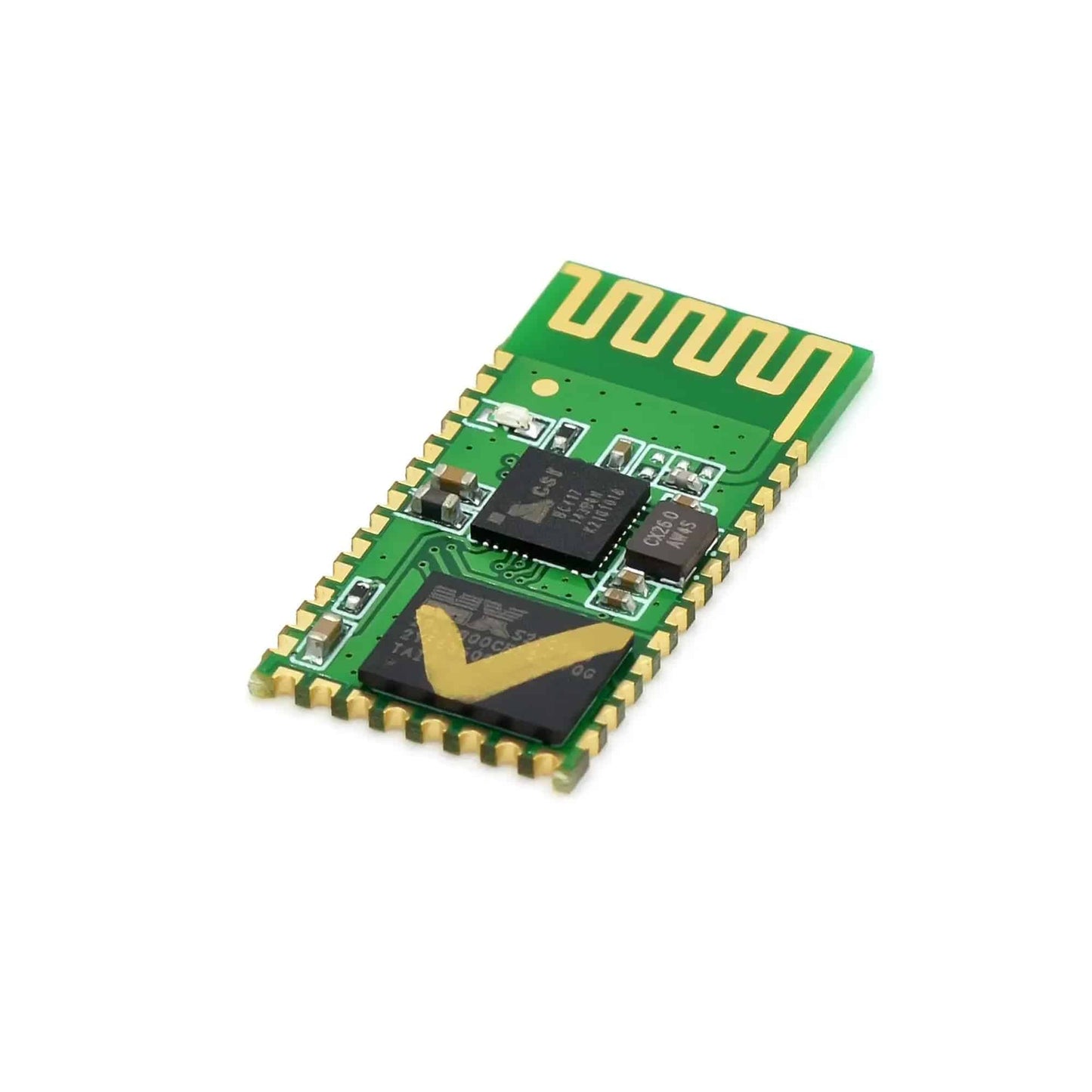

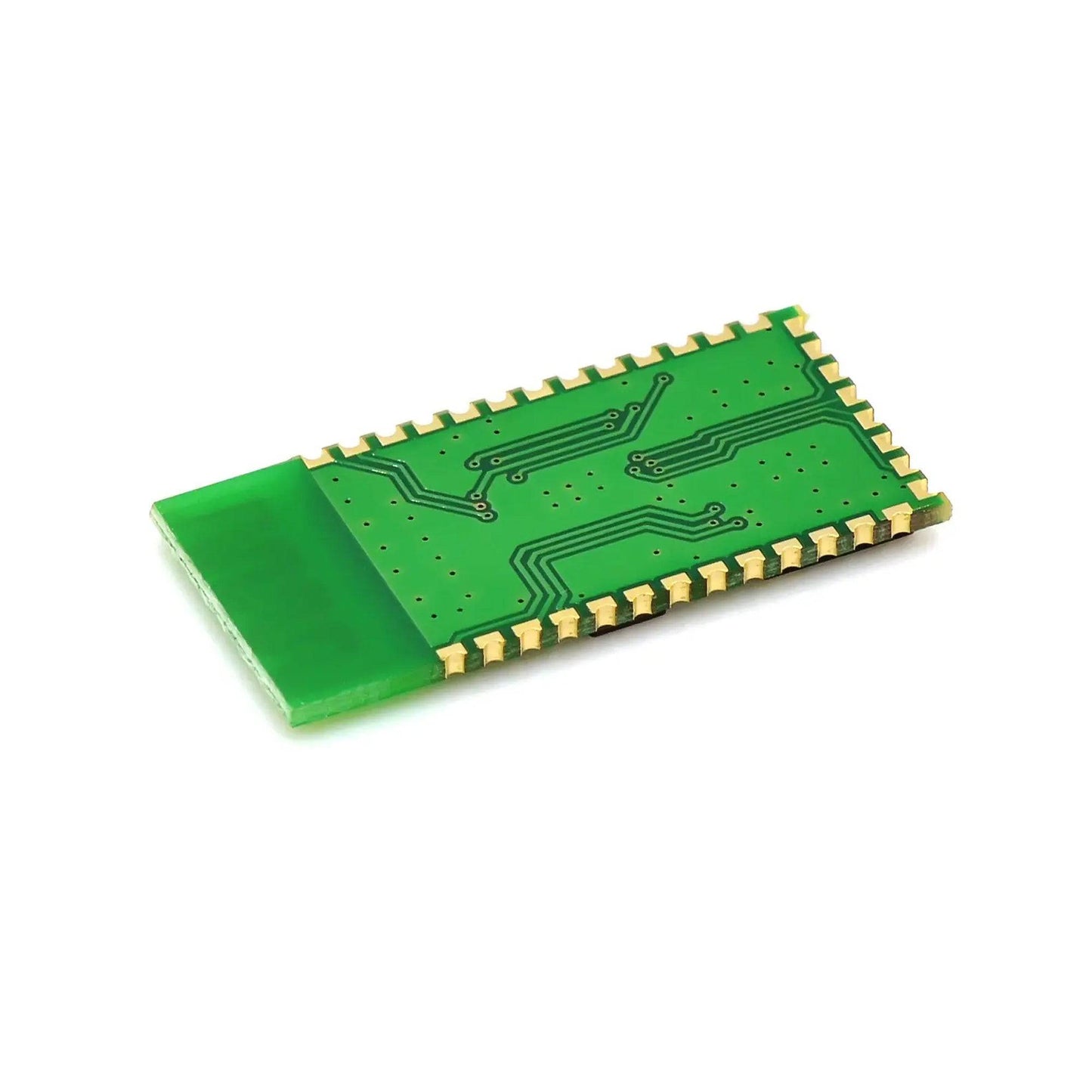

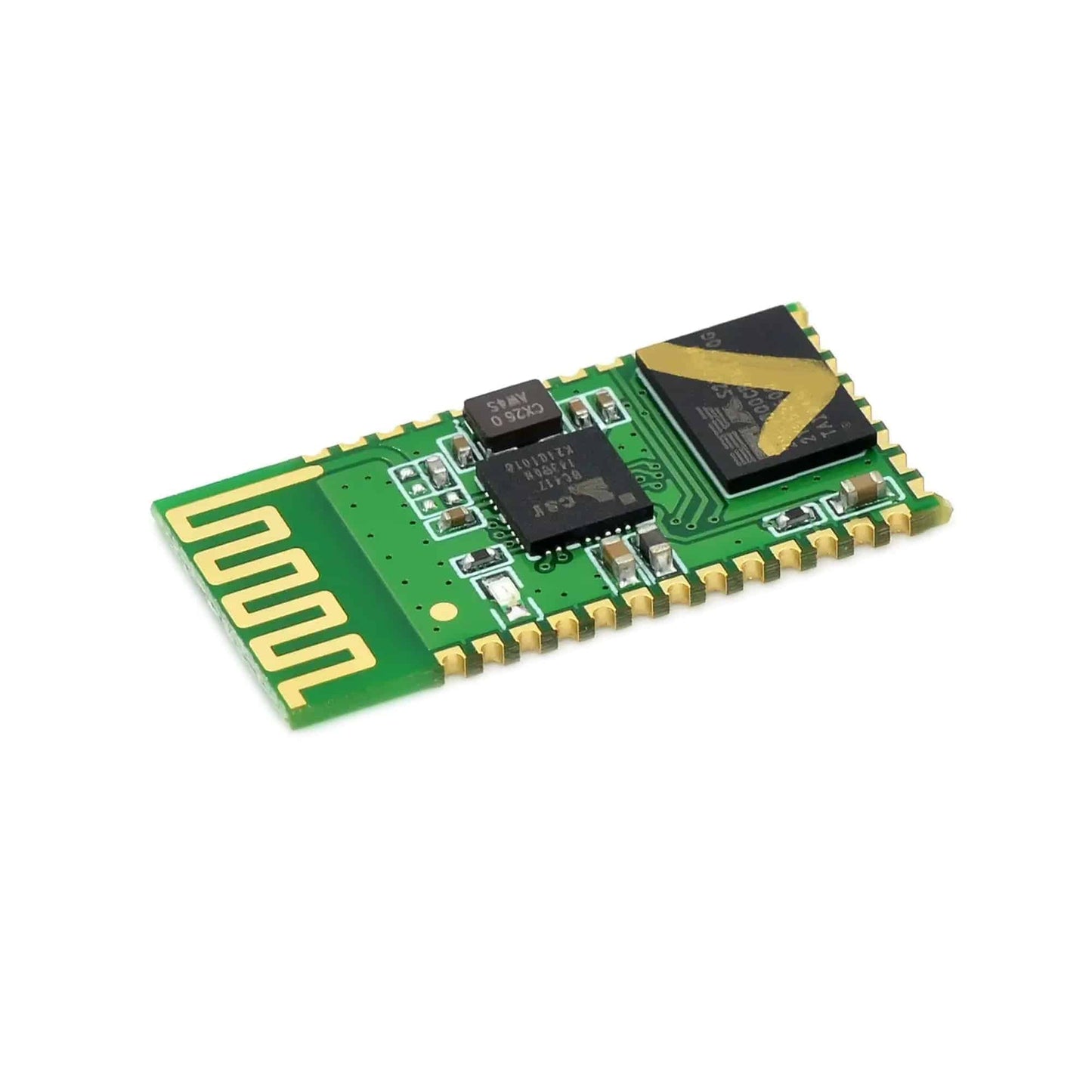

HC-05 Bluetooth Module HC05 Wireless Bluetooth Module without Base Plate - RS4788

HC-05 Bluetooth Module HC05 Wireless Bluetooth Module without Base Plate - RS4788

RS4788

Low stock: 2 left

Rs. 299.00
Rs. 299.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The HC-05 Bluetooth Module without Baseplate is a slave only device. This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules.  To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.

Specifications:

  • Input Supply Voltage: 3.6~6V
  • Input Current: 50mA
  • Maximum Operating Range: 10M
  • Operating Frequency: 2.4GHz ISM band
  • Modulation: GFSK (Gaussian Frequency Shift Keying)
  • Emission Power: 4dBm, Class 2
  • Sensitivity: -84dBm at 0.1% BER
  • Operating Temperature: -20 ~ +75℃

Features:

  • HC-05 Bluetooth Module is used for a GPS navigation system, water, and electricity gas meter reading system.
  • With the computer and Bluetooth adapter, PDA, seamless connection equipment.
  • Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
  • Security: Authentication and encryption.
  • Profiles: Bluetooth serial port.

HC-05 Bluetooth Module Applications:

  • Industrial Applications.
  • Computer and Portable Devices.
  • Embedded Projects.
  • GPS receiver.

Package Included:

1 x HC-05 Bluetooth Module HC05 Wireless Bluetooth Module without Base Plate
