HC-020k Double Speed Measuring Module with Photoelectric Encoders For Experiment - RS019

HC-020k Double Speed Measuring Module with Photoelectric Encoders For Experiment - RS019

SKU:RS019

37 in stock

Regular price Rs. 350.00
Regular price Sale price Rs. 350.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Module Working Voltage: 4.5-5.5V
  • Launch Tube Pressure Drop: Vf=1.6V
  • Launch Tube Current: If<20mA
  • Signal output: A, B two lines; TT power level;
  • Resolution: 0.01mm

Description :

HC-020K speed measuring sensor is a wide voltage, high resolution, short response time, and the switch output speed measurement module. It can test the motor's rotational speed with black encoder? (measured spec. is related to the encoder, the inner diameter of D type encoder that provided is 4mm, can be used for motor output shaft w/ 4mm diameter, which is TT motor we matched, yellow shell and white axis).

Specification:

  • Module Working Voltage: 4.5-5.5V
  • Launch Tube Pressure Drop: Vf=1.6V
  • Launch Tube Current: If<20mA
  • Signal output: A, B two lines; TT power level;
  • Resolution: 0.01mm
  • Measurement frequency: 100KHz
  • Disc diameter: 24mm
  • Inner Disc Diameter: 4mm
  • Encoder resolution: 20 lines
  • Speed measuring sensor configuration: measure line 1 motor speed

Features:

  • Wide voltage, high resolution, short response time, switch output.
  • Can test motor's rotational speed w/ black encoder.

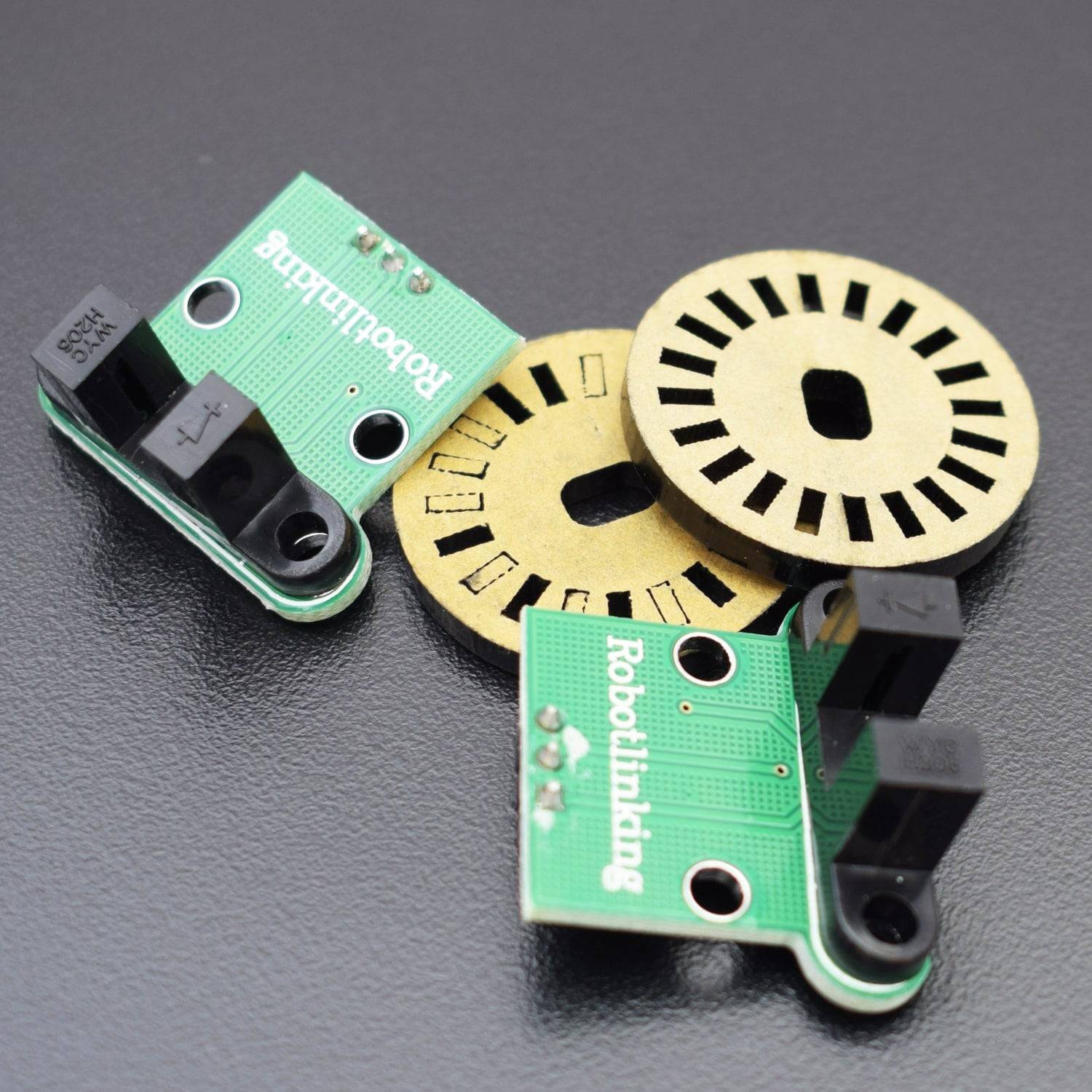

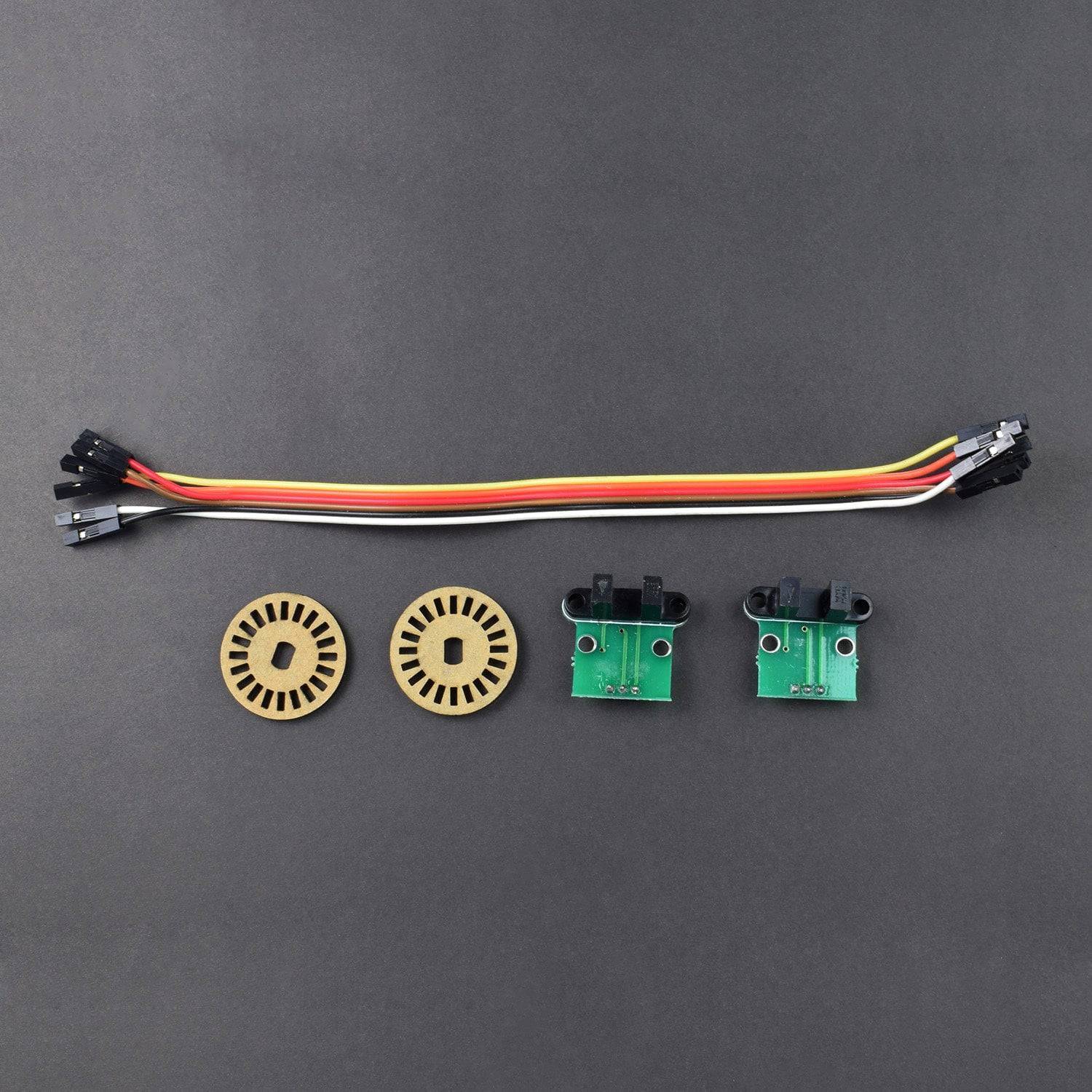

Package Included:

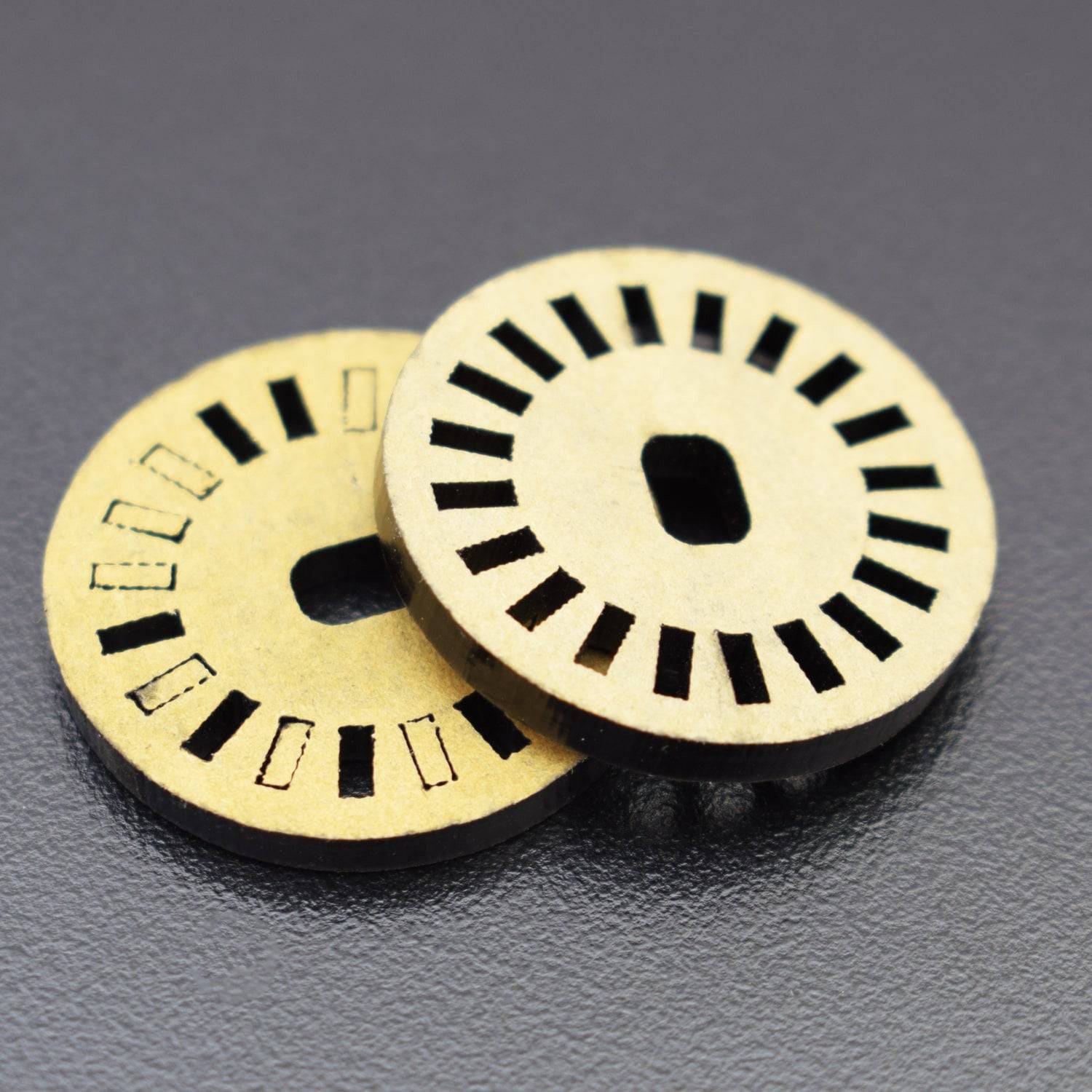

  • 2 x Speed Encoders

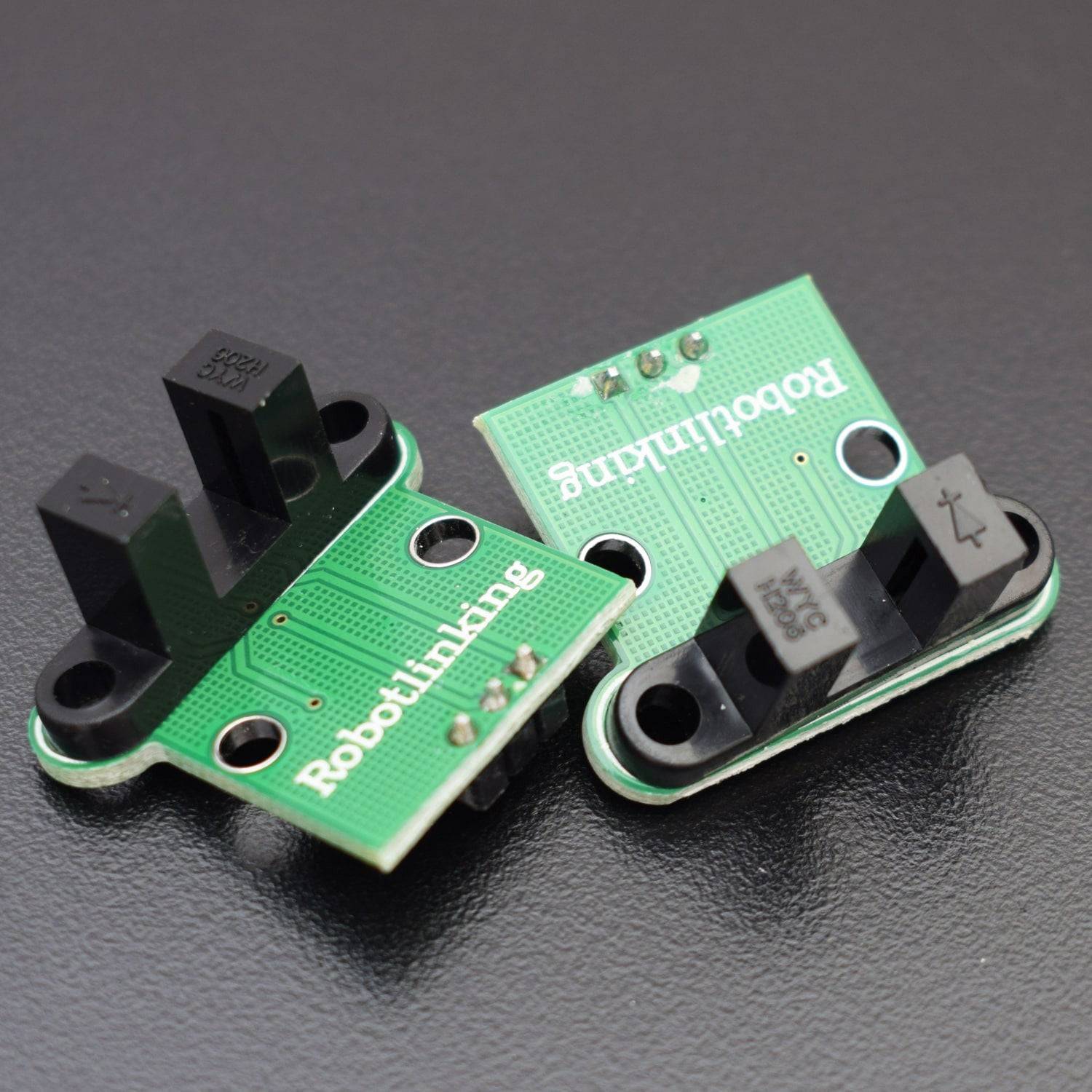

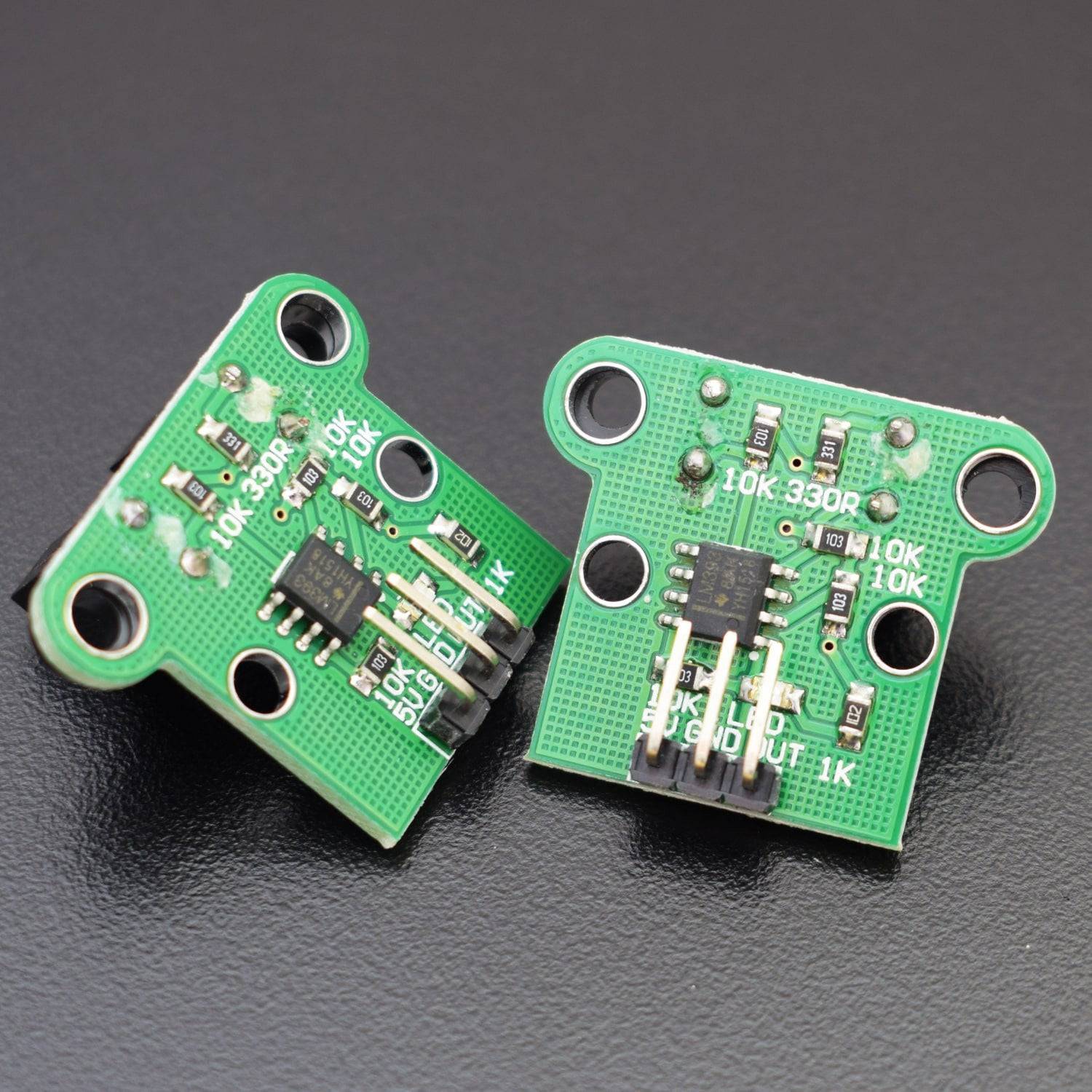

  • 2 x HC-020k Double Speed Measuring Module
