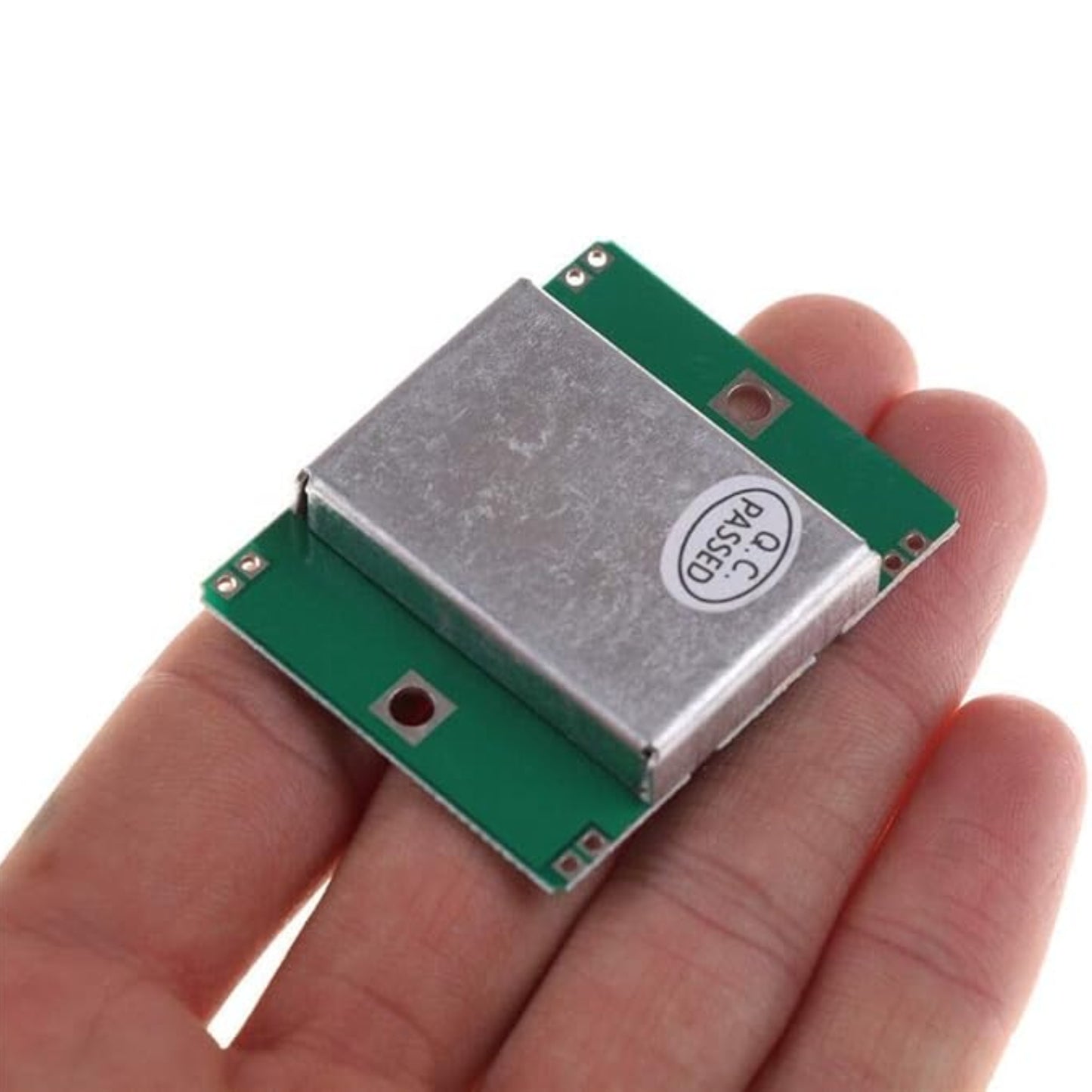

Description:
HB100 Miniature Microwave Motion Sensor is an X-Band Bi-Static Doppler transceiver module. It has a built-in Dielectric Resonator Oscillator (DRO) and a pair of Microstrip patch antenna arrays, making it ideal for usage in motion detection equipment. This module is ideal for alarms, motion detectors, lighting control, vehicle speed measurement, and automatic doors. Low current consumption (typical 30 mA) CW or pulse operation Flat profile Long detection range (20 m) Supply
Specifications:
- Type: Microwave Sensor
- Chip: HB100
- Frequency: 10.525GHz
- Voltage: DC 5V±0.25V
- Current: 40mA
Applications:
- Automatic door startup
- House intrusion alarm
- Collision warning
- Traffic monitoring
Caution:
Please use a low-voltage soldering iron and connect it to a reliable grounding. This device is sensitive to ESD and it may be damaged during soldering. The IF output of the HB100 module is especially sensitive. You can check it for damage using a multimeter in diode mode. The forward voltage drop between IF and GND should be about 0.25 V.
Package Included:

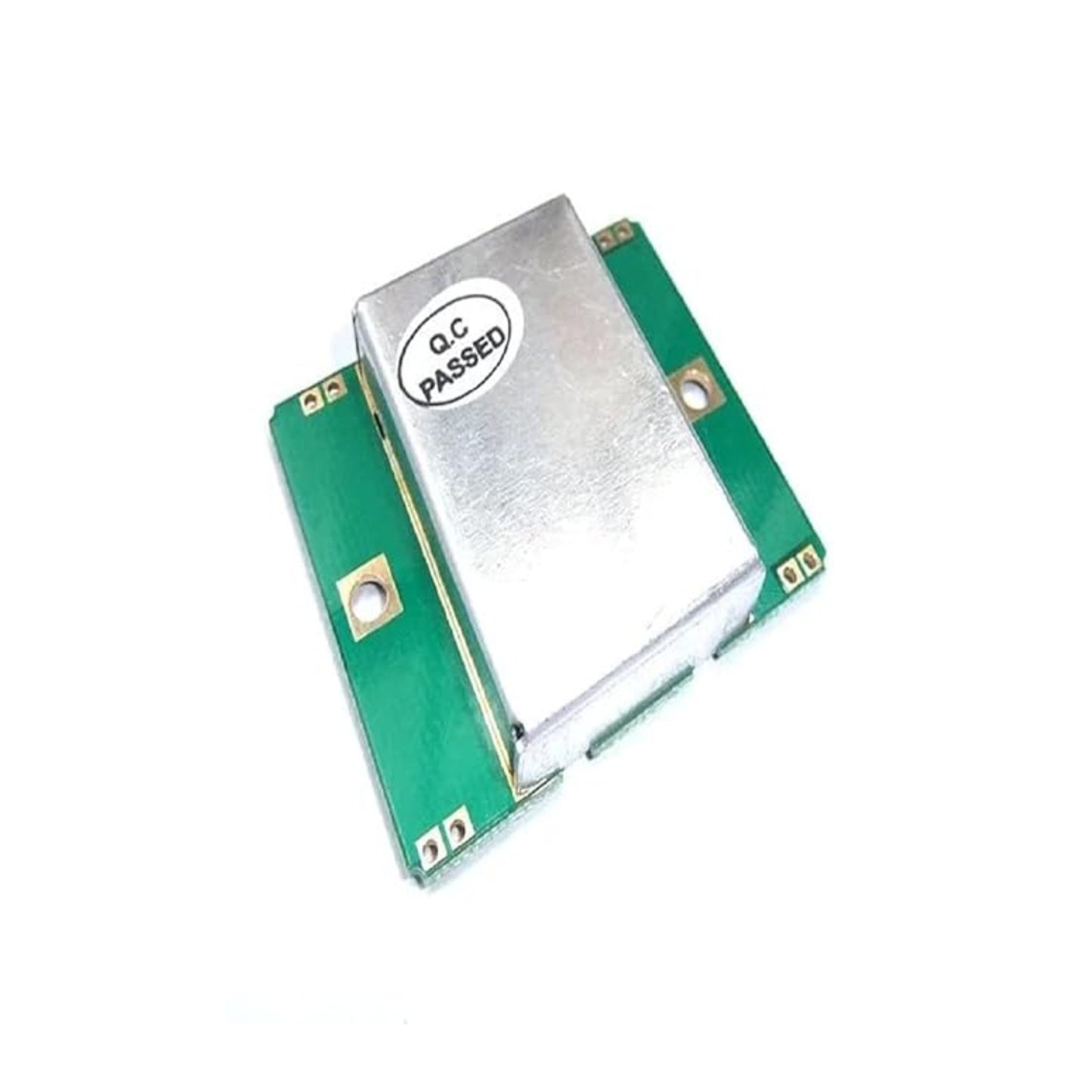

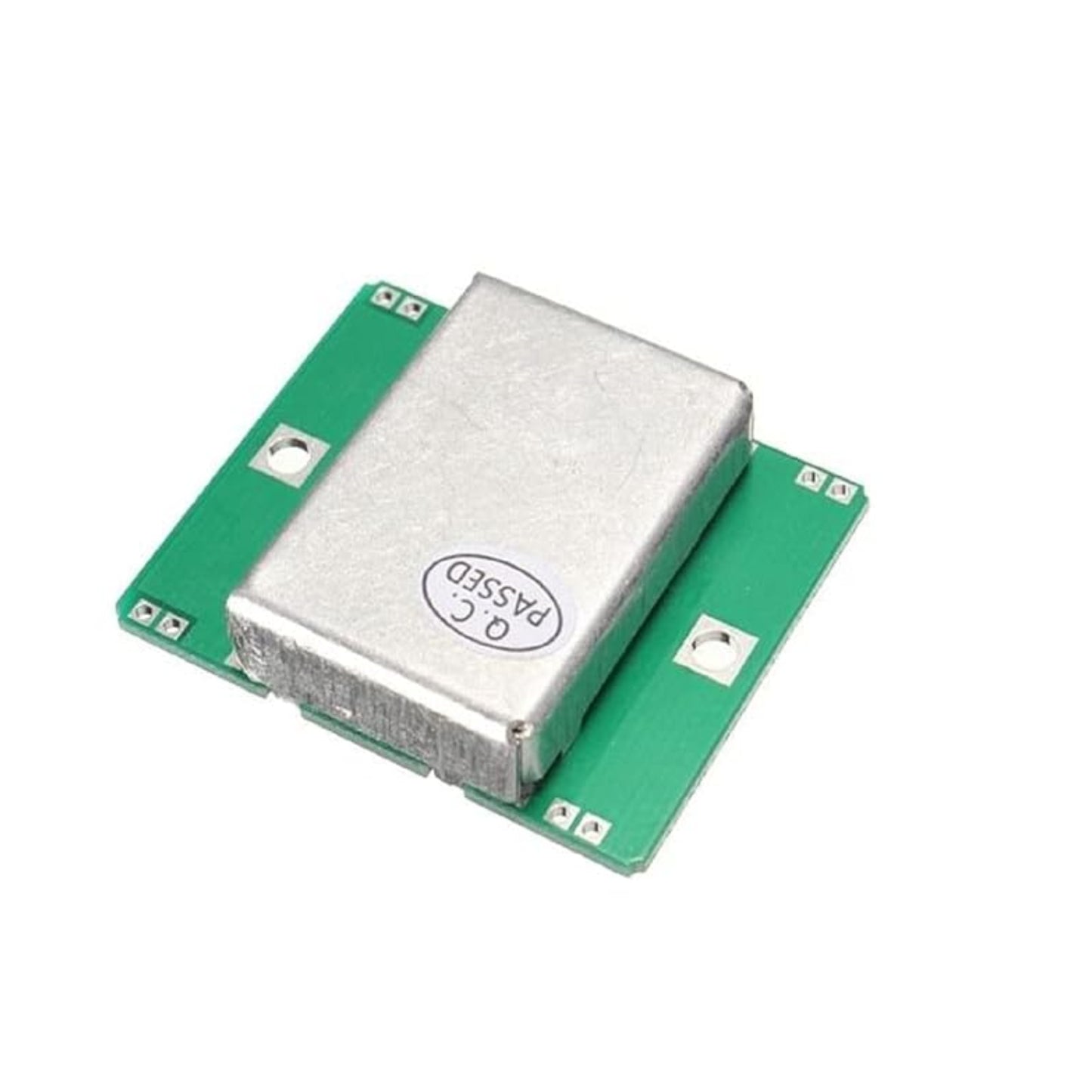

1 x HB100 Microwave Sensor Module 10.525GHz Doppler Radar Motion Detector Sensor Module
