Description:

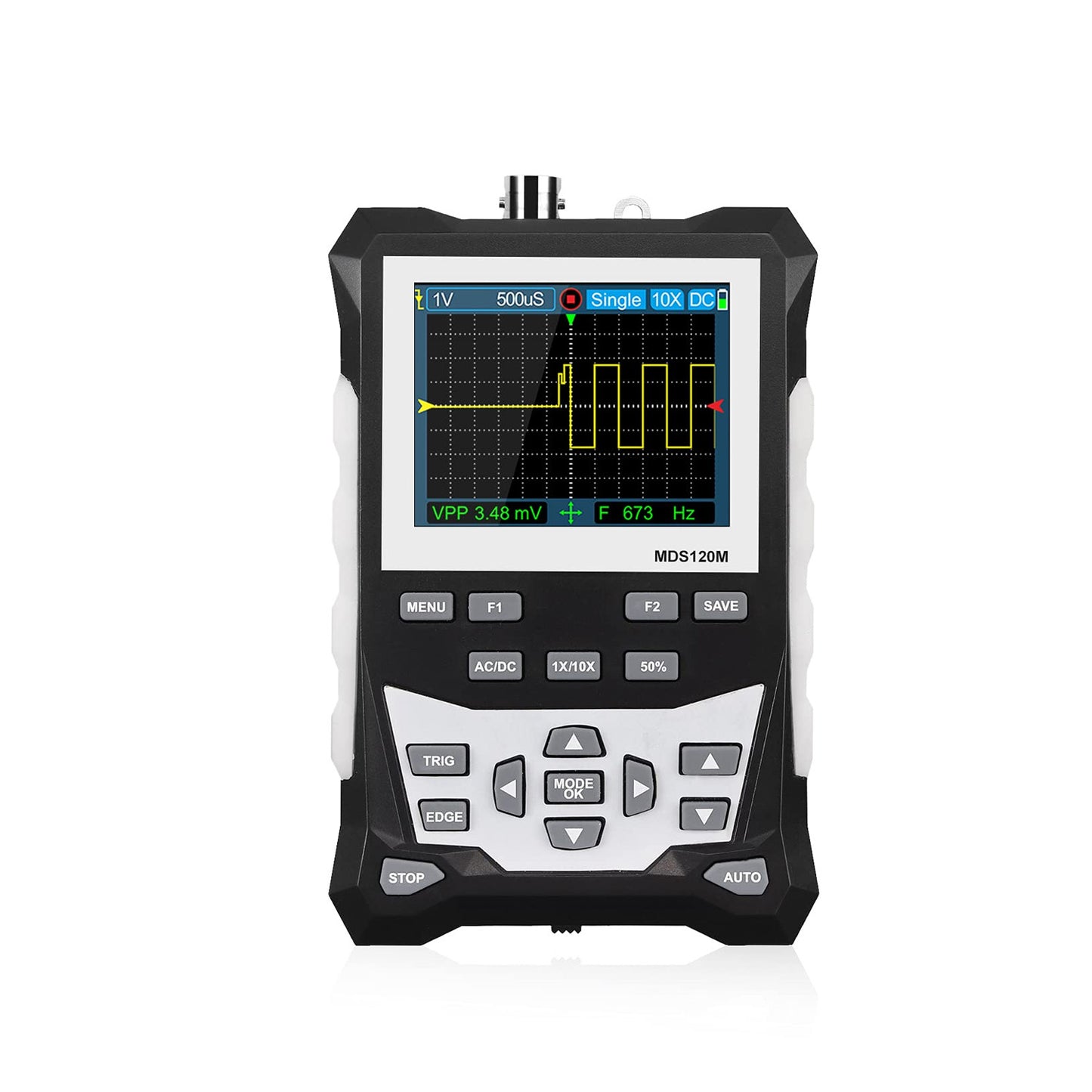

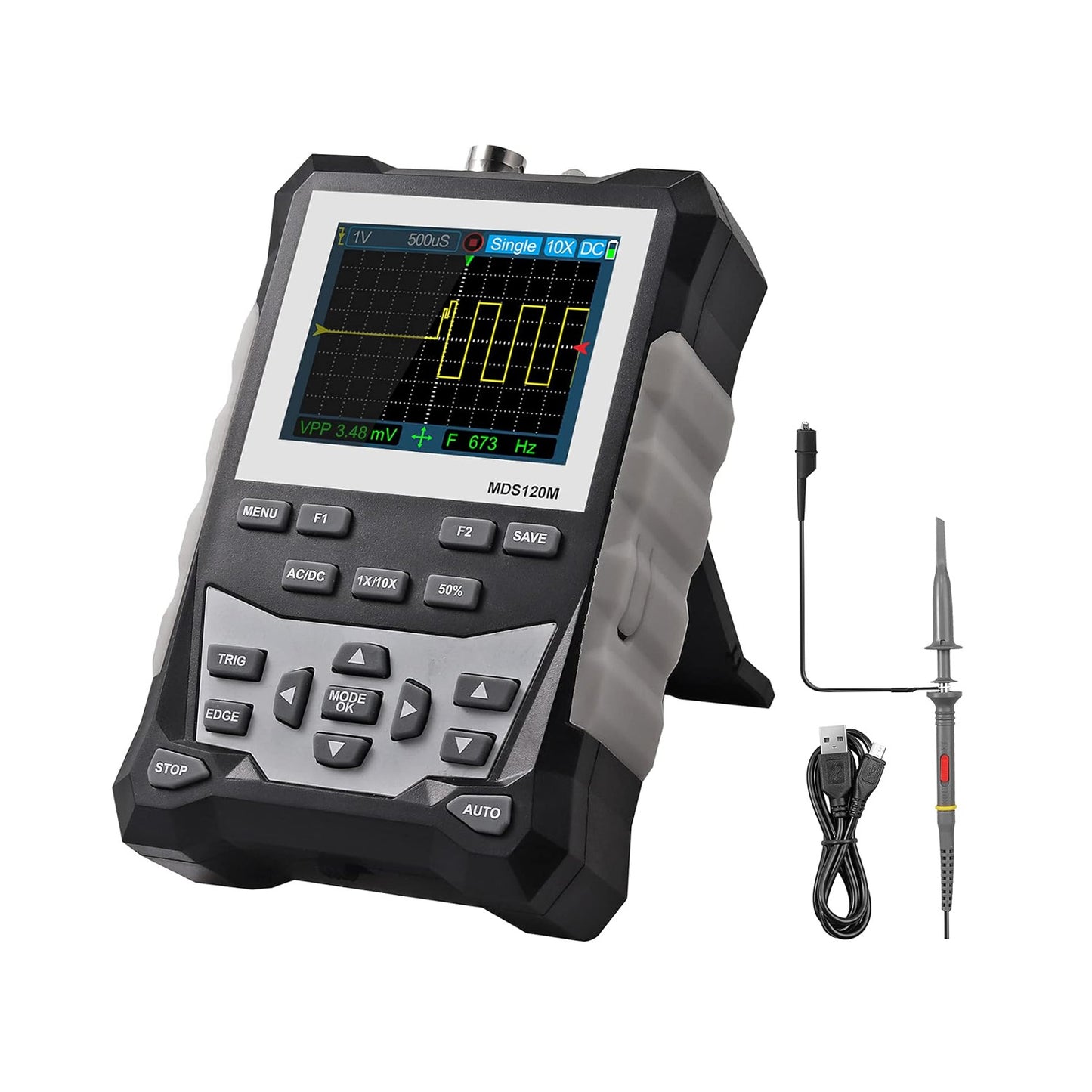

Handheld Oscilloscope 120 MHz analogue bandwidth, with an equivalent sampling rate of 500MSps. 3 trigger mode: Auto/Normal/Single. 4-position square wave signal output: 1kHz, 10kHz, 100kHz, 1MHz.

The built-in high voltage protection module can withstand up to 400V continuous voltage and 800V peak voltage. Don't worry about the oscilloscope burnout caused by the high voltage not being probed to the 10X position.

Digital Oscilloscope Display high-definition LCD screen with 2.4-inch 320×240 resolution. Extremely convenient and fast waveform storage function, and can store up to 2500 waveform pictures. Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, page turning, deletion and more.

1~8 levels. Built-in lithium battery, about 8 hours standby time when fully charged. Protective silicone covers on both sides of the instrument, slip-resistant, drop-resistant and shock-resistant, comfortable hand feel.

Suitable for home appliance inspection, automotive diagnostics, research and education, product development, utility testing and many other applications.

Specifications:

  • Product Type: Oscilloscope
  • Screen Size: 2.4" color screen
  • Screen Resolution: 320×240
  • Display Technology: TFT
  • Channel: 1
  • Waveform Bandwidth: 120MHz
  • Equivalent Max Sampling Rate: 500MSa/S
  • Storage Depth: 12.8div
  • Input Impedance: 1MΩ
  • Vertical Sensitivity: 50mV~100V
  • Time Base Range: 6nS~50S

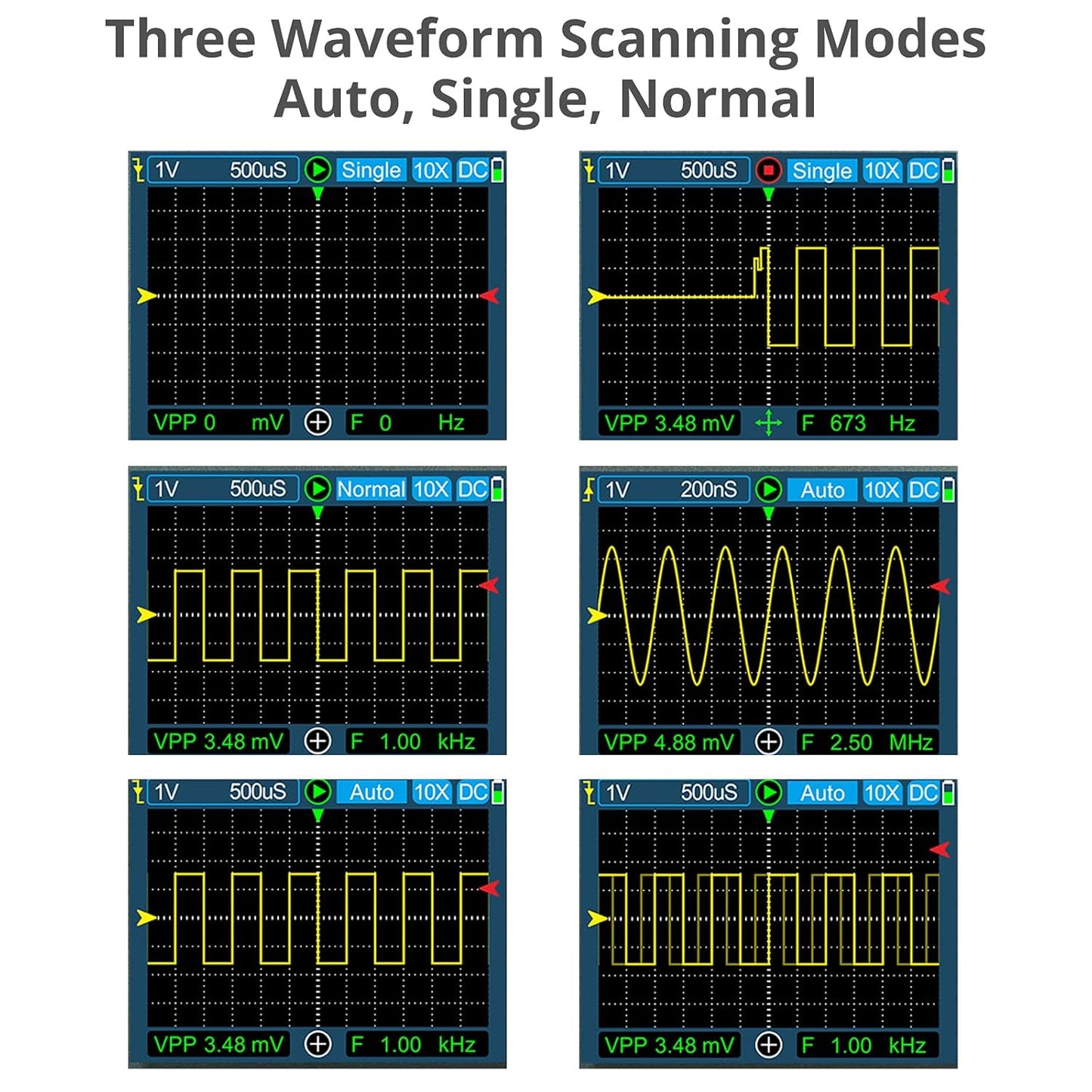

  • Trigger Mode: Auto/Normal/Single
  • Trigger Edge: Rising/Falling edge
  • Maximum Test Voltage: 1X: 80 Vpp ; 10X: 800 Vpp
  • Signal Source Outputs: 1kHz, 10kHz, 100kHz, 1MHz
  • Accessories: 100MHz Probe, Charging Cable, User Manual,Cloth bag
  • Input Impedance: 1MΩ
  • One-click Auto: Support
  • Storage: 2500 waveforms
  • Waveform Manager: Support
  • Voltage Accuracy: 10%
  • Frequency Accuracy: 1%
  • Measurement Parameter: 12(VPP, VP, MAX,MIN,F, T, T+, T-, Du+ and Du- .)
  • Battery: Lithium battery
  • Standby Time: About 8 hours
  • Backlight Brightness: 1~8 levels
  • Charging Voltage: DC5V/1A/2A
  • Coupling Method: DC/AC

Features:

  • 3 trigger modes available
  • Built-in high voltage protection module
  • 2.4-inch high-definition LCD screen
  • Up to 2500 waveform pictures can be stored
  • Built-in lithium battery with 8 hours standby time
  • Suitable for various applications such as automotive diagnostics and utility testing

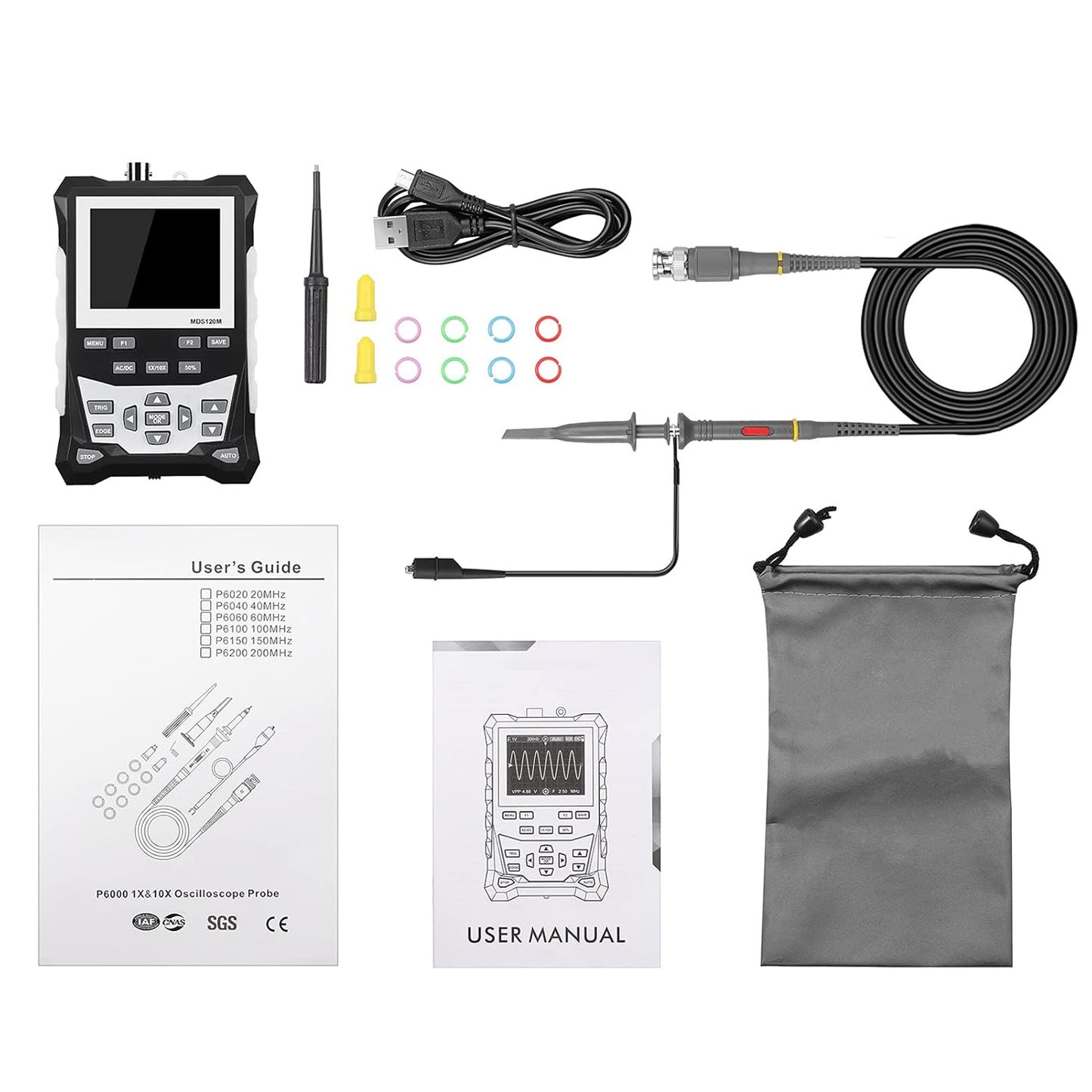

Package Included:

1 x Handheld Oscilloscope Digital Oscilloscope 500MS/s Sampling Rate Portable Storage Oscilloscope 120MHz Waveform Bandwidth Oscilloscope 2.4" LCD Display Oscilloscope 2500 Waveform Storage Oscilloscope
