- Supply Voltage Range: 2.4 to 5.5V(typ.3.3V)
- RH Response Time: 0-100% RH
- Temperature Operating Range: -40 to +125°C (-40 to +257°F)
- Accuracy Tolerance: +/- 2%;RH +/- 0.3℃
Description:

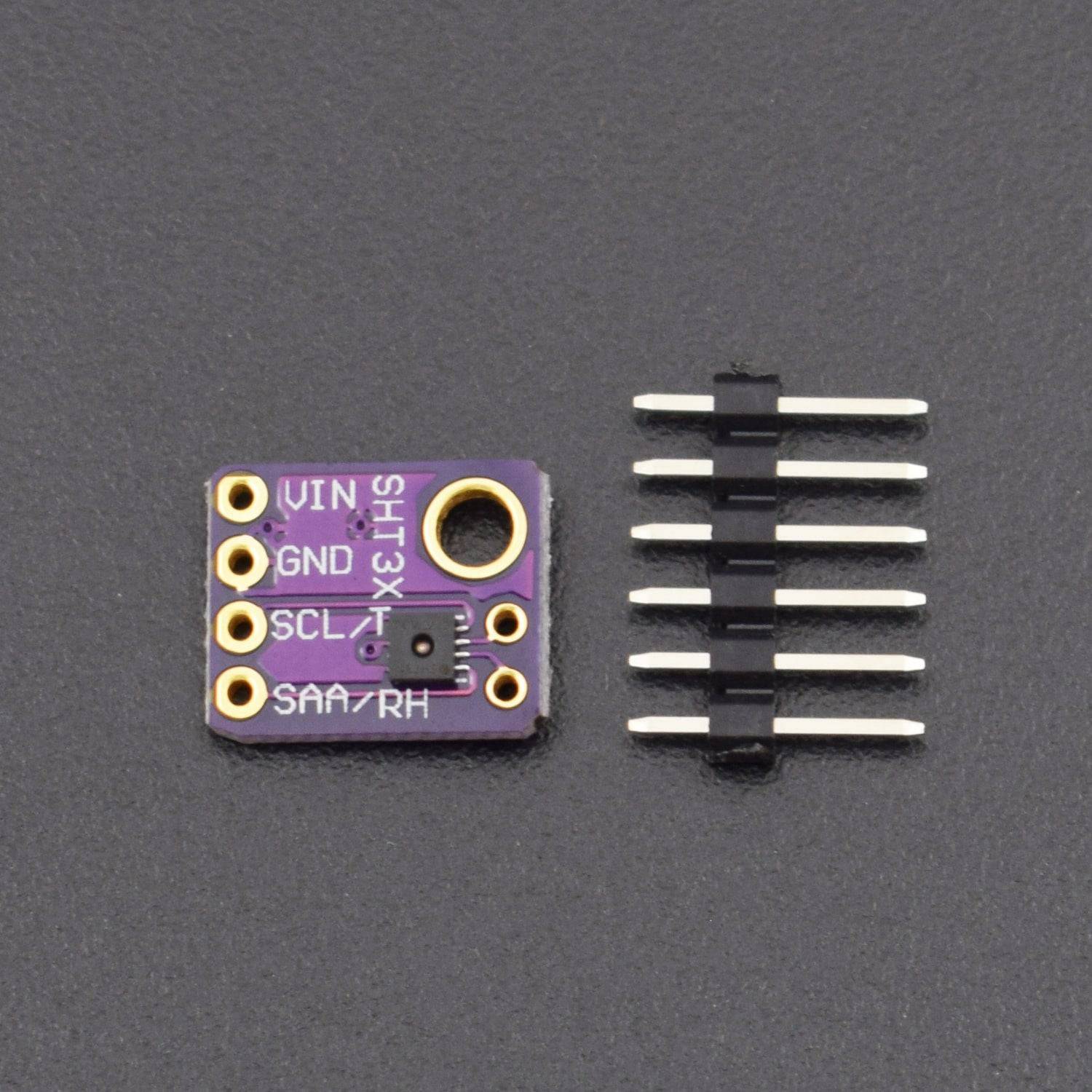

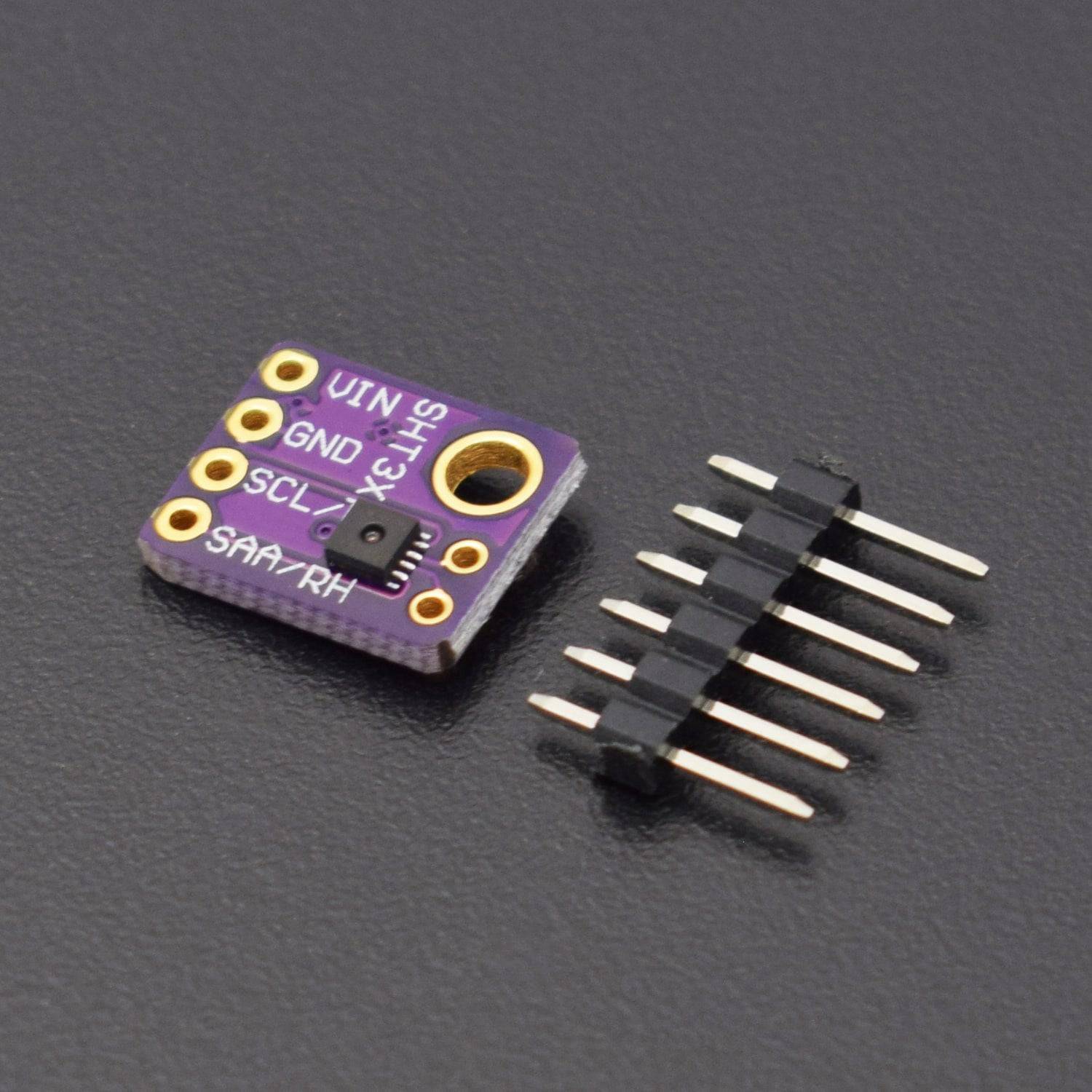

This is a GY-SHT31-D digital temperature and humidity sensor module. It is with Fully calibrated, linearized, and temperature compensated analog output. It has wide supply voltage range, from 2.4 to 5.5 V. It supports I2C interface with communication speeds up to 1MHz and two user selectable addresses.
Specification:
- Supply Voltage Range: 2.4 to 5.5V(typ.3.3V)
- RH Response Time: 0-100% RH
- Temperature Operating Range: -40 to +125°C (-40 to +257°F)
- Accuracy Tolerance: +/- 2%;RH +/- 0.3℃
- Interface: I2C
Features:
- Fully calibrated, linearized, and temperature compensated analog output
- Wide supply voltage range, from 2.4 to 5.5 V
- I2C Interface with communication speeds up to 1MHz and two user selectable addresses
- Typical accuracy of +/- 2%RH and +/- 0.3℃
- Very fast start-up and measurement time
- I2C address (7-bit) can be 0x44 or 0x45
- ALERT pin allows the Alert Mode as a humidity and temperature watchdog
Package Included:
1 x GY-SHT31-D digital temperature and humidity sensor module
