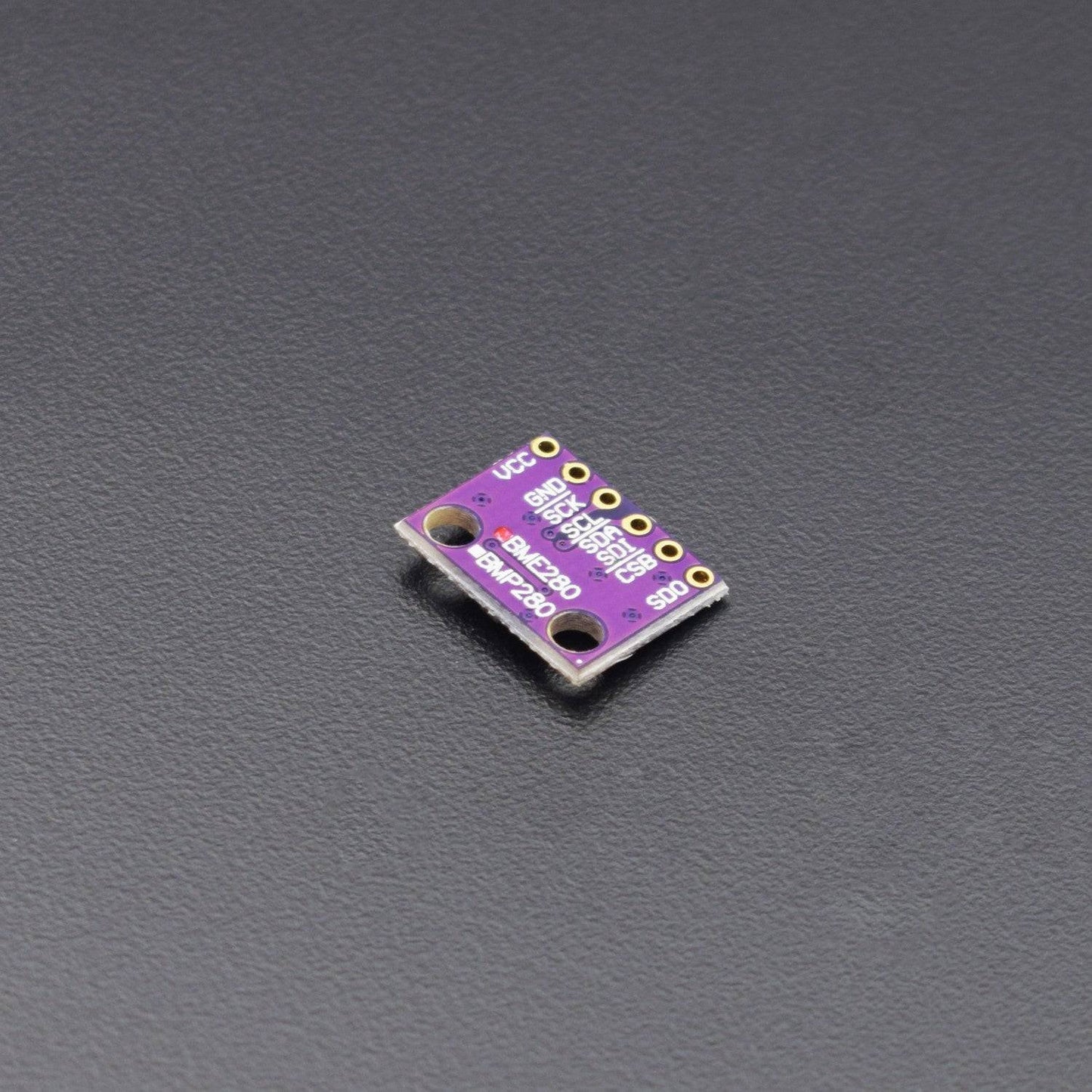

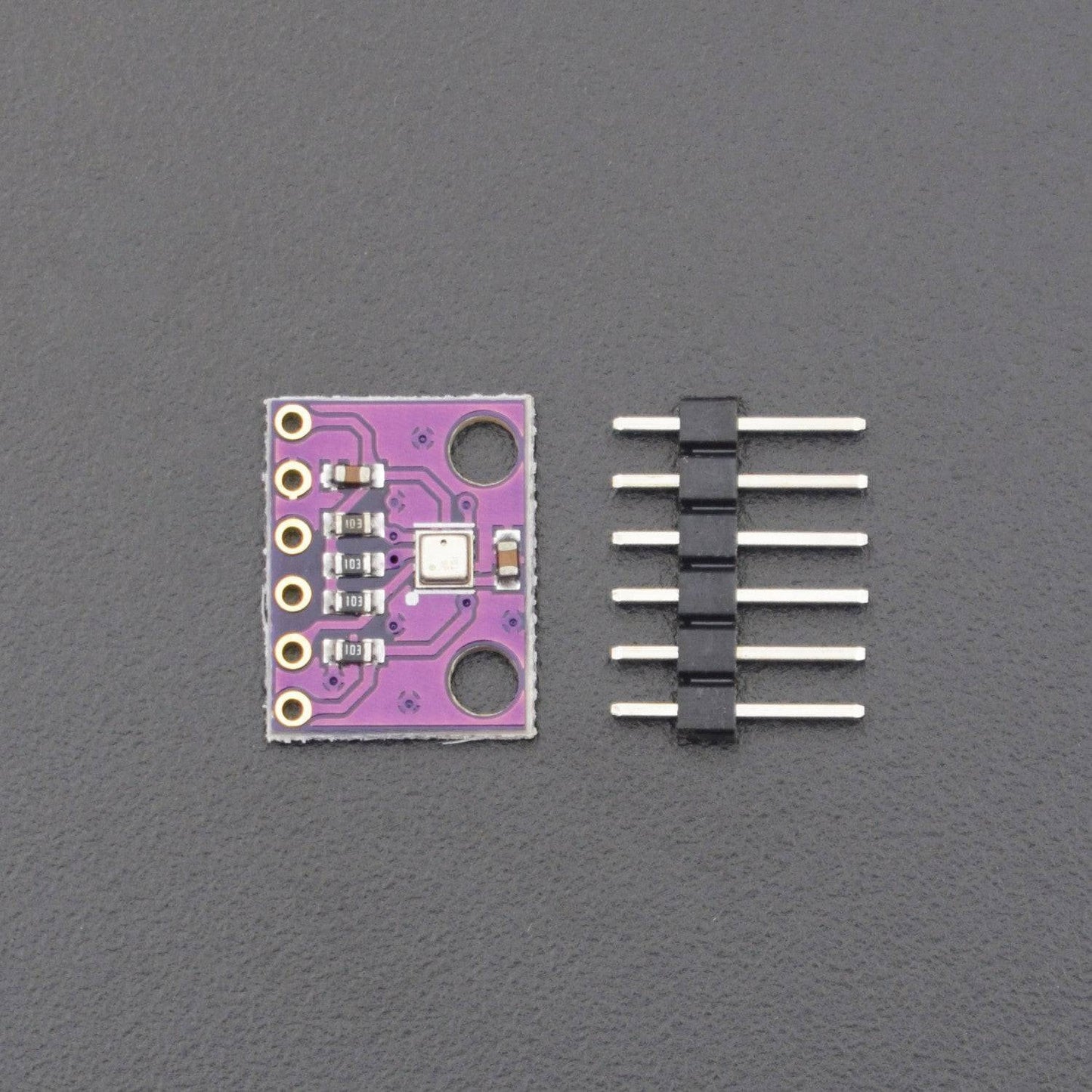

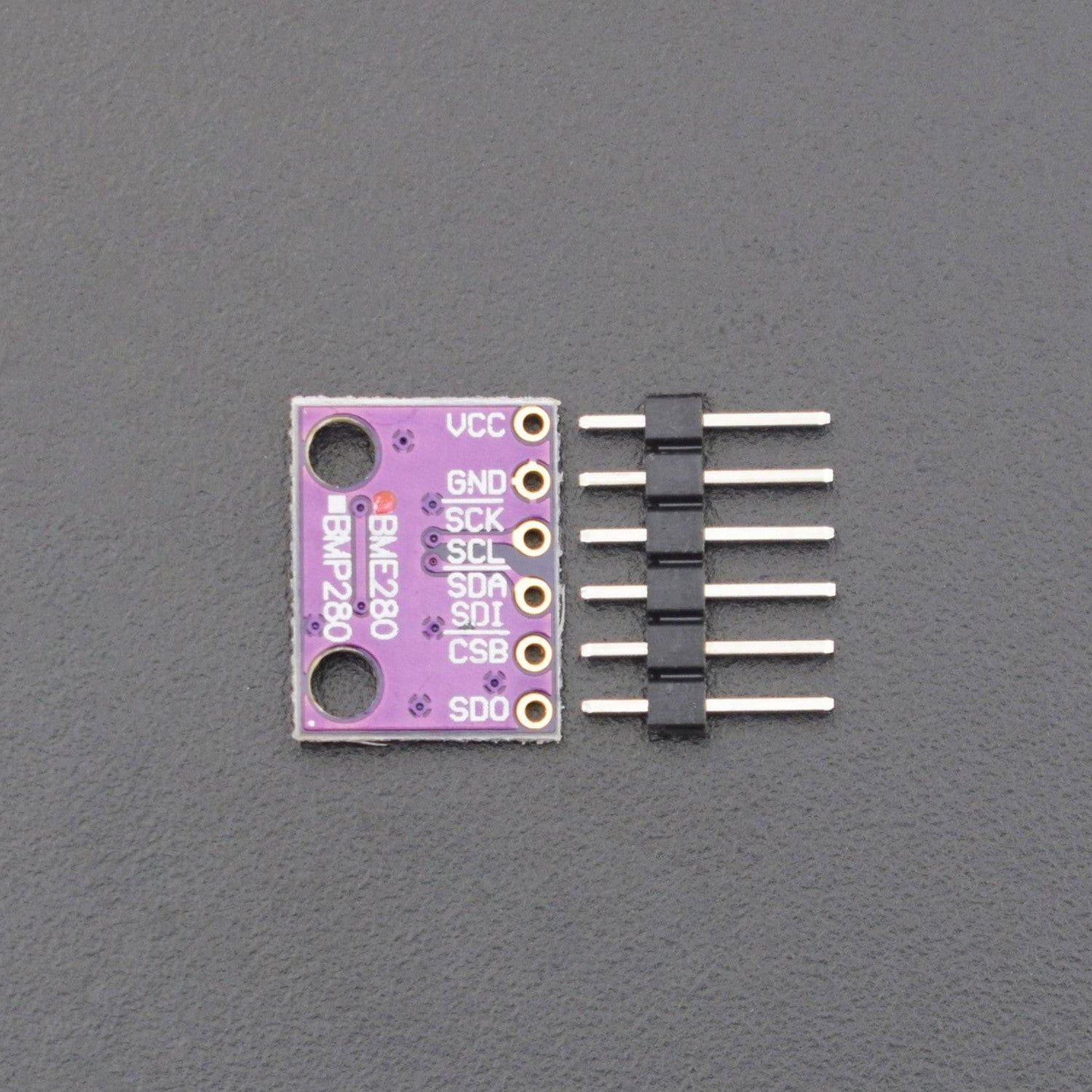

GY-BME280-3.3 High-precision atmospheric pressure altimeter I2C SPI Breakout Barometric Temperature Humidity Module -RS1118

GY-BME280-3.3 High-precision atmospheric pressure altimeter I2C SPI Breakout Barometric Temperature Humidity Module -RS1118

SKU:RS1118

17 in stock

Regular price Rs. 950.00
Regular price Sale price Rs. 950.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Model: GY-BME280-3.3
  • Chip: BME280
  • Power Supply: 3.3-5VDC
  • Peak Current: 1.12mA

Description:

BME280 sensor, an environmental sensor with temperature, barometric pressure and humidity! This sensor is great for all sorts of weather/environmental sensing and can even be used in I2C. This precision sensor from Bosch is the best low-cost sensing solution for measuring humidity with ±3% accuracy, barometric pressure with ±1 hPa absolute accuracy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude, and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter or better accuracy! The BME280 is the next-generation of sensors from Bosch, and is the upgrade to the BMP085/BMP180/BMP183 - with a low altitude noise of 0.25m and the same fast conversion time. For simple easy wiring, go with I2C.

Specification:

Model

GY-BME280-3.3

Chip

BME280

Power Supply

3.3-5VDC

Peak Current

1.12mA

Air Pressure Range

300-1100hPa (equi. to +9000…-500m above sea level)

Temperature Range

-40 to +85 °C

Digital Interfaces

I2C (up to 3.4 MHz)
SPI (3 and 4 wire, up to 10 MHz)

Features:

  • Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
  • Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V
  • VDDIO interface voltage range: 1.2 V to 3.6 V
  • Current consumption 1.8 uA @ 1 Hz humidity and temperature
  • 2.8 uA @ 1 Hz pressure and temperature
  • 3.6 uA @ 1 Hz humidity, pressure and temperature
  • 0.1 uA in sleep mode
  • Operating range -40…+85 C, 0…100 % rel. humidity, 300…1100 hPa- Humidity sensor and pressure sensor can be independently enabled/disabled

Package Included:

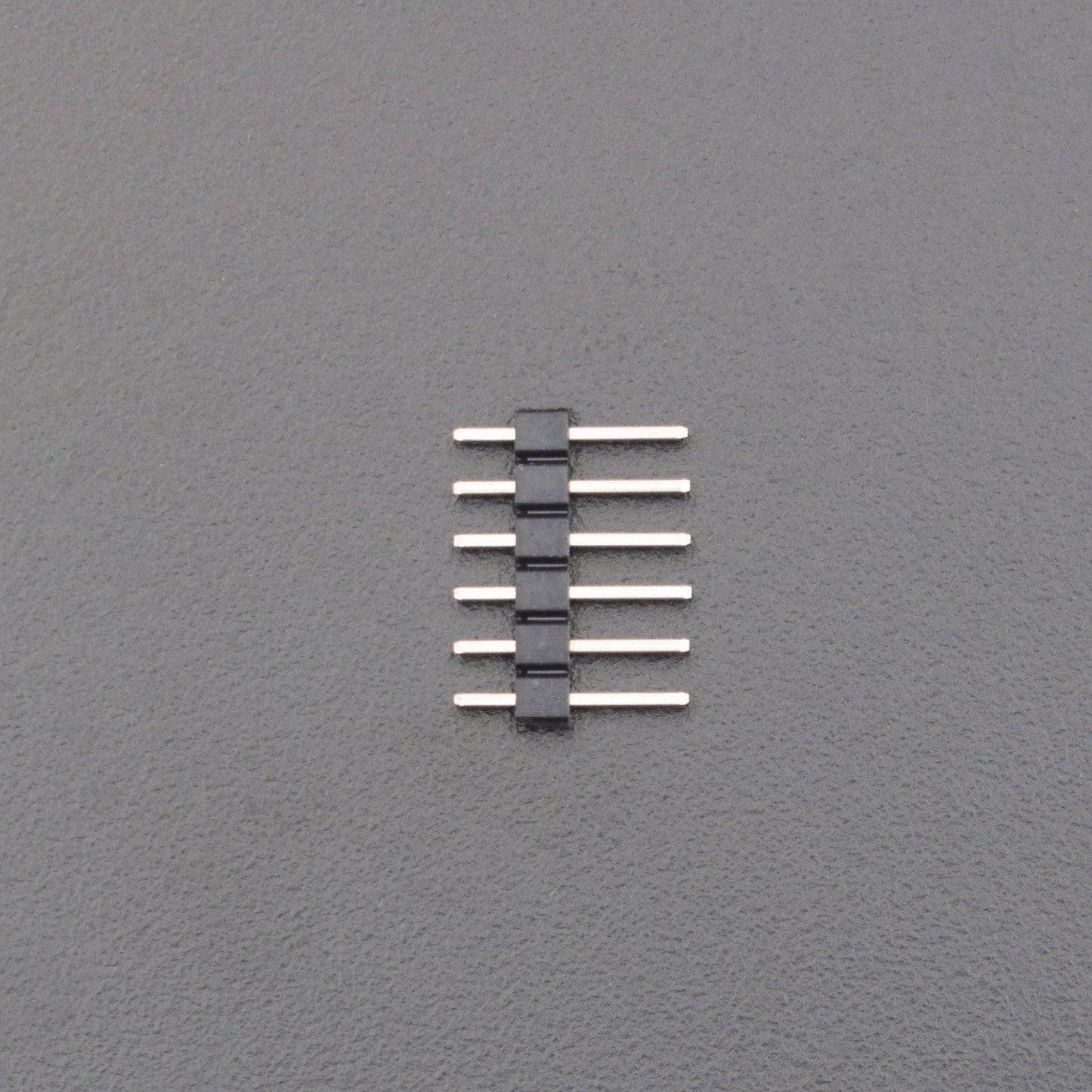

1 x GY-BME280-3.3 High-precision atmospheric pressure altimeter I2C SPI Breakout Barometric Temperature Humidity Module
