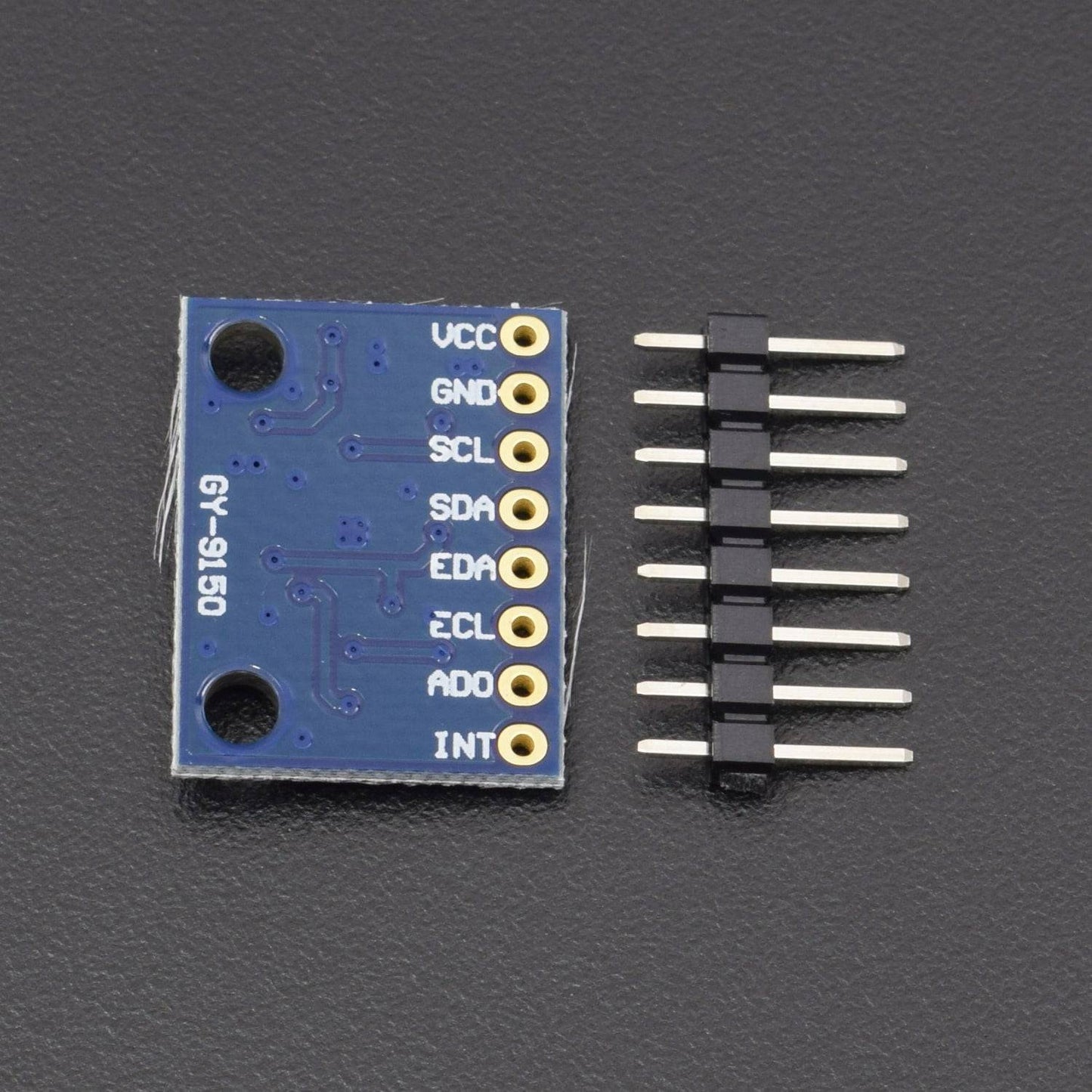

GY-9150 MPU-9150 Nine axis compass Accelerometer module SE05014 - RS085

GY-9150 MPU-9150 Nine axis compass Accelerometer module SE05014 - RS085

SKU:RS085

In stock

Regular price Rs. 1,280.00
Regular price Sale price Rs. 1,280.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Module Model: GY-9150
  • Use Chip: MPU-9150
  • Power supply :3-5v (internal low dropout regulator)
  • Communication: IIC communication protocol standard
  • 16bit AD converter-chip, 16-bit data output (field 13)
  • Gyro Range: ± 250 500 1000 2000 ° / s
  • Acceleration range: ± 2 ± 4 ± 8 ± 16g
  • Magnetic field range: ± 1200uT
  • Using Immersion Gold PCB, welding machines to ensure quality
  • 2.54mm pin spacing

Description :

  • MPU-9150 is world's first nine-axis motion sensing trace (MotionTracking) components which are designed for which require low-power, low-cost, high-performance consumer electronics equipment such as smartphones, tablet computers, wearable sensors.
  • MPU-9150 includes InvenSense motion fusion calculus and run-time calibration firmware, and to ensure that its sensor fusion algorithms and calibration procedures to provide the consumer with optimal performance.

Features:

  • Digital-output X-, Y-, and Z-Axis angular rate sensors (gyroscopes) with a user-programmable fullscale range of ±250, ±500, ±1000, and ±2000°/sec
  • External sync signal connected to the FSYNC pin supports image, video and GPS synchronization
  • Integrated 16-bit ADCs enable simultaneous sampling of gyros
  • Enhanced bias and sensitivity temperature stability reduces the need for user calibration
  • Improved low-frequency noise performance
  • Digitally-programmable low-pass filter
  • Factory calibrated sensitivity scale factor

Package Included :

1 x GY-9150 nine-axis electronic compass accelerometer gyroscope module
