- Chip: MLX90614ESF-BCC
- Voltage: 3-5V
- Communication: standard IIC communication protocol
Description:
This is an infrared thermometer designed for non-contact temperature sensing. An internal 17-bit ADC and a powerful DSP contribute to the MLX90614’s high accuracy and resolution. It has a huge number of applications including body temperature measurement and movement detection. The sensor has a field of view of 35 degrees and returns the average temperature value of all objects within this field of view. GY-906 MLX90614ESF-DCC non-contact infrared thermometer for use with Arduino, or any microcontroller that can communicate with it through it’s I2C interface. This sensor comes with a breakout board with all of the components needed for operation and two types of pins.
Specification:
- Chip: MLX90614ESF-BCC
- Voltage: 3-5V
- Communication: standard IIC communication protocol
Features:
- Small size, low cost
- Mounted on a breakout board with two types of pins
- 10k Pull up resistors for the I2C interface with optional solder jumpers
- Easy to integrate
- Factory calibrated in wide temperature range: -40 to +125°C for sensor temperature and -70 to +380°C for object temperature.
- High accuracy of 0.5°C over wide temperature range (0 to +50°C for both Ta and To) High (medical) accuracy calibration
- Measurement resolution of 0.02°C
- Single and dual zone versions
- SMBus compatible digital interface
- Customizable PWM output for continuous reading
- Simple adaptation for 8-16V applications
- Sleep mode for reduced power consumption
- Different package options for applications and measurements versatility
- Automotive grade
Applications Examples:
- High precision non-contact temperature measurements
- Thermal Comfort sensor for Mobile Air Conditioning control system
- Temperature sensing element for residential, commercial and industrial building air conditioning Windshield defogging
- Automotive blind angle detection
- Industrial temperature control of moving parts
- Temperature control in printers and copiers
- Home appliances with temperature control
- Healthcare
- Livestock monitoring
- Movement detection
- Multiple zone temperature control - up to 127sensors can be read via common 2 wires
- Thermal relay / alert
- Body temperature measurement
Package Included:

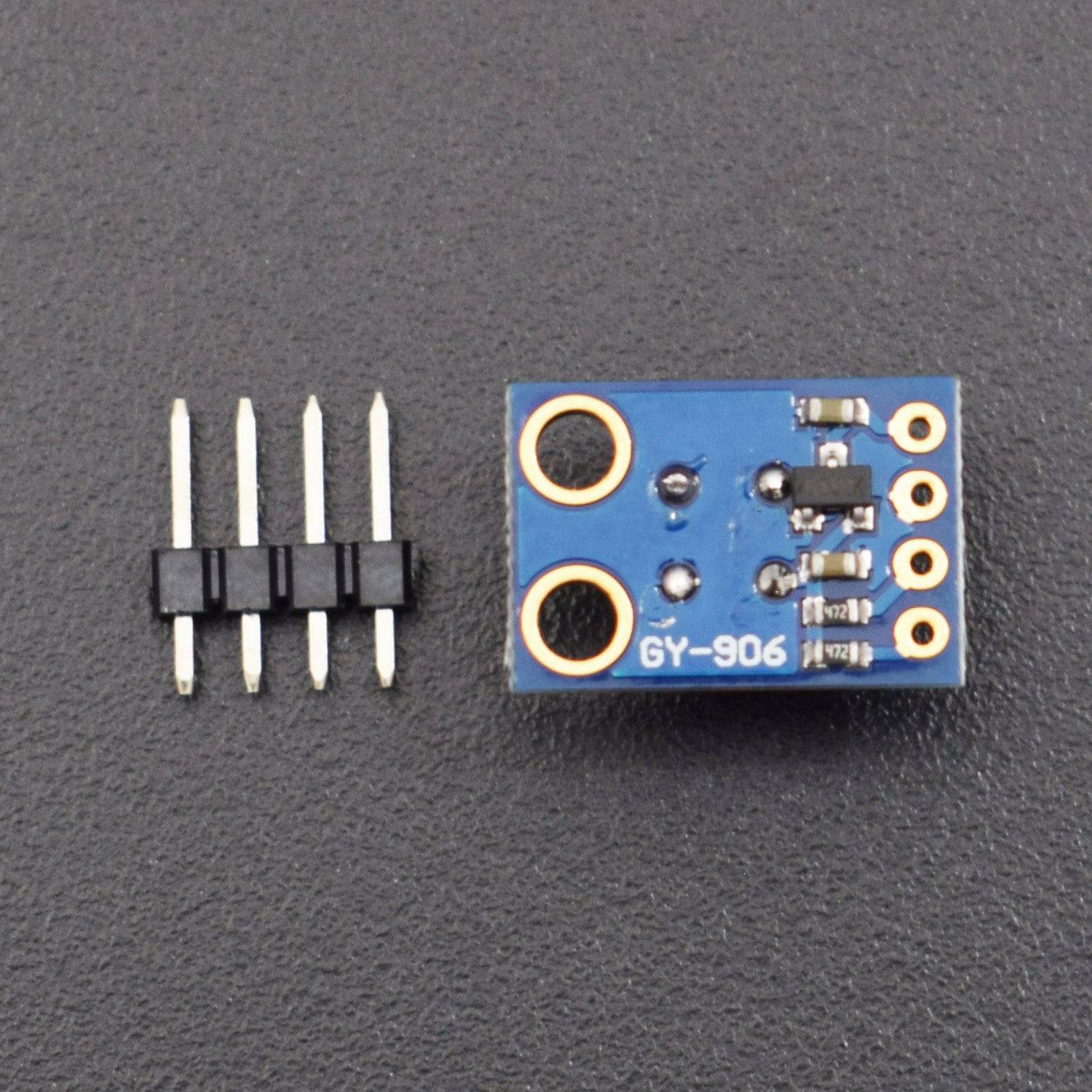

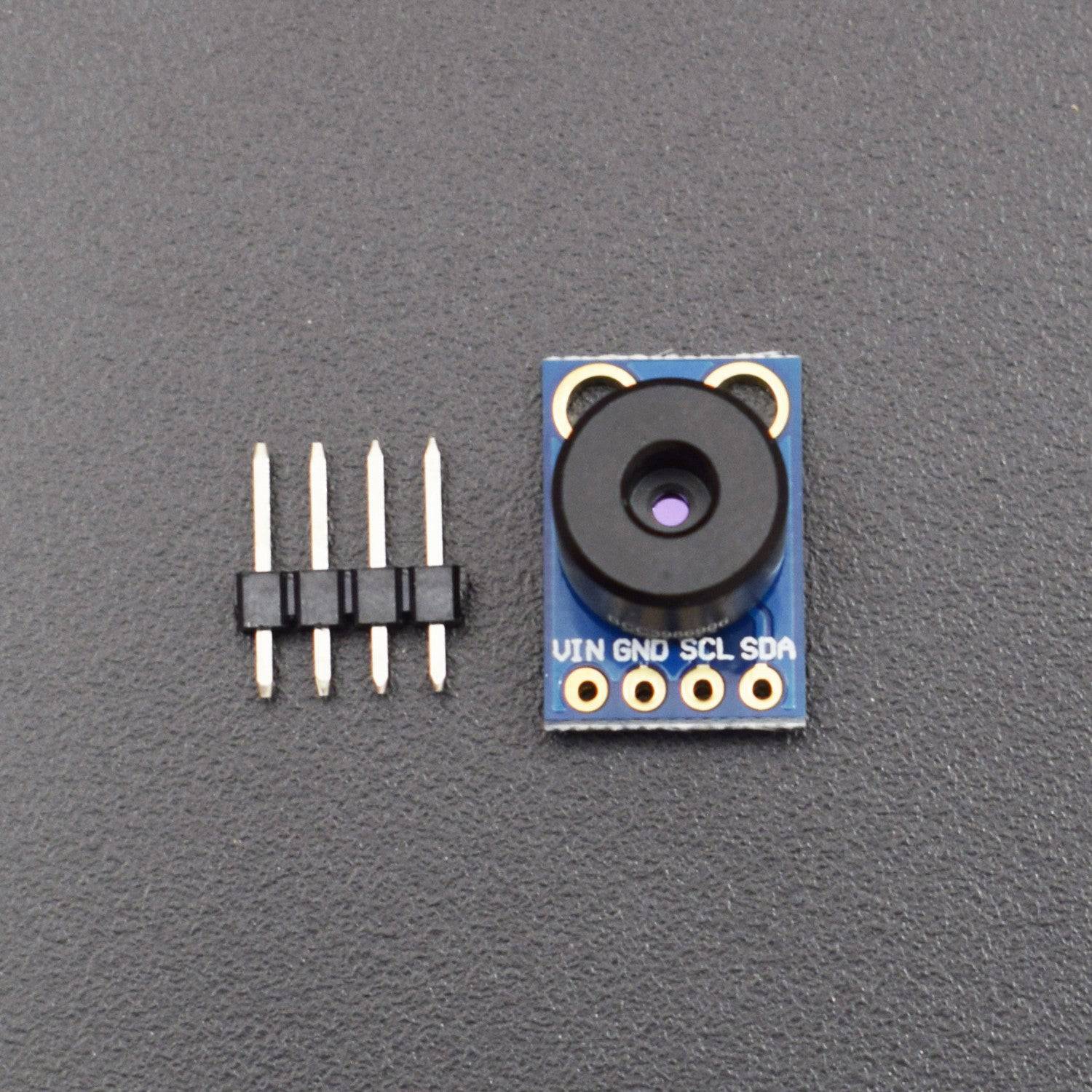

1 x GY-906-BCC MLX90614ESF-BCC IR Sensor Module Non Contact Infrared Thermometer 3-5V For Arduino
