- Operating Voltage: 2.5 V to 5.5 V
- Supply Current: 8mA.
- Output Format (I2C/SPI): Gyro: one 16-bit reading per axis
- Accelerometer: one 16-bit reading per axis
Description:
This IMU 10DOF is a motion tracking module based on the sensor LSM303D,L3GD20 and BMP180. The LSM303D is a system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor. The L3GD20 is a low-power three-axis angular rate sensor. It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through a digital interface (I2C/SPI). The BMP180 is the function compatible successor of the BMP085, a new generation of high precision digital pressure sensors for consumer applications. The ultra-low power, low voltage electronics of the BMP180 is optimized for use in mobile phones, PDAs, GPS navigation devices and outdoor equipment. With a low altitude noise of merely 0.25m at fast conversion time, the BMP180 offers superior performance. The I2C interface allows this module easy system integration with a microcontroller. You can uses it in your DIY or your product, for example, Quadcopter, Self-Balancing Robot and so on.
Specification:
- Operating Voltage: 2.5 V to 5.5 V
- Supply Current: 8mA.
- Output Format (I2C/SPI): Gyro: one 16-bit reading per axis
- Accelerometer: one 16-bit reading per axis
- Magnetometer: one 16-bit reading per axis
- Barometer: 24-bit pressure reading (I2C only)
Package Included:

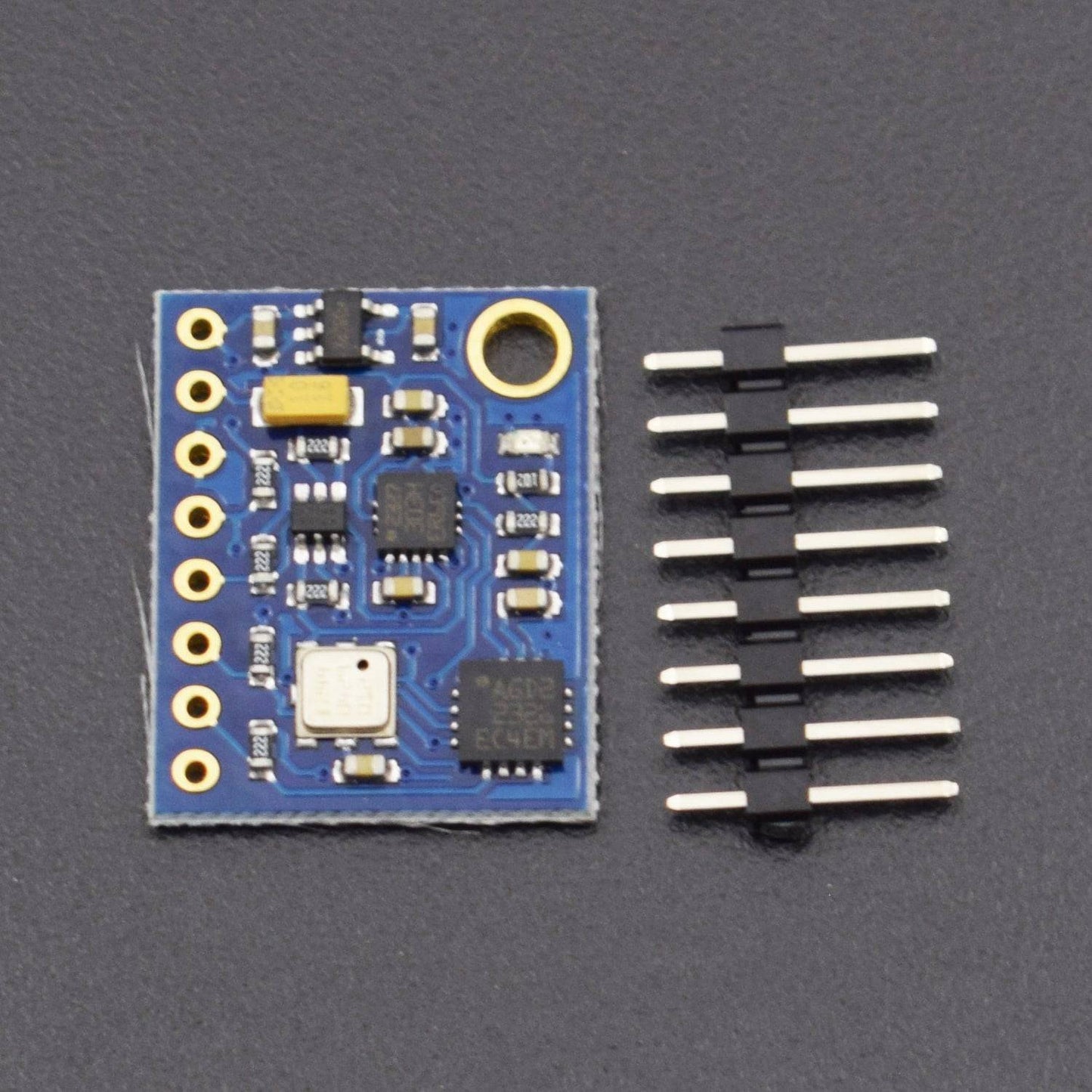

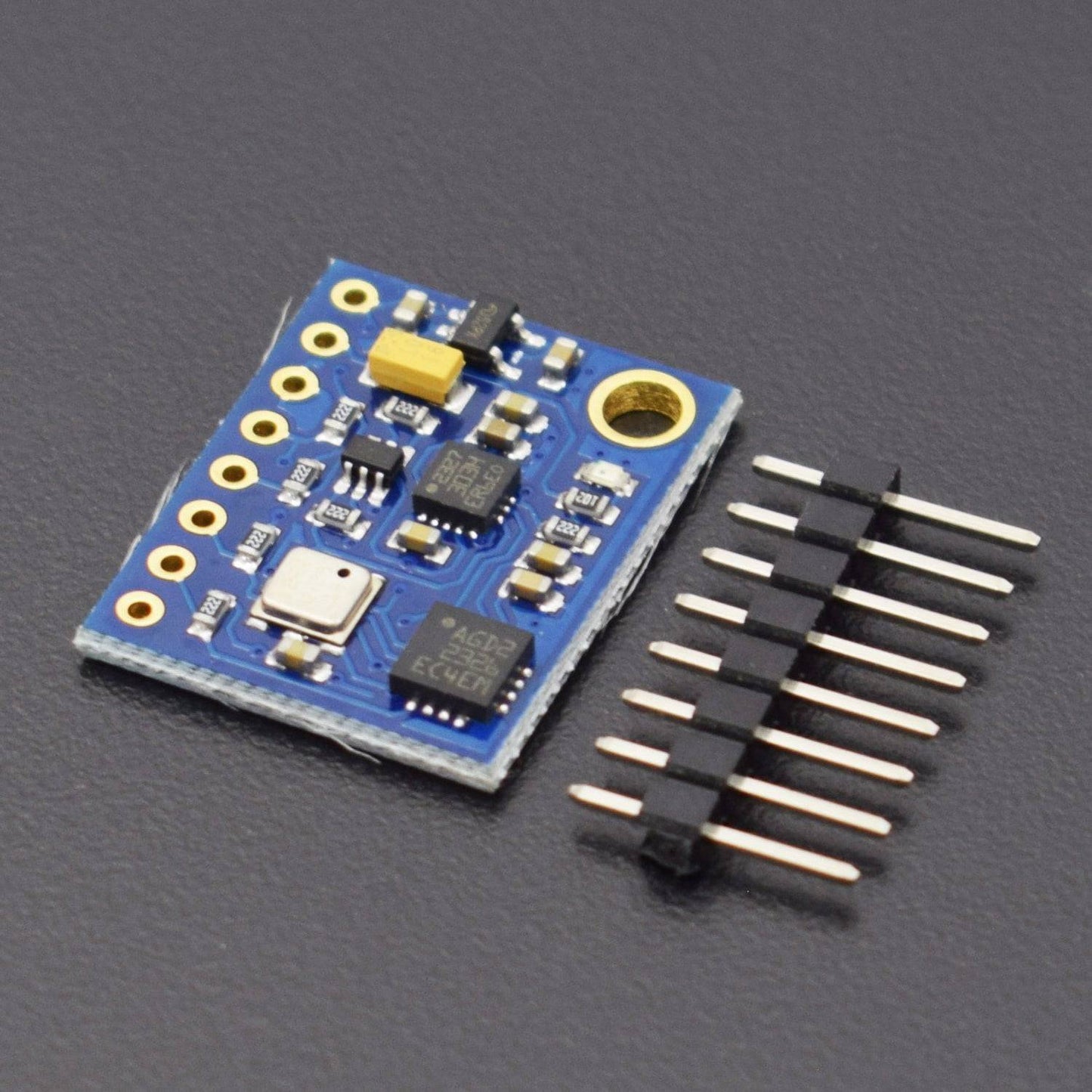

1 x GY-89 10DOF LSM303D + L3GD20 + BMP180 barometric pressure sensor module
