- Model: GY-ML8511
- Operating Voltage: 3 to 5V DC
- Operating Current: 120μA (typical) 190μA (max)
- Operating Temperature: -40 to +90°C
Description:

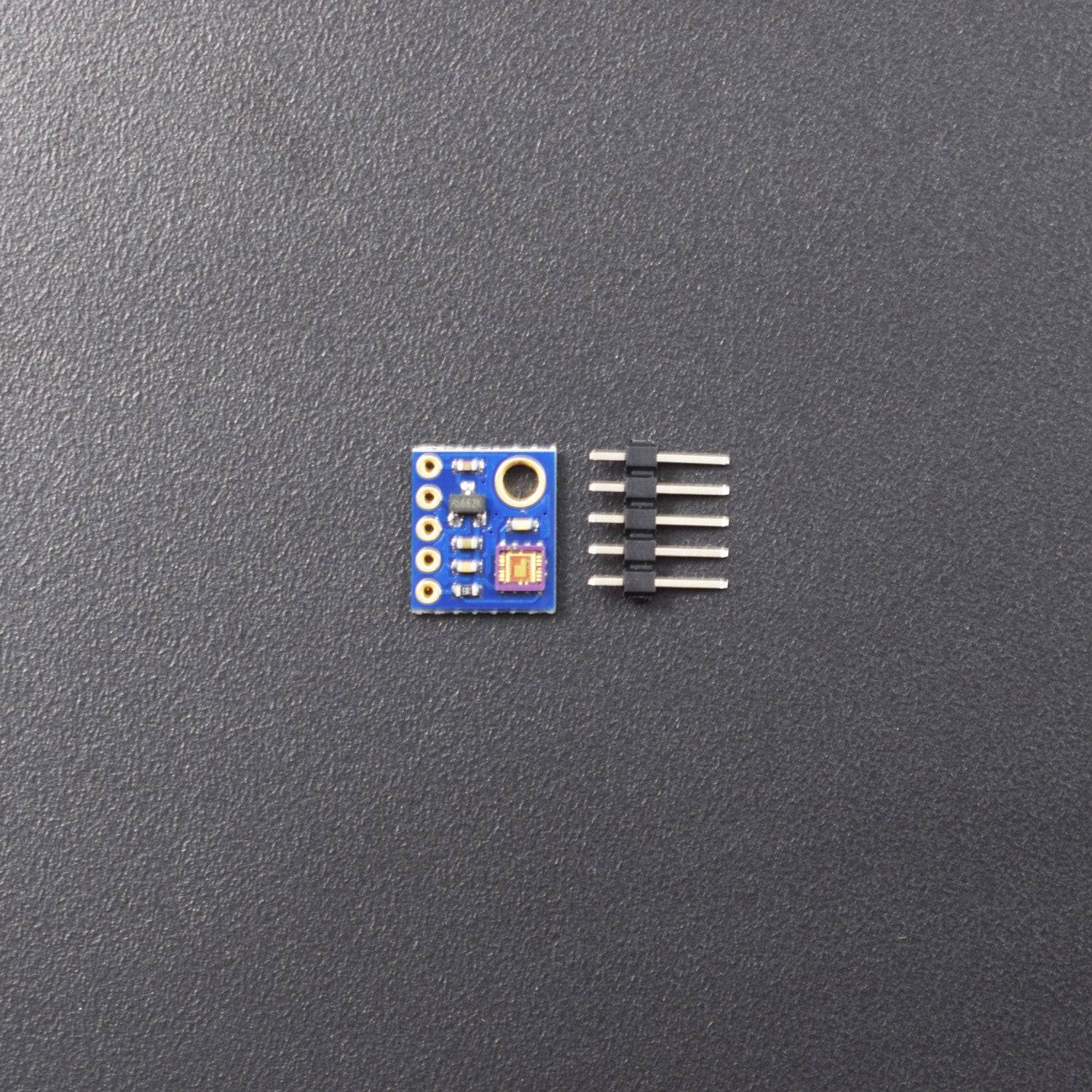

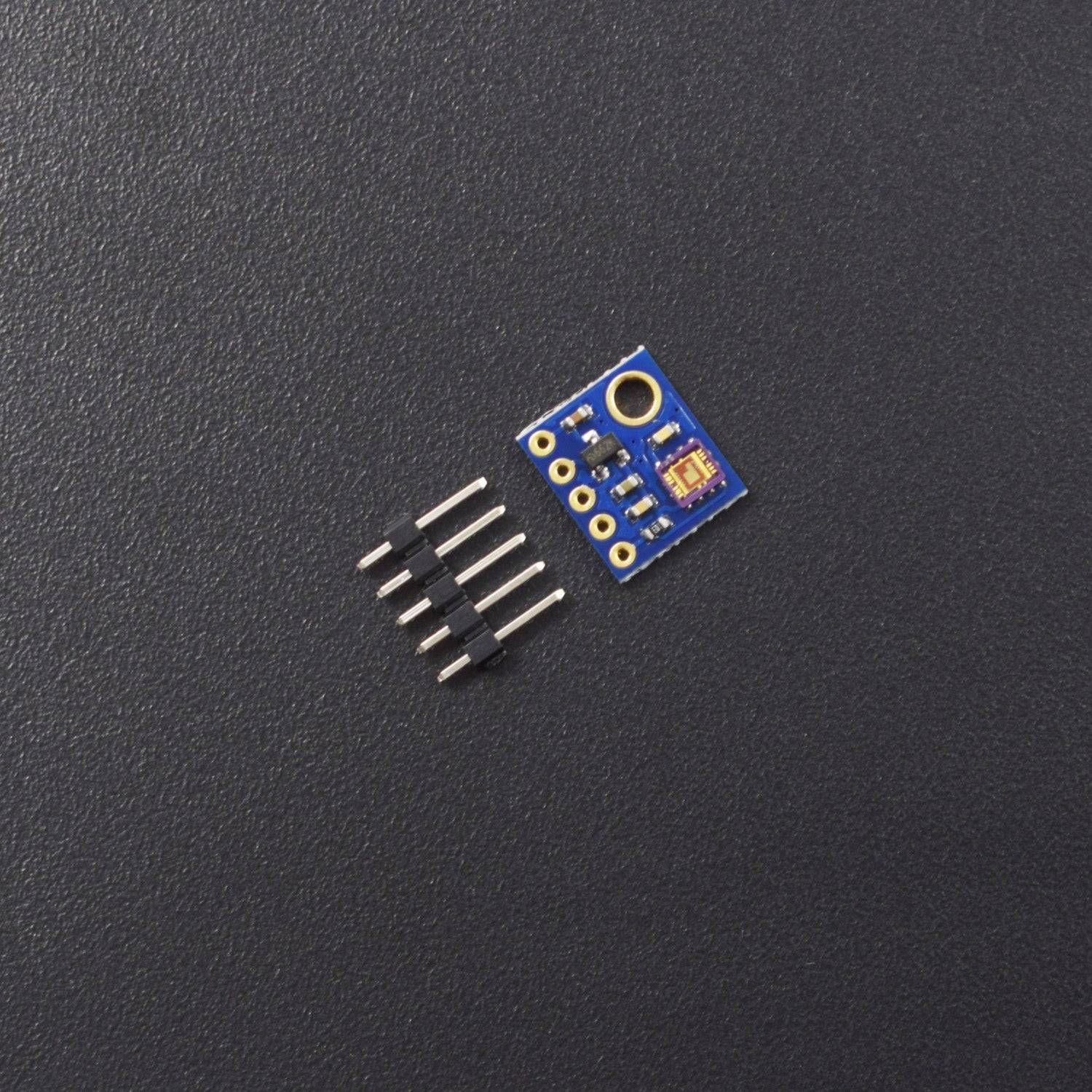

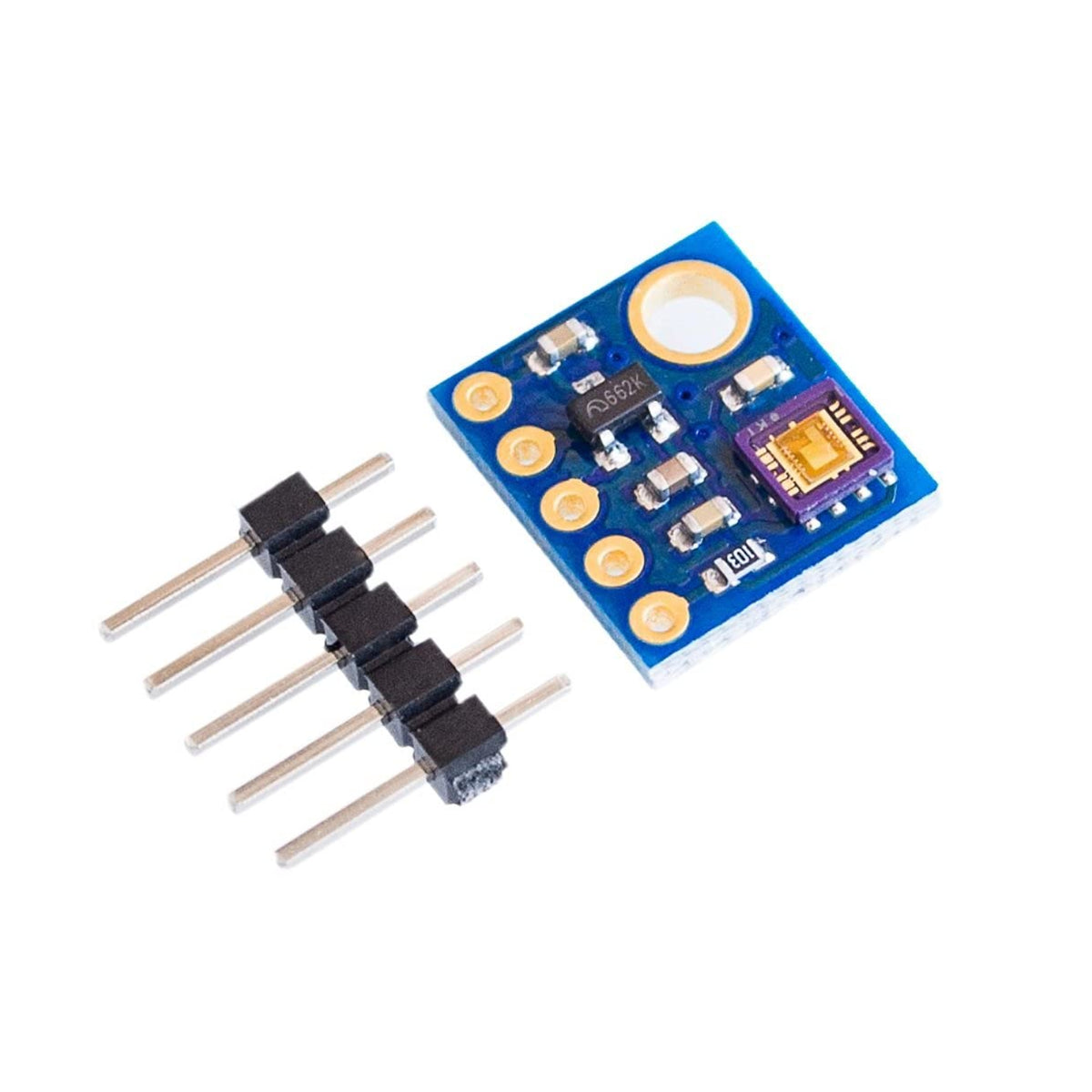

The ML8511 breakout is an ultraviolet light sensor which is easy to use. The MP8511 UV (ultraviolet) Sensor works by outputting an analog signal in relation to the amount of UV light that's tested. This breakout can be very handy in creating devices that warn the user of sunburn or test the UV index as it relates to weather conditions. The range of the most effective light tested by the sensor is 280-390nm. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs an analog voltage that is linearly related to the measured UV intensity (mW / cm2). If your microcontroller can do an analog to digital signal conversion then you can test the level of UV. The ML8511 UV light can be used with an analog voltage output proportional to the amount. Since the output voltage can, therefore, be directly connected to the MCU built A / D digital/analog converter, no photoelectric converting circuit. And the use of the small, low-profile surface-mount package, suitable for use in portable devices.
Specification:
| Model | GY-ML8511 |
| Operating Voltage | 3 to 5V DC |
| Operating Current | 120μA (typical) 190μA (max) |
| Operating Temperature | -40 to +90°C |
| Detection Wavelength Band | 280nm to 390nm |
| Peak Wavelength | 365nm |
Features:
- Photodiode sensitive to UV-A and UV-B
- Embedded operational amplifier
- Analog voltage output
- Low supply current (300uA type) and low standby current (0.1uA type)
Application:
- Sunburn detectors
- Controlled UV Exposure chambers
- UV Detectors for the safety of Humans, and animals.

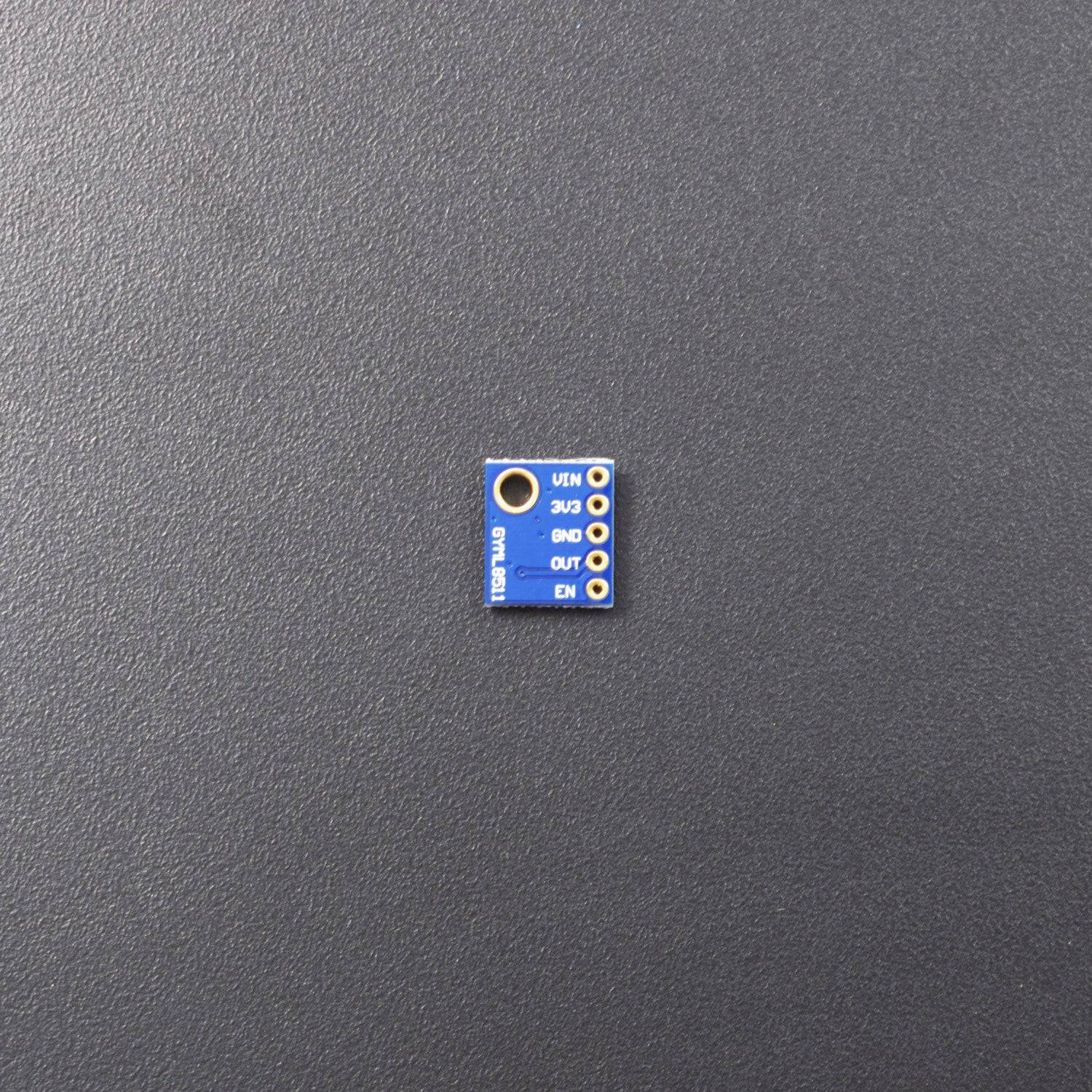

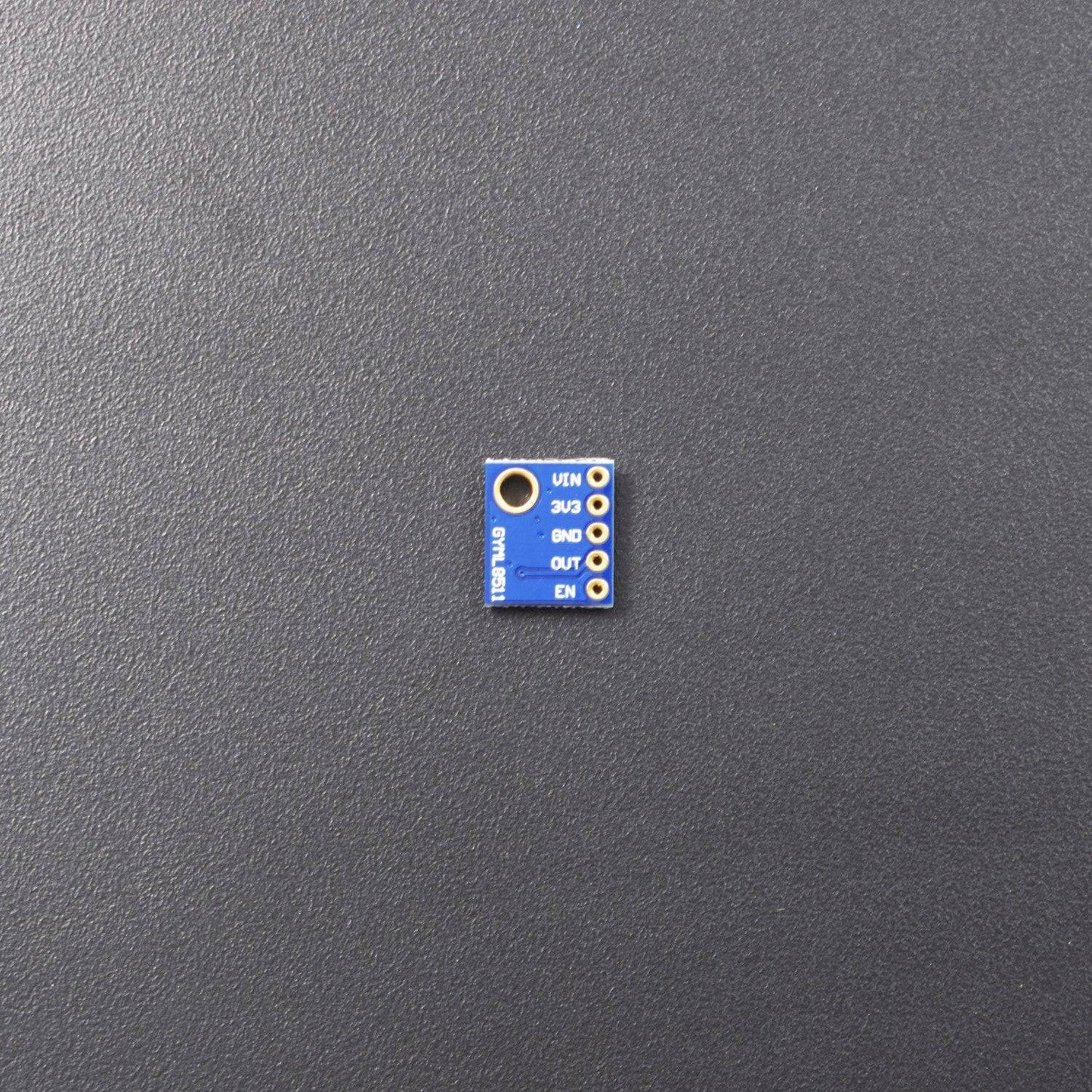

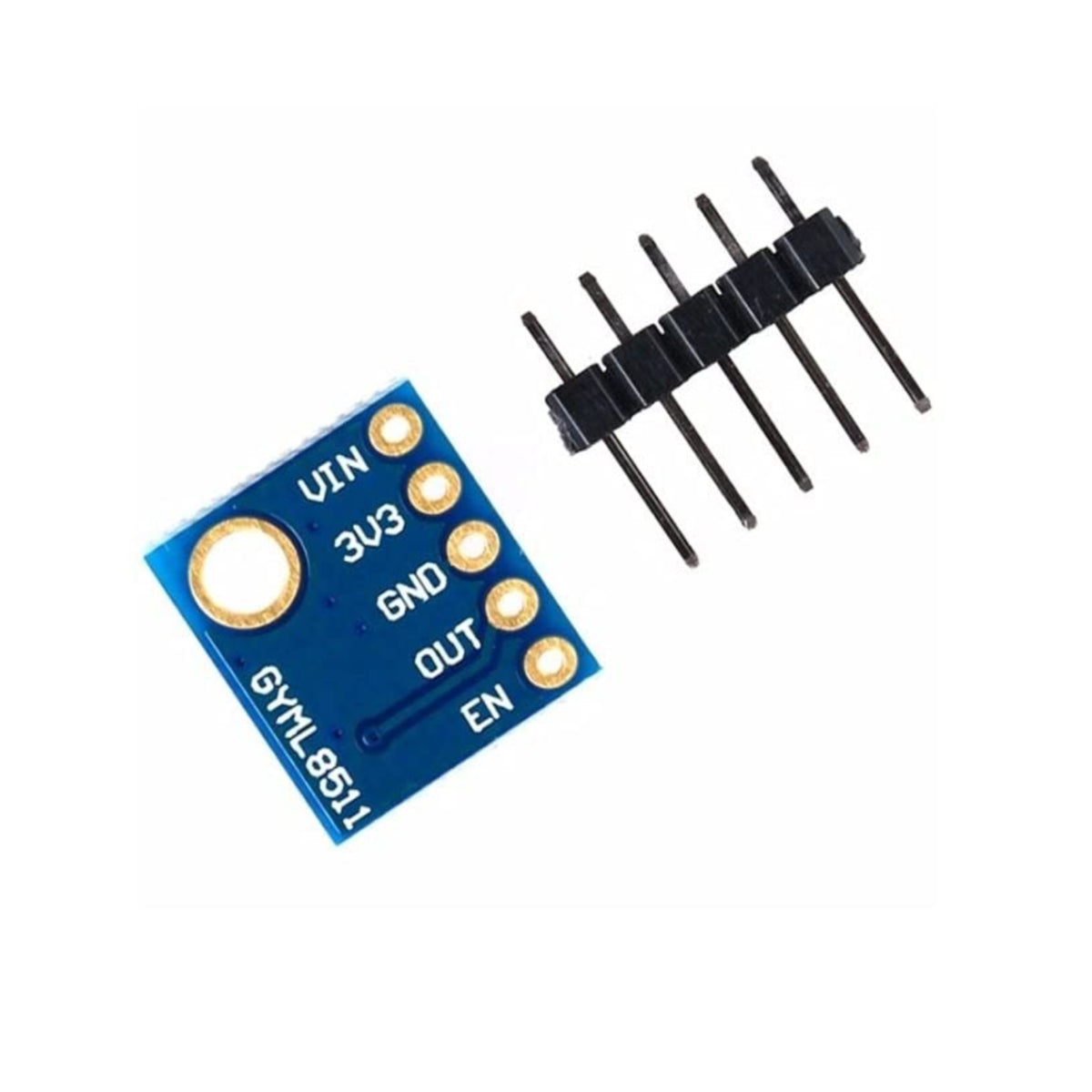

Pin Description:
- VIN:Power Connection (3V – 5V)
- 3.3V: Output of the onboard regulator
- GND:Ground
- OUT:Analog Output
- EN:Enable Input
