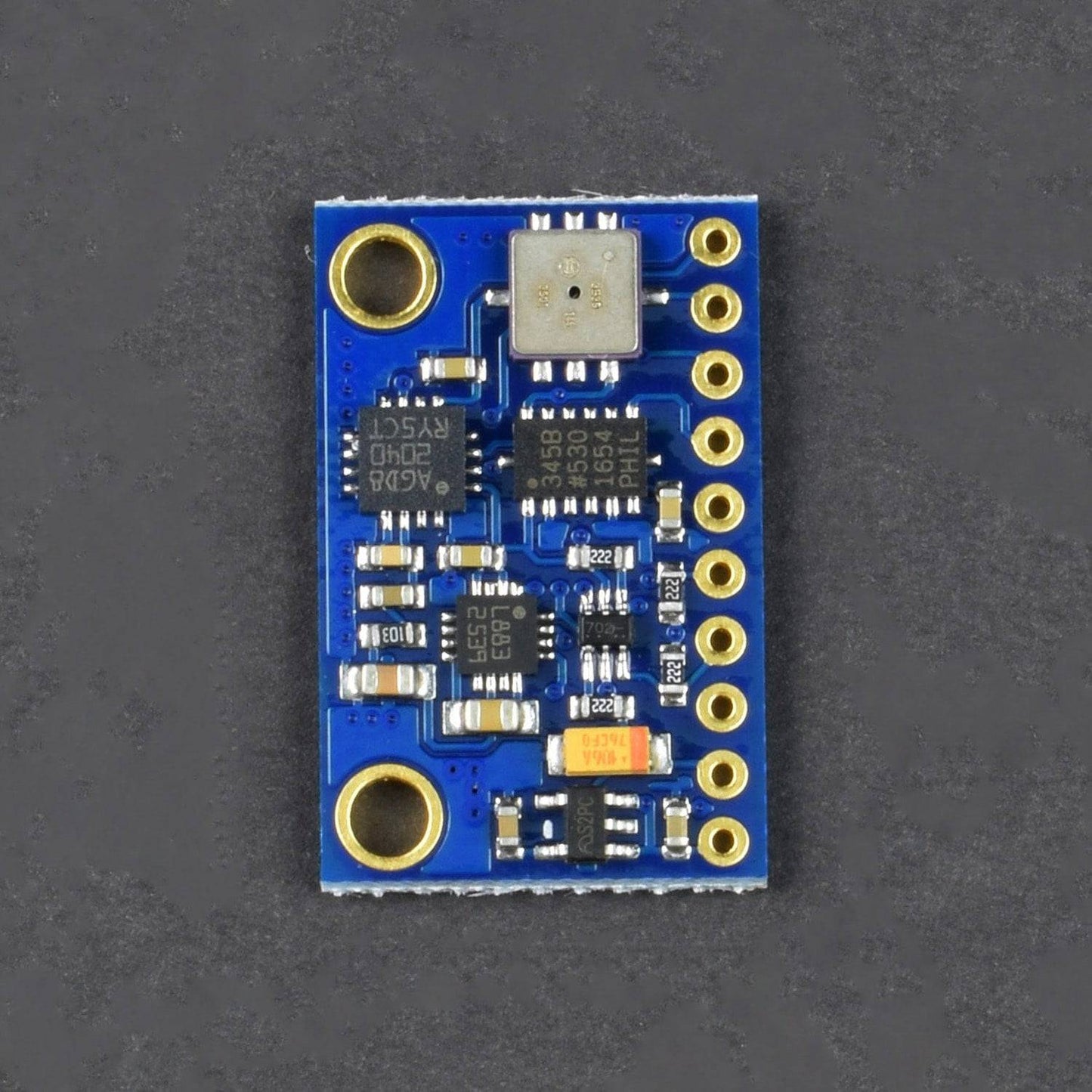

- Nine-axis module (three-axis gyroscope + three-axis acceleration + 3-axis magnetic field + pressure)
- Use chips: L3G4200D + ADXL345 + HMC5883L + BMP085
- Communication: IIC communication protocol (fully compatible with 3-5v system)
- Standard 2.54mm pin interface, easy breadboard perforated plate experimental connection
- Adopt gold PCB process.
Specification:
- Module size: 25.8mm * 16.8mm, mounting hole 3mm
- The power supply: 3-5 v (internal low voltage difference voltage stabilizing)
- Communication: standard IIC communication agreement Chip built-in 16 bit AD converter, 16 bits of data output
- The gyroscope range: + 250 500 1000 2000 °/s
- Acceleration range: ± 2 ± 4 ± 8 ± 16 g
Package included:

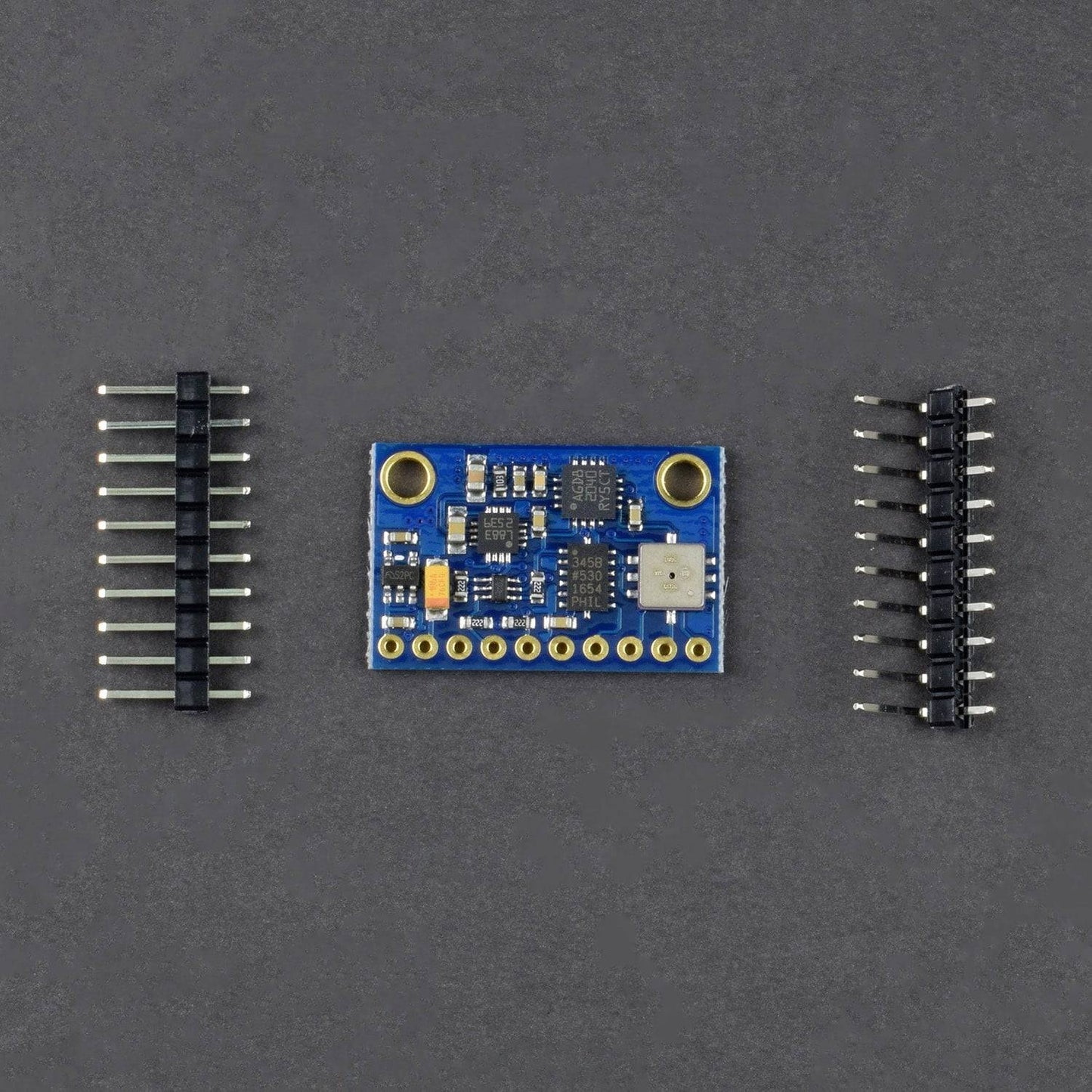

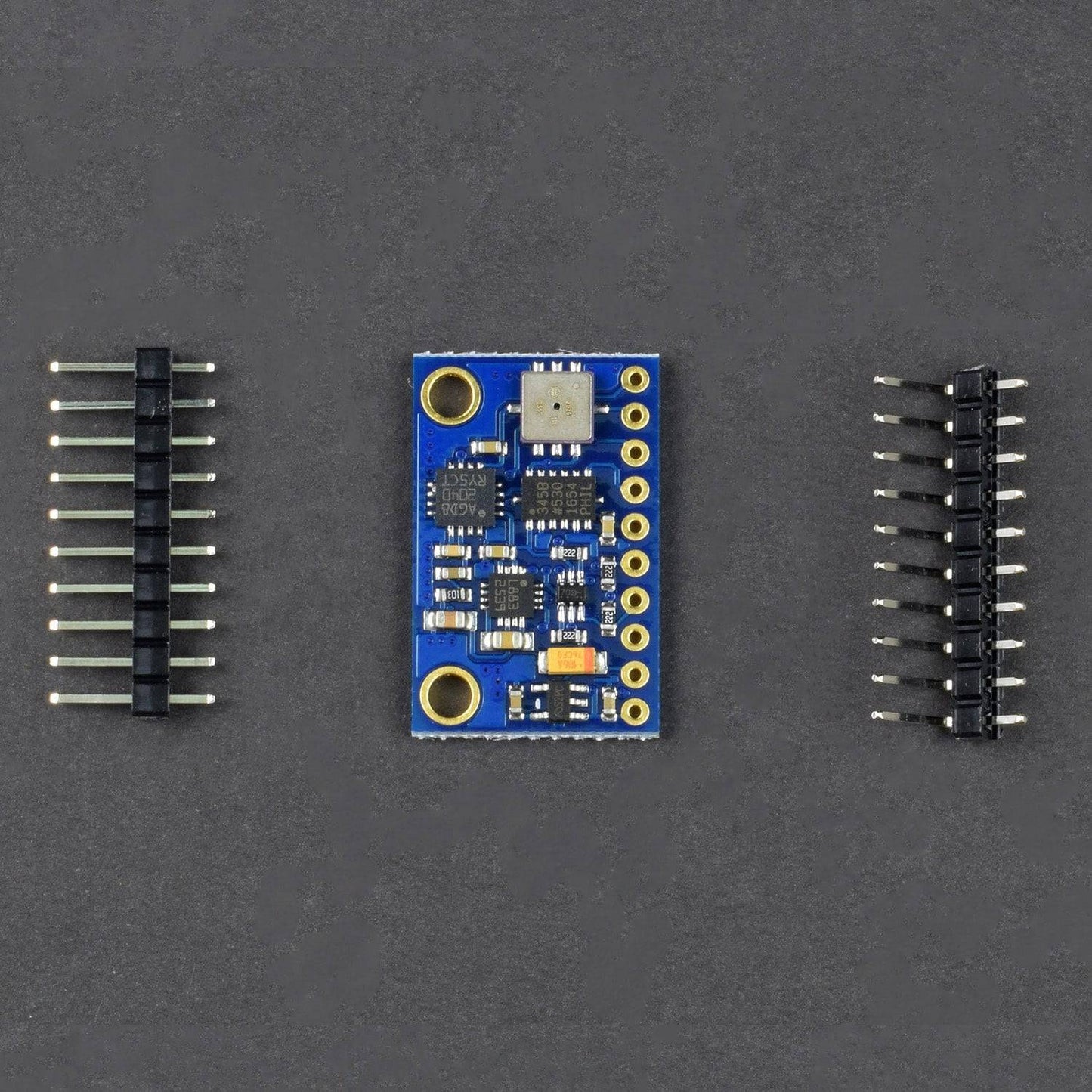

1 x GY-80 9-Axis BMP085 3-axis magnetic field acceleration gyroscope atmospheric Pressure
