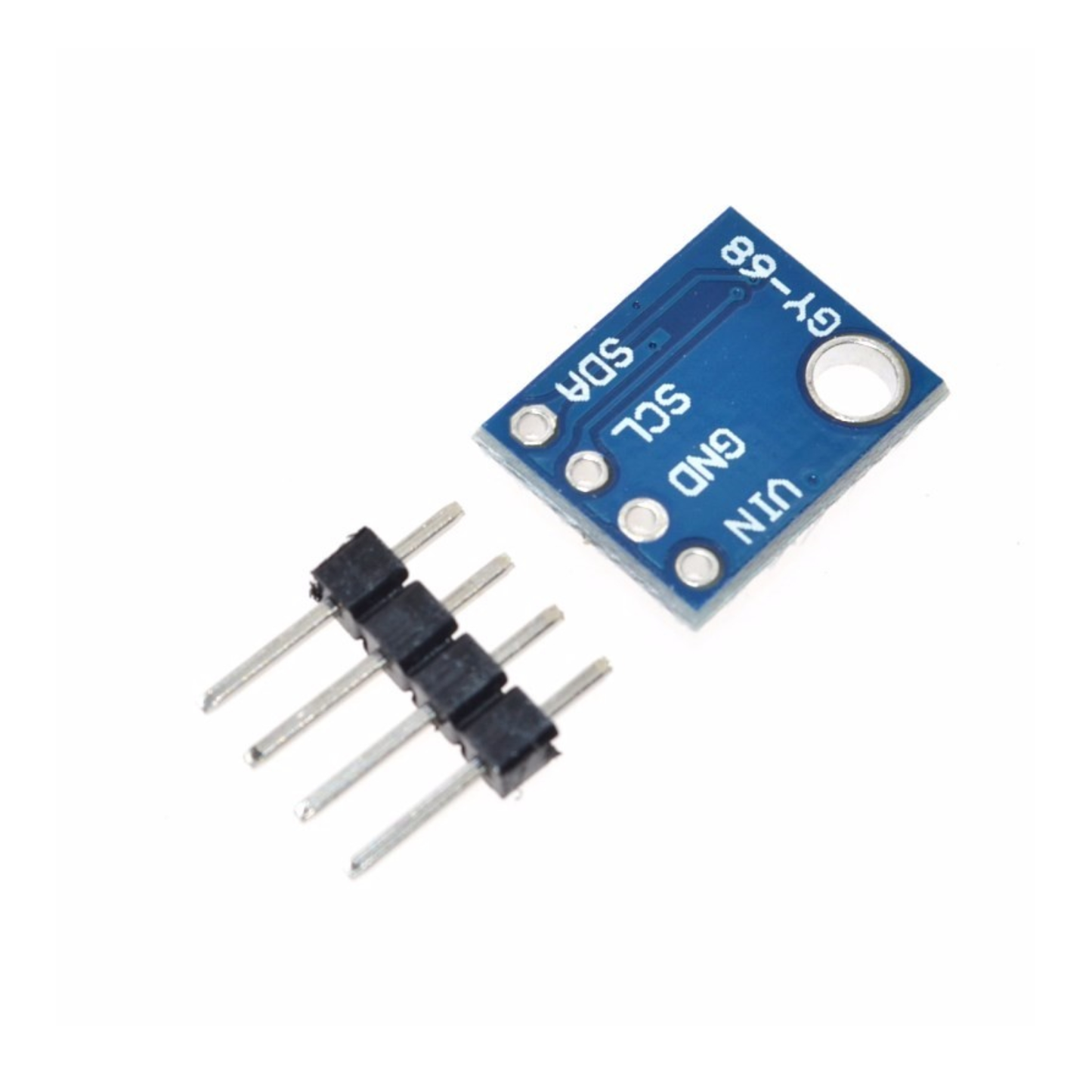

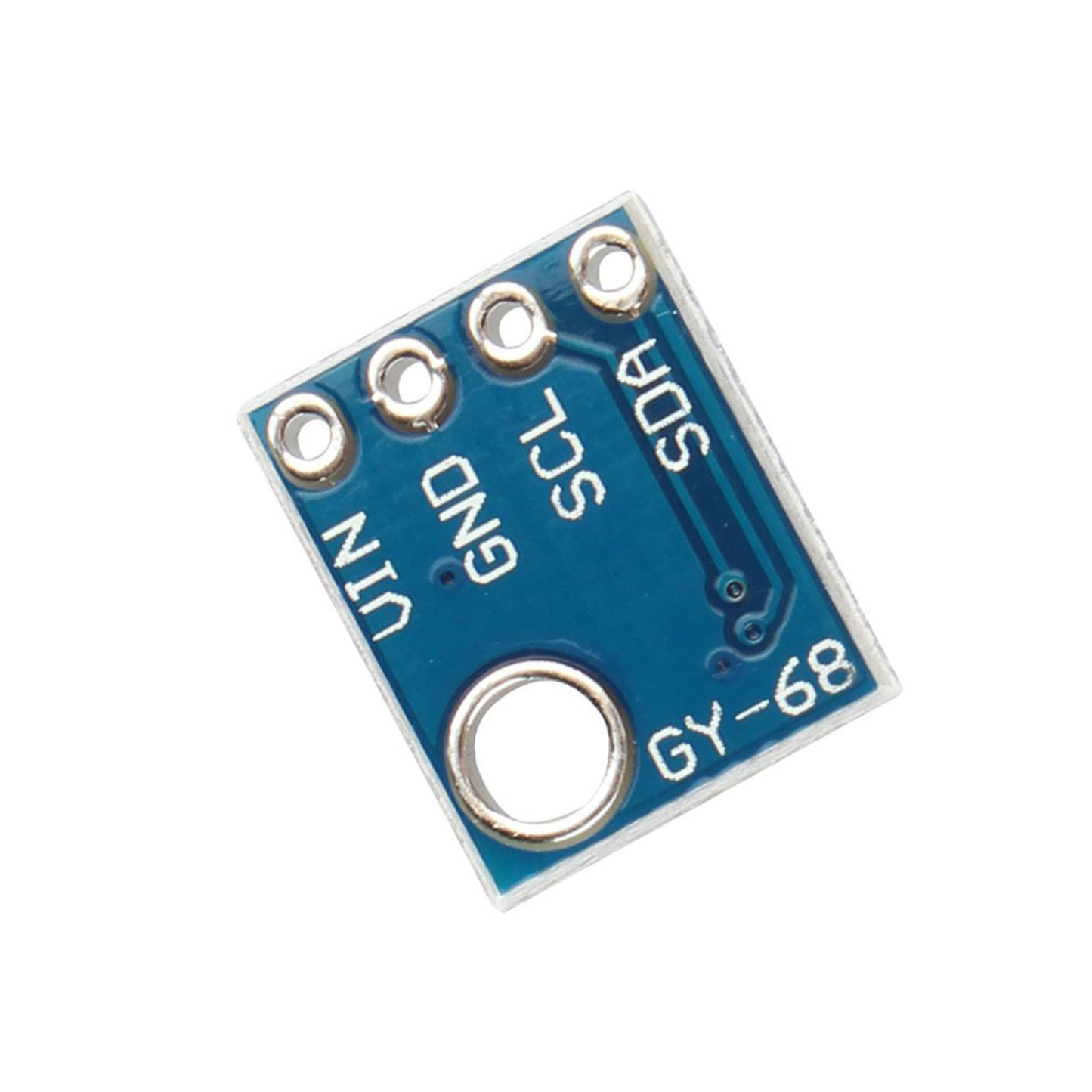

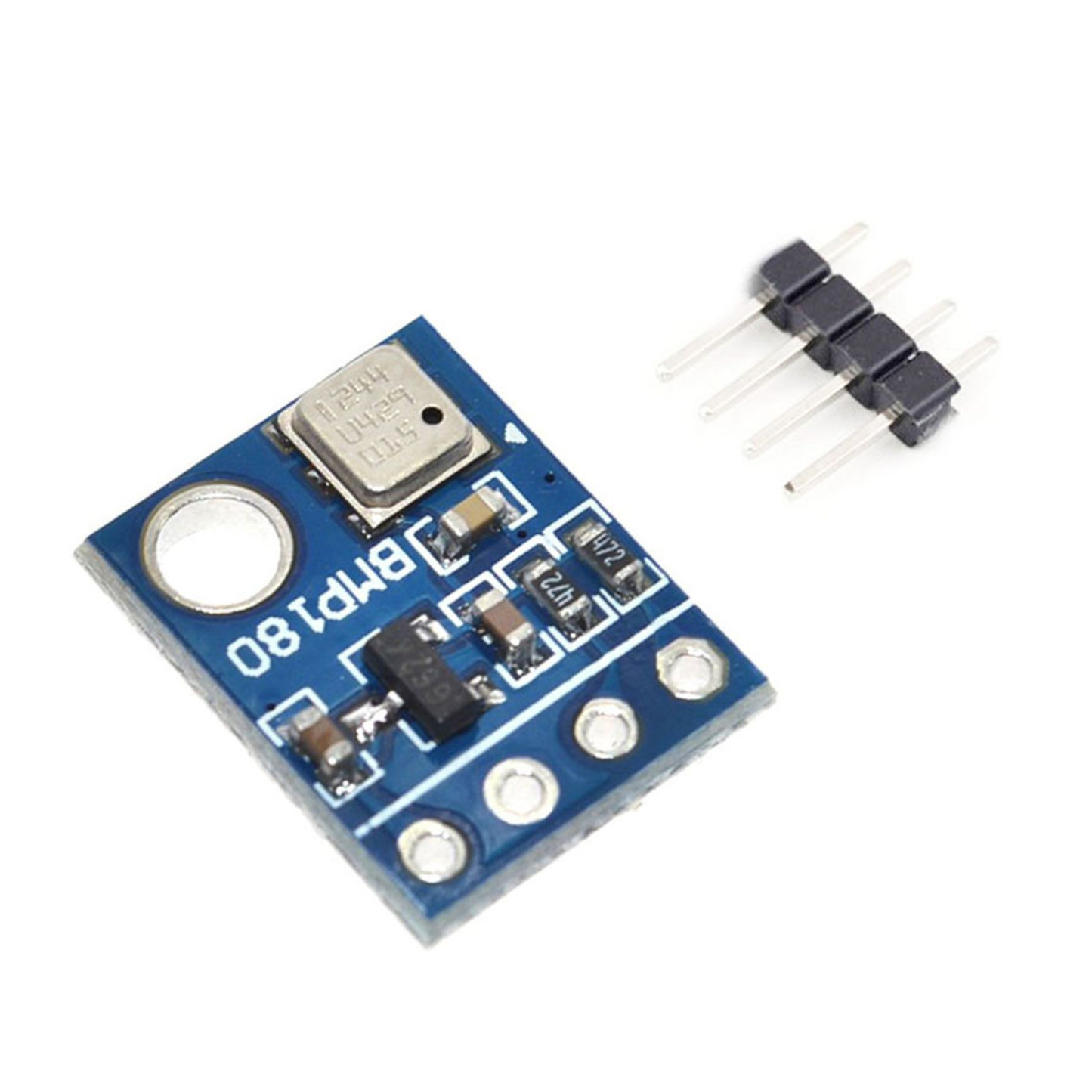

GY-68 BMP180/BMP085 Barometric Sensor Module Digital Barometric Pressure Sensor For Altitude and Pressure Measurement - SR020

GY-68 BMP180/BMP085 Barometric Sensor Module Digital Barometric Pressure Sensor For Altitude and Pressure Measurement - SR020

SKU:SR020

245 in stock

Regular price Rs. 59.00
Regular price Sale price Rs. 59.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The GY-68 BMP180 module provides high-accuracy barometric pressure and temperature measurements. This digital barometer is perfect for determining altitude, offering 1m accuracy with only 17cm of noise in ultra-high resolution mode. The BMP180 is factory-calibrated and ready to use, communicating via I2C for easy integration with microcontrollers. On-board I2C pull-up resistors (selectable via jumper) simplify circuit design. The module provides 16-bit pressure and temperature values, which, combined with internal calibration data, enable temperature-compensated altitude calculations. Low power consumption (0.3uA) makes it suitable for battery-powered devices.

 Specifications:

  • Supply Voltage: 1.8V to 3.6V
  • Power Consumption: 0.5uA at 1Hz
  • Interface Type: I2C
  • Max I2C Speed: 3.5 MHz
  • Pressure Range: 300hPa to 1100hPa (+9000m to -500m)

Typical Application:

  • Enhancement of GPS navigation (dead-reckoning, slope detection, etc.)
  • In-and-out door navigation
  • Leisure and sports
  • Weather forecast
  • Vertical velocity indication (rise/sink speed)

Package Included:

1 x GY-68 BMP180/BMP085 Barometric Sensor Module
