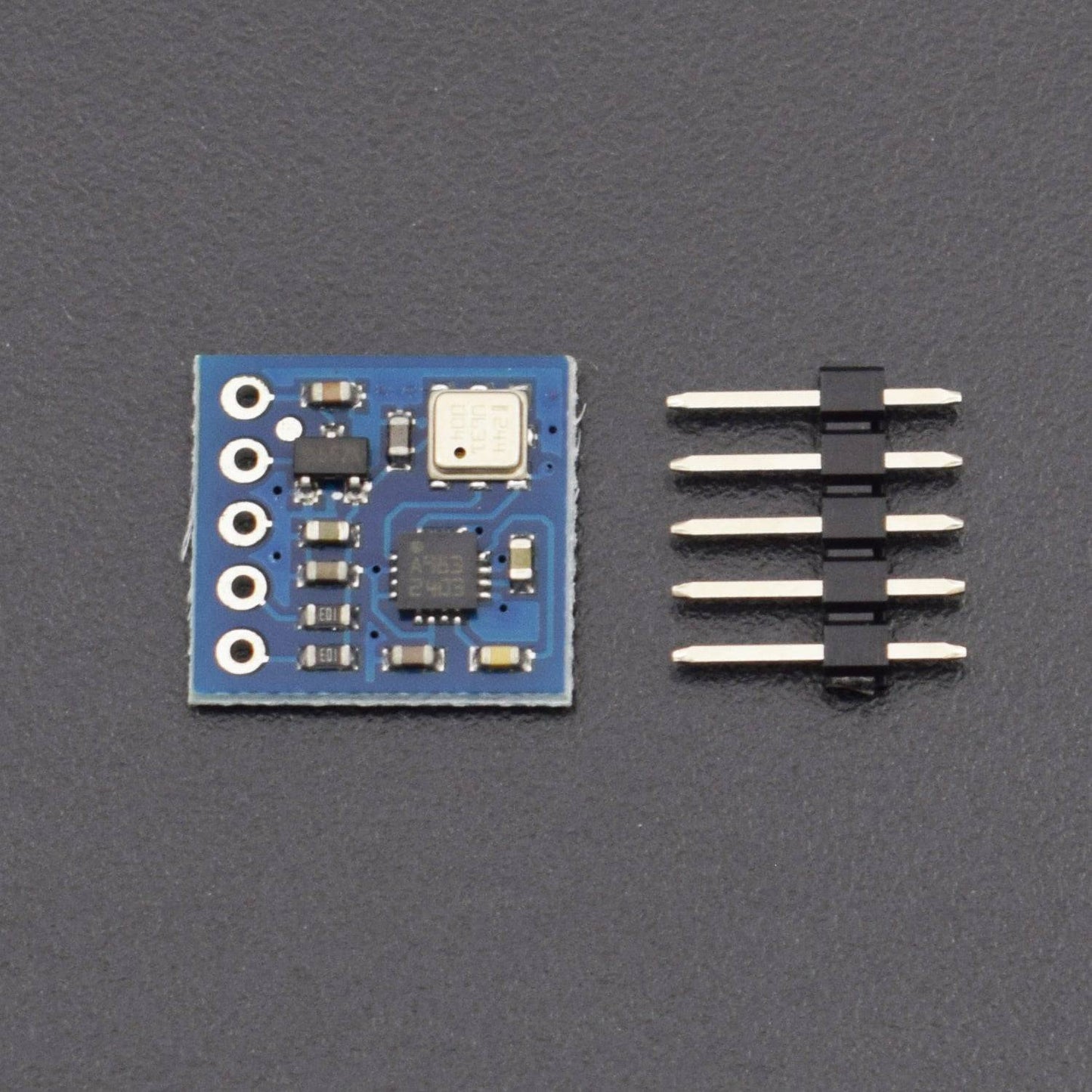

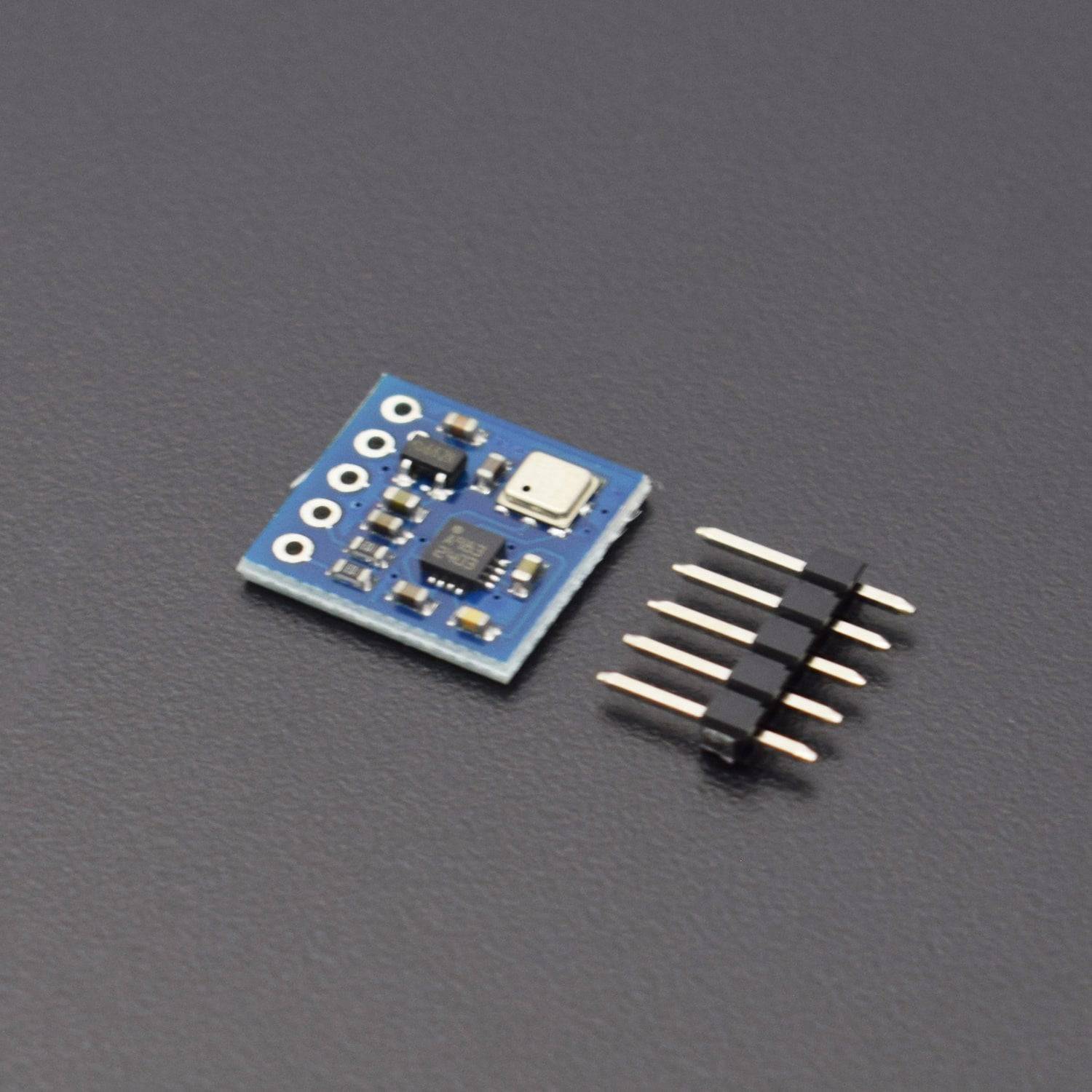

GY-652 HMC5983 BMP180 MWC Electronic Compass Atmospheric Pressure Module Four-axis Flight Control Sensor - RS1044

GY-652 HMC5983 BMP180 MWC Electronic Compass Atmospheric Pressure Module Four-axis Flight Control Sensor - RS1044

RS1044

In stock

Rs. 800.00
Rs. 800.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Model: GY-652
  • Chip: HMC5983 + BMP180
  • Power supply :3-5v (internal low dropout regulator)
  • Chip 12bit AD converter, 16-bit data output
  • Size: 13mm * 14mm

Overview:

GY-652 is the same as the Compass, Pressure module. The HMC5983 chip is included in the module, and the BMP180 transmits data through the bus I2C. Used to determine the value of the direction of movement as it finds air pressure.

Features:

  • Connect via I2C bus
  • Measure air pressure in sea level + 9000m to -500m

Application concept

  • Check various movements of objects in the direction of motion to find air pressure
  • Warning/warning
  • Avoid connecting the circuit to a short circuit
  • Read the file before the actual circuit connection
  • Do not use the excess power specified in the document.

Specifications:

  • Connect via I2C bus
  • Use power +3.3 to 5 VDC
  • Use HMC5983 + BMP180 chip
  • Measure air pressure in sea level + 9000m to -500m
  • Percentage tolerance ±2.5 hPa
  • Size: 13.5 mm * 18.8 mm

Package Included:

1 x GY-652 HMC5983 BMP180 MWC Electronic Compass Atmospheric Pressure Module
