Description:
The GY-63 MS5611 Atmospheric Pressure Sensor with SPI and I2C bus interface. This barometric pressure sensor is optimized for altimeters and variometers with an altitude resolution of 10 cm. The GY-63 MS5611 Atmospheric Pressure Sensor Module includes a high linearity pressure sensor and an ultra-low power, 24-bit ΔΣ ADC with internal factory-calibrated coefficients. GY-63 MS5611 Atmospheric Pressure Sensor provides a precise digital 24-bit pressure and temperature value and different operation modes; that allow the user to optimize for conversion speed and current consumption. A high-resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor.
The Pressure Sensor can be interfaced with virtually any microcontroller. The communication protocol is simple, without the need to program internal registers in the device.
Specifications:
- Model: MS5611-01BA03
- Supply Voltage: 5V
- ADC: 2+4bit
- Peak Supply Current: 1.4mA
- Operating Temperature: -40 ~ 85°C
Features:
- Communication modes: Standard the IIC / SPI communication protocol.
- The built-in 24-bit AD converter.
- Immersion gold PCB, high quality, machine welding process to ensure quality.
Package Included:

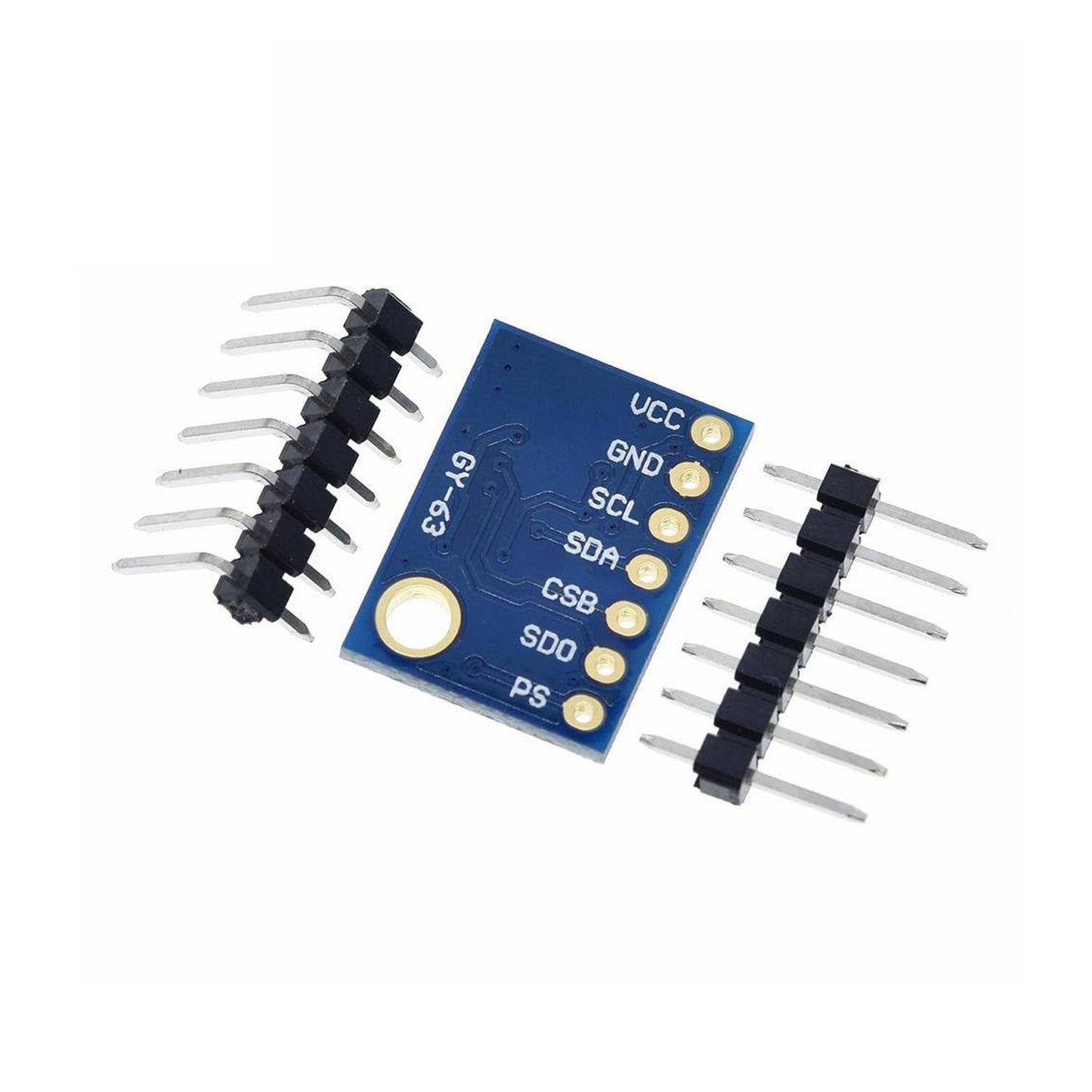

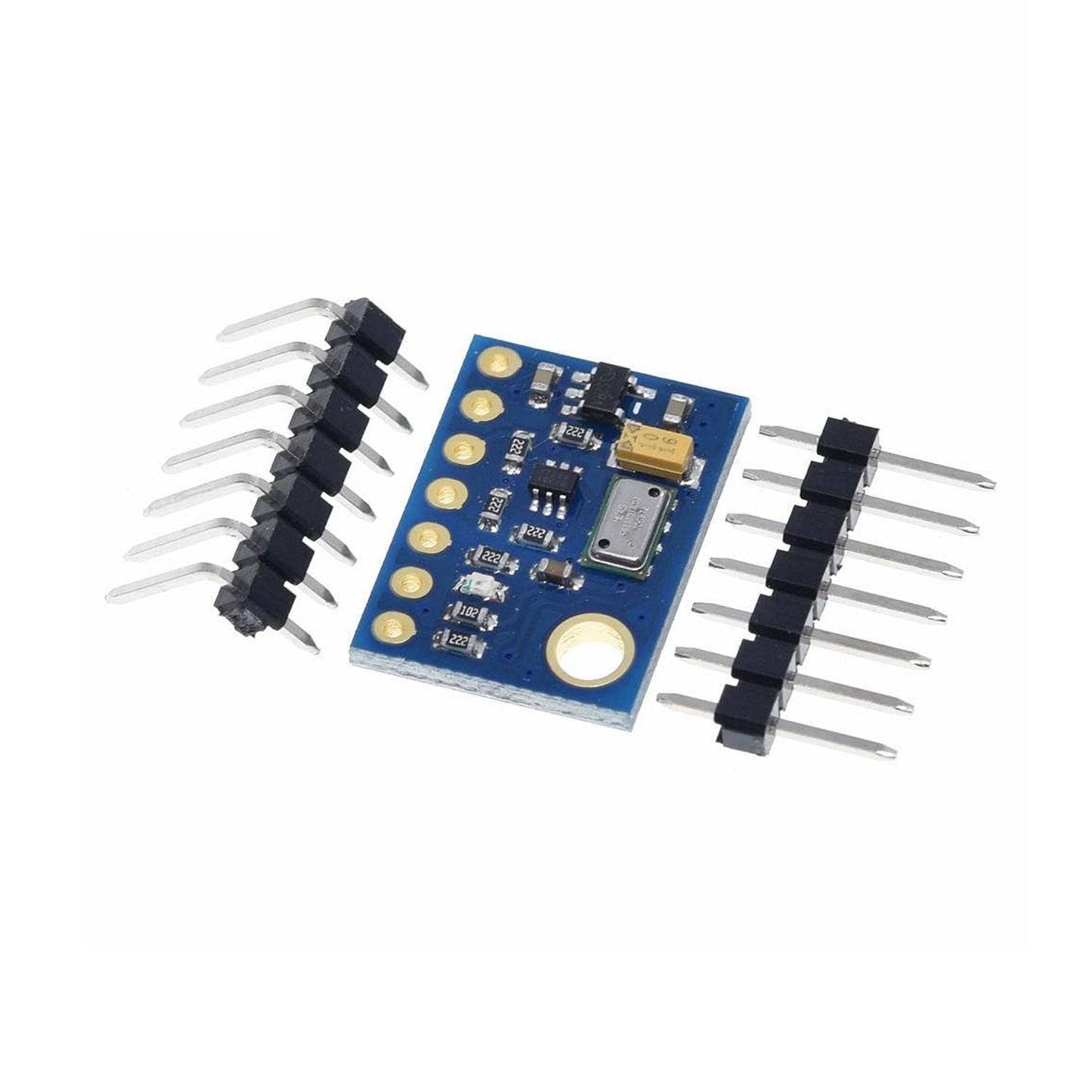

1 x GY-63 MS5611 Atmospheric Pressure Sensor Height Sensor Module I2C/SPI Interface
