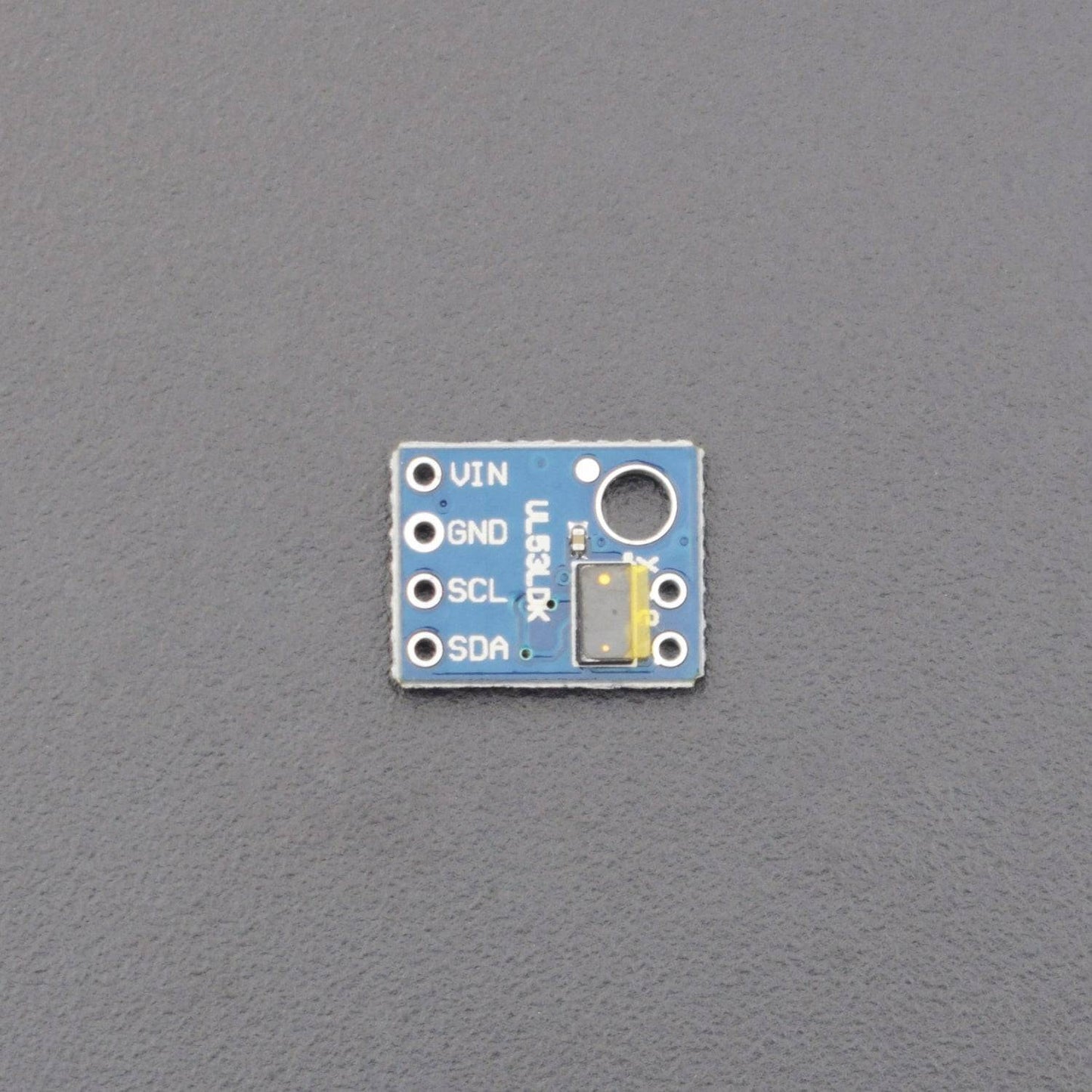

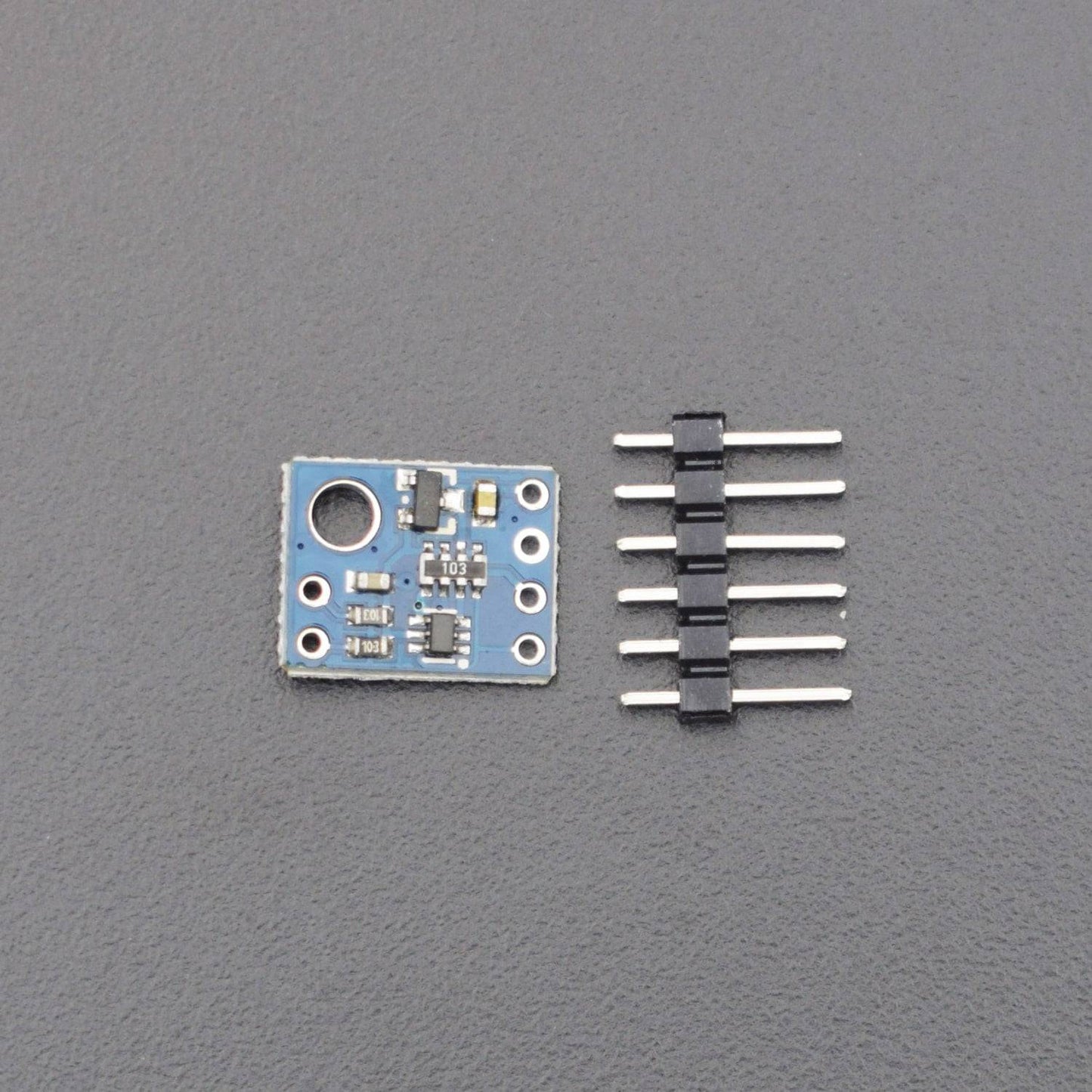

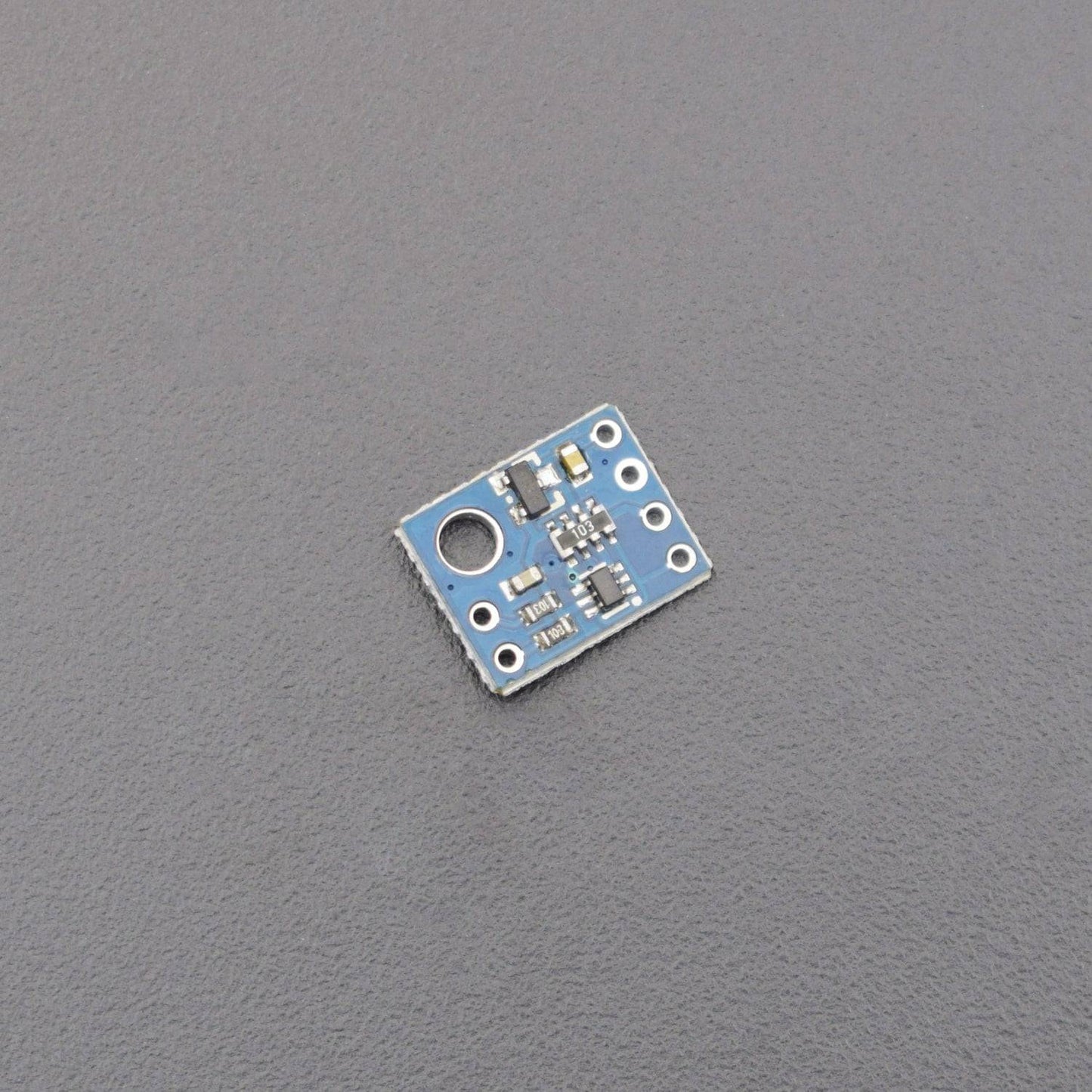

GY-530 VL53L0X World smallest Time-o f-Flight (ToF) laser ranging sensor - RS1053

GY-530 VL53L0X World smallest Time-o f-Flight (ToF) laser ranging sensor - RS1053

SKU:RS1053

19 in stock

Regular price Rs. 430.00
Regular price Sale price Rs. 430.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Model: GY - VL53L0X
  • Using The Chip: VL53L0X
  • Power Supply: 2.8 to 5 v
  • Communication: the IIC communication protocol (fully compatible with 3-5 v system)

Description:

The VL53L0X is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectances unlike conventional technologies. It can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, opening the door to various new applications.
The VL53L0X integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST’s second generation FlightSenseTM patented technology.
The VL53L0X’s 940nm VCSEL emitter (Vertical Cavity Surface-Emitting Laser), is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distance, higher immunity to ambient light and better robustness to cover-glass optical cross-talk.

Specification:

  • Model: GY - VL53L0X
  • Using The Chip: VL53L0X
  • Power Supply: 2.8 to 5 v
  • Communication: the IIC communication protocol (fully compatible with 3-5 v system)

Fully integrated miniature module:

  • 940nm Laser VCSEL ;
  • VCSEL driver
  • Ranging sensor with advanced embedded micro controller
  • 4.4 x 2.4 x 1.0mm

Fast, accurate distance ranging :

  • Measures absolute range up to 2m
  • Reported range is independent of the target reflectance
  • Operates in high infrared ambient light levels
  • Advanced embedded optical cross-talk compensation to simplify cover glass selection

Eye Safe:

  • Class 1 laser device compliant with latest standard IEC 60825-1:2014 - 3rd edition

Easy Integration:

  • Single reflowable component
  • No additional optics
  • Single power supply
  • I2C interface for device control and data transfer
  • Xshutdown (Reset) and interrupt GPIO
  • Programmable I2C address
  • Power supply: 2.8-5V

Applications:

  • User detection for Personal Computers/ Laptops/Tablets and IoT (Energy saving). Robotics (obstacle detection).
  • White goods (hand detection in automatic faucets, soap dispensers etc...).
  • 1D gesture recognition.
  • Laser assisted Auto-Focus.
  • Enhances and speeds-up camera AF system performance, especially in difficult scenes (low light levels, low contrast) or fast moving video mode.

Package Included:

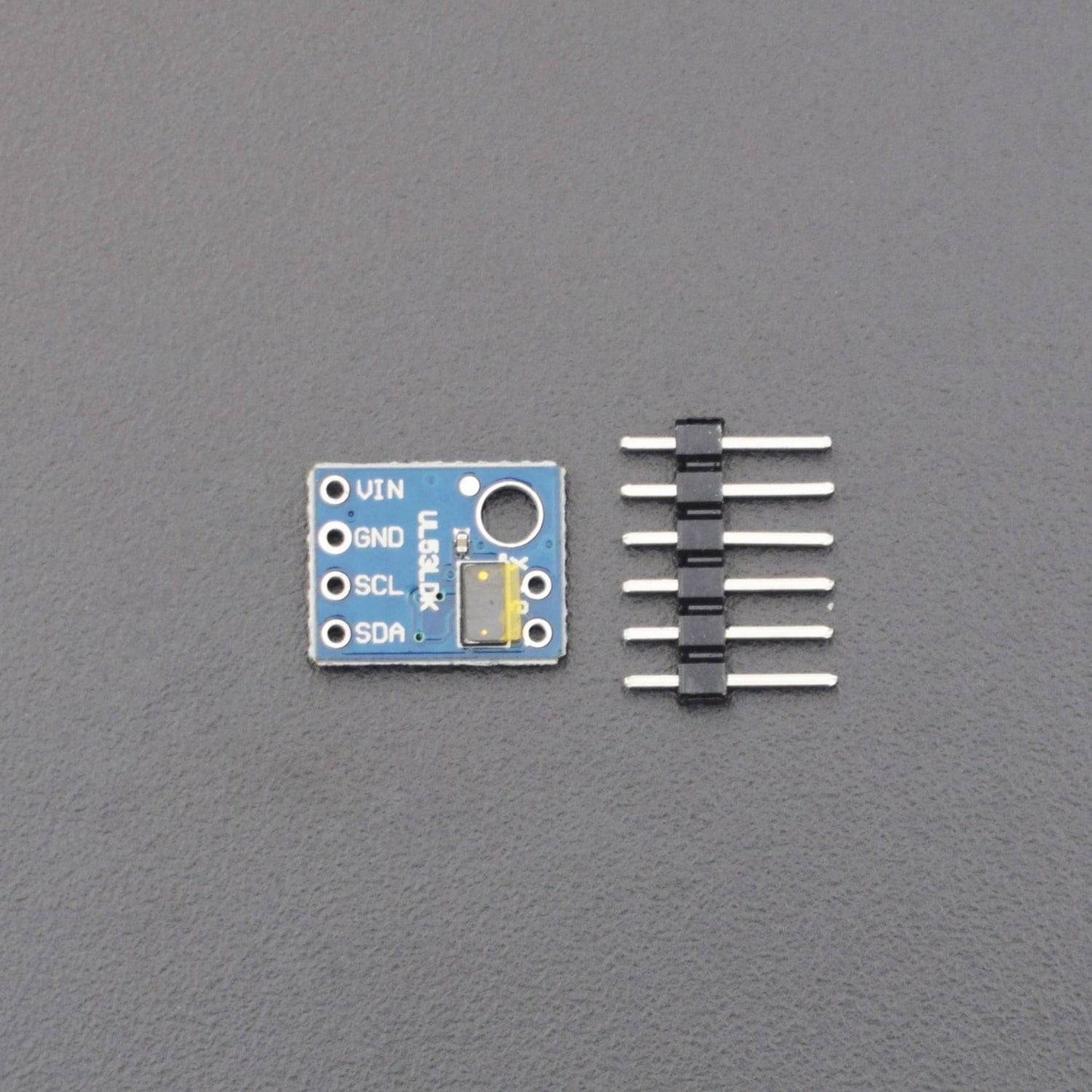

1 x GY-530 VL53L0X World smallest Time-o f-Flight (ToF) Laser Ranging Sensor
