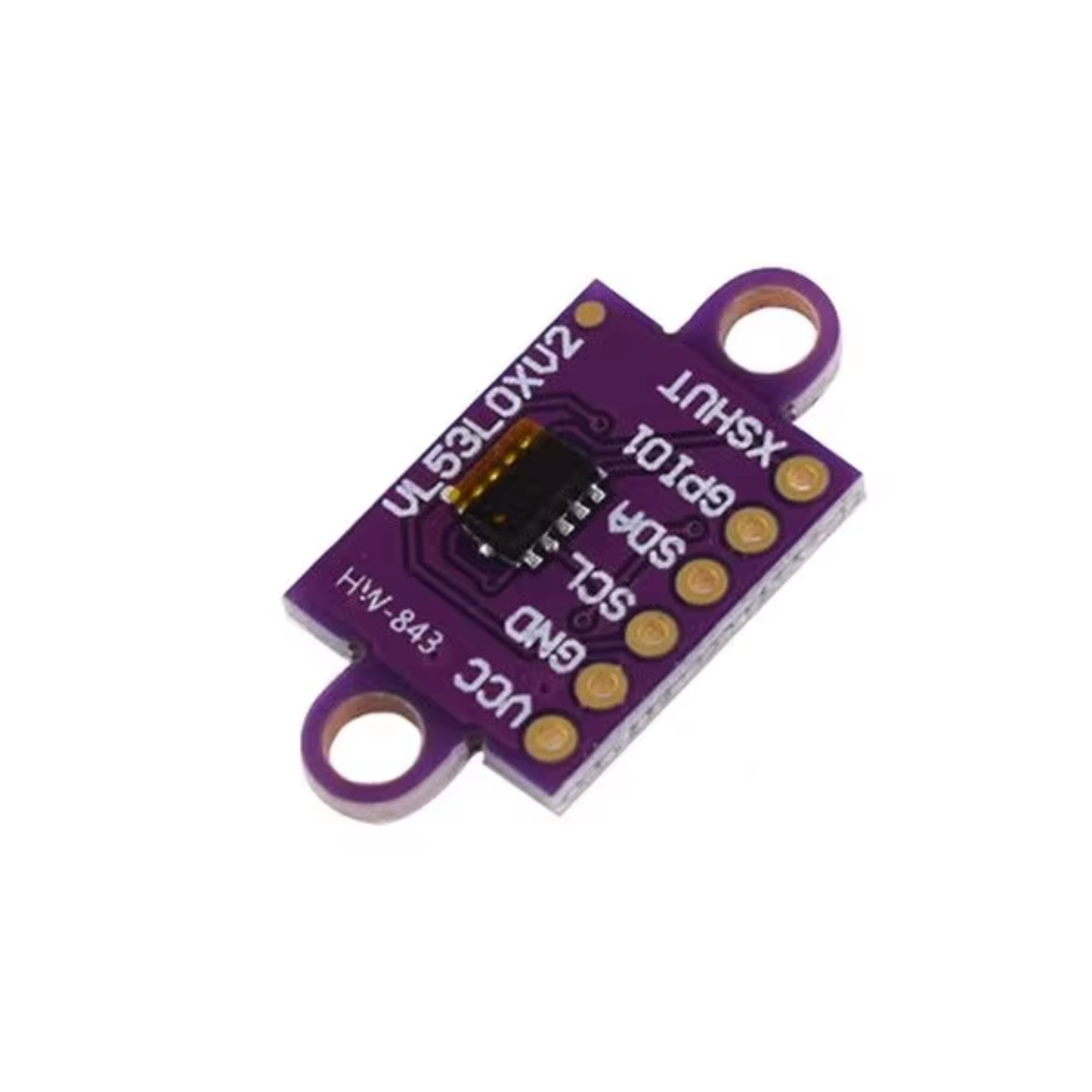

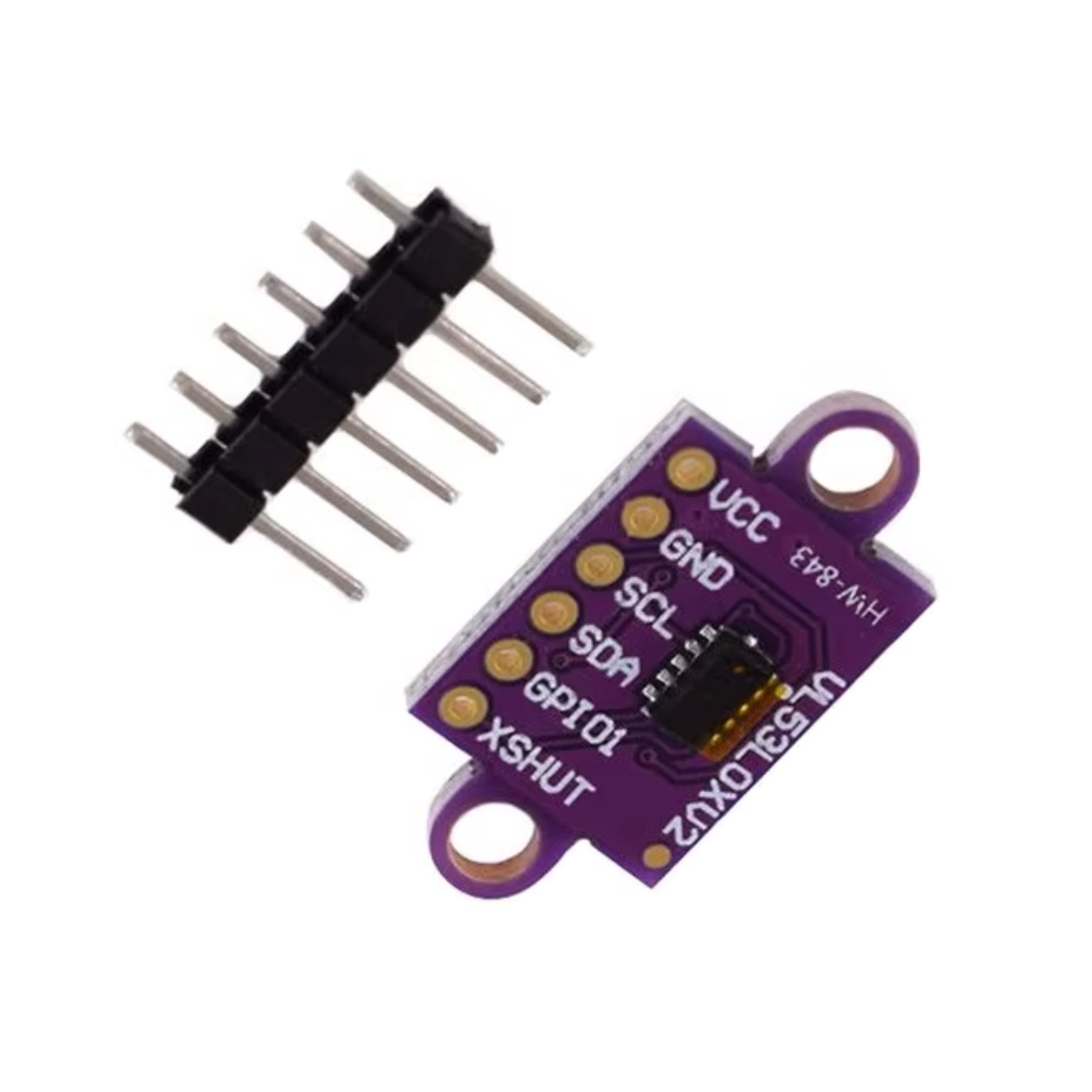

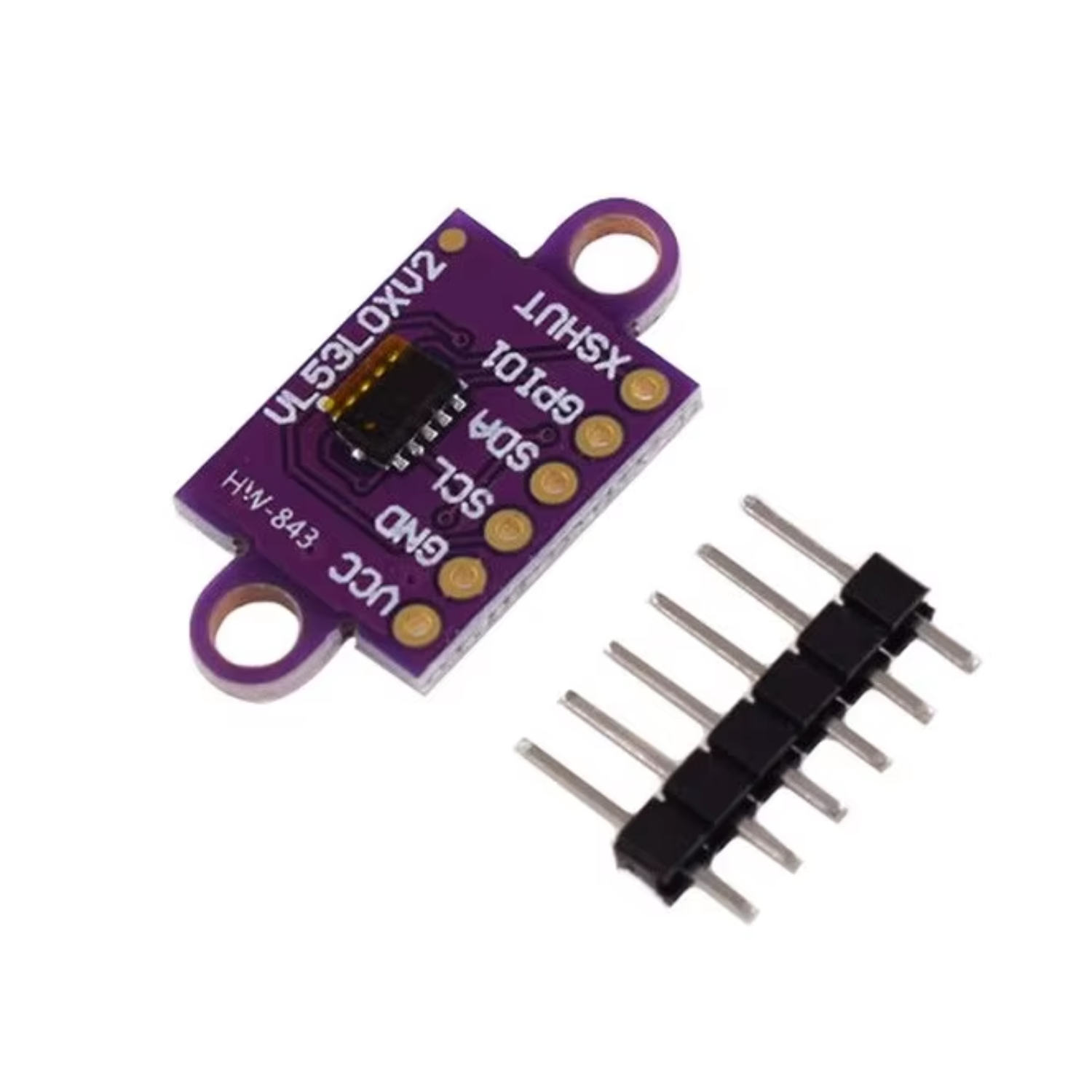

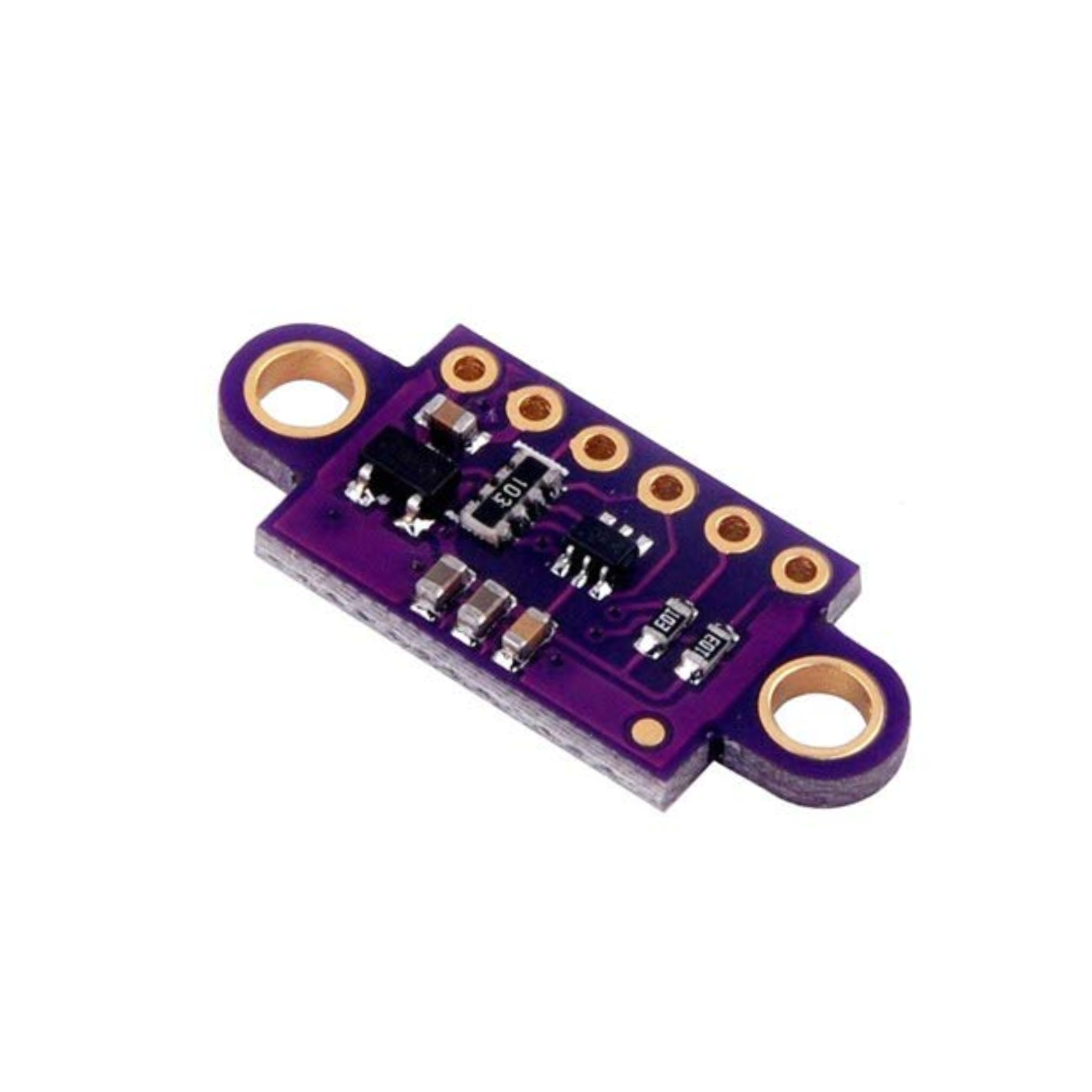

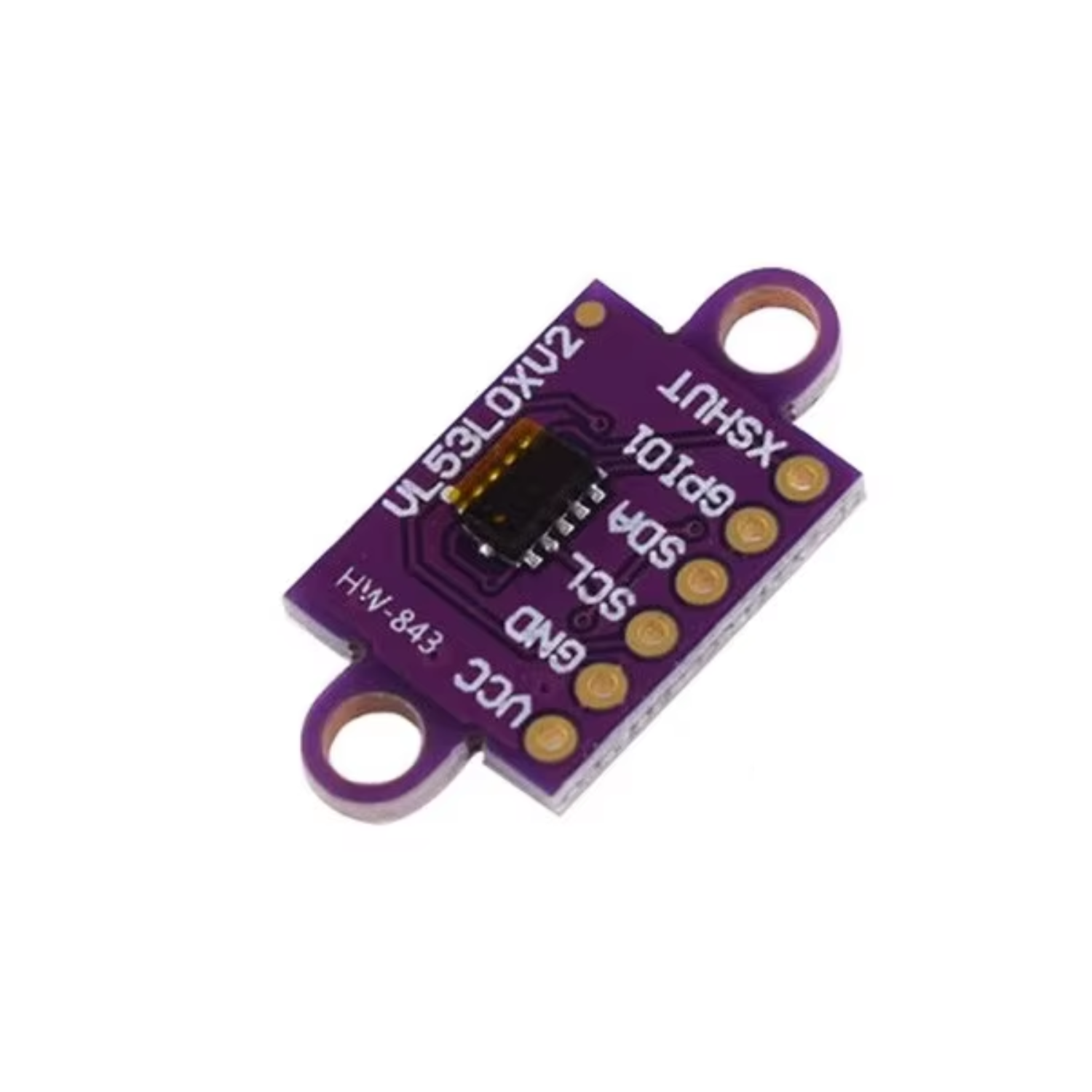

GY-53 VL53L0X Laser ToF Sensor Ranging Module Distance Measurement Sensor Time-of-Flight Technology For Accurate Proximity Detection

GY-53 VL53L0X Laser ToF Sensor Ranging Module Distance Measurement Sensor Time-of-Flight Technology For Accurate Proximity Detection

SKU:

In stock

Regular price Rs. 451.00
Regular price Sale price Rs. 451.00
Sale Sold out
Shipping calculated at checkout.
Quantity

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The GY-53 VL53L0X Laser ToF Flight Time Ranging Sensor Module is a compact device designed for high-accuracy distance measurement. It utilizes the VL53L0X sensor, which employs laser-based Time-of-Flight (ToF) technology to directly measure the time it takes for emitted light pulses to reflect off a target and return.

This results in precise distance readings, independent of target reflectivity, making it suitable for applications requiring reliable proximity and distance data.

Specifications:

  • Item Type: Sensor
  • Module Type: GY-53
  • Model Type: Ranging Sensor Module
  • Model No.: VL53L0X
  • Use chip: VL53L0X + STM32
  • Communication Mode: Serial output, PWM output, the chip itself IIC output.
  • Power Supply: 3-5v (low dropout voltage regulator)

Features:

  • True distance measurement independent of target size and reflectance
  • Able to function in multi-module applications
  • Small size mini-PCB
  • VL53L0X 3-in-1 ranging and gesture detection sensor
  • Regulator: 5 to 2.8V range input voltage (output voltage: 2.8V)
  • VL53L0X signal interface level shifter
  • Serial Port PWM Output
  • Breakout board, easy to integrate into the customer device
  • Allows basic gesture recognition use case.

Package Included:

1 x GY-53 VL53L0X Laser ToF Sensor
