Description:
This GY-521 Gyroscope Module has an onboard LDO chip and supports 5 V / 3.3 V voltage input. Further, the GY-521 Gyroscope Module unit also supports the IIC standard communication protocol, with 16 16-bit AD converters and 16-bit data output. Some of its other specifications include a PCB size of 22.1 (mm) x13.6 (mm), provision for users to control the program of accelerator full grid sensor in the range of 2g 4g 8g, and 16 g, and angular velocity full case sensing range for 250 500 1000 and 2000 / SEC (DPS) among others.
Specifications:
- Driver Chip: MPU6050
- Operating Voltage: 3-5V DC
- Communication: I2C/IIC Protocol
- Gyro Range: ± 250, 500, 1000, 2000 °/s
- Accelerometer Range: ± 2 ± 4 ± 8 ± 16 g
Features:
- GY-521 Gyroscope Module uses the chip MPU-6050
- Communication Modes: Standard IIC communications protocol
- Chip built-in 16bit AD converter, 16-bit data output
Package Included:

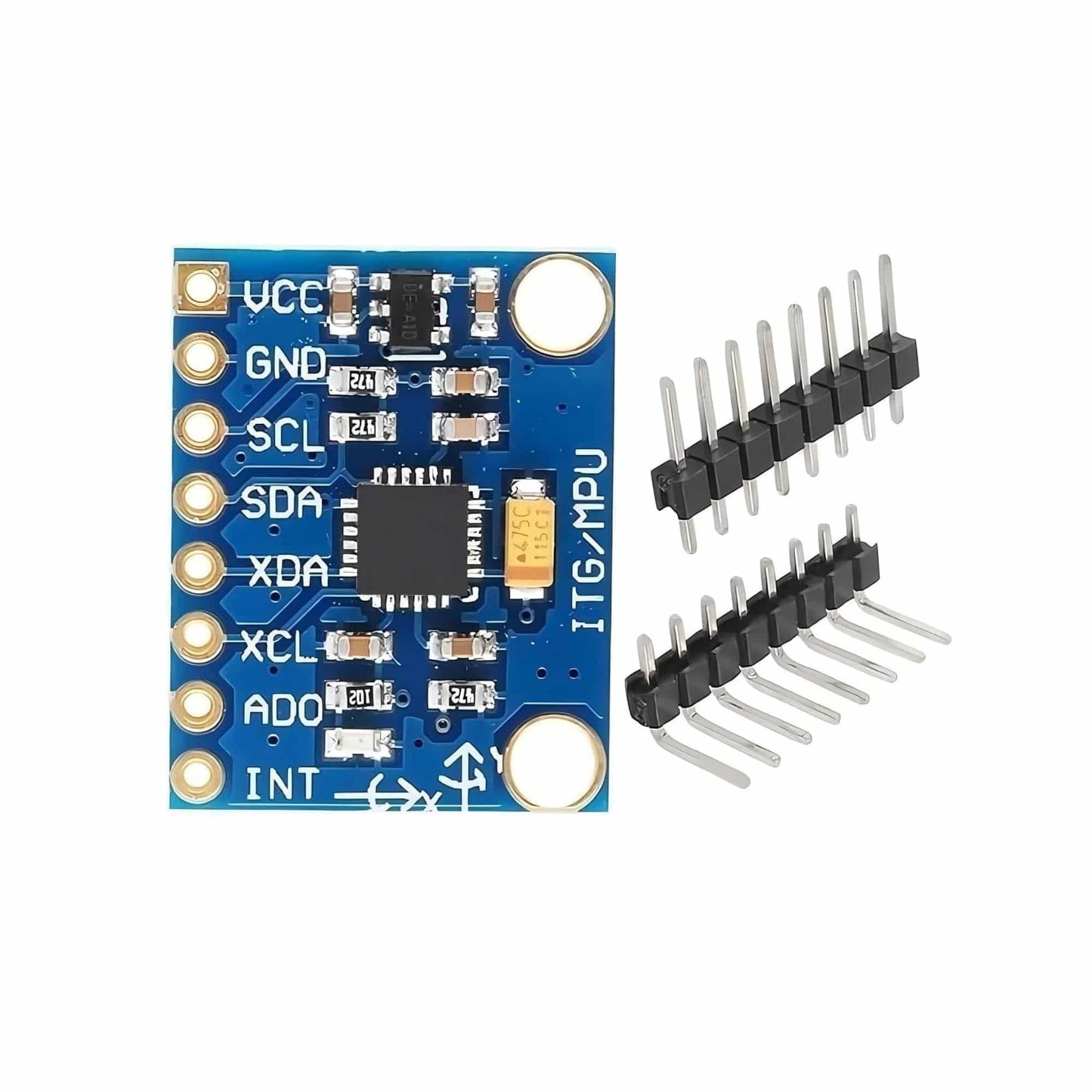

1 x GY-521 Gyroscope Module
