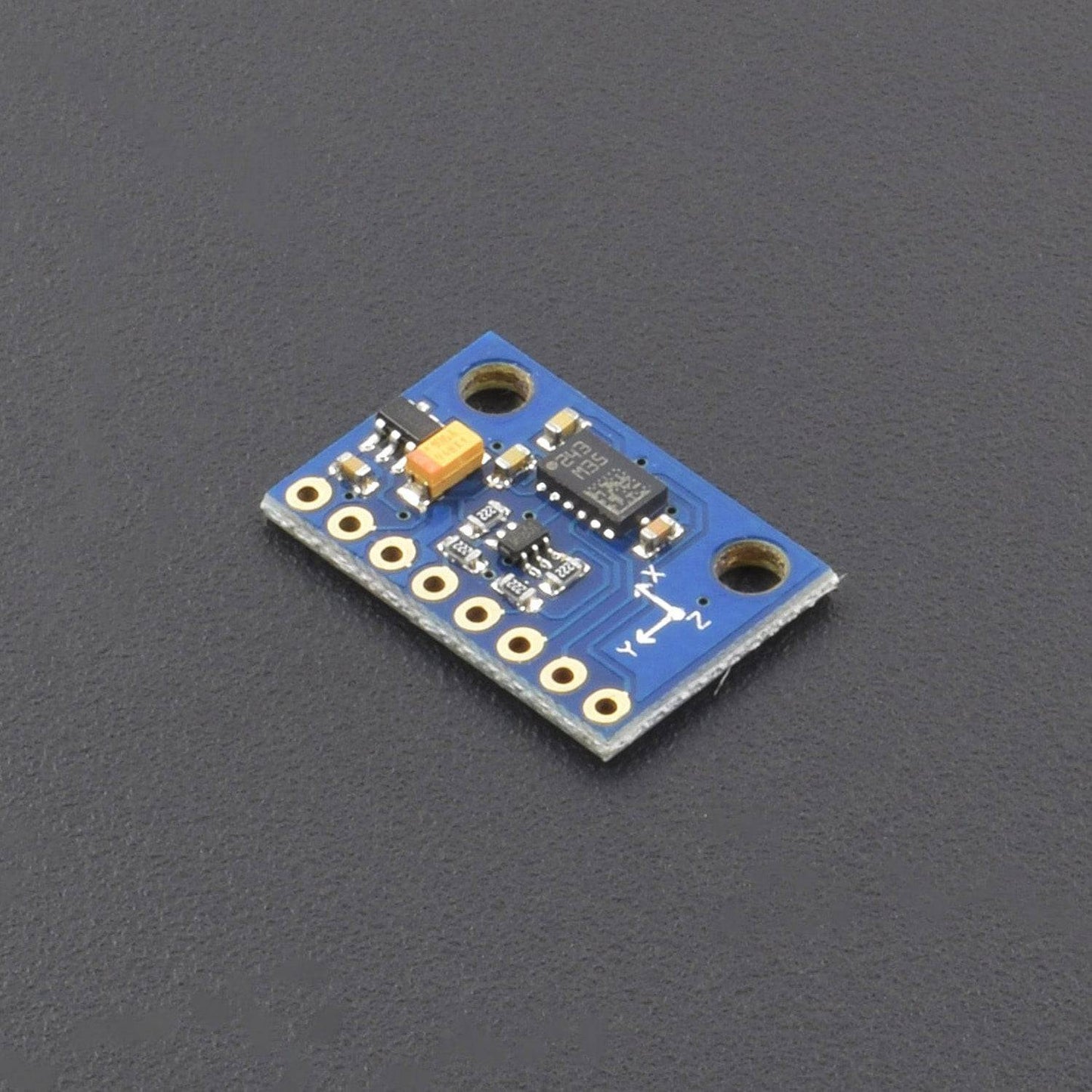

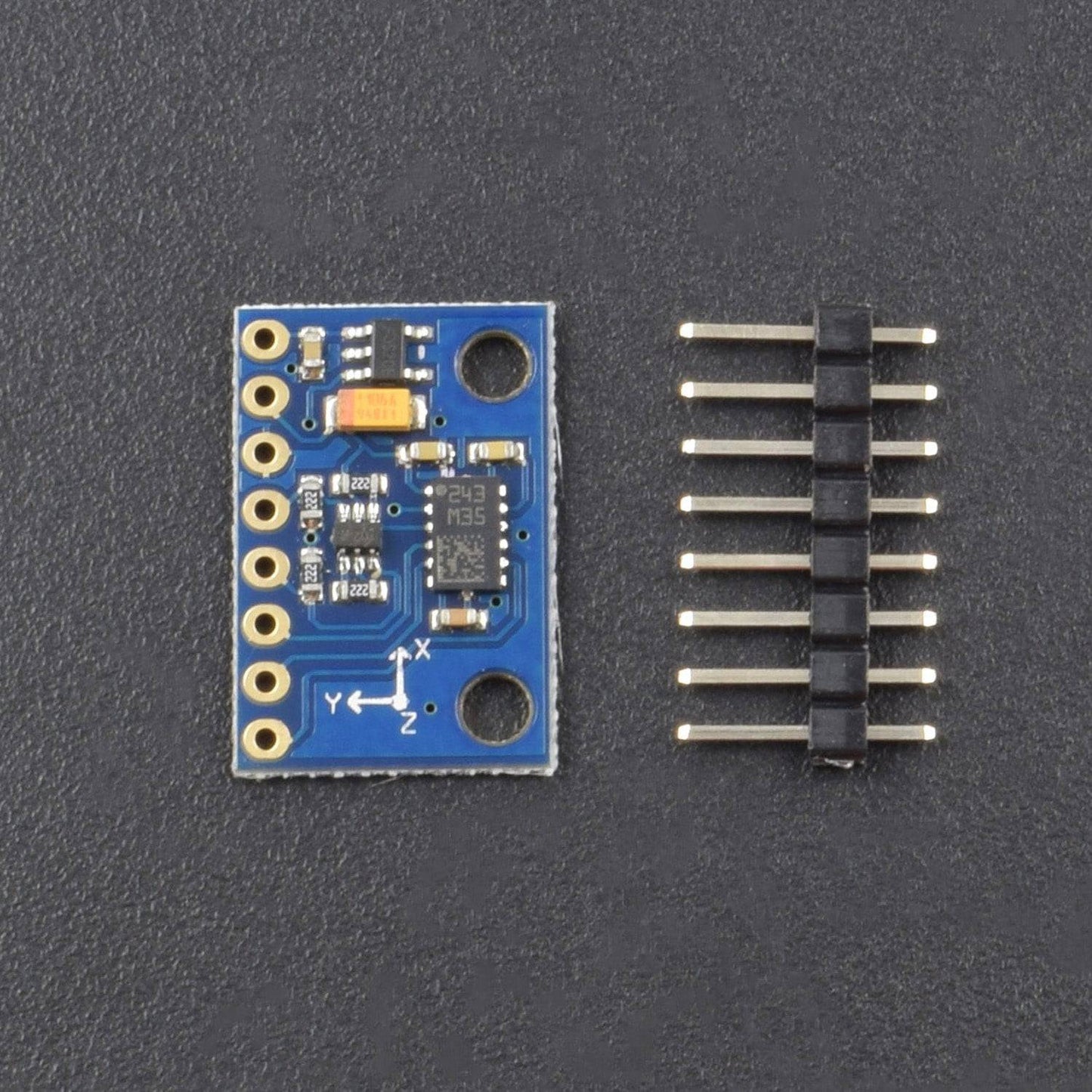

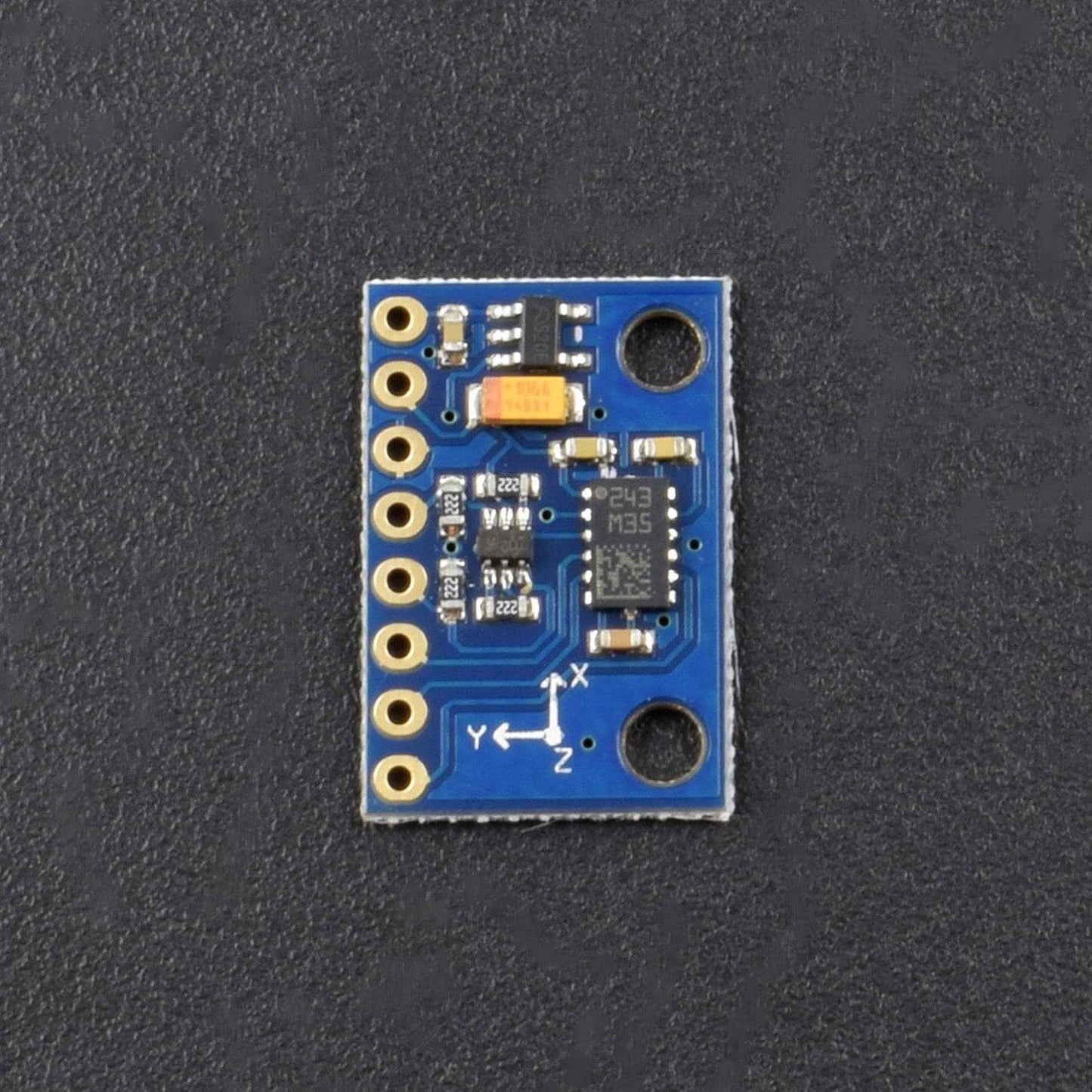

GY-511 LSM303DLHC E-Compass 3 Axis Magnetometer And 3 Axis Accelerometer Module-NB053

GY-511 LSM303DLHC E-Compass 3 Axis Magnetometer And 3 Axis Accelerometer Module-NB053

SKU:NB053

Low stock: 10 left

Regular price Rs. 350.00
Regular price Sale price Rs. 350.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Type: GY-511
  • Pin Pitch: 2.54 mm
  • Power supply :3-5v
  • Using the chip: LSM303DLHC

Description:

The LSM303DLHC is a digital 3 axis accelerometer and 3 axis magnetometer with I2C interface. It has full-scale acceleration range of ±2g to ±16g and full scale magnetic field range of ±1.3 to ±8.1 gauss. All the full scale ranges are user selectable. Module has on board low drop voltage regulator which takes input supply in the range of 3.6V to 6V DC. Board has two mounting holes. All 9 pins of the module are arranged in single line. LSM303DLHC’s I2C serial bus interface supports standard (100 KHz) and fast mode (400 kHz). It is most suitable for tilt compensated compass, quadrotor and robotics application. For LSM303DLHC application interface example available based on LPC2148 ARM7 microcontroller. LSM303DLHC has application example b ased on LPC2148 ARM7 microcontroller.

Specification:

  • Type: GY-511
  • Pin Pitch: 2.54 mm
  • Power supply :3-5v
  • Using the chip: LSM303DLHC
  • Magnetic field range: ± 1.3 / ± 1.9 / ± 2.5 / ± 4.0 / ± 4.7 / ± 5.6 / ± 8.1 gauss
  • Acceleration range: ± 2 g / ± 4 g / ± 8 g
  • Communication: standard IIC communication protocol

Features:

  • Chip built-in 12 bit AD converter, 16 bits of data output
  • 16 bit data output
  • I2C serial interface
  • Power-down mode/ low-power mode
  • 2 independent programmable interrupt generators for free-fall and motion detection
  • Embedded temperature sensor
  • 6DOF orientation detection

Package Included:

1 x 1 x GY-511 LSM303DLHC E-Compass 3 Axis Magnetometer And 3 Axis Accelerometer Module
