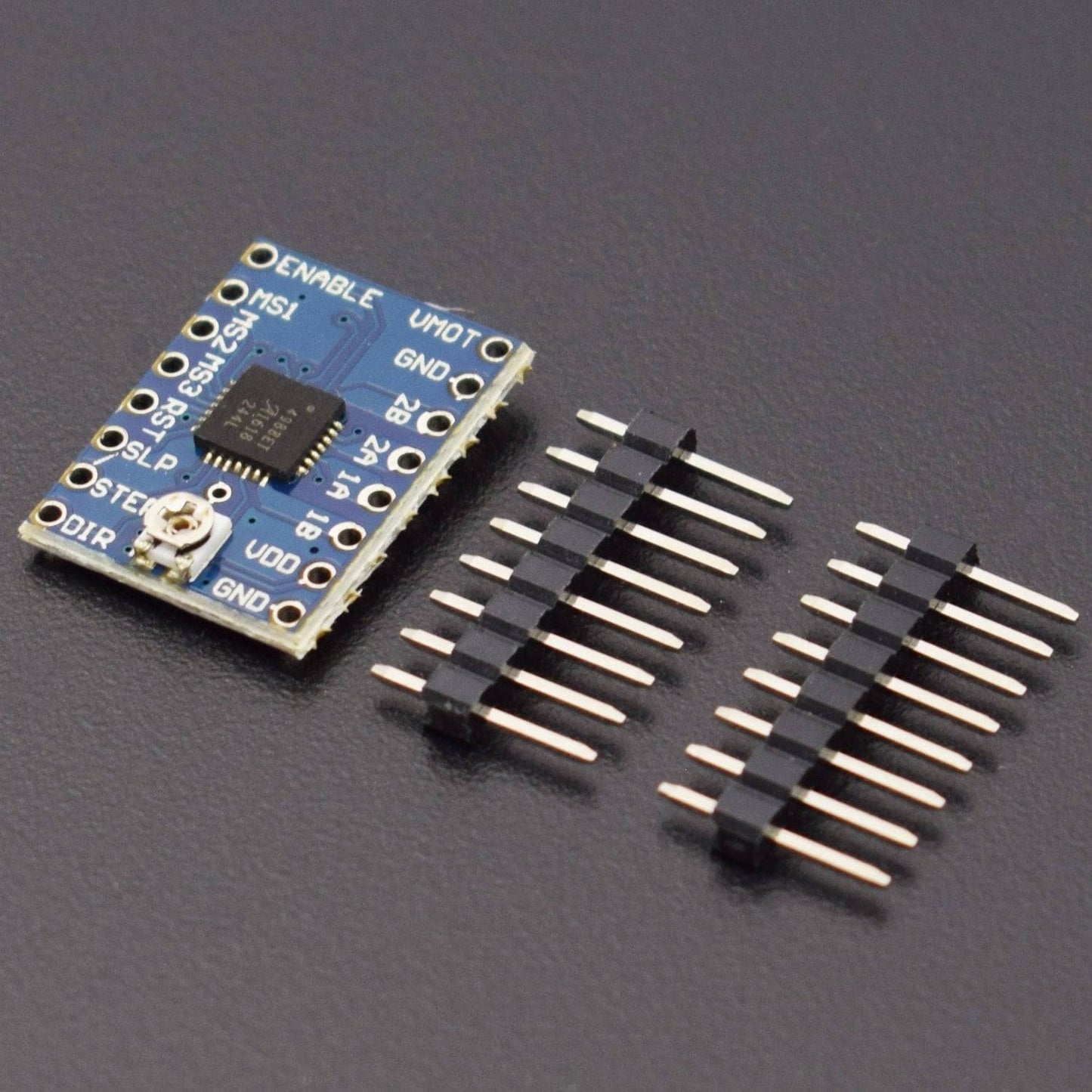

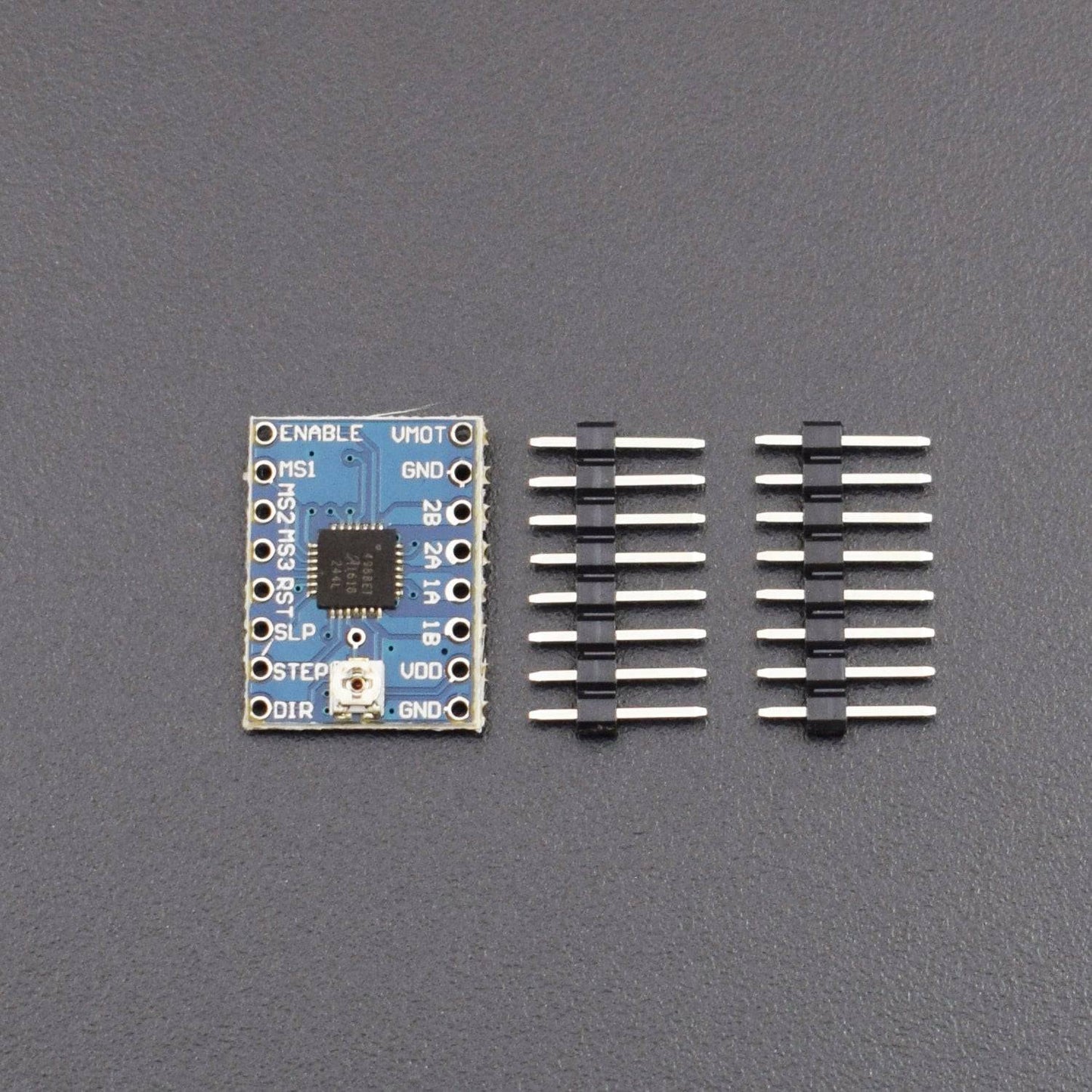

GY-4988 A4988 3D Printer Machine Driver Stepper Motor Drive Module - RS1034

• 3.3 and 5 V compatible logic supply
• Internal UVLO
• Low RDS (ON) output
• Thermal shutdown circuitry
• Ground fault protection

Description:

A4988 is a complete micro-stepping motor driver with built-in translator for easy operation. The product is available in full, half, 1/4, 1/8 and 1/16 step mode to operate bipolar stepper motors of an output drive capability of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator can operate in slow or mixed decay modes. Converter is easy to implement key A4988. Just enter a pulse in the step input drives the motor to produce micro-step. Without the need for phase sequence tables, high frequency control lines, or complex interfaces to program. A4988 is ideal for complex microprocessor is unavailable or overloaded applications.

In the micro-step operation, the chopper control A4988 automatically selects within the current decay mode (slow or mixed). In mixed decay mode, the device is initially set to a fixed part of the rapid decay in downtime and slow decay for the remainder of downtime. Mixed decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry provides to improve the pulse-width modulation (PWM) operation power consumption. Internal circuit protection includes: thermal shutdown with hysteresis, under-voltage lockout (UVLO) and crossover current protection. Special power sequencing.

Features:

• Model: A4988
• Module power supply range: 3.3V ~ 5V
• PCB size: 20 x 15mm
• Low RDS (ON) outputs
• Automatic current decay mode detection / selection
• Mixed with slow current decay mode
• Synchronous rectification for low power dissipation
• Internal UVLO
• Crossover current protection
• 3.3V and 5 V compatible logic supply
• Thermal shutdown circuit
• Ground short circuit protection
• Load short-circuit protection
• Five selectable step modes: full, 1/2, 1/4, 1/8, and 1/16

Package Included:

1 x A4988 Stepper Motor Driver Module
