Description:

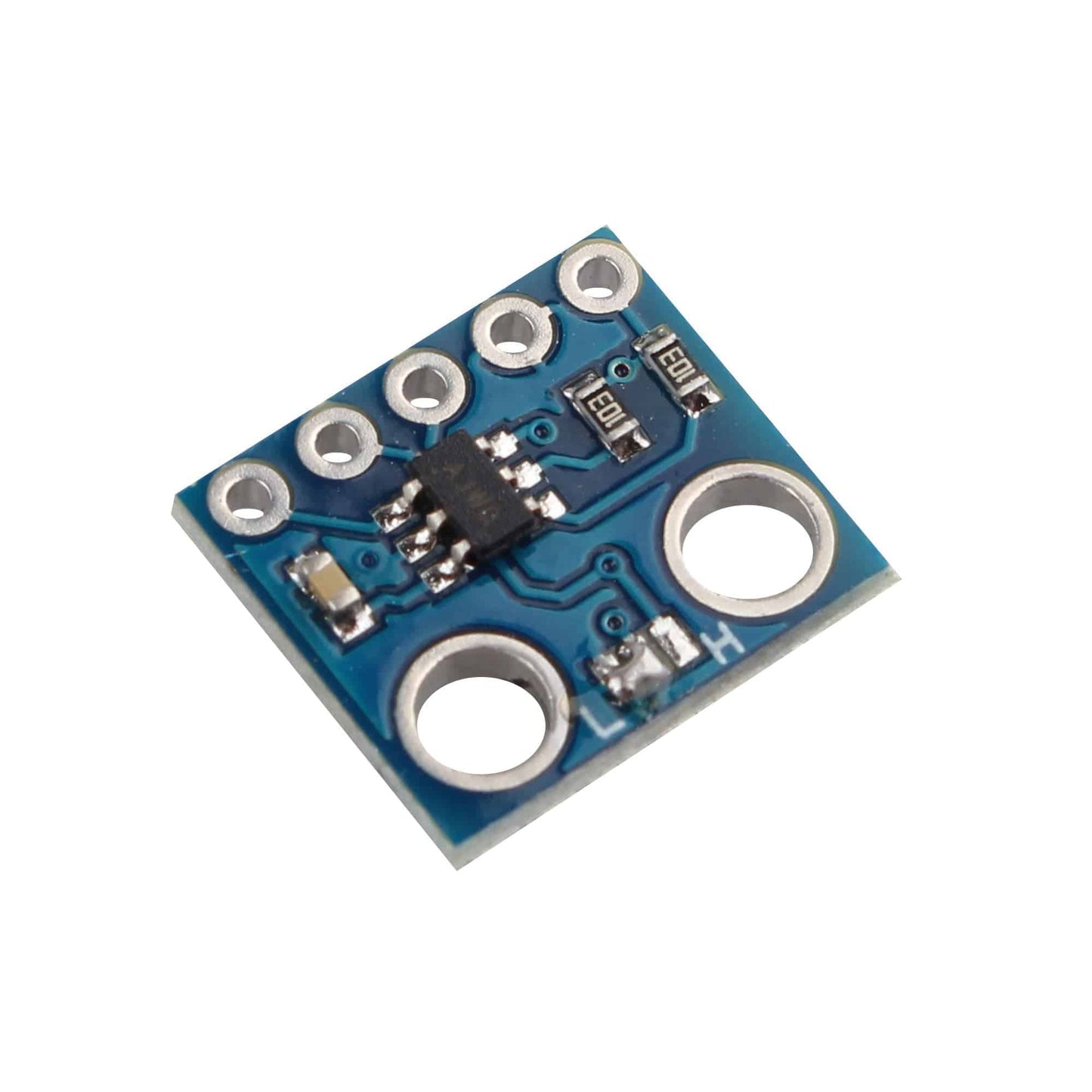

The GY-4725 I2C DAC Breakout is an I2C-controlled Digital-to-analogue converter (DAC). A DAC allows you to send analogue signals, such as a sine wave, from a digital source, such as the I2C interface on the Arduino microcontroller. Digital to analogue converters are great for sound generation, musical instruments, and many other creative projects!

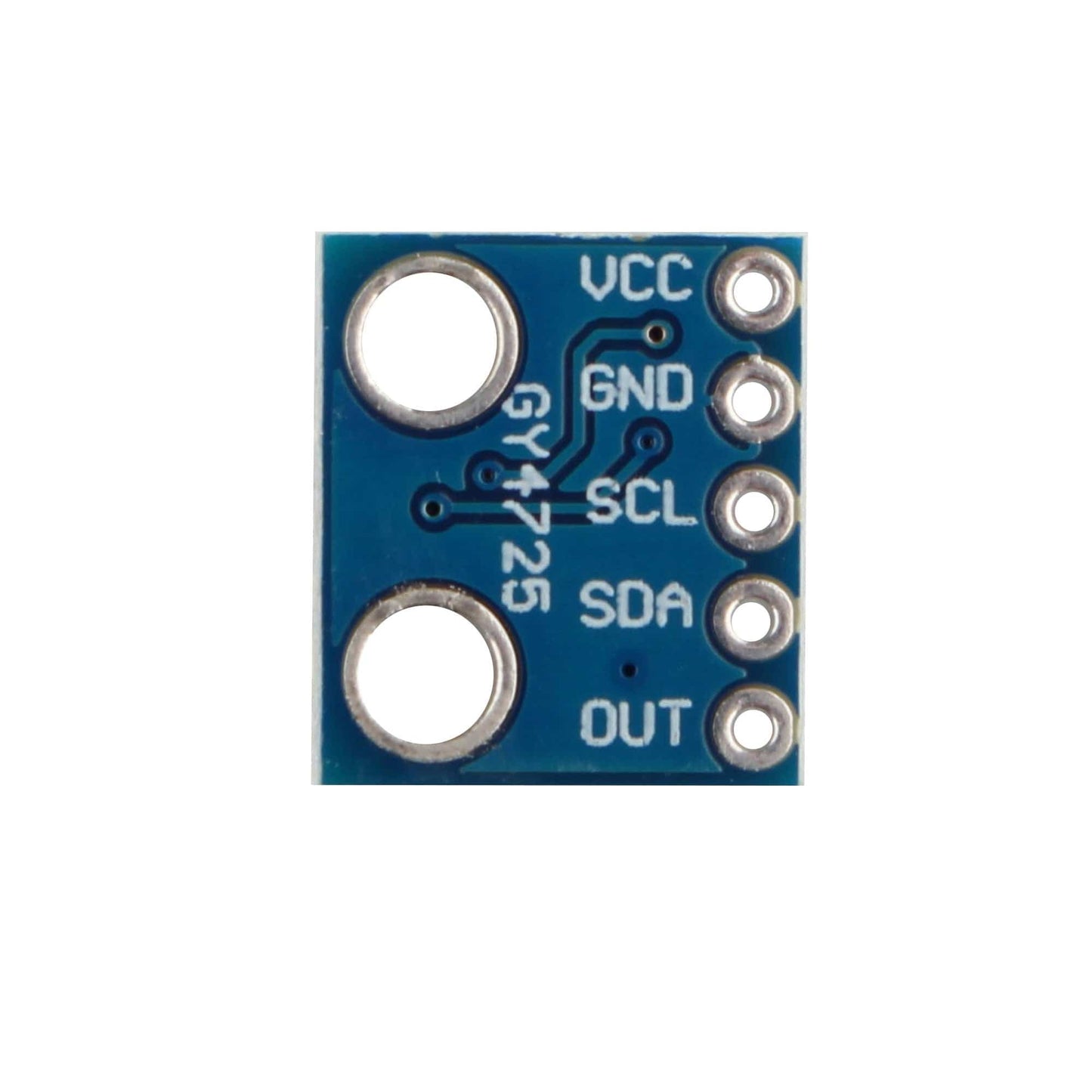

This version of the GY-4725 I2C DAC Breakout fixes a few issues with the board including the IC footprint, the I2C pinout, changes in the overall board dimensions to better fit your projects, and a few more minor tweaks. This GY-4725 I2C DAC Breakout breaks out each pin you will need to access and use the MCP4725 including GND and Signal OUT pins for connecting to an oscilloscope or any other device you need to hook up to the board. Also on board are SCL, SDA, VCC, and another GND for your basic I2C pinout.
Additionally, if you are looking to have more than one MCP4725 on a bus, the pull-up resistors on this GY-4725 I2C DAC Breakout can be disabled just check the Hookup Guide in the Documents section below for instructions and tips on doing this.
Features:
- 12-bit resolution
- I2C Interface (Standard, Fast, and High-Speed supported)
- Small package
- 2.7V to 5.5V supply
- Internal EEPROM to store settings
Package Included:

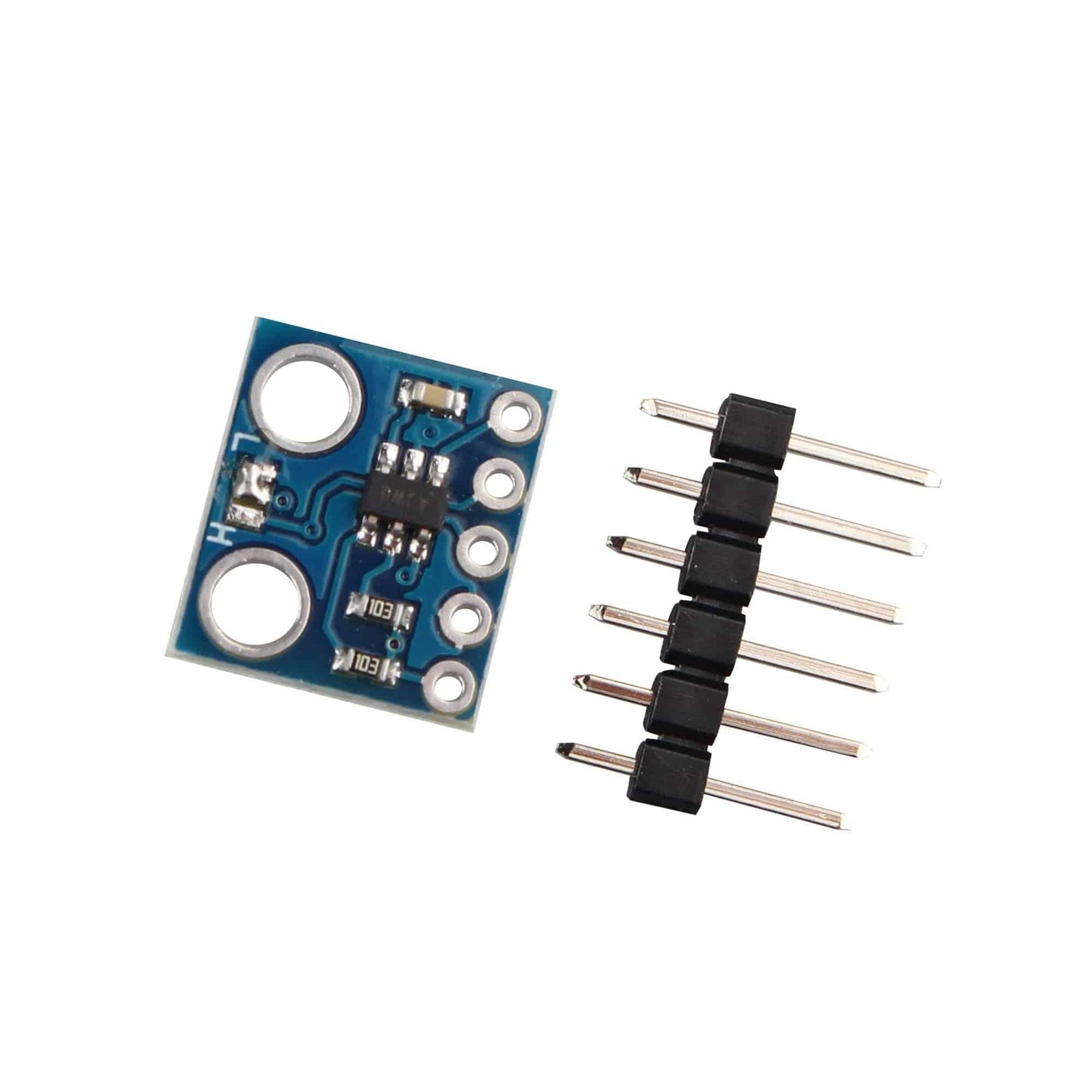

1 x GY-4725 I2C DAC Breakout MCP4725 Digital Analog Converter - Blue
