Acceleration Range: ±2g/±4g/±8g dynamically selectable full-scale
- Current: 6 μA ~ 165 μA
- Operating Voltage: 3.3V ~ 5V
- Resolution: 14-bit and 8-bit digital output
- Sensor: MMA8451Q
Description :
14 and 8 bits of digital output. The I2C digital output interface (when Ω pull-up resistor is 4.7 k, the highest frequency of 2.25 MHz). Suitable for seven interrupt sources of two programmable interrupt pin. Three motion detection embedded channel. With a programmable lag compensation direction (horizontal/vertical) detection. Automatically wake up and sleep ODR can automatically change automatically. 32 samples FIFO. High-pass filter data output and by FIFO output separately
Specification :
- Acceleration Range: ±2g/±4g/±8g dynamically selectable full-scale
- Current: 6 μA ~ 165 μA
- Operating Voltage: 3.3V ~ 5V
- Resolution: 14-bit and 8-bit digital output
- Sensor: MMA8451Q
Applications :
- Electronic compass application
- Static direction detection (horizontal/vertical, up/down, left/right and front/back position identification)
- Laptops, ebook reader and portable computer fell and free fall detection
- Real-time direction detection, virtual reality, and game 3 d user position feedback)
- Real-time activity analysis (pedometer step count, for HDD free fall detection, conjecture sailing GPS backup)
- Motion detection is suitable for portable energy-saving products (for mobile phone, PDA, game consoles, GPS auto sleep, and auto wake up)
- Shock and vibration testing (mechanical and electrical integration of compensation, shipping, and warranty using the record)
- The user interface (by direction change menu scrolling, detect button to replace the label)
Package Included:

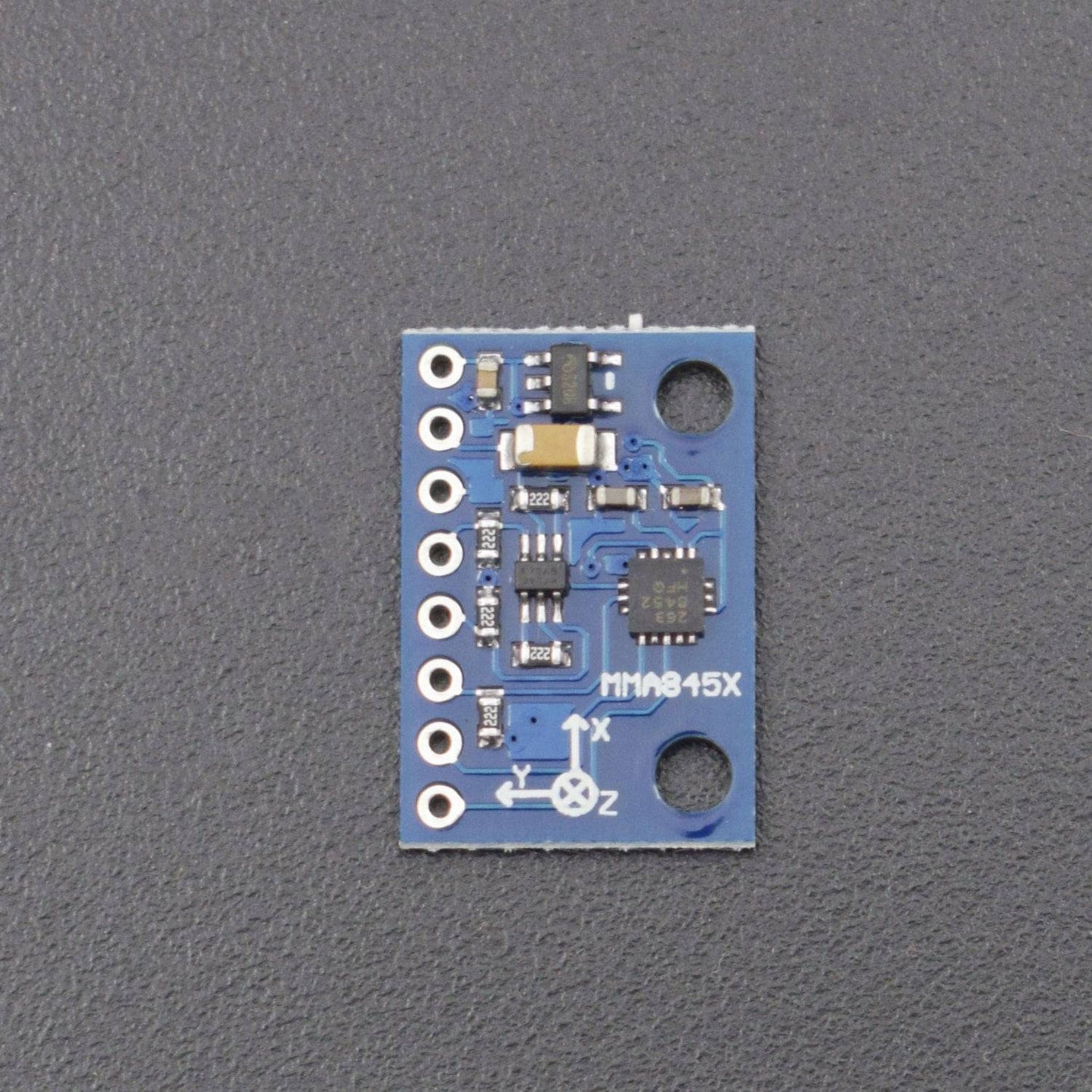

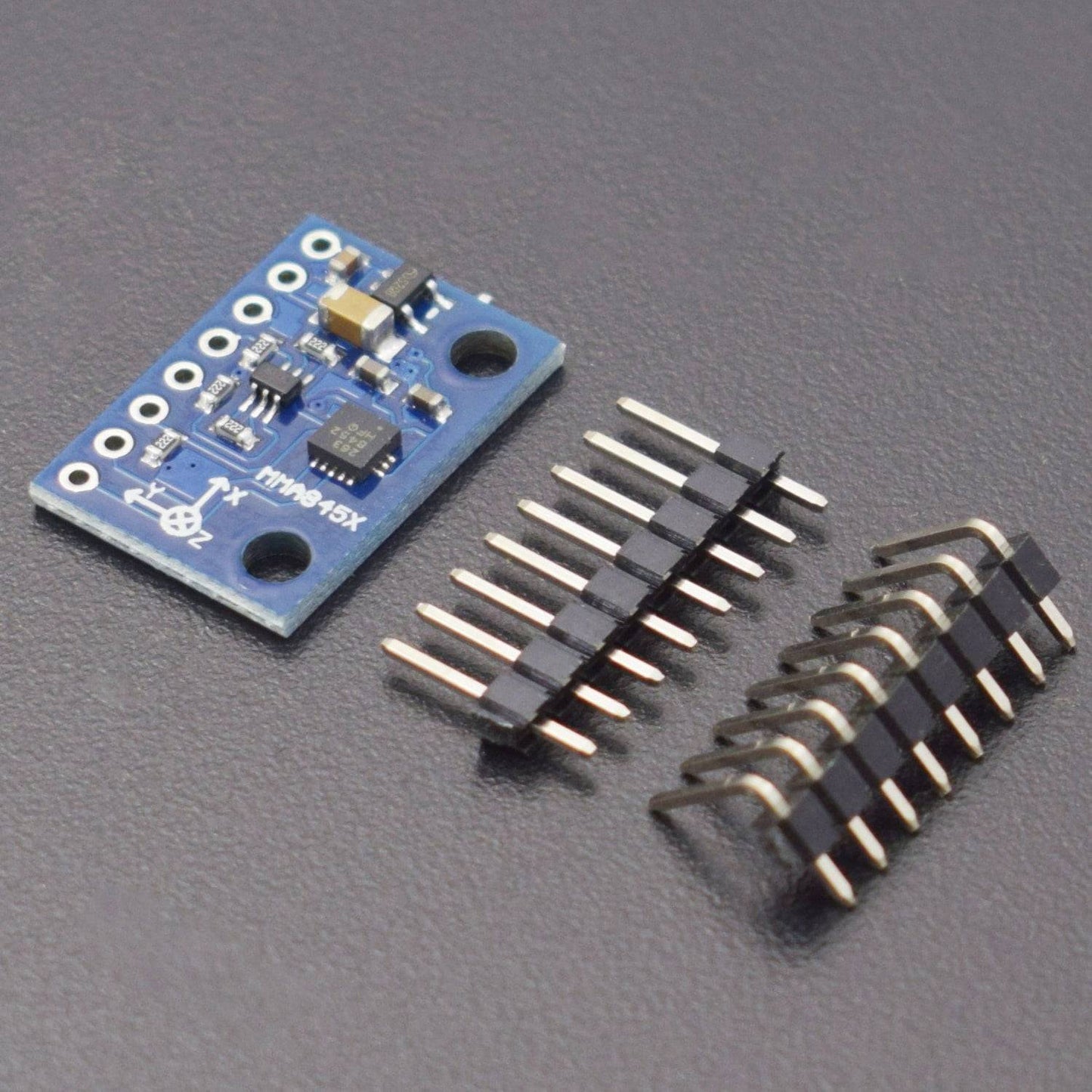

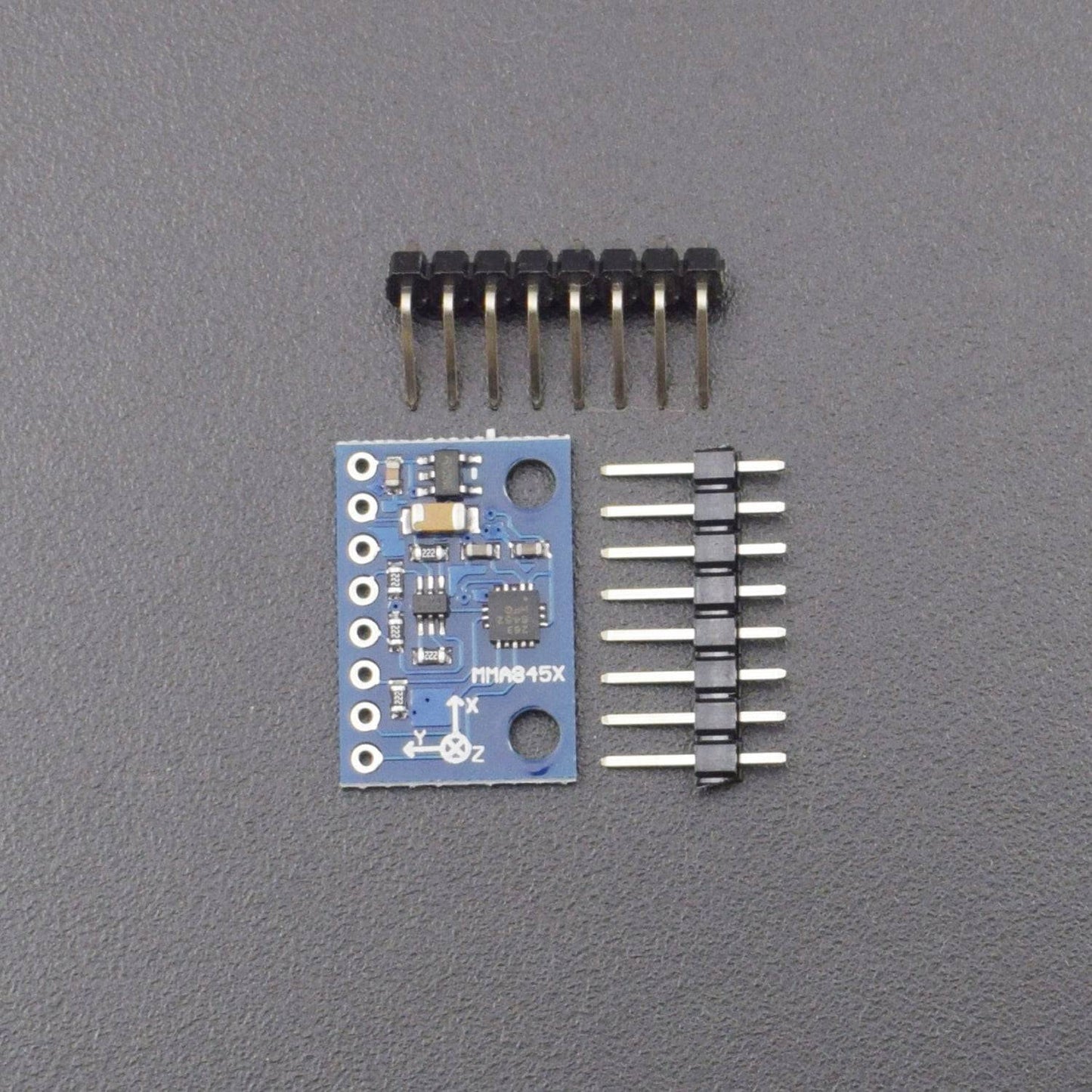

1 x GY-45 MMA8451 module
