- Measuring Range: RGB 0 ~ 255
- Response Frequency: 10Hz
- Working Voltage: 3 ~ 5V
- Working Temperature: -20 ~ 85'C
Description:
The GY-33 is a low-cost colour recognition sensor module. Working voltage 3-5v, low power consumption, small size, easy to install. The working principle is that the illumination LED emits light, and after illuminating the object to be measured, the return light detects the RGB ratio value through the filter, and the colour is recognized according to the RGB proportional value. This module has two ways to read data, namely serial UART (TTL level) or IIC (2 lines). The baud rate of the serial port is 9600bps and 115200bps, which can be configured. There are two modes of continuous and inquiry output, and the settings can be saved after power down. There are 7 simple colour recognitions, no need to calculate RGB values. Can adapt to different working environments, and connect with single-chip computers and computers. The module can also set a separate sensor chip operating mode. As a simple sensor module, the MCU does not participate in the data processing.
Specification:
- Measuring Range: RGB 0 ~ 255
- Response Frequency: 10Hz
- Working Voltage: 3 ~ 5V
- Working Temperature: -20 ~ 85'C
- Storage Temperature: -40 ~ 125C
Features:
- high performance
- built-in MCU calculating colour
- IIC, serial port communication mode
- LED light is adjustable
- Equipped with related upper computer software
- Connect to the microcontroller via I2C or UART.
- There are 2 white light LED bulbs.
- Operates at any voltage of 3V to 5V.
- Measurement speed 10Hz (0.1 seconds)
Applications:
- Intelligent robot
- Teaching and laboratory instruments
- Production line testing
- The colourimeter
- Led colour detection
Package Included:

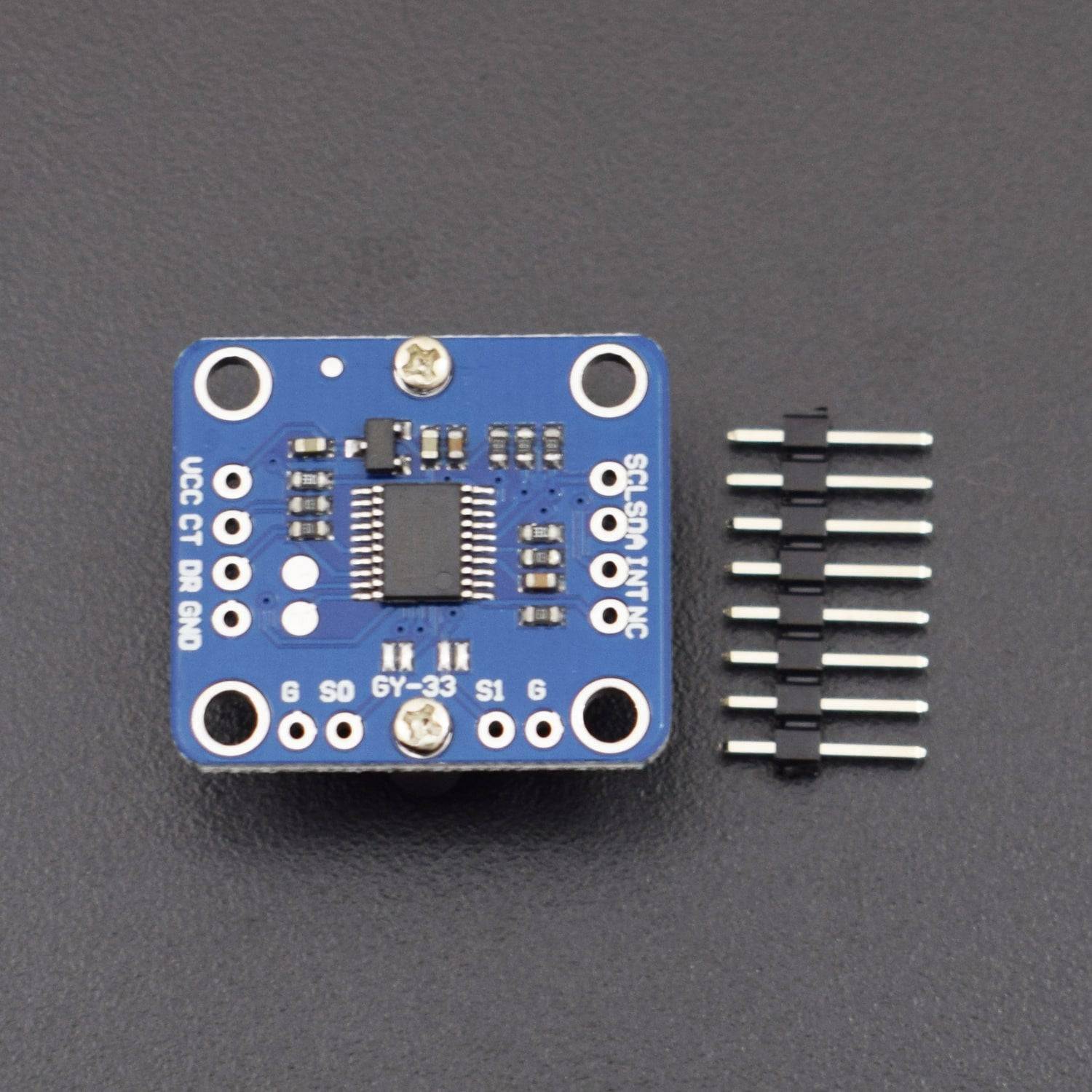

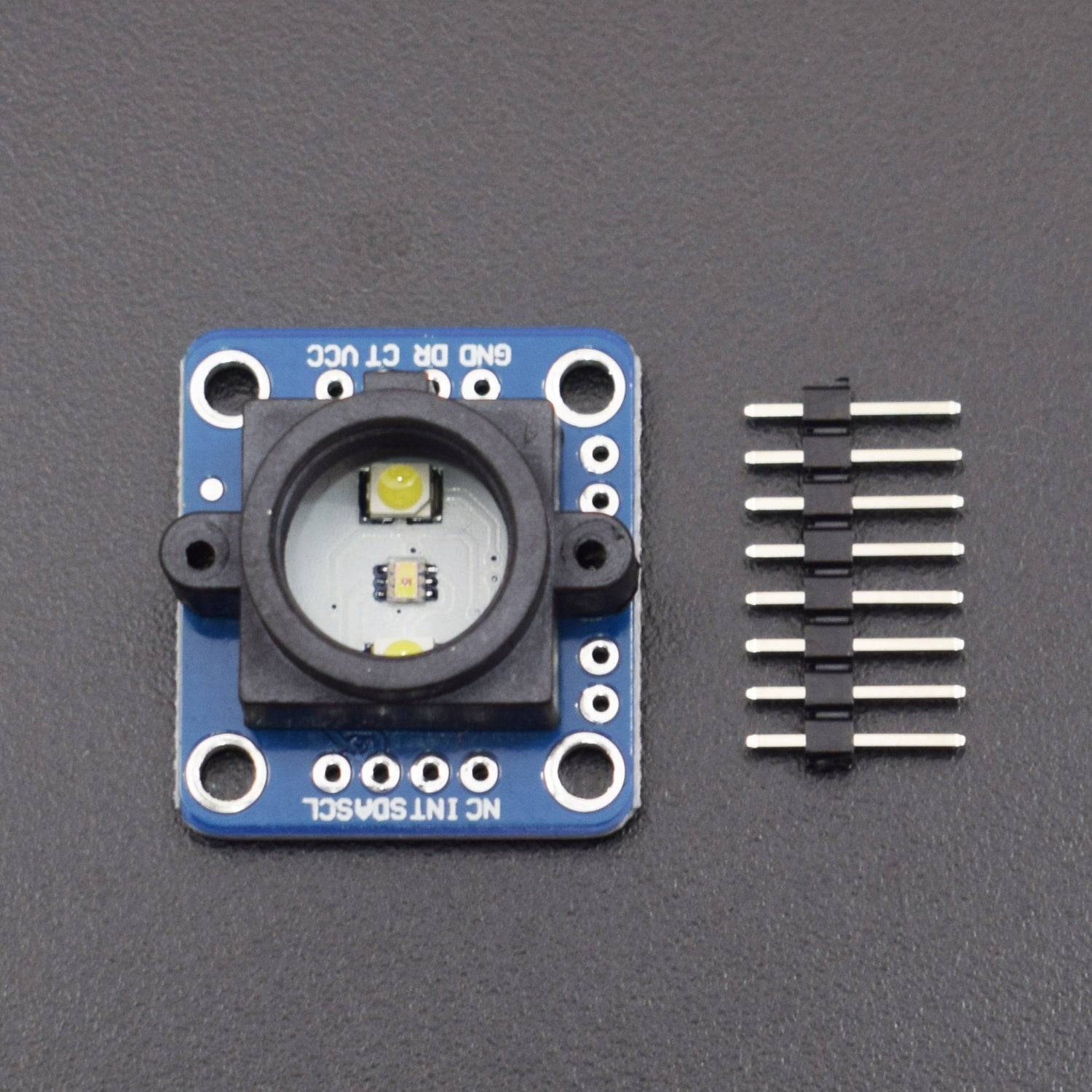

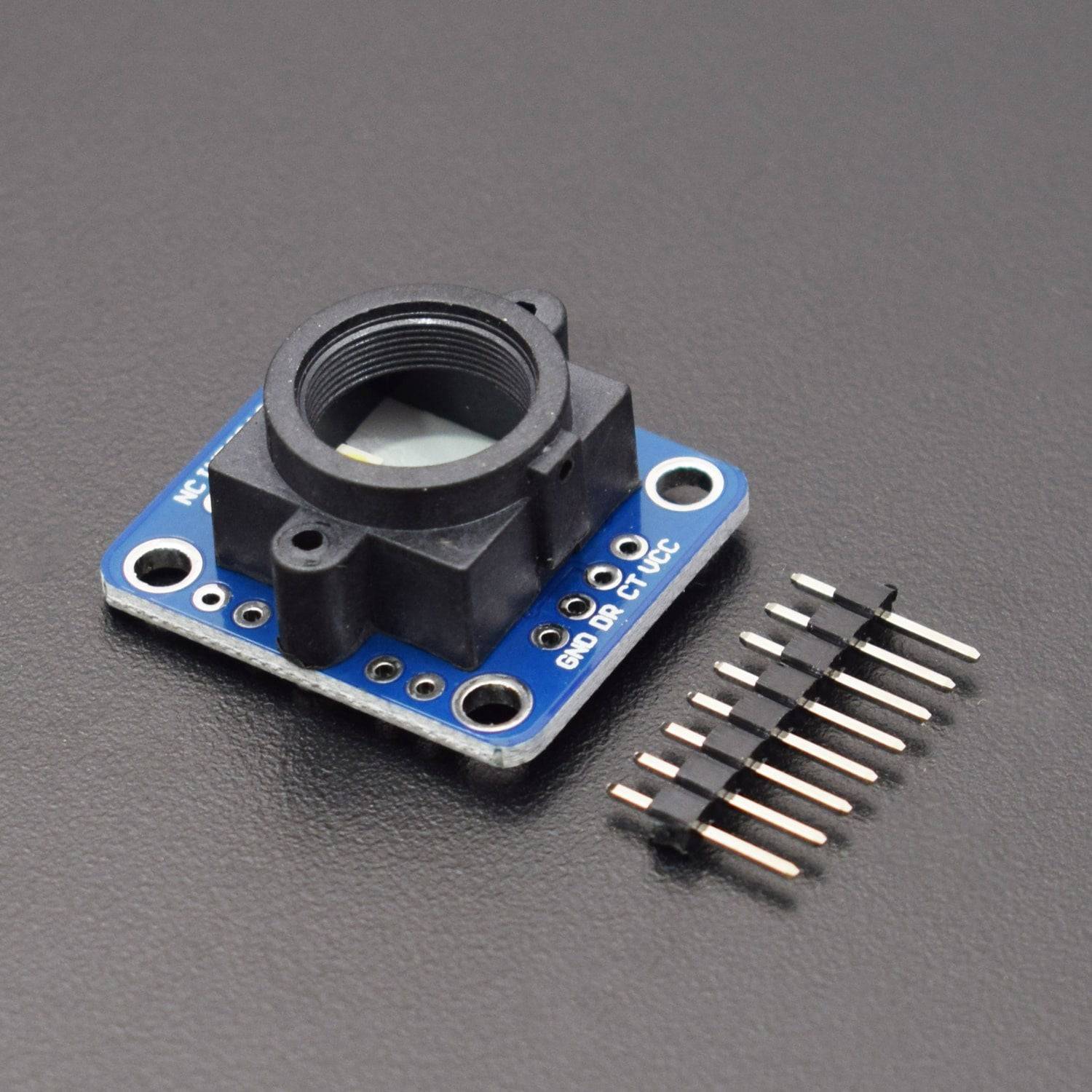

1 x GY-33 TCS34725 Color Recognition sensor identify sensor module Replace alternative TCS230 TCS3200
