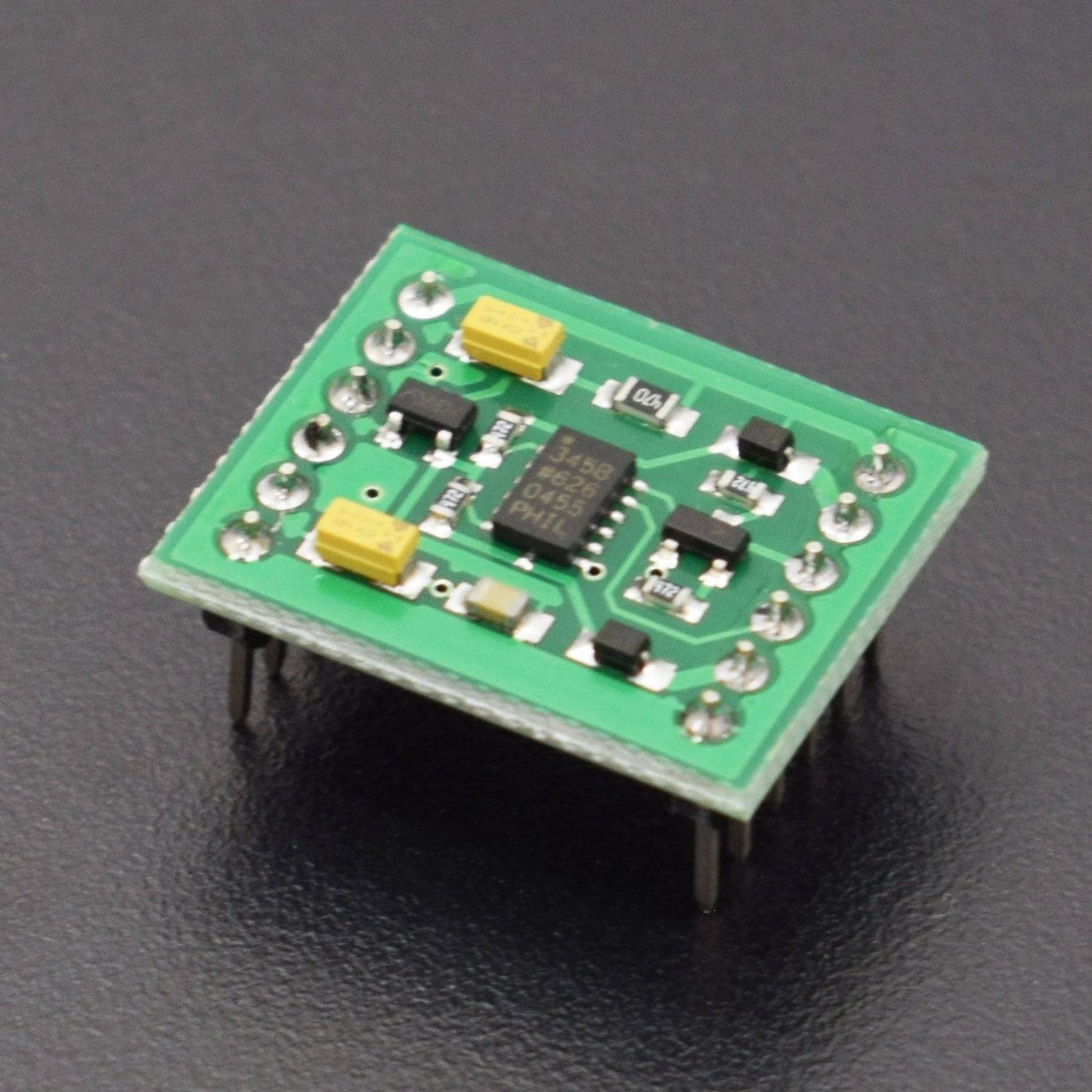

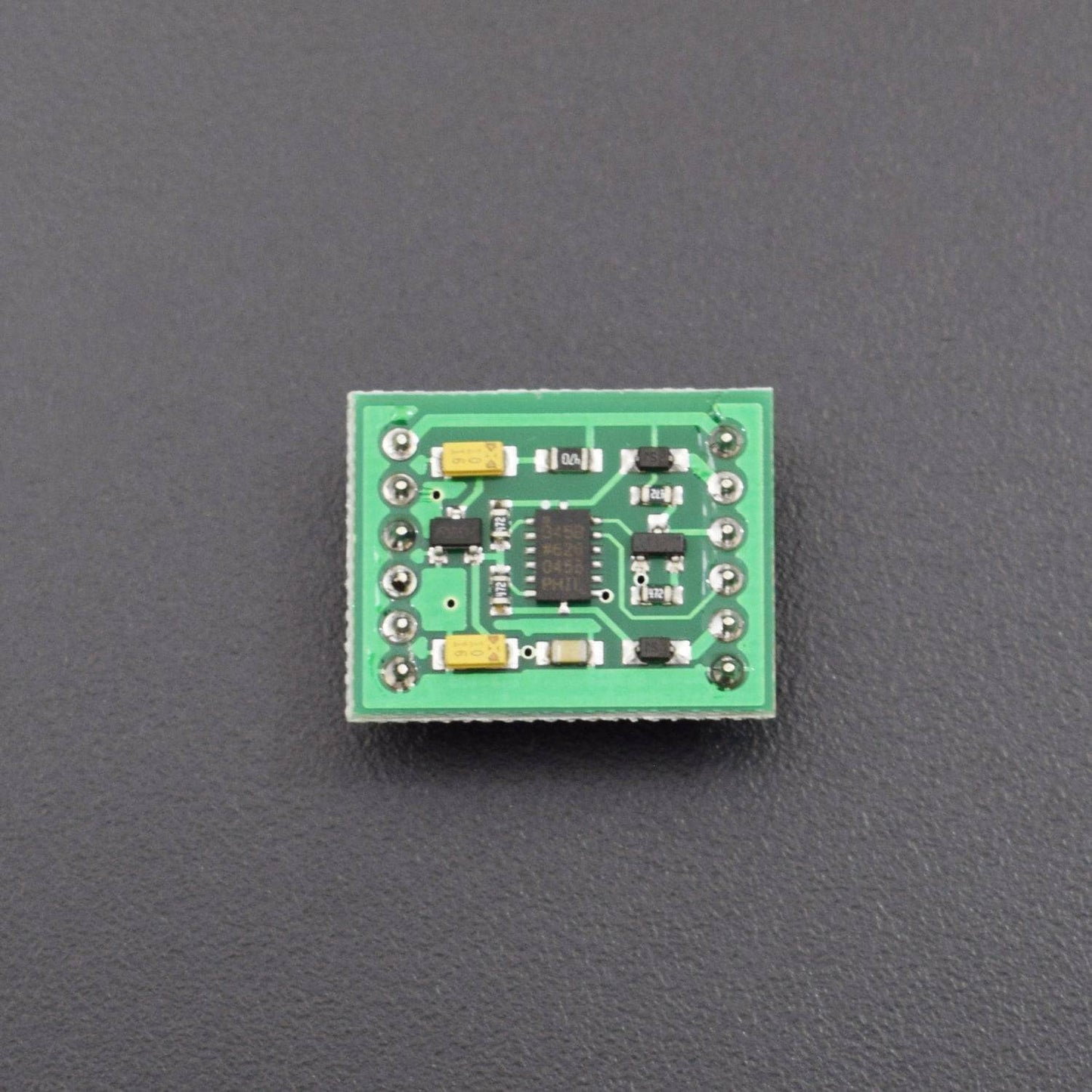

GY 29 ADXL345 tilt angle module three-axis digital Gravity Angle Sensor Module - RS1036

Description:

• The ADXL345 is a small, thin, low-power 3-axis accelerometer, can high TAT ± 16 g acceleration measurement of the high resolution (13 bits).
• Number of digital outputs it is for the 16-bit two's complement format
• SPI (3-wire or 4-wire) or I2C digital interface.
• ADXL345 is well suited for mobile device applications. It can tilt-sensing applications measuring the static acceleration of gravity can also measure the movement or shock lead dynamic plus speed.
• It has a high resolution (4 mg / LSB), measuring approximately 0.25 ° tilting-angle changes. The accelerometer ADXL345 digital output, without the need forthe analog-to-digital conversion, which can save the system cost and board space.
• In addition, ADXL345 is a small, thin, ultra-low-power 3-axis accelerometer, resolution(13), the measurement range of ± 16g. The digital output data for the 16-bit binary complement format, via the SPI (3-wire or 4-wire) or I2C digital interface access.
• ADXL345 is well suited for mobile device applications. It can be in tilt-sensing applications to measure the static acceleration of gravity, can also measure the movement or shock lead dynamic state acceleration. Its high resolution (3.9mg/LSB), capable of measuring less than 1.0 ° the inclination angle change.

Specification :

• Model:GY-29 ADXL345 module
• Working voltage of 3-5V
• Tri-axial digital module of the inclination angle
• gravity angle sensor(ADXL345)
• Uses a ADXL345 chip
• I2C/SPI communication
• Measurement of inclination changes to less than 1 degree

Package Included :

1 x GY 29 ADXL345 3-axis Digital gravity angle sensor module
