- Chip: FT232RL
- Draw out all signal port of FT232RL chip
- RXD/TXD transceiver communication indicator

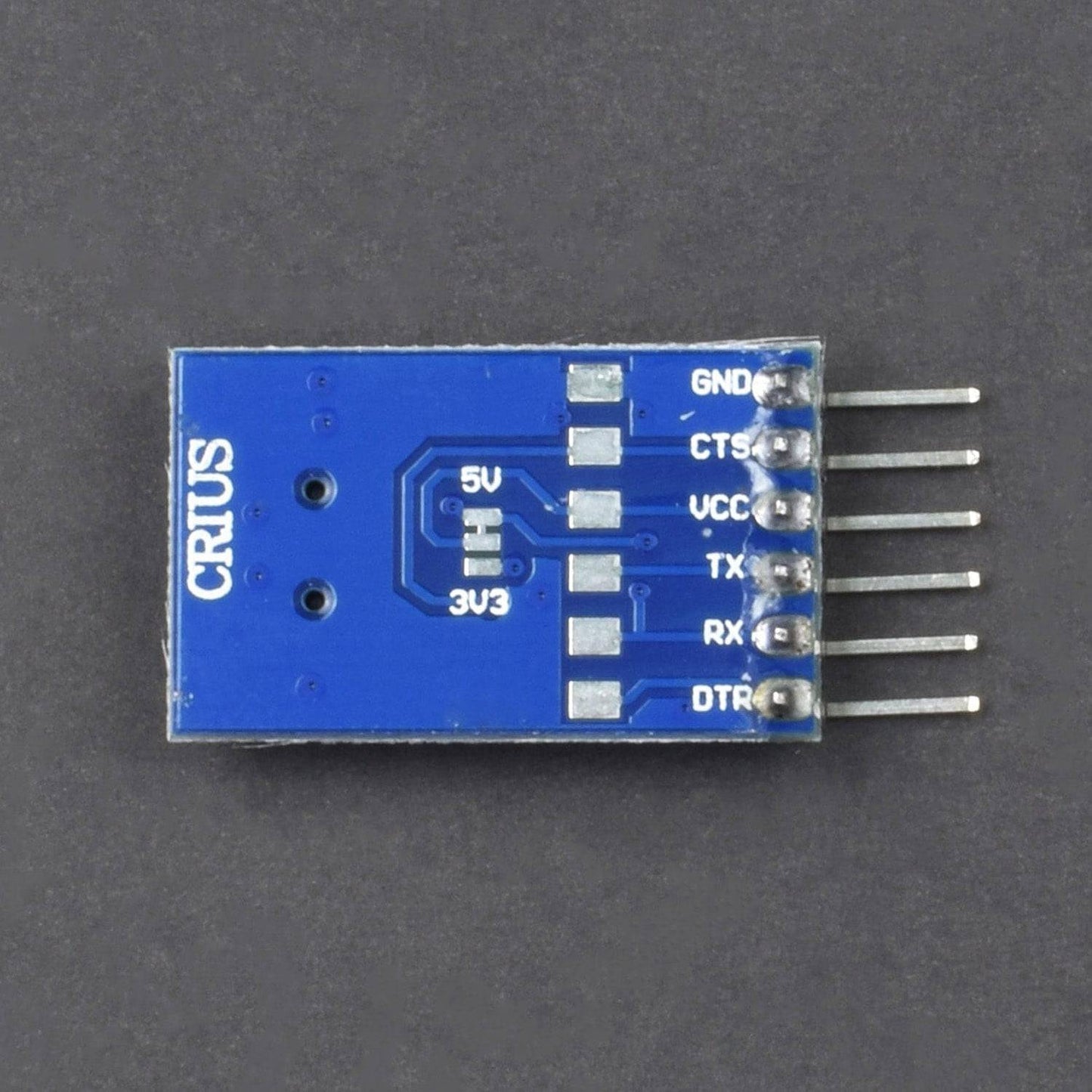

- USB power supply can choose 5V or 3.3V, set by jumper
Description:

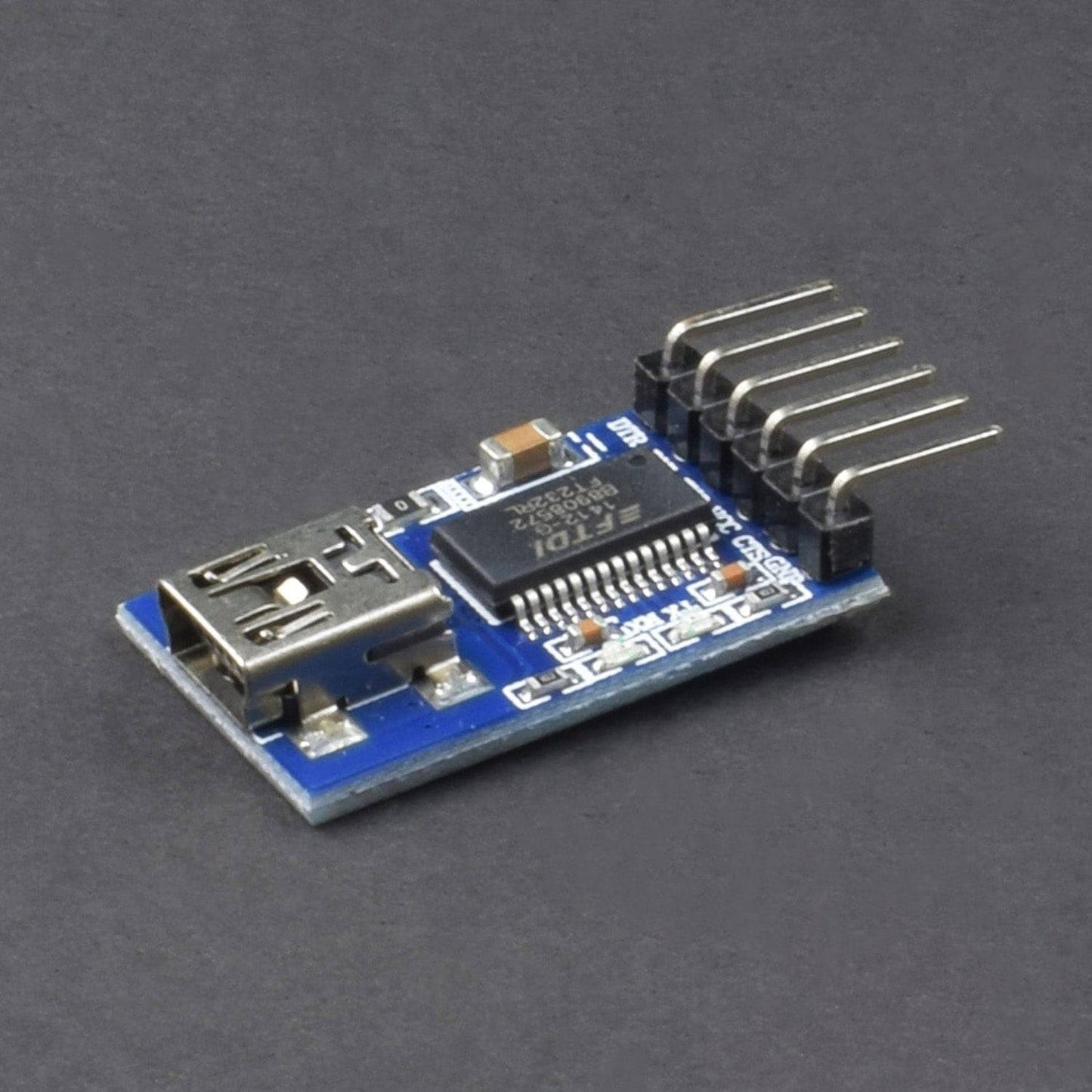

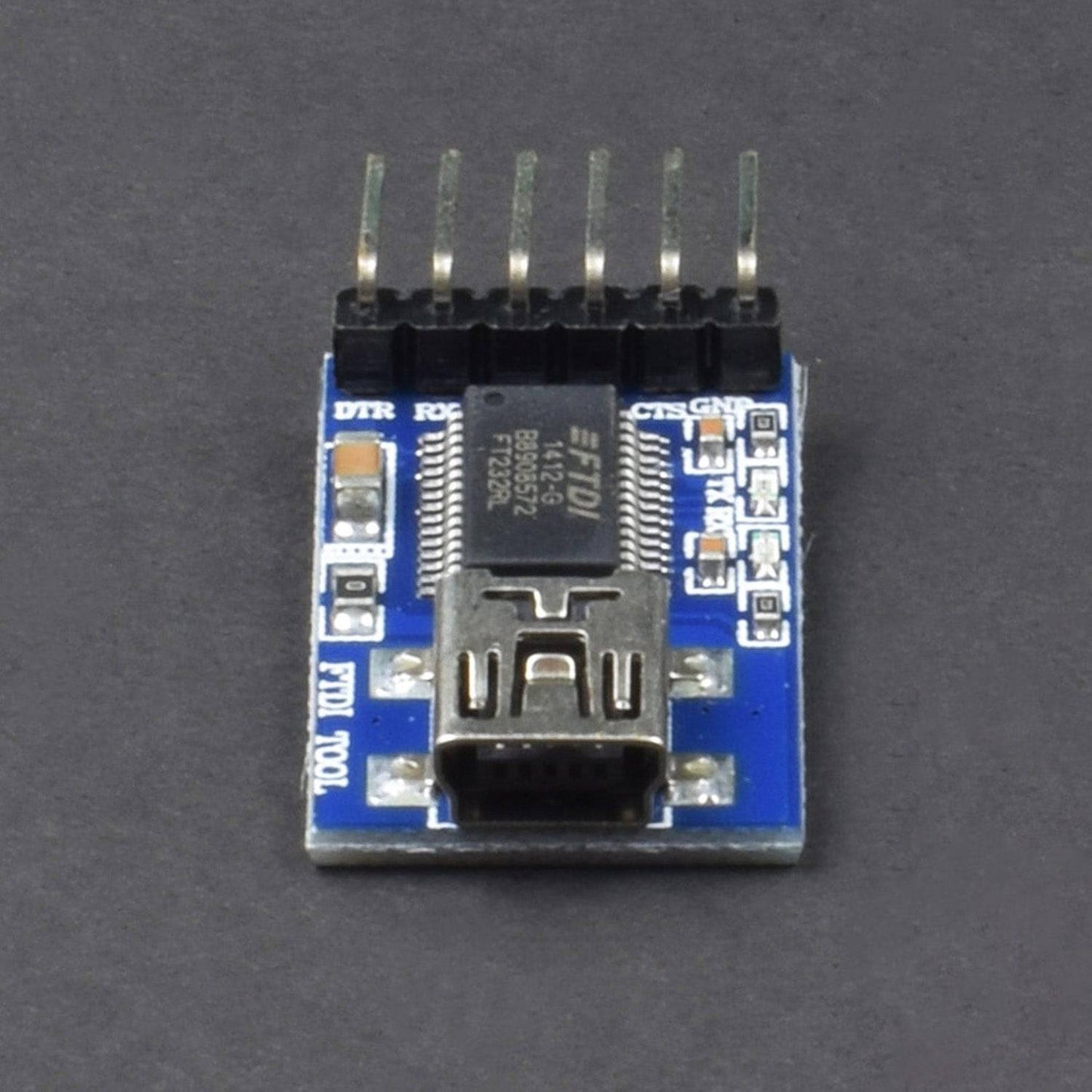

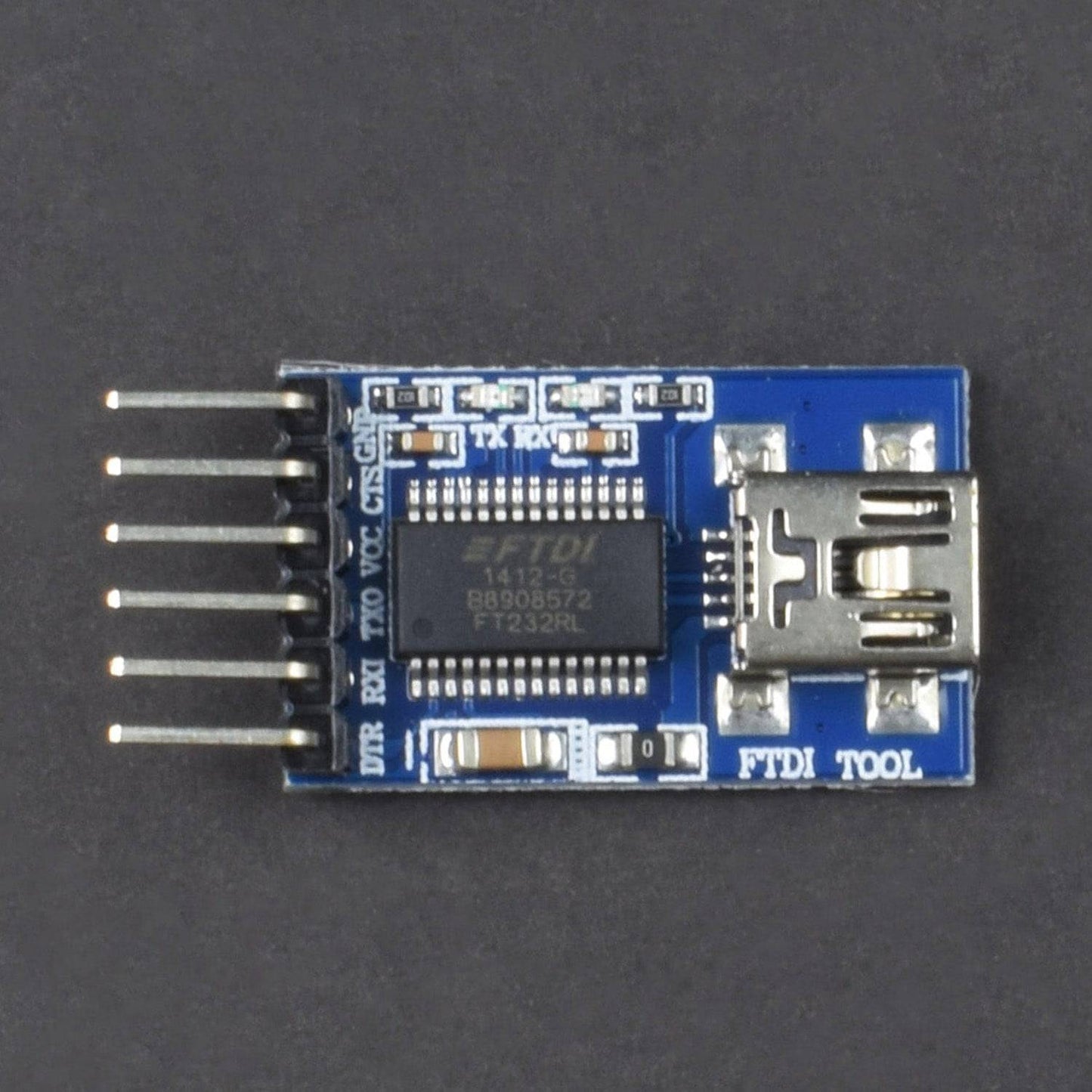

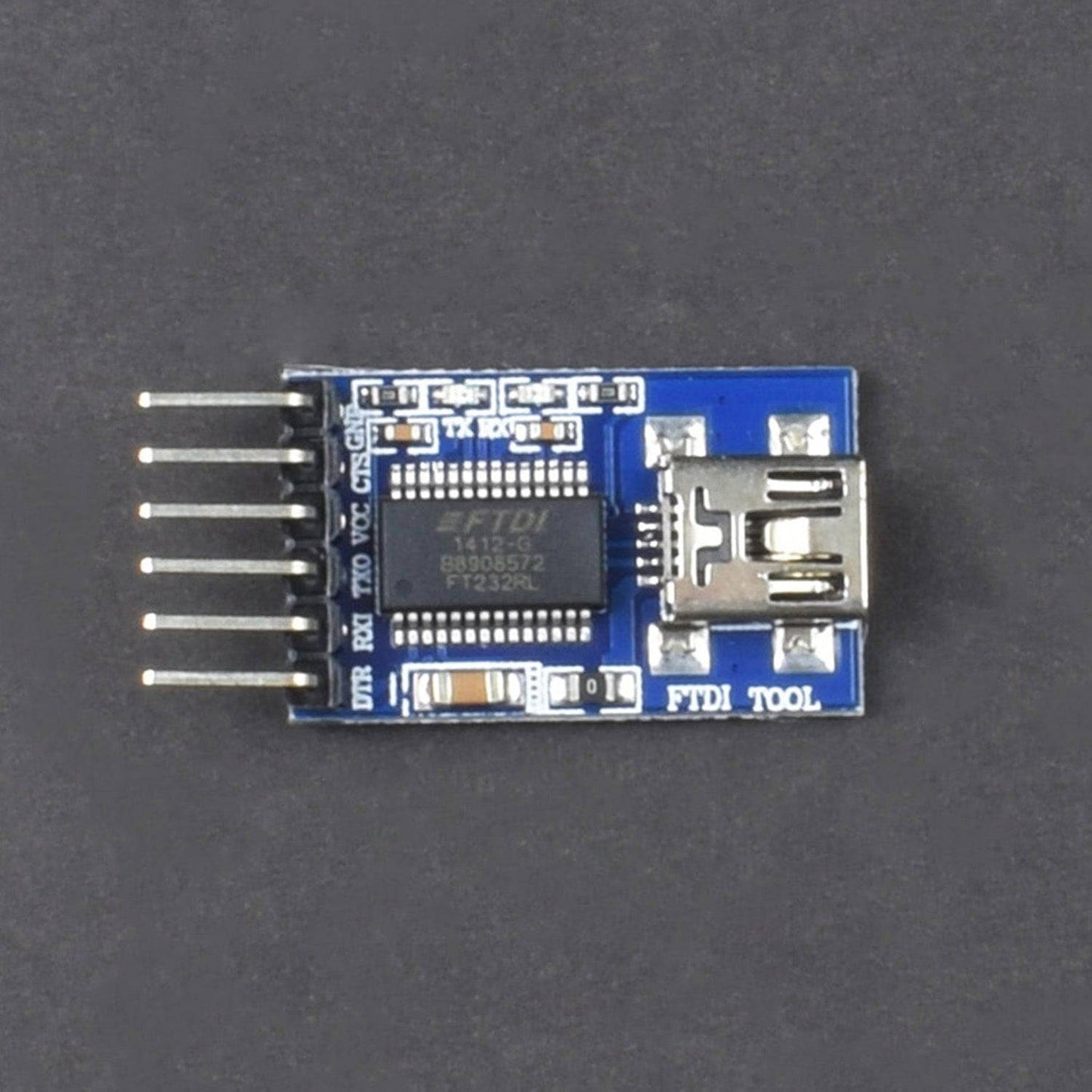

This is the USB to Serial Breakout for the FT232RL, a small board with a built in USB to serial UART interface. This little breakout is built around the FT232RL IC from FTDI, with an internal oscillator, EEPROM, and a 28-pin SSOP package this is a serious little chip. With this version, we’ve corrected a few issues found with the board. These changes include fixes to the VCCIO, a change from the mini-USB to micro-USB connector, and a few footprint modifications.
Specification:
- Chip: FT232RL
- Draw out all signal port of FT232RL chip.
- RXD/TXD transceiver communication indicator.
- USB power supply can choose 5V or 3.3V, set by jumper.
Features:
- Implements full v2.0 USB protocol
- Needs no external crystal
- Internal EEPROM for device ID and Product Description strings
- Royalty-Free Driver support for Windows, Linux, and Mac OSX
Package Included:
1 x GY-232 USB to Serial Ports Converter Cable
