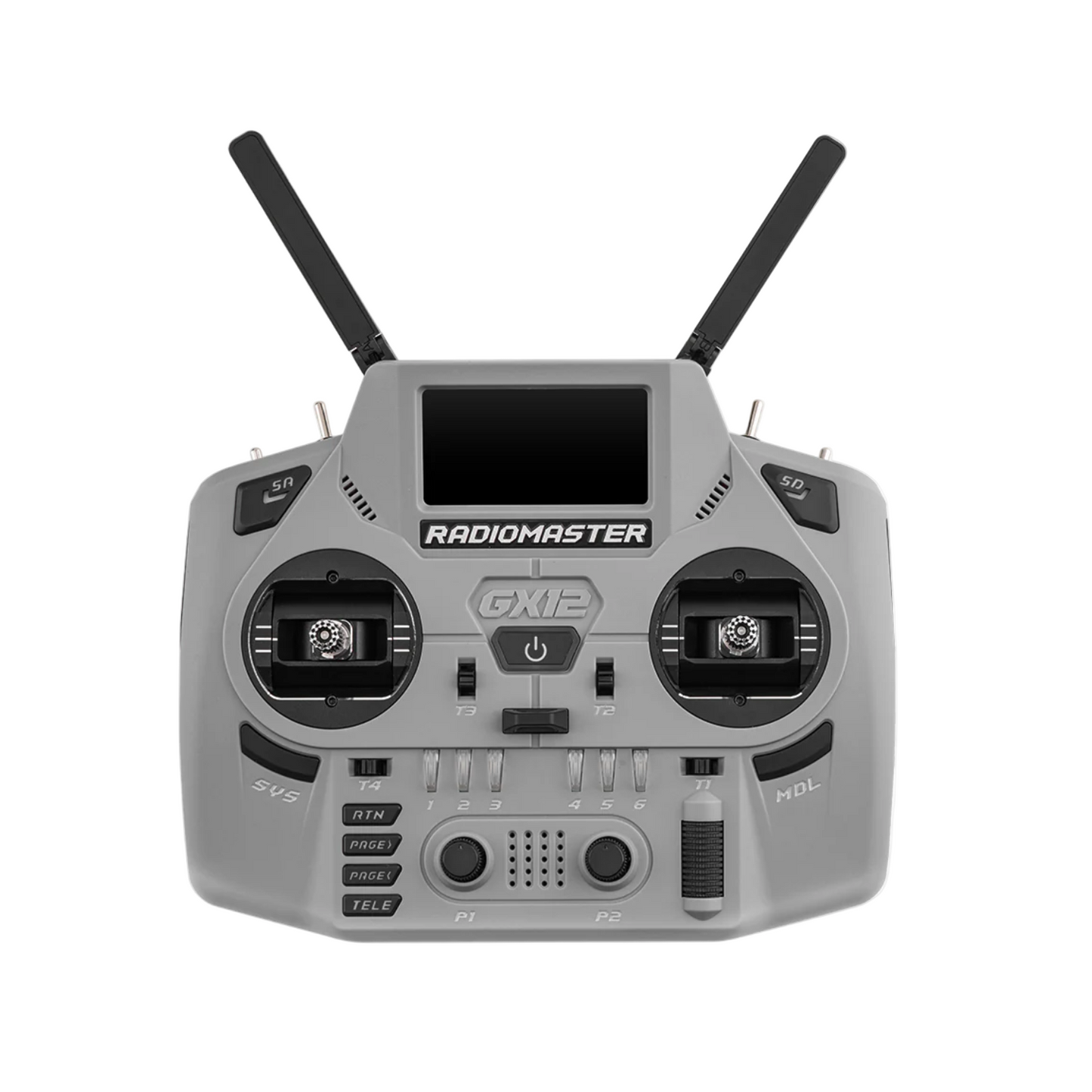

GX12 Crush ELRS Radio Controller 2.4GHz Transmitter With M2 Gimbals High-Precision RC Remote For FPV Drones & Racing (Iron Grey)

Description:

Introducing the GX12 Crush Edition – the same game-changing dual-band performance of the GX12, now with a bold new look.

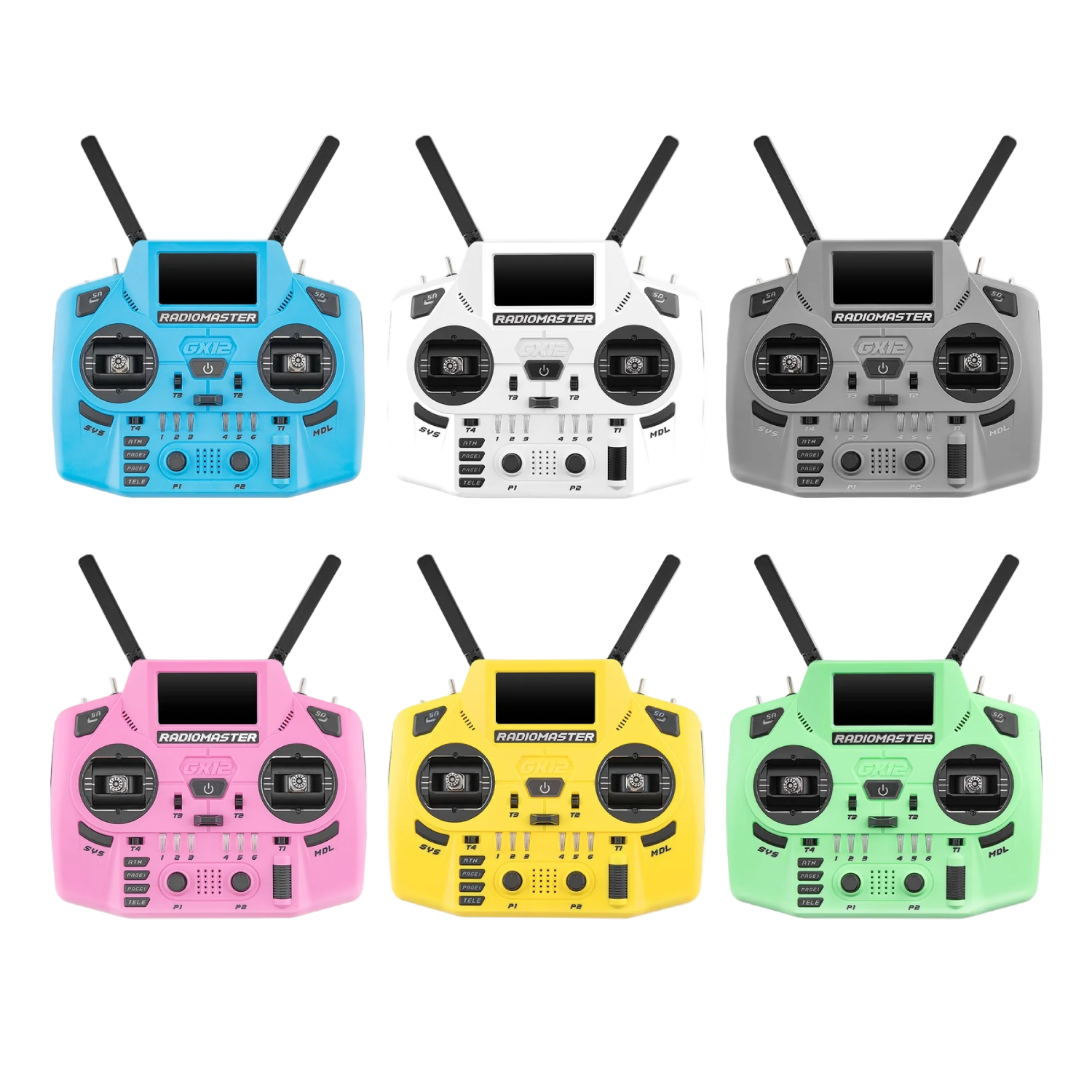

Choose from six stunning colors: Iron Grey, Frost White, Mint Mist, Hot Pink, Iceberg Blue, Lemon Twist Yellow. Whether you want to match your build or just stand out on the flight line, the GX12 Crush lets you fly your way—in full color.

Built on the revolutionary Gemini-XROSSBAND ExpressLRS platform, the GX12 Crush delivers simultaneous dual-band transmission on 2.4GHz and 900MHz for unrivaled signal reliability. With CNC aluminum 1000Hz GX01 gimbals, folding dual-band antennas, modular switch panels, and USB-C charging and data, this radio is made for the most demanding pilots—now with extra flair.

Same performance. Same innovation. Now in colors.

Specifications:

• Frequency: 2.400GHz and Sub-G 900MHz
• Internal RF: ELRS 2.4GHz / Sub-G 900MHz
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Antenna: Dual folding 2.4GHz/ Sub-G 900MHz omni directional
• Voltage Range: 6.6 - 8.4V DC
• Current: 390mA - 1000mA (Depending on Rf output)
• Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
• Channels: Max 16 channels (Receiver dependent)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
• Charging: 2S Smart Balance Charging
• Connectivity: USB-C
• Display: 128*64 Monochrome OLED display
• Gimbal: GX01 1000Hz, 3D Digital CNC Hall Effect Gimbal with folding sticks
• Gimbal Sticks: M3
• External Module: Nano / Crossfire compatible
• Upgrade Method: USB / EdgeTX Companion PC software
• Memory: 512MB Integrated Flash
• Color:  Iron Grey, Frost White, Mint Mist, Hot Pink, Iceberg Blue, Lemon Twist Yellow
• Size: 183*148*78mm
• Weight: 573g

Features:

• Iron Grey, Frost White, Mint Mist, Hot Pink, Iceberg Blue, Lemon Twist Yellow—each designed to spark excitement.
• Experience unmatched range and reliability with ExpressLRS Gemini Xrossband (Gem-X) dual-band transmission capabilities.
• Sleek design with foldable antennas for easy transport and storage. Compatible with both 2.4GHz and Sub-G 900MHz frequencies.
• Precision-engineered aluminum gimbals with 3D Hall sensors for superior control and durability.
• Achieve exceptional precision and responsiveness with high-frequency digital gimbals featuring EdgeTX sync.
• Foldable gimbal sticks for convenient storage and transport.
• Customize your setup with our modular switch panels, allowing for easy switch changes to suit your preferences.
• Enjoy flexibility in antenna installation with SMA port integration.
• Crisp and clear OLED with a high contrast display
• Internal Storage: 512MB of integrated high-speed flash storage—no need for TF cards!
• The GX12 features a single USB-C port that manages smart balance charging, SIM connectivity,  firmware updates, and direct access to the integrated high-speed flash memory.
• Individually programmable 6-position switches offer versatile control options tailored to your unique setup.
• Customizable RGB lights provide visual feedback on switch status.
• With dual 1-watt transmitters, the GX12 boasts serious power, featuring an advanced cooling system to keep your radio cool even on the hottest days.
• Engineered for the Extremes! The GX12 is built to thrive in demanding environments. With thicker plastics and a hydrophobic PCB coating, this controller is designed to withstand hot, cold, dry, and humid conditions.

Package Included:

1 x GX12 Crush ELRS Radio Controller
