Description:
Experience enhanced frequency accuracy in your high-frequency measurements with this network analyzer, which incorporates a precise 0.5ppm TCXO (Temperature Compensated Crystal Oscillator).

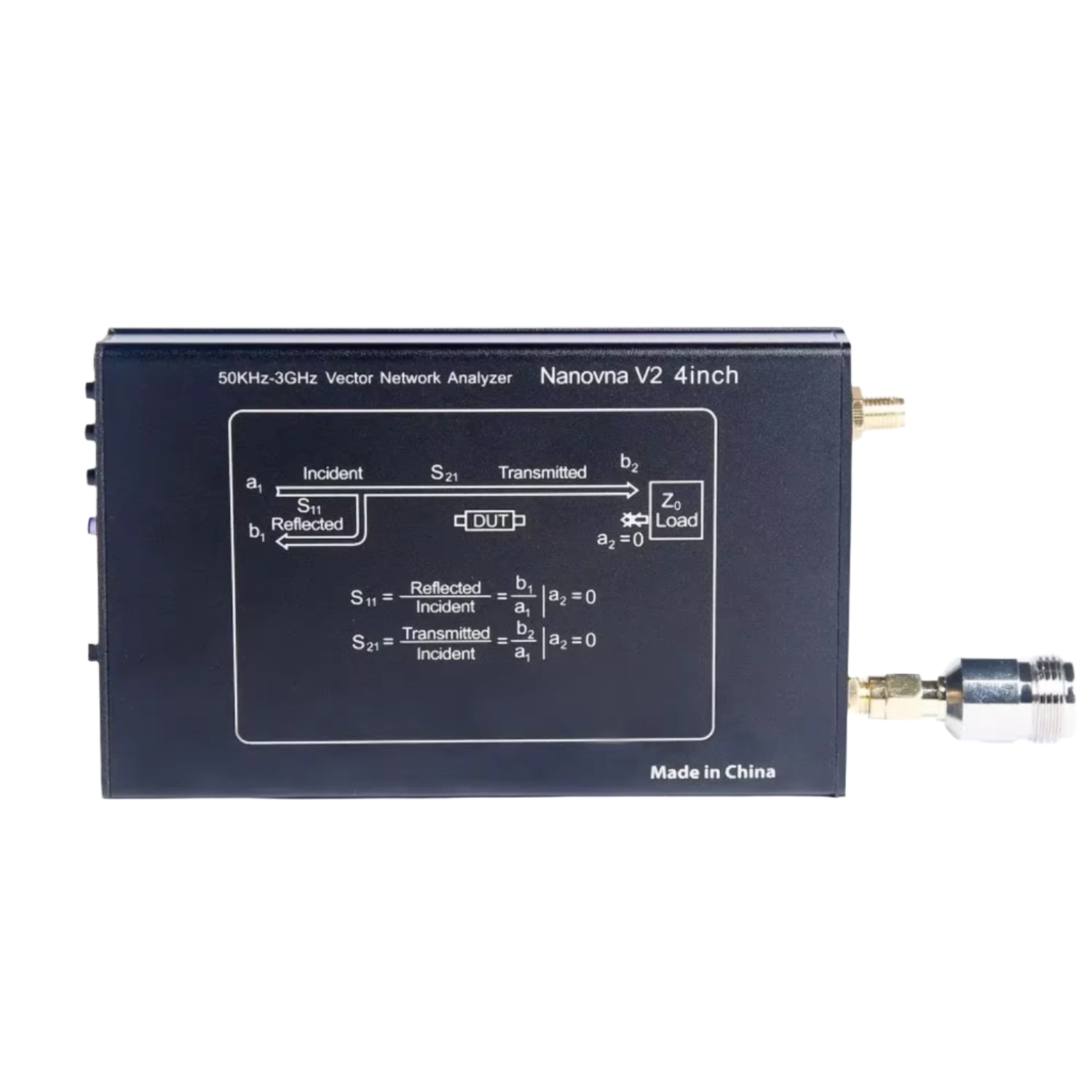

Crafted with meticulous attention to detail, the analyzer is housed within an exquisite aluminum alloy shielded shell. This robust design not only protects the delicate internal circuitry but also ensures convenient operation with its well-defined structure and user-friendly interface.
Achieve exceptional calibration results with the included high-performance calibration kit, guaranteeing an impressive calibration SWR of less than 1.03 at frequencies up to 3GHz. Enjoy superior signal integrity with two custom-made high-performance SS405s. SMA RF cables, ensuring optimal amplitude and phase stability throughout your measurements.
Benefit from clear and informative visual feedback with the updated crystal two-color LED indicator. Experience seamless connectivity to your computer with the latest Type-C data cable, delivering enhanced performance and a more stable connection.
Designed for portability, the network analyzer comes packaged in a high-grade plastic outer casing, making it easy to transport and store securely
Specifications:
- Model: HDMB V2 GS-400 Pro iron case
- Frequency Range: 50kHz-3GHz
- Frequency Tolerance: Less than 2ppm
- Frequency Stability: Less than 0.5ppm
- System Dynamic Range (calibration): 70dB(up to 1.5GHz), 60dB (up to 3GHz)
- S11 Noise Floor (calibration): -50dB(up to 1.5GHz), -40dB(up to 3GHz)
- Scanning Speed: 100 points/second

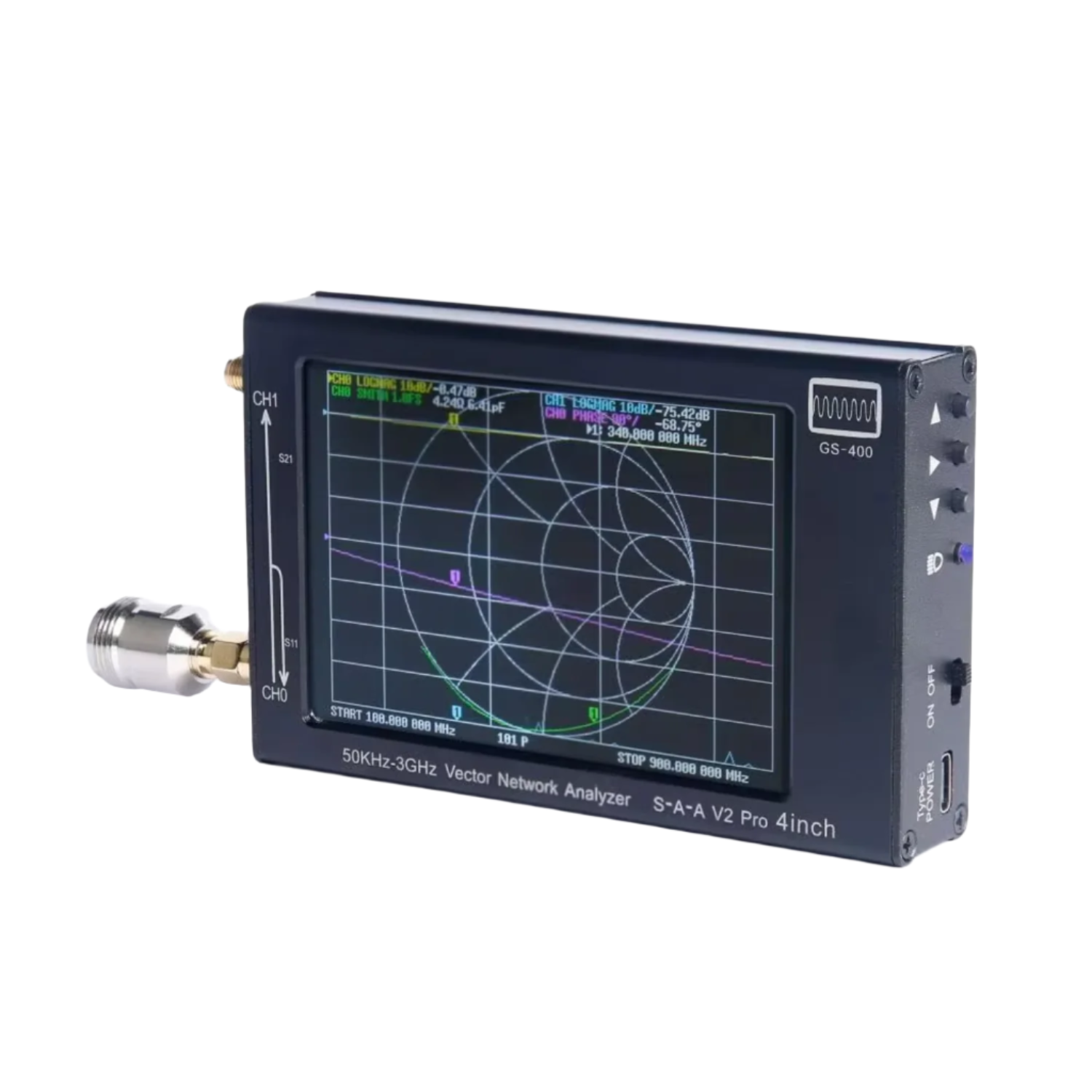

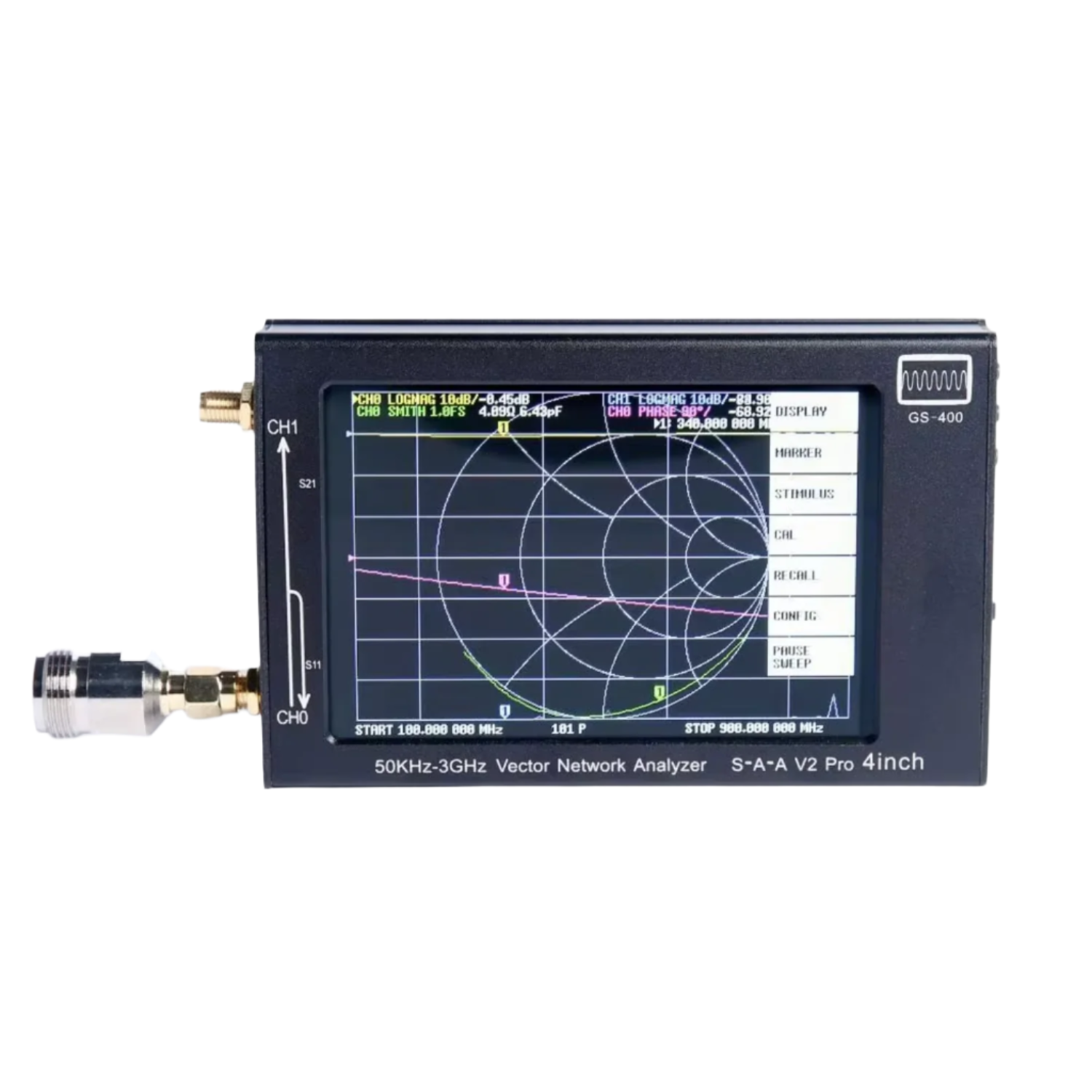

- Display: About 4.0inch LCD TFT, (320RGBx480 Resolution and 65Kcolor)
- USB Interface: USB interface: USB Type-C communication mode: CDC (serial)
- Power Supply: USB, maximum charging current 1A
- Battery: 2000mAh lithium-ion (Passed air and sea certification）
- Battery Connector: JST-XH 2.0mmMaximum sweep points (on device): 201
- Maximum Sweep Points (USB): 1024
- Port 2 Return Loss (1.5GHz): 20dB typ
- Port 2 Return Loss (3GHz): 13dB MINItem size: 142 x 75x 23mm /(5.1 x2.9x0.9in)
Features:
- Use 0.5ppm TCXO: To ensure the frequency accuracy of high-frequency measurement using 0.5ppm TCXO network analyzer.
- It uses the aluminum alloy shielded shell, with a reasonable structure and convenient operation, which can fully protect the internal precision circuit and has a more reasonable definition of the external interface.
- High-performance calibration kit: The network analyzer is equipped with a high-performance calibration kit to ensure that the calibration SWR is less than 1.03 when it reaches 3GHz.
- Fine amplitude and phase stability: 2 customized high-performance SS405 SMA RF cables can provide fine amplitude and phase stability.

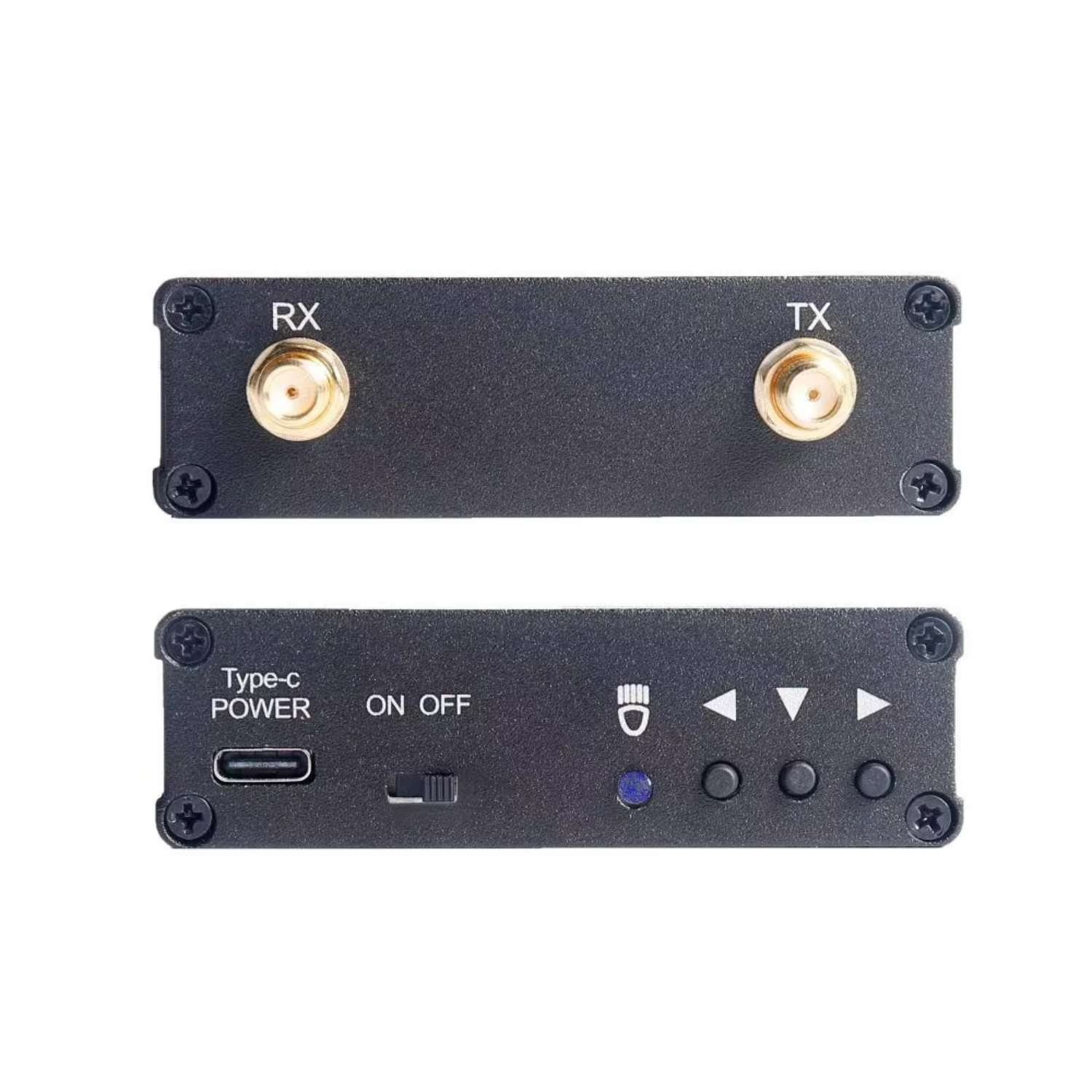

- With a crystal two-color LED indicator, and the latest Type-C data cable used, the performance of connecting to the computer is better.
- It is small in size and portable for you to carry and store, so you can take it with you anywhere you want to use it.

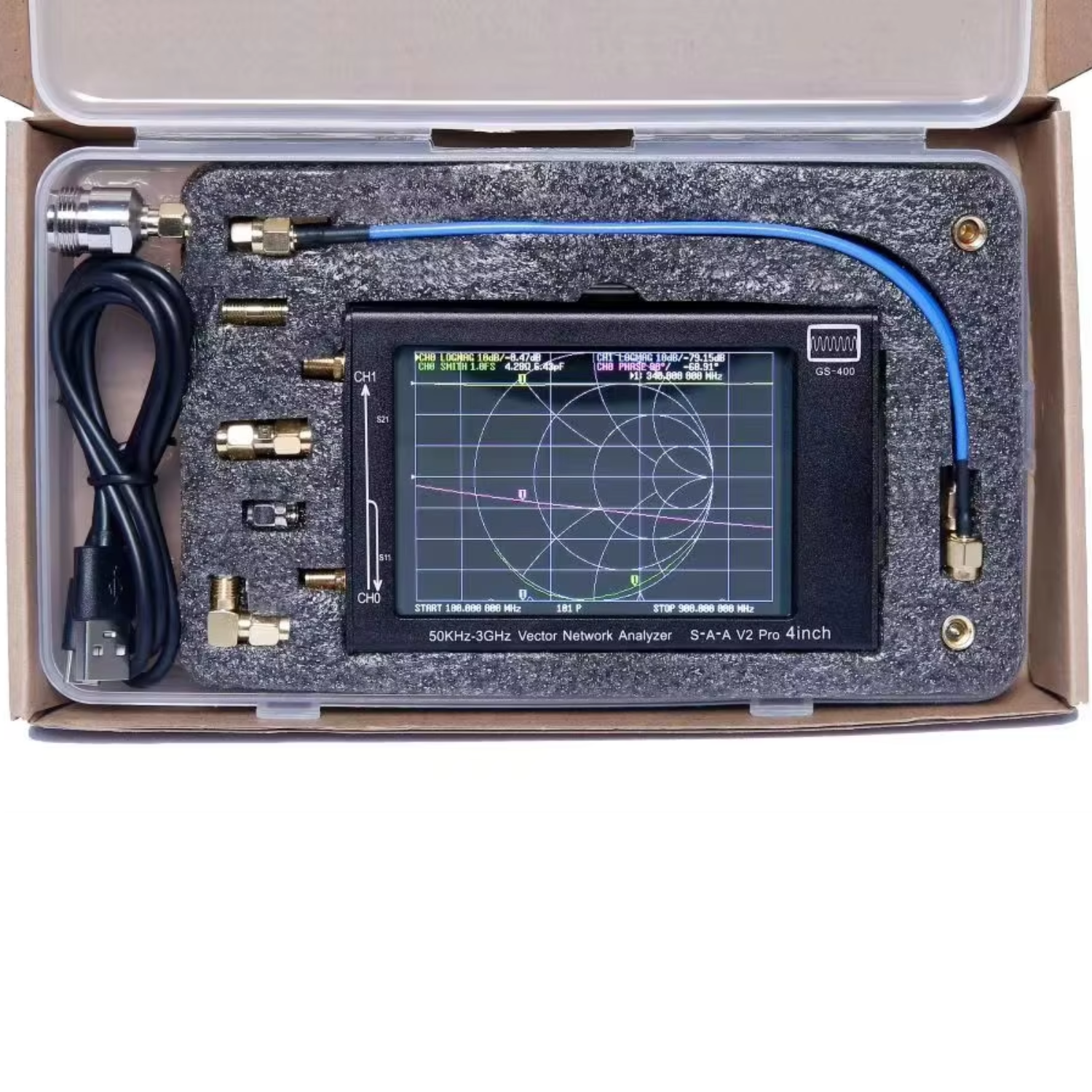

Package Included:
- 1 x Vector Network Analyzer
- 1 x Type-C USB Data Cable
- 2 x SMA Cable and A Barrel Connector
- 1 x SMA Simple Calibration Set Open
- 1 x SMA Simple Calibration Set Short
- 1 x SMA Simple Calibration Kit Load
- 1 x SMA Female to Female Connector
- 1 x SMAN/SMA-KJ
- 1 x RF demo kit board
