- Model: SN04-P
- Operating Voltage(V): 10 ~30
- Current Consumption Max: 5 mA
- Detection distance(mm): 5 mm.
- Cable Length: 150 cm.
- Response Frequency: 500Hz Max.
- Protection class: IP 67
Description :
This SN04-P PNP DC10-30V Distance Detector Proximity Sensor Switch Module will detect the presence of a metallic object within 4mm of the surface of the sensor. The detection distance may vary slightly depending on the shape, size, and type of metal the object is made of. It can detect through thin, non-metallic materials and has an LED indicator that turns on when the device is powered and increases in brightness when an object is detected.
Wire Connection:
- Brown wire: 10 ~ 30 VDC (+Ve).
- Blue wire: 0 V (GND).
- Black wire: signal.
Feature:
- Red LED checks the state of the proximity sensor
- High repeated positioning accuracy
- High switching frequency
- Wide voltage range
- Antivibration, dust, water, and oil prevention
- Reverse power protection, short circuit protection, directly connecting with PLC
- It can replace small switches and limit switches.
Specification:
- Model: SN04-P
- Operating Voltage(V): 10 ~30
- Current Consumption Max: 5 mA
- Detection distance(mm): 5 mm.
- Cable Length: 150 cm.
- Response Frequency: 500Hz Max.
- Protection class: IP 67
Package Included:

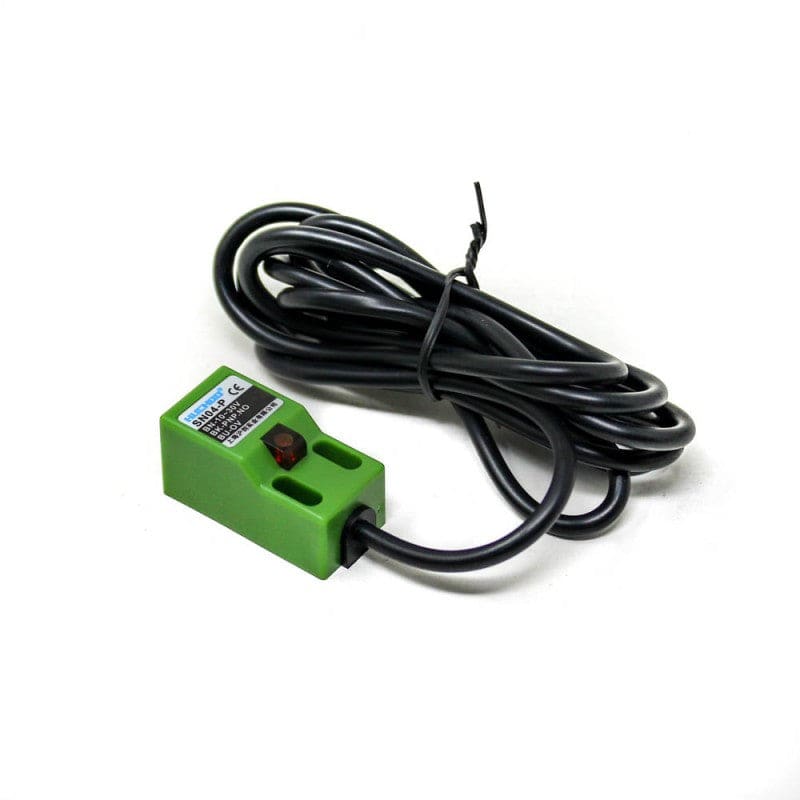

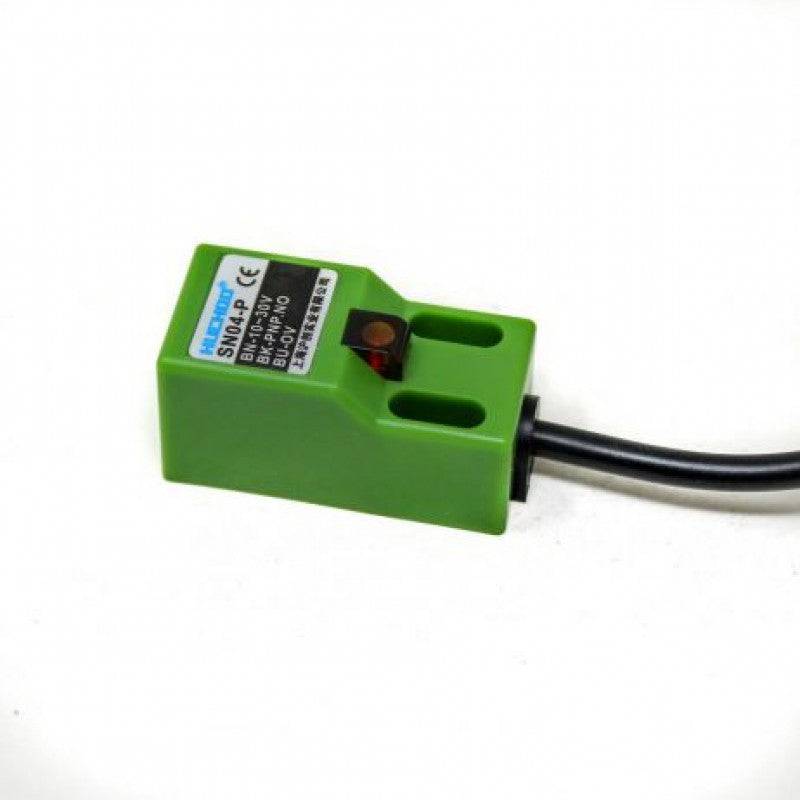

1 x Green SN04-P PNP DC10-30V Inductive Proximity Sensor Switch
