Description:

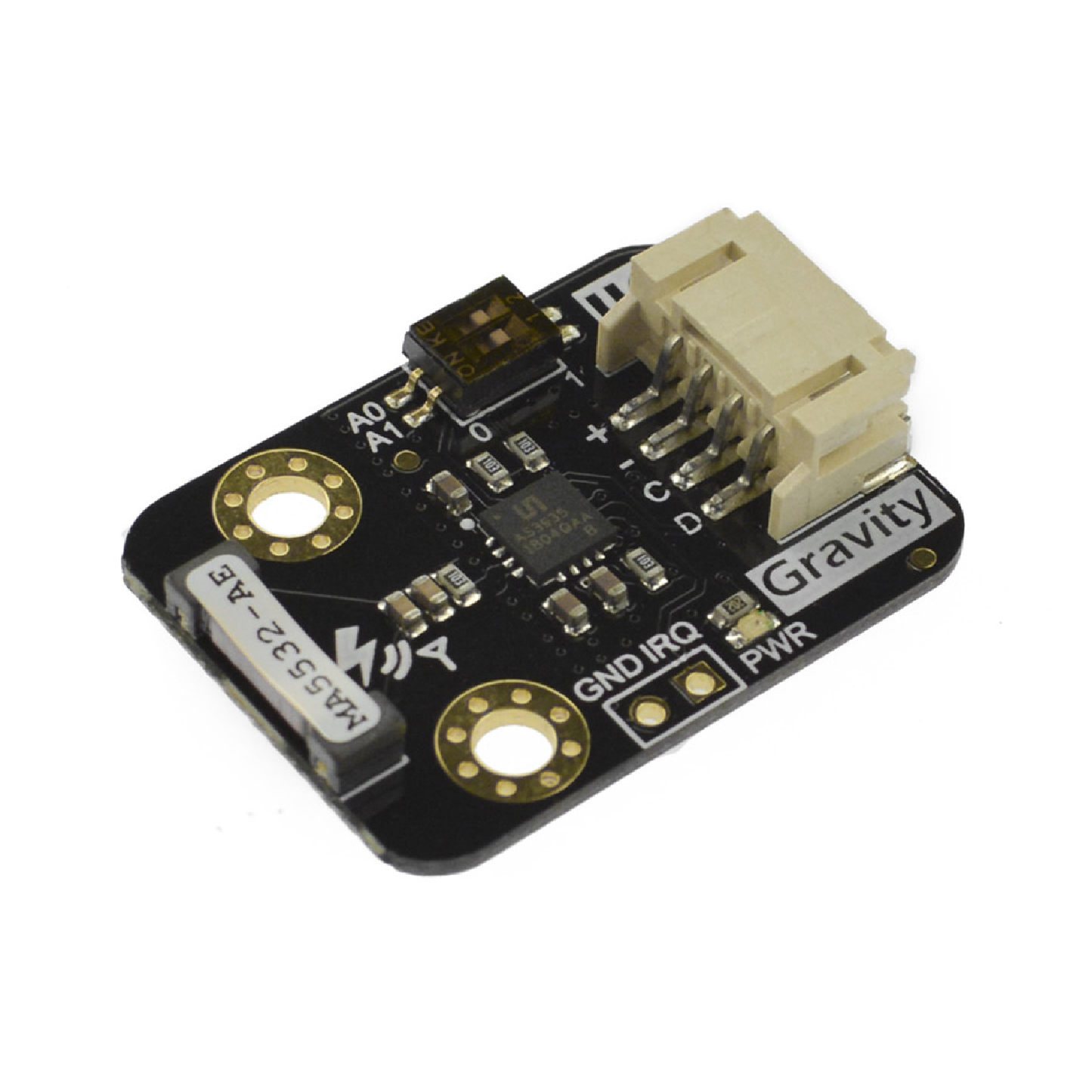

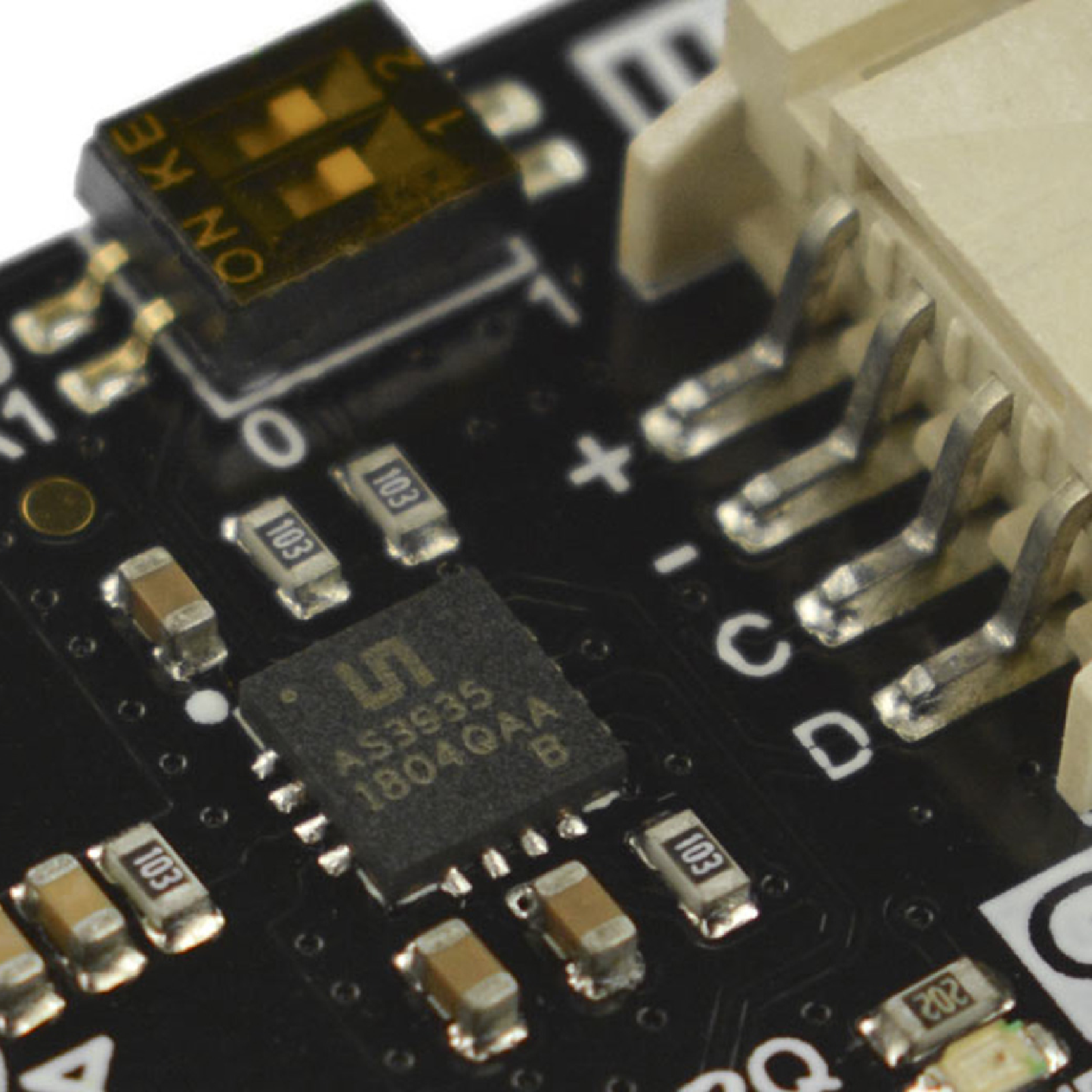

Gravity: Lightning Sensor employs AMS innovative AS3935 Franklin lightning sensor IC and Coilcraft MA5532-AE dedicated antenna to detect lightning distance, intensity, and frequency within a radius of 40km, both indoors and outdoors.
The embedded man-made disturber rejection algorithm can effectively avoid the electrical interference generated by various household appliances. In addition to allowing general weather enthusiasts to measure local thunderstorm data simply and efficiently, thanks to its compact size and wide detection range, it can also be embedded in various smart wearable devices for outdoor climbers or people who work at heights.
This provides early warning of thunderstorms that people can perceive so that people can take precautions a step ahead. The sensor can also be embedded in the indoor protection device inside lightning-sensitive equipment and automatically trigger these devices to switch to the backup power to isolate the power grid when lightning strikes. At the moment of lightning, the interrupt pin IRQ generates a pulse. This can be used to trigger the shutter to open, helping photographers to accurately capture the exciting moment of lightning.
Specifications:
- Input Voltage 3.3V~5.5V
- Maximum Detection Range: 40 km
- Distance Detection Resolution: 1~4 km
- Intensity Detection Resolution: 21 bits, i.e. 0 ~16777201
- I2C Address: Three options 0x03, 0x02, 0x01
- Interface: Gravity I2C (logic level: 0-VCC)

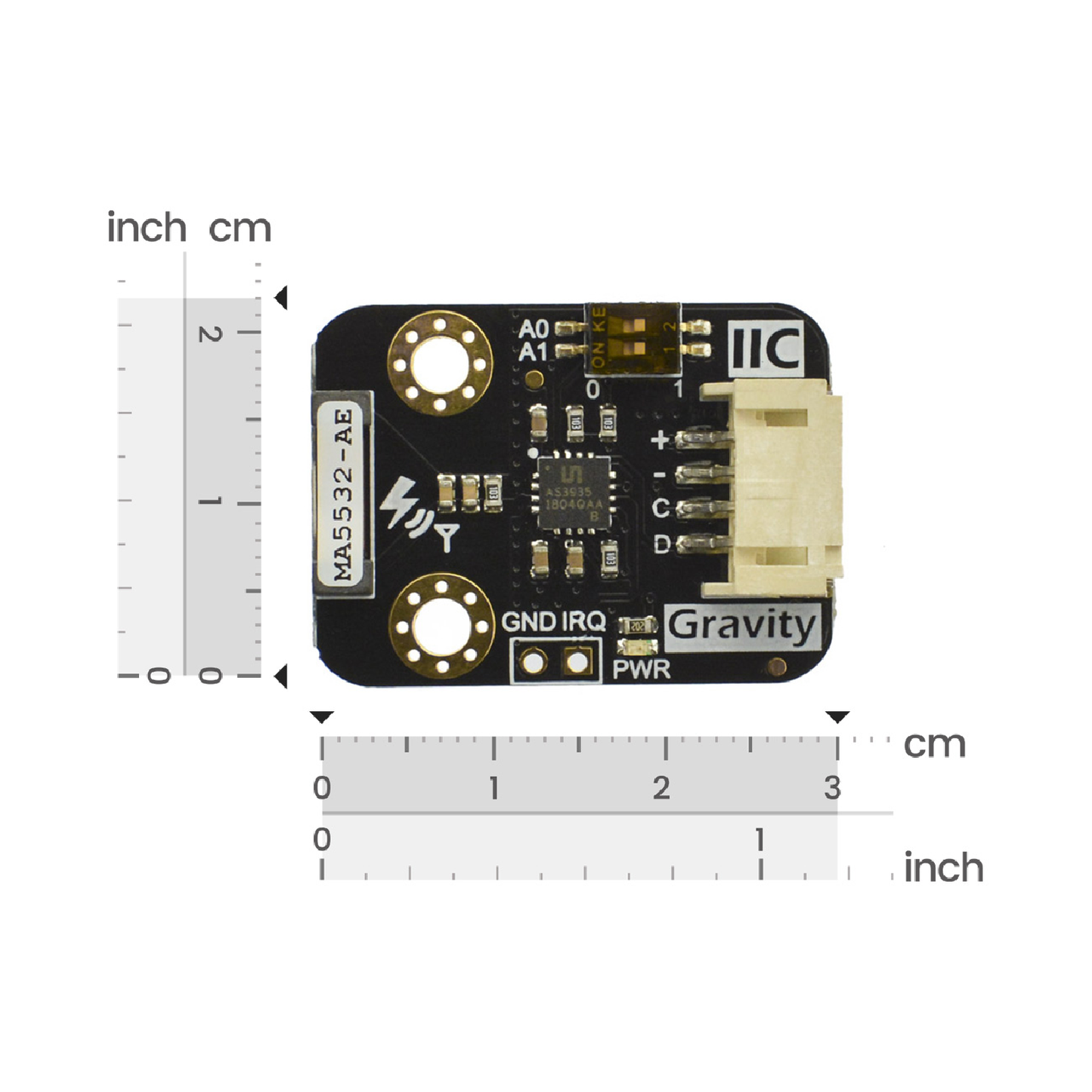

- Dimension: 30.0mm*22.0mm/1.18*0.87 in
Features:
- Lightning detection within 40km in 15 steps
- Lighting intensity detection
- Used both indoors and outdoors
- Embedded man-made disturber rejection algorithm
Applications:
- Consumer Weather Station (thunderstorm measurement)
- Wearable Devices (outdoor thunderstorm early warning)
- Lightning Photography
Useful Links:

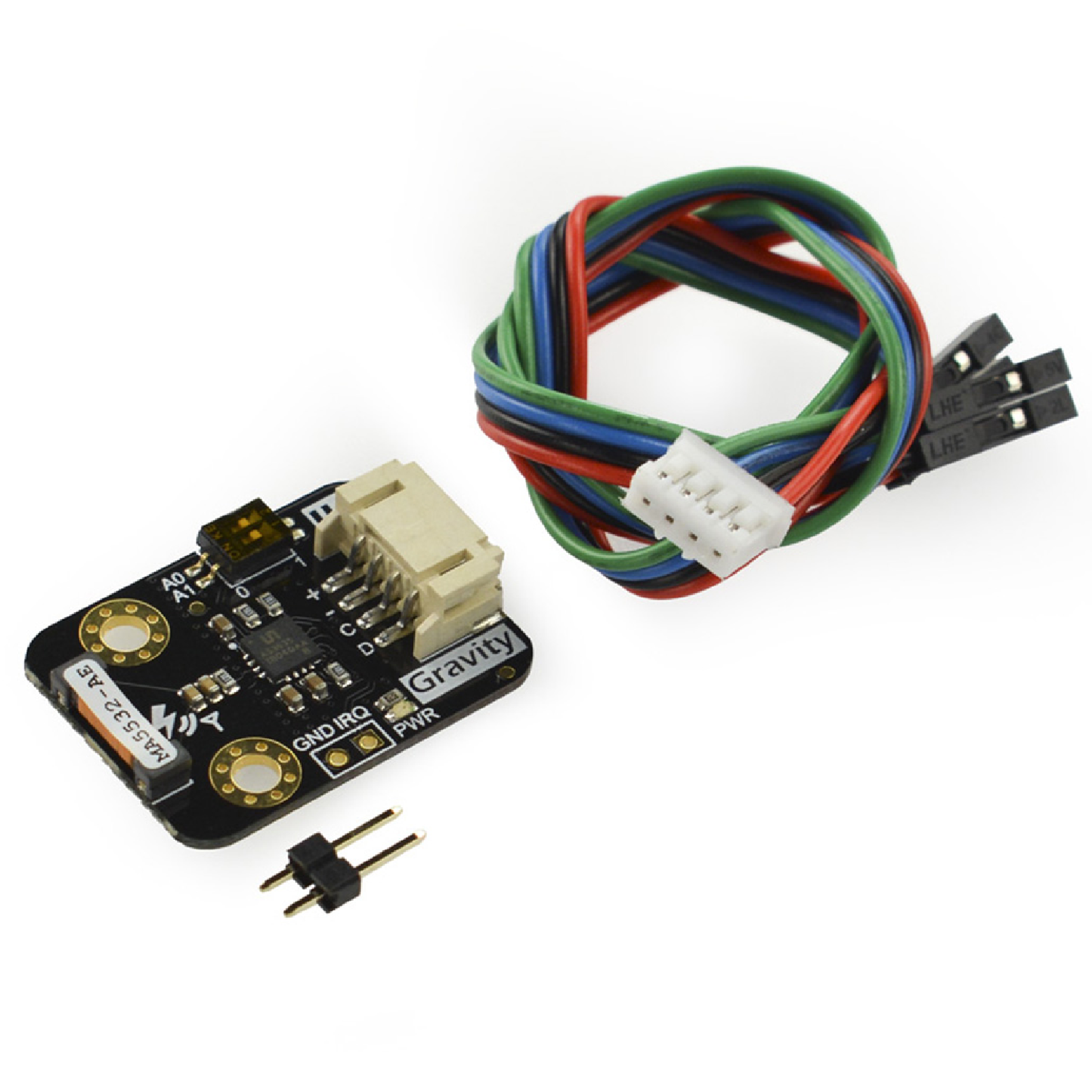

Package Included:
- 1 x Gravity: Lightning Sensor
- 1 x XH2.54-2P Black Header
- 1 x Gravity-4P I2C/ UART Sensor Wire
