Description:

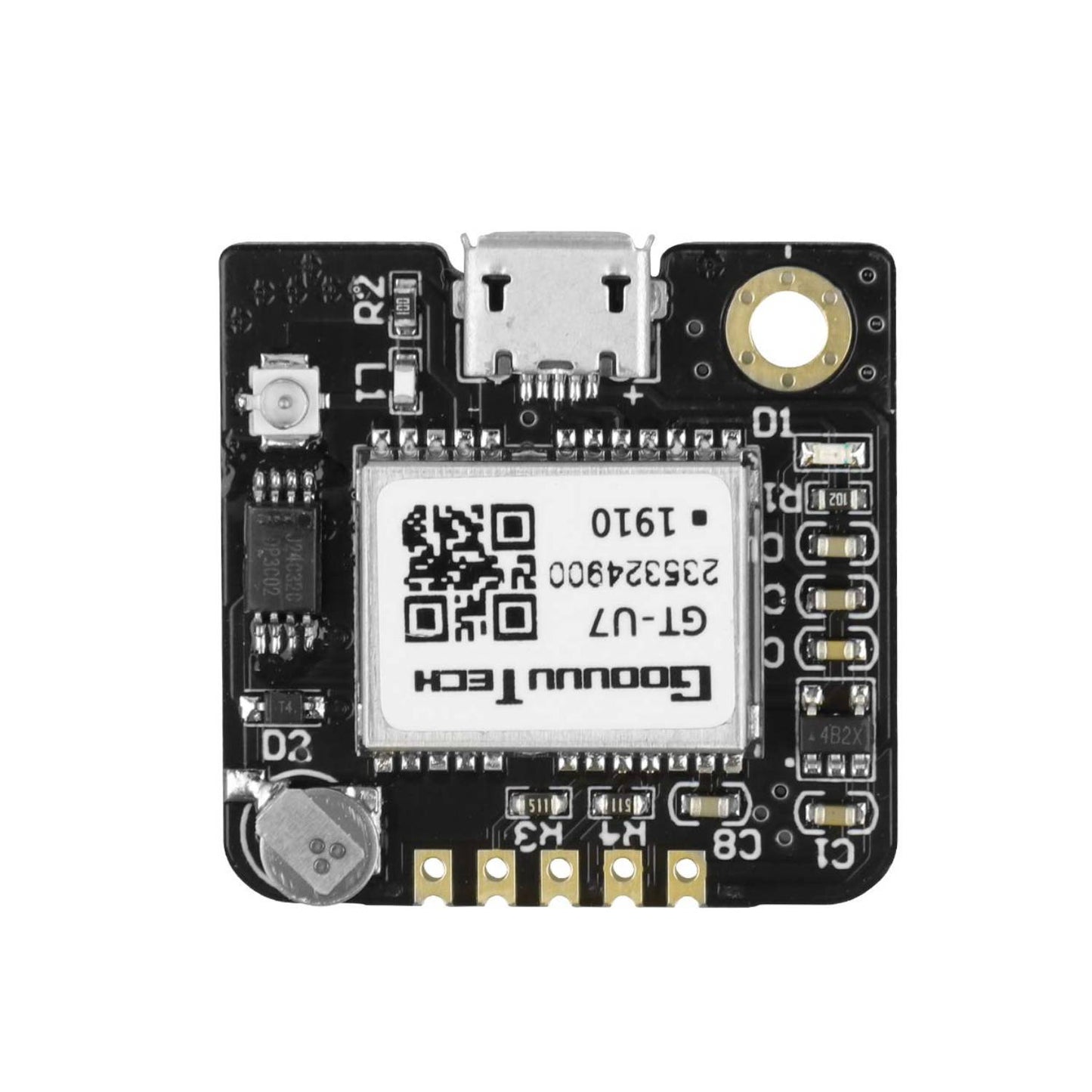

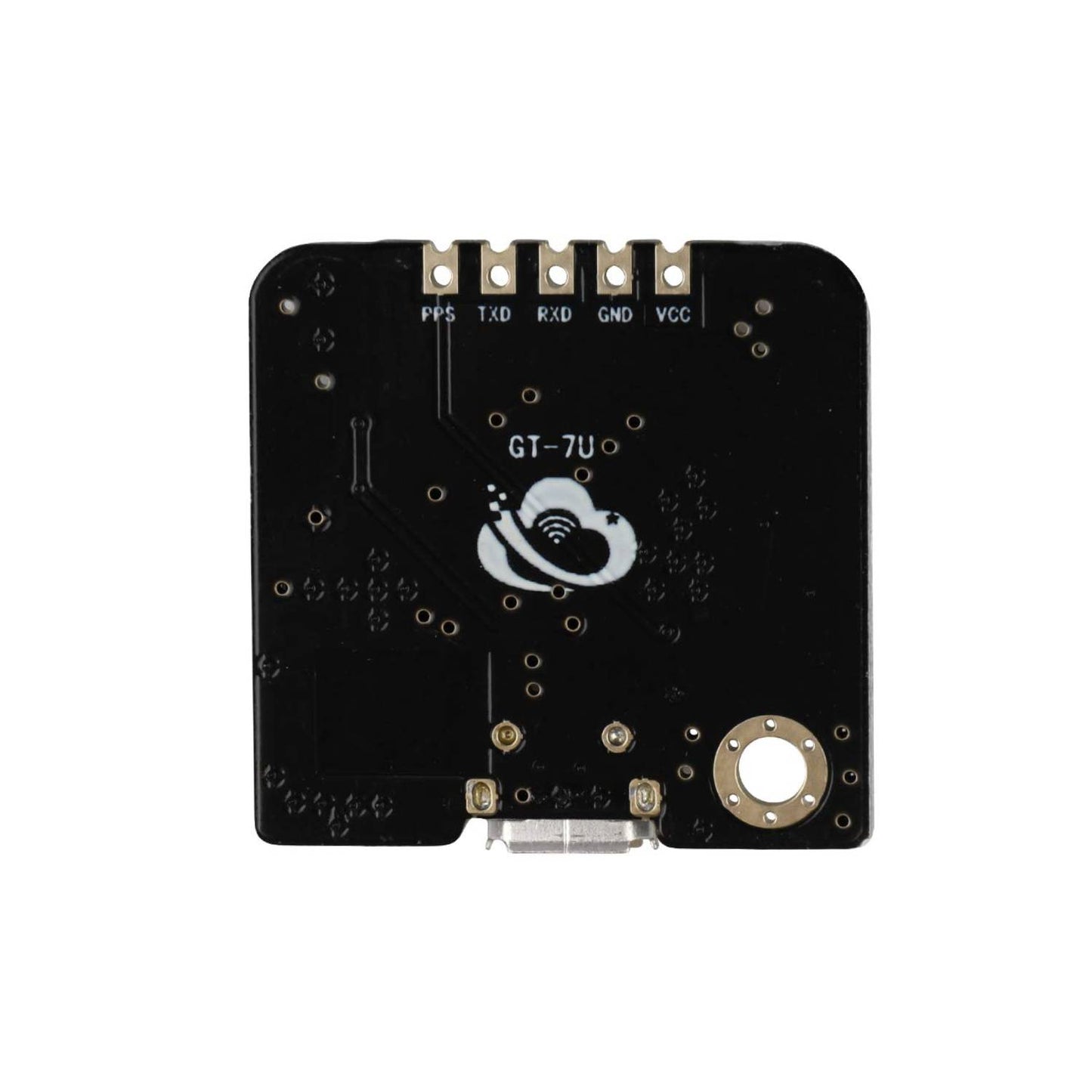

GT-U7 main module GPS module using the original 7th generation chip, Software is compatible with NEO-6M. With a USB interface, you can directly use the phone data cable on the computer point of view positioning effect. USB is directly connected to the computer, That is, with the host computer-owned serial port function, no need for the external serial module, send IPX interface active antenna!
Specifications:
- Operating voltage: 3.6V -5V (or direct USB power supply)
- Operating baud rate: 9600 (can be modified)
- Onboard rechargeable button battery
- Onboard E2PROM can save parameter data
- NEMA output format is compatible with NEO-6M
Features:
- GT-U7 module, with high sensitivity, and low power consumption.
- Miniaturization, its extremely high tracking sensitivity greatly expanded its positioning of the coverage.
- In the ordinary GPS receiver module that can not locate the place, such as a narrow urban sky, or dense jungle environment, GT-U7 can be high-precision positioning.
- Module with high sensitivity, small static drift, low power, and lightweight volume.
Application:
- Vehicle-mounted
- Handheld devices such as PDAs
- Vehicle monitoring
- Mobile phones, camcorders, and other mobile positioning systems
- Sharing bike
- Sharing mobile power
Package Included:

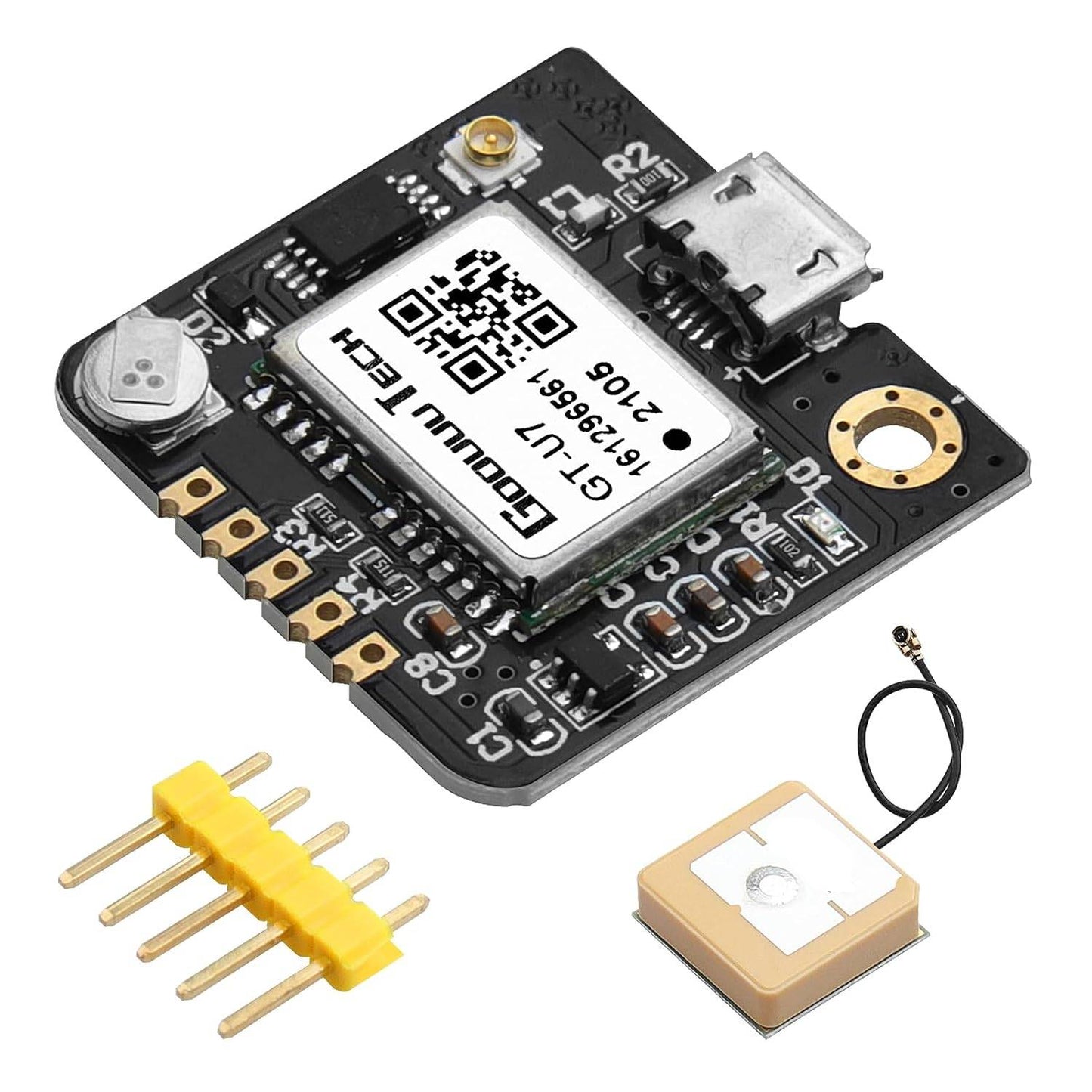

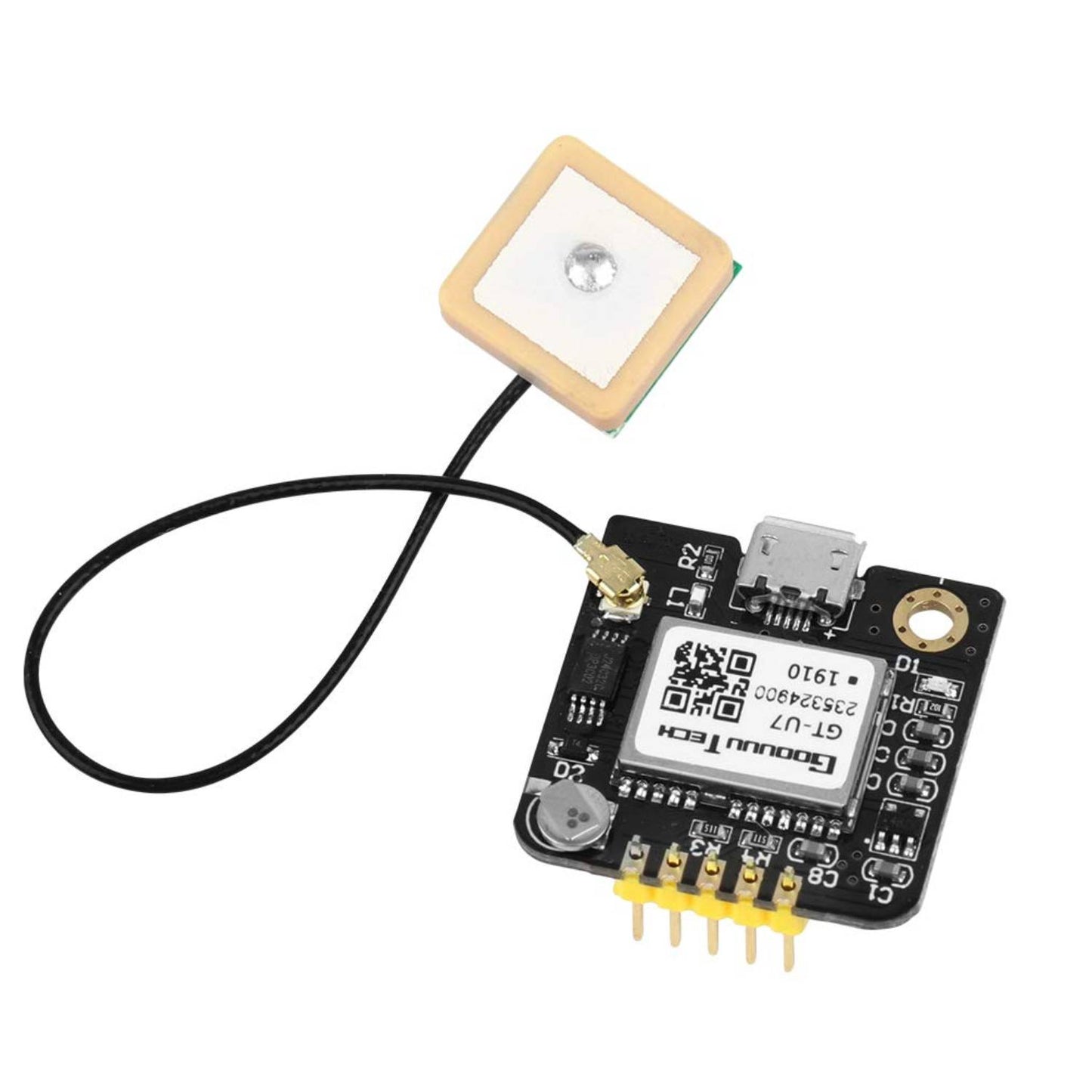

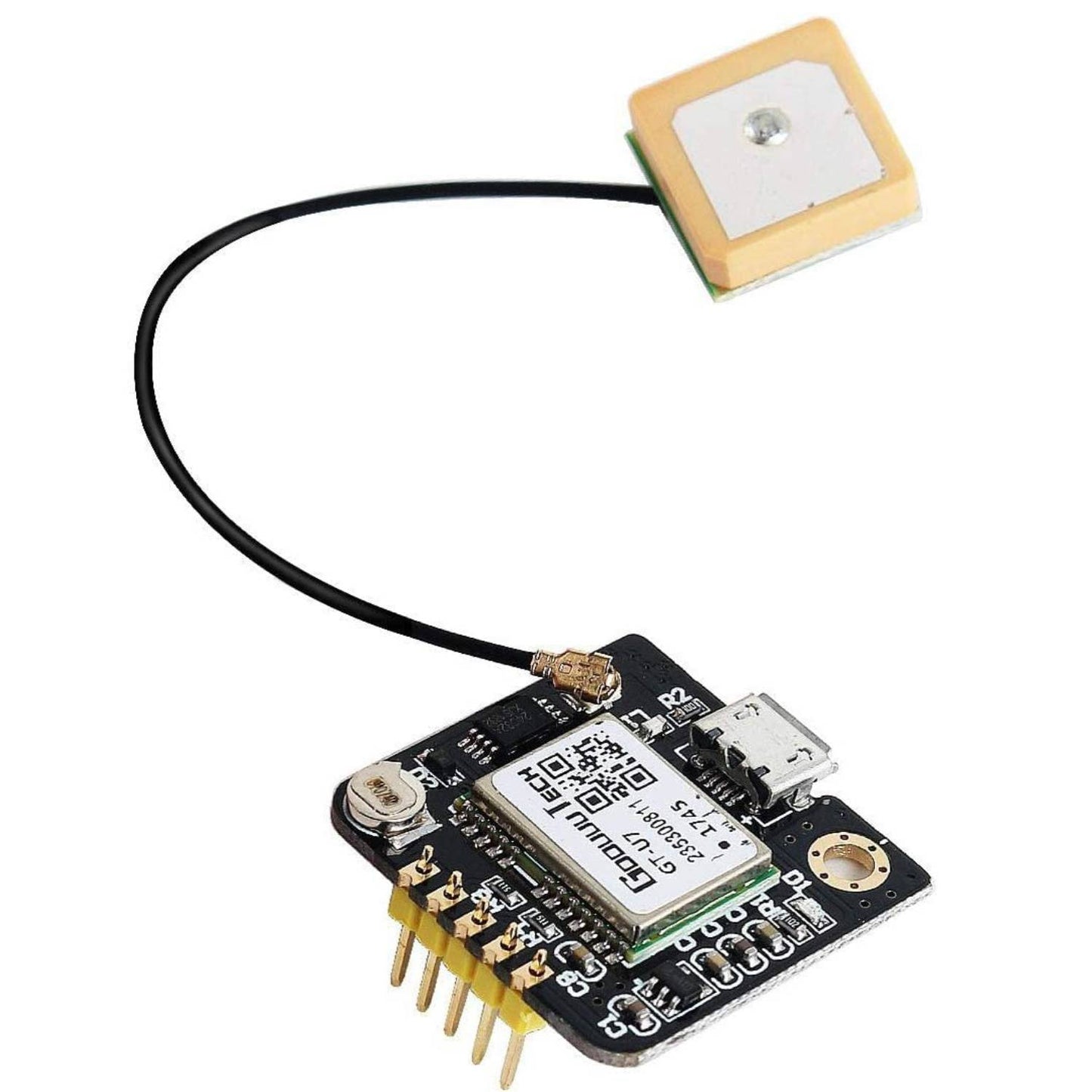

1 x GT-U7 GPS Module
1x IPX antenna
