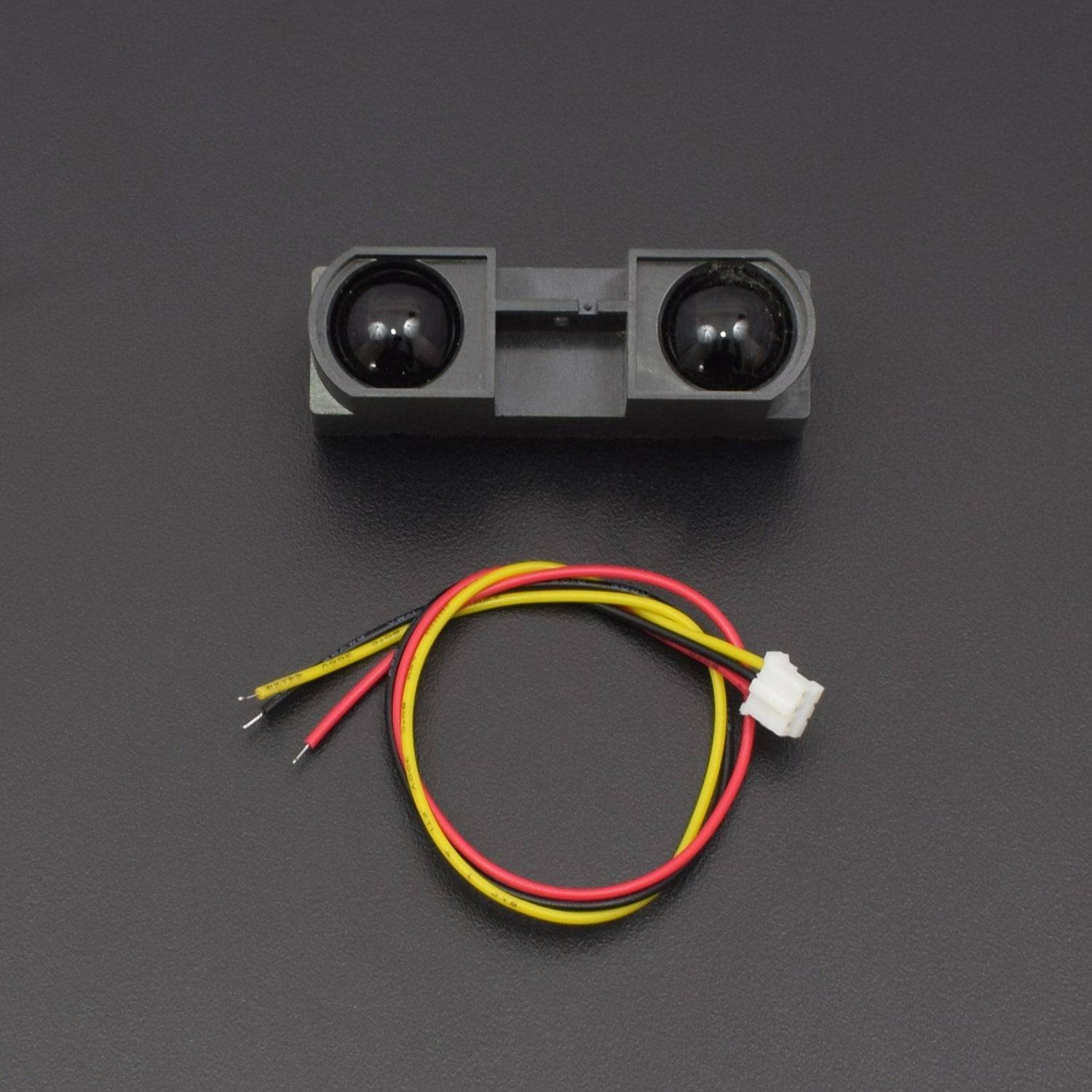

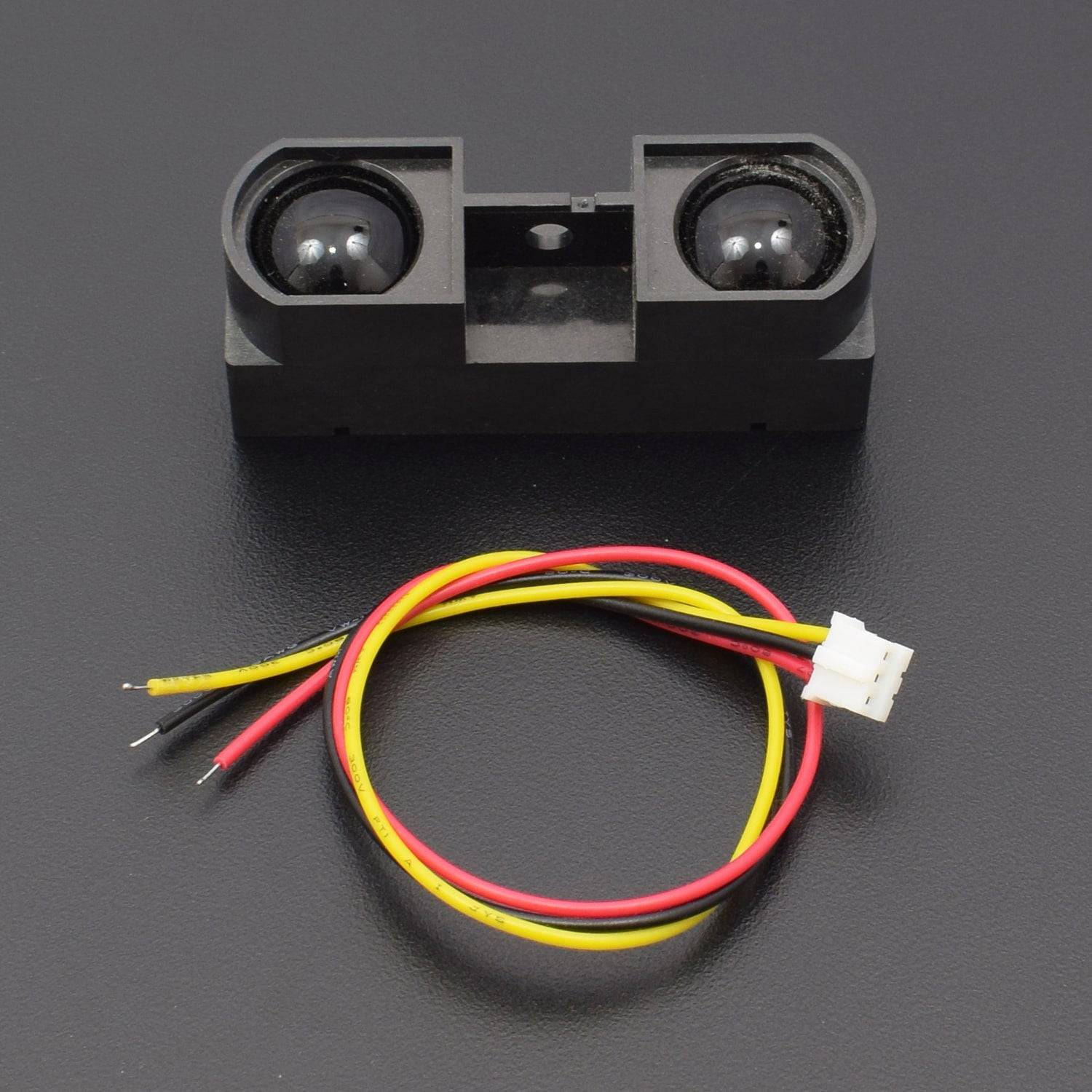

GP2Y0A710K0F 100-500cm IR Distance Sensor + Cable - AB067

GP2Y0A710K0F 100-500cm IR Distance Sensor + Cable - AB067

SKU:AB067

Low stock: 10 left

Regular price Rs. 1,100.00
Regular price Sale price Rs. 1,100.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

GP2Y0A710K0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IRED (infrared emitting diode) and signal processing circuit. The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method. This device outputs the voltage corresponding to the detection distance. So this sensor can also be used as a proximity sensor.

This extra-long-range SHARP Distance Measuring Sensor unit 100 to 550 cm – GP2Y0A710K0F with cable bounces IR off objects to determine how far away they are. It returns an analog voltage that can be used to determine how close the nearest object is. the long-range makes them a good alternative to sonar sensors.

These sensors tend to be a little noisy, we suggest soldering/connecting the 220uF capacitor to the same place you connect the wires, to provide some filtering on the power supply. Connect the + pin of the capacitor to the Vcc wire connection, and the – pin of the capacitor to the GND wire connection.

Specifications:

  • Model: GP2Y0A02YK0F (100to 550 cm)
  • Operating Voltage (VDC): 4.5 ~ 5.5
  • Average Current Consumption (mA): 33
  • Sampling Rate: 21-26Hz
  • Distance Measuring Range (CM): 100 ~ 550
  • Output Type: Analog Voltage
  • Supply voltage:5V
  • Current: 33-50mA

Features:

  • Long-distance type (bigger size).
  • Analog output.
  • Good Alternative to Sonar Sensors.
  • This item comes with a JST connector and wires

Applications:

  • 1. Projector (for auto focus)
  • 2. Robot cleaner
  • 3. Auto-switch for illumination, etc.
  • 4. Human body detector
  • 5. Amusement equipment (Robot, Arcade game machine)

Package Included:

1 x GP2Y0A710K0F 100-500cm IR Distance Sensor + Cable
