Description:

GM328 Transistor Tester Diode Capacitance Meter is the common emitter current amplification factor of NPN and PNP transistor, base-emitter threshold voltage, and off-collector-emitter leakage current. Automatically detect NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, and automatic identification of transistor pinout.

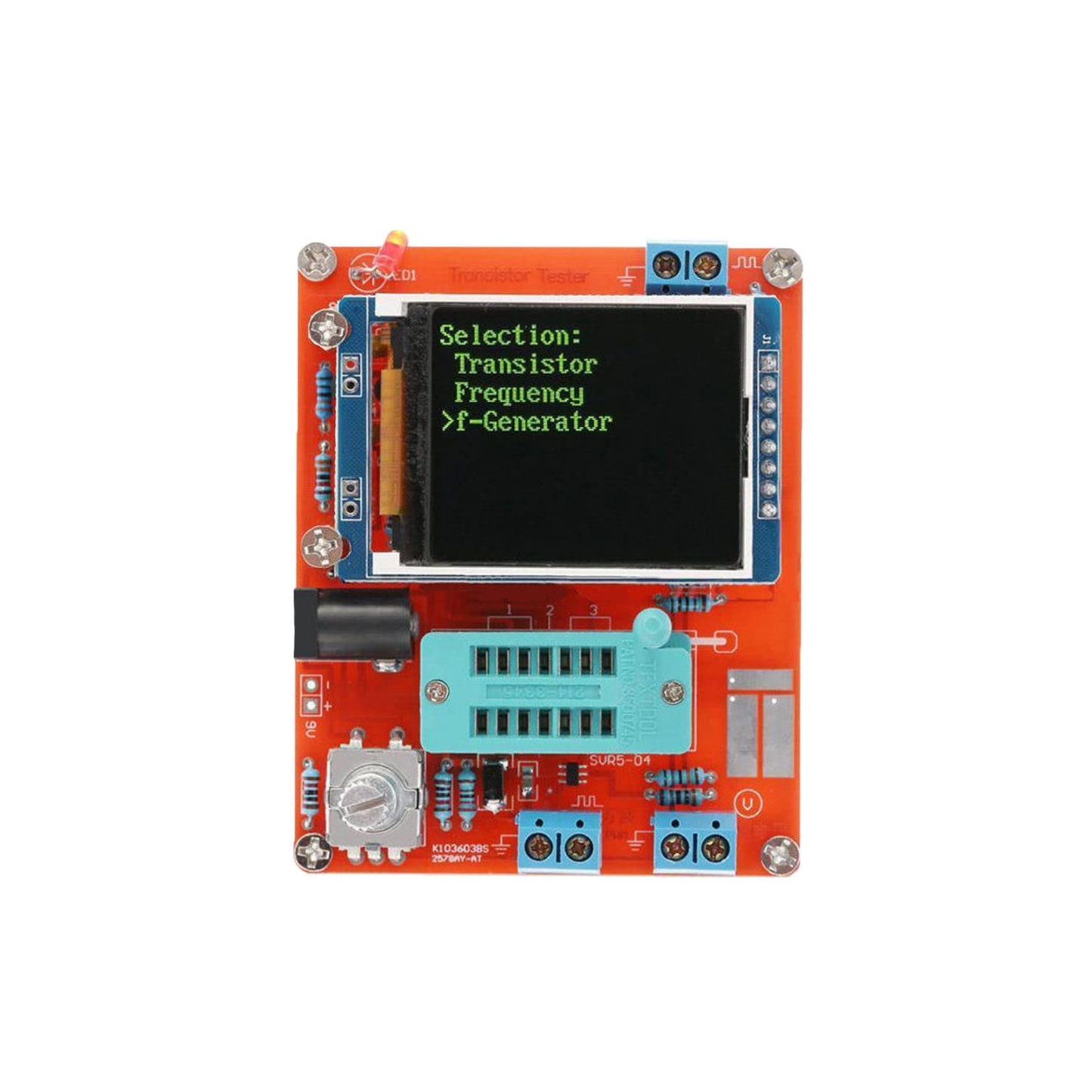

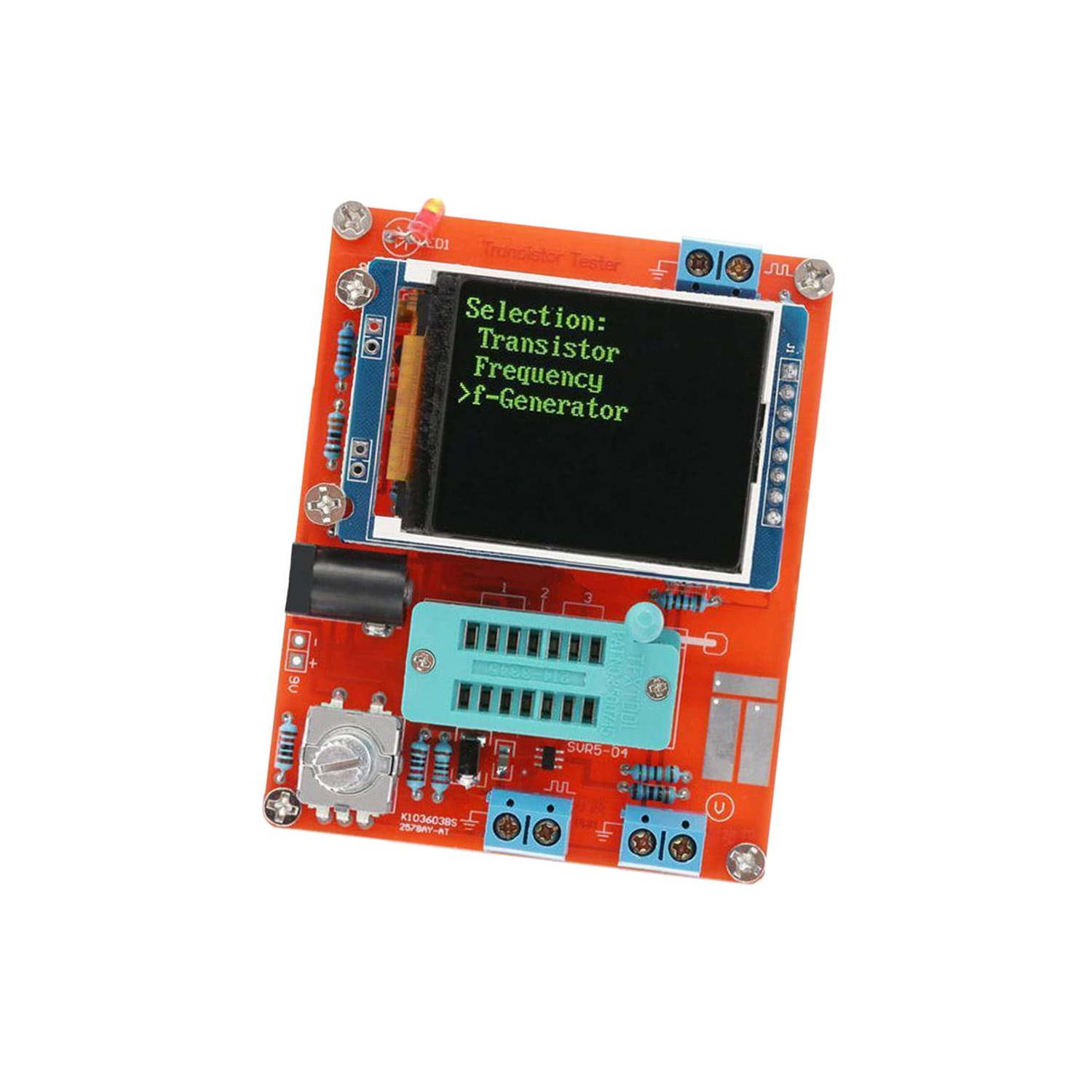

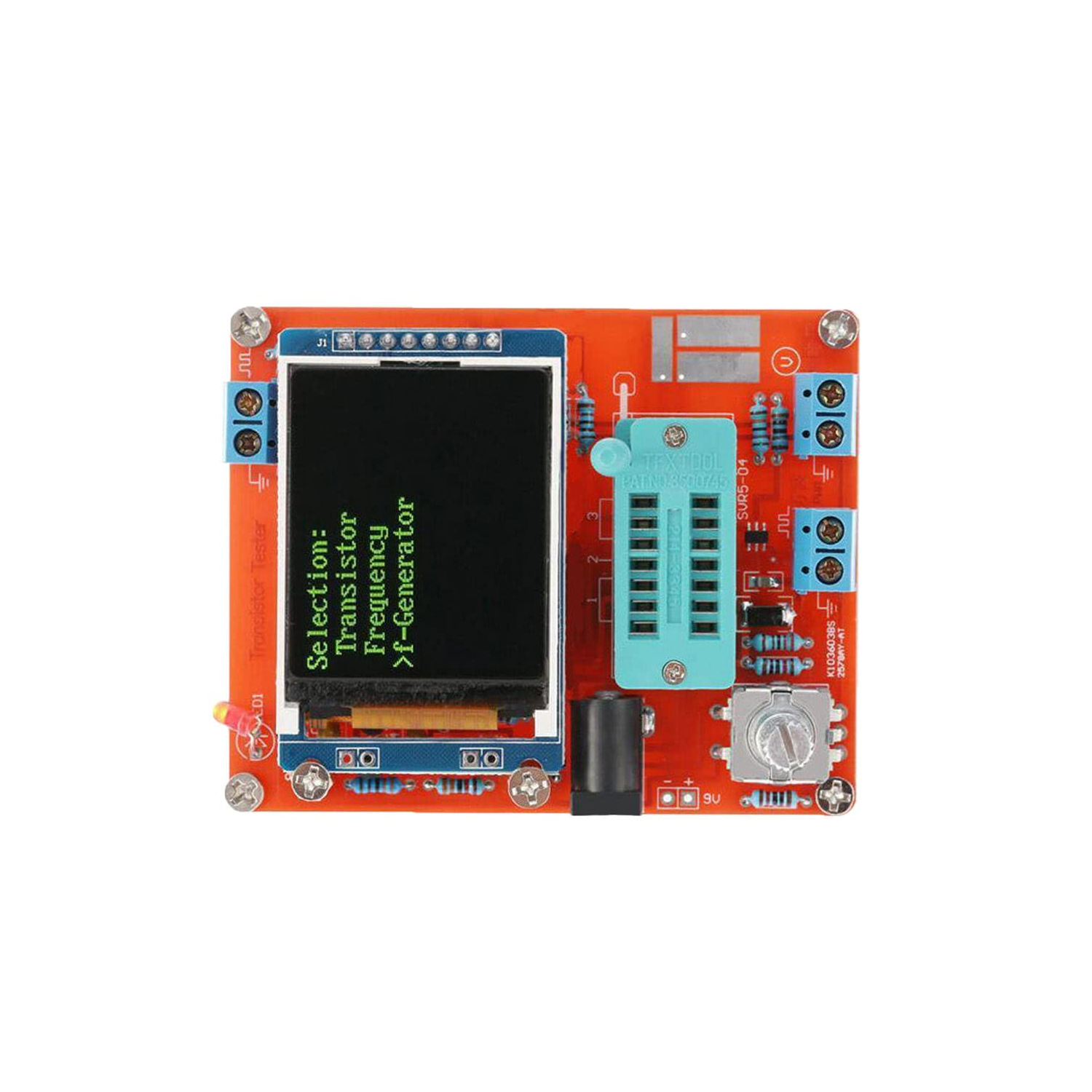

Digital LCD for easy readings can display measured data and graphs. Rotary switch control, one key measurement for convenient use. The main chip is DIP, easy for electronic enthusiasts to DIY or upgrade the main chip.

Specifications:

  • Model: GM328
  • Display: 160 x 128 LCD
  • Power Supply: DC 6.8-12V
  • Current: Approx 30mA
  • Resistance Measurement: Max. 50MΩ
  • Resistance Resolution: 0.01Ω
  • Capacitance Measurement: 25pF~100mF
  • Capacitance Resolution: 1pF
  • DC Voltage Measurement: Up to 50V

Features:

  • Digital LCD for easy readings can display measured data and graphics.
  • Rotary switch control, a key measurement for convenient use.
  • The main chip is the DIP, easy for electronic enthusiasts to DIY or update the main chip.
  • Use a 9V battery(not included), can also use DC power(DC 6.8-12V).
  • Automatic shutdown, shutdown current is only about 20nA.

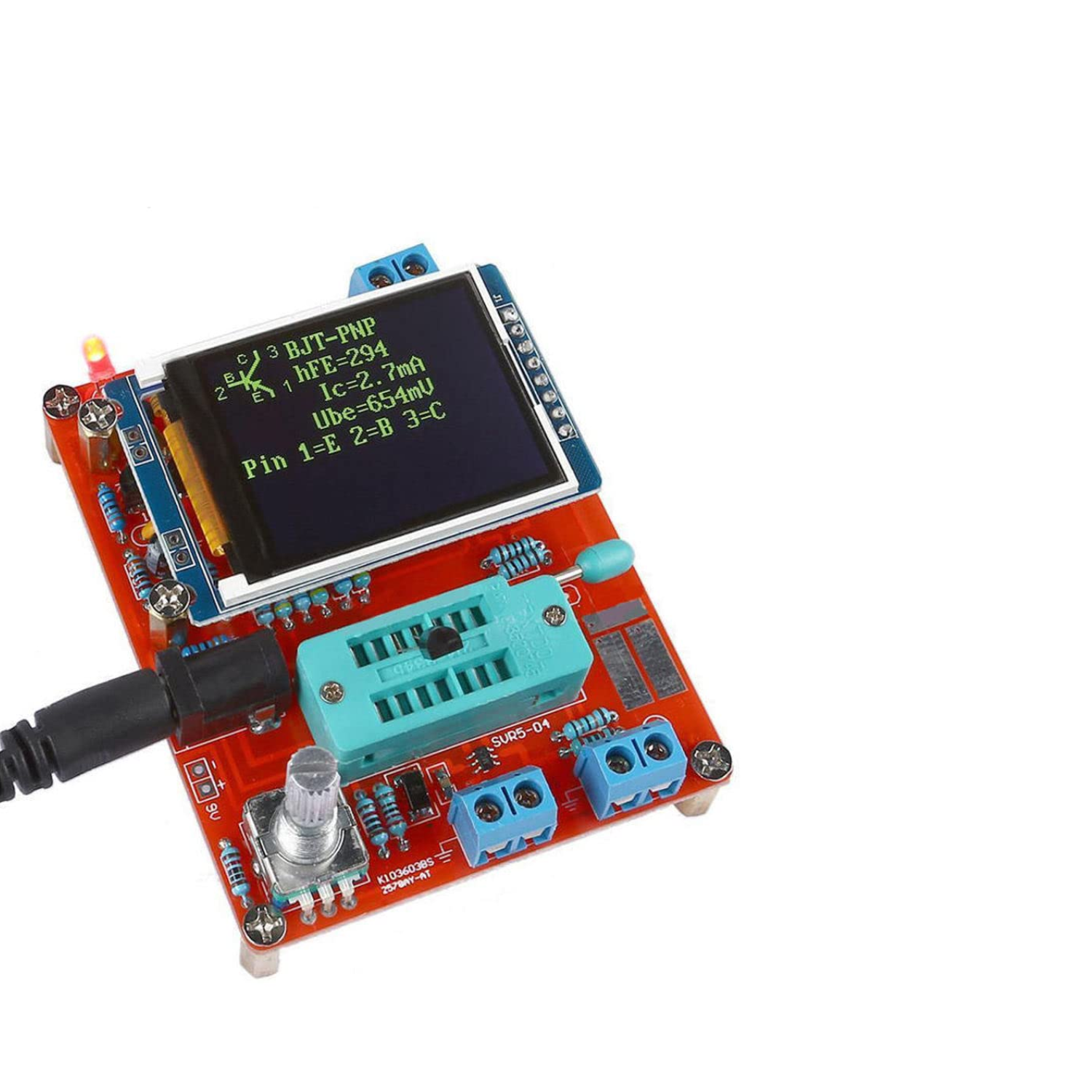

  • Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout.
  • Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector-emitter leakage current.
  • Support 2 resistors measurement, show its positive and negative, on-state voltage.
  • Resistance measurement maximum resolution 0.01Ω can be measured up to 50MΩ.
  • Automatically test the pins of a component and show them on the display.
  • Measure FET gate threshold voltage and gate capacitance.
  • For the following 2100Ω resistor while measuring its inductance measuring ranges from 0.01mH - 20H.
  • Can be used as a signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM(pulse width modulation) signals.

Package Included:

1 x GM328 Transistor Tester
