GM328 Full Assembled Transistor Tester LCR Diode Capacitance ESR Meter Wave Frequency Signal Generator - RS1771

GM328 Full Assembled Transistor Tester LCR Diode Capacitance ESR Meter Wave Frequency Signal Generator - RS1771

SKU:RS1771

56 in stock

Regular price Rs. 1,349.00
Regular price Sale price Rs. 1,349.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
  • Type: Assembled Tester
  • Display: 1.8inch 160*128 LCD
  • Input Voltage: DC 6.8V-12V
  • Operating Current: about 30mA, measured when inputting 7.5V DC voltage

Description:

This is a multi-functional transistor tester for automatic detection of NPN and PNP transistors, N channel, P channel, MOSFET and JFET, diodes, dual diode, thyristor, and automatic identification of the transistor pinout. It also can be used for frequency measurement and PWM signal generator.

Specifications:

  • Type: Assembled Tester
  • Display: 1.8inch 160*128 LCD
  • Input Voltage: DC 6.8V-12V
  • Operating Current: about 30mA, measured when inputting 7.5V DC voltage
  • Resistance Measurement: Max. 50MΩ
  • Resistance Resolution: 0.01Ω
  • Capacitance Measurement: 25pF~100mF
  • Capacitance Resolution: 1pF

Features:

  • The processor uses a high-performance single-chip ATMEAG328P DIP-28. With IC seat
  • The display unit uses a 160×128 pixel color display, the whole screen character number is 8×20, the color depth is 16 bits, graphics display component symbol
  • Rotary code switch control, one-button measurement, automatic shutdown
  • Powered by a 9V laminated battery, it can also be powered by a power adapter. The current is about 30mA, and the current is about 20nA after the shutdown
  • Automatic detection of NPN and PNP transistors, FETs, diodes, dual diodes, thyristors, thyristors, automatic identification of the above transistor pin distribution
  • Test NPN and PNP triode common-emitter current amplification factor, base-emitter threshold voltage, collector-emitter leakage current at the turn-off
  • Identification of Darlington transistors through triode base-emitter threshold voltage and high current amplification factor.
  • Detect power diodes and FET built-in protection diodes
  • Test FET gate-source turn-on threshold voltage, drain-source on-resistance, gate-source capacitance

Package Included:

  • 1 x GM328 Transistor Tester

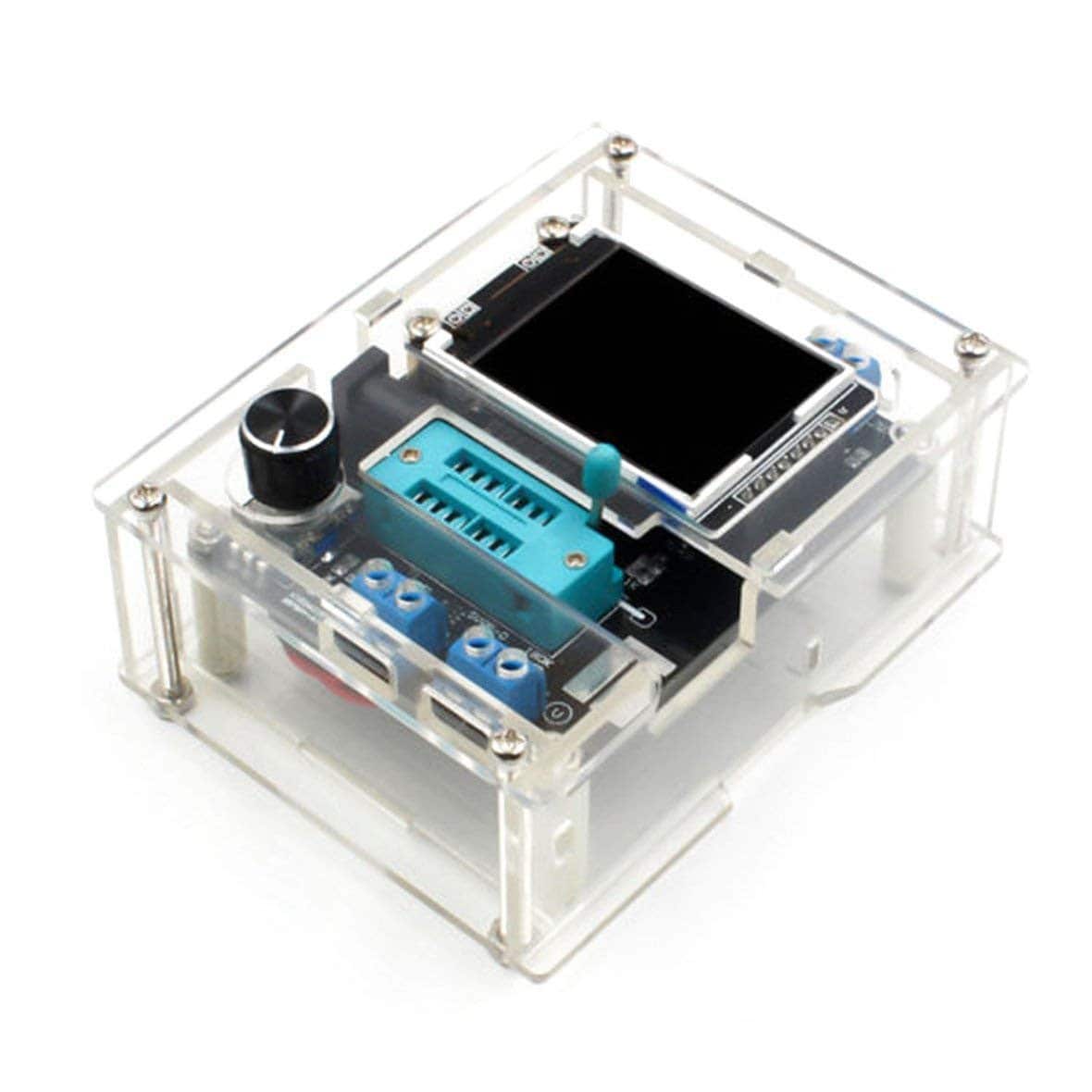

  • 1 x Acrylic Case
