Skip to product information
1 of 8

vendor-unknown

Glow an led by Sensing temperature using LM35 - KT828

Glow an led by Sensing temperature using LM35 - KT828

SKU:KT828

1000 in stock

Regular price Rs. 850.00
Sale price Rs. 850.00 Regular price
Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

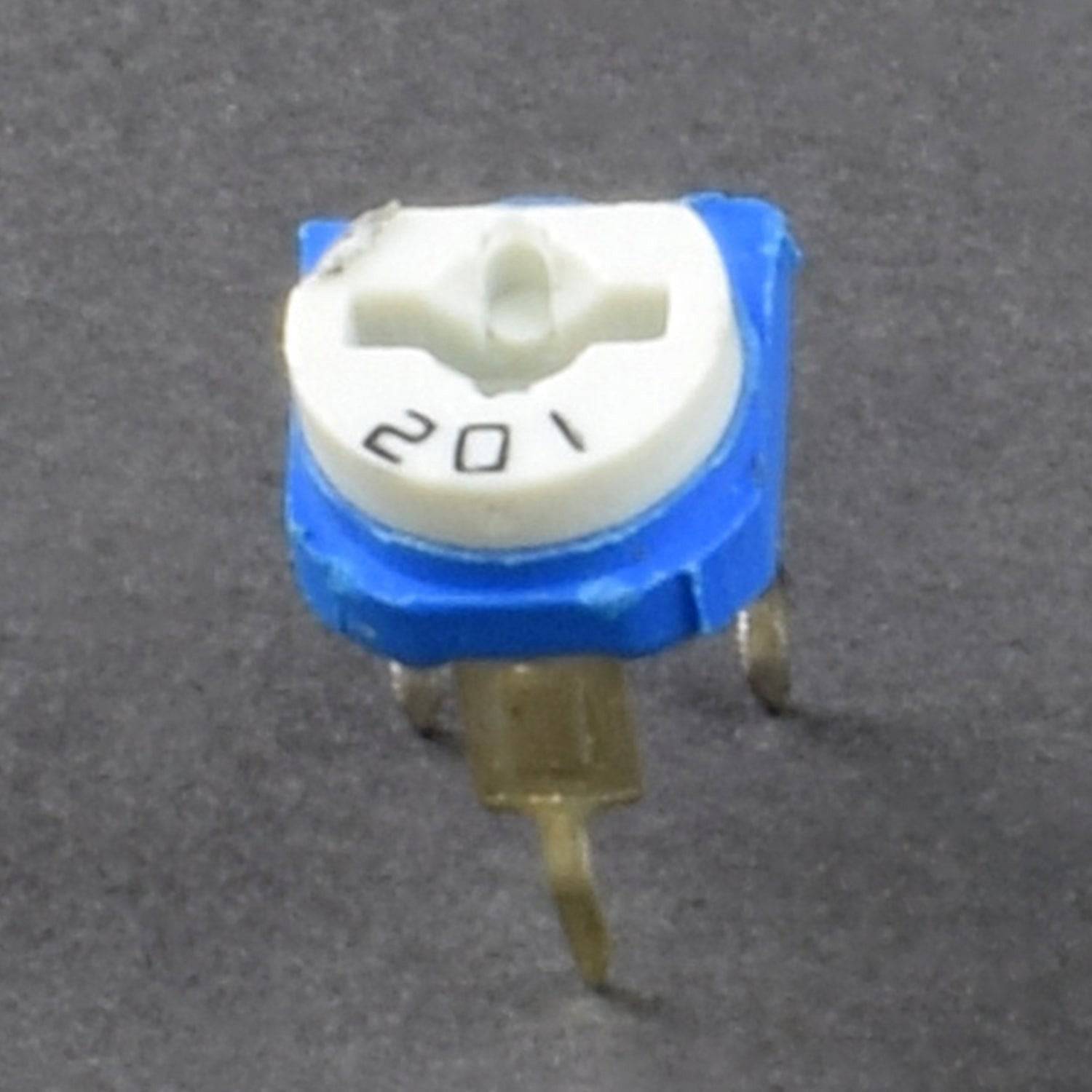

KIT INCLUDES:


HARDWARE REQUIRED

PIN DESCRIPTION

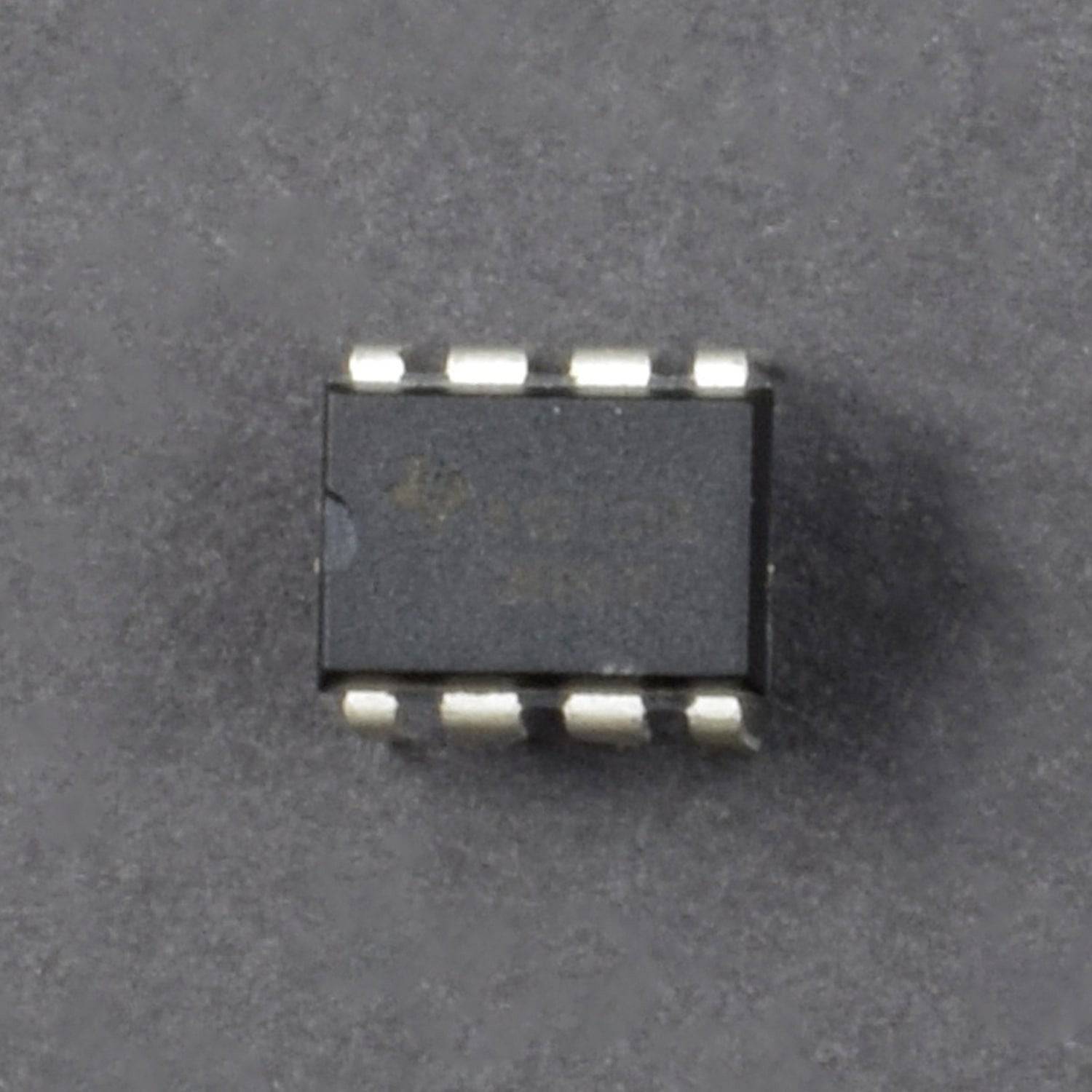

LM385 IC

The pin diagram of LM358 IC comprises of 8 pins, where

  • Pin-1 and pin-8 are o/p of the comparator
  • Pin-2 and pin-6 are inverting input/per second
  • Pin-3 and pin-5 are non-inverting input/per second
  • Pin-4 is GND terminal
  • Pin-8 is VCC+

Features of LM358

  • It consists of two op-amps internally and frequency compensated for unity gain
  • The large voltage gain is 100 dB
  • Wide bandwidth is 1MHz
  • Range of Single power supply is from 3V to 32V
  • Range of dual power supplies is from + or -1.5V to + or -16V
  • The supply current drain is very low, i.e., 500 μA
  • 2mV low i/p offset voltage
  • Common mode i/p voltage range comprises ground
  • The power supply voltage and differential i/p voltages are similar

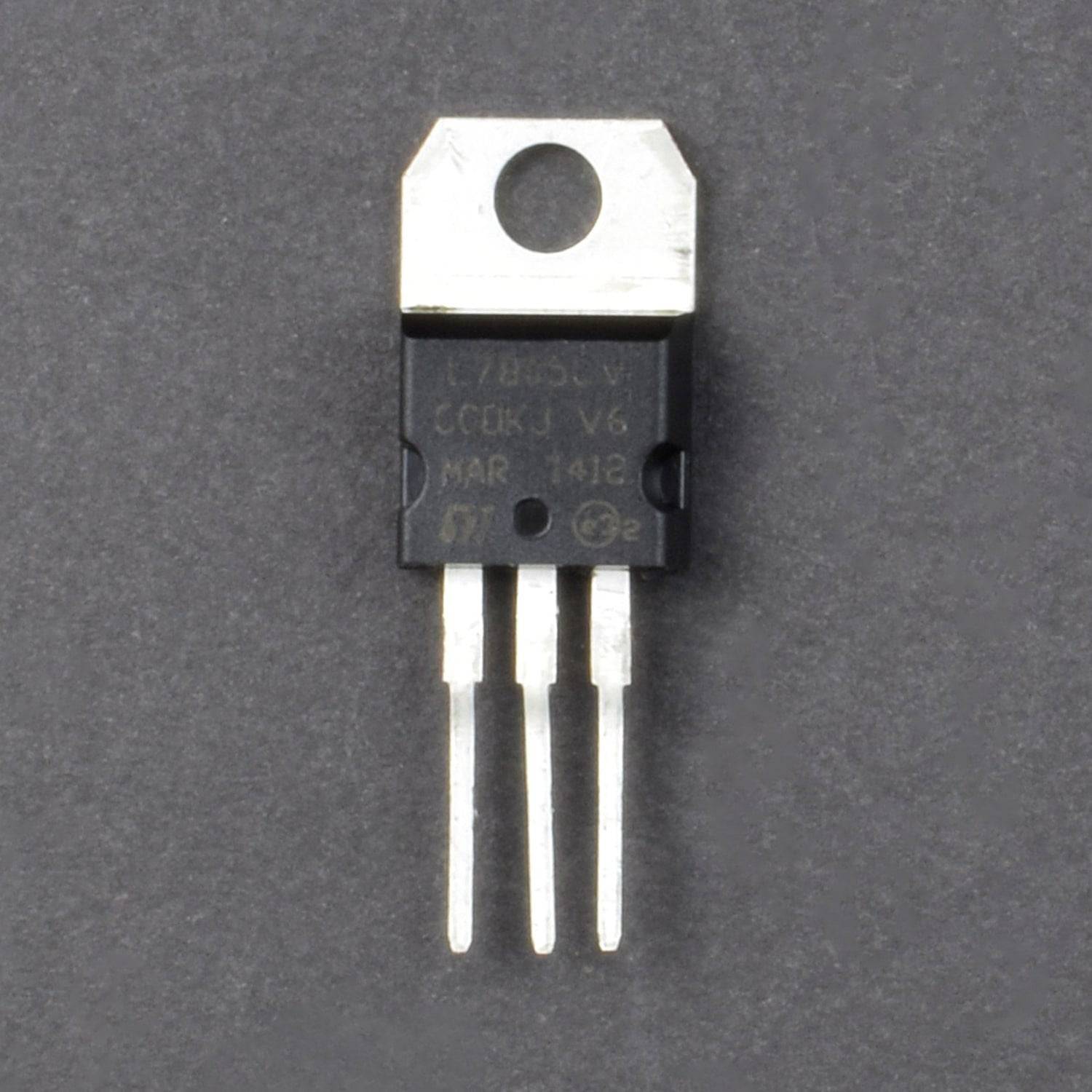

VOLTAGE REGULATOR 7805

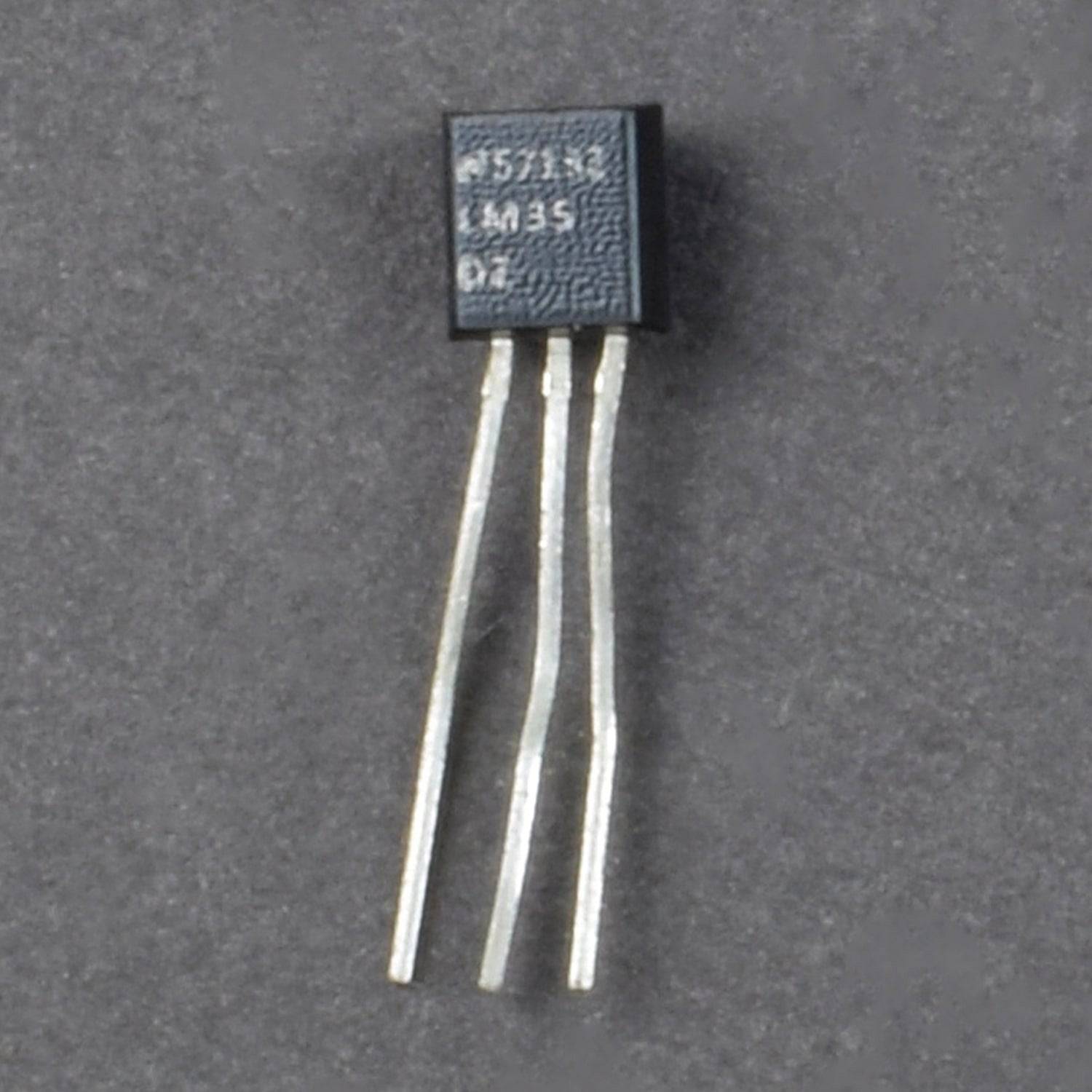

LM35 TEMPERATURE SENSOR

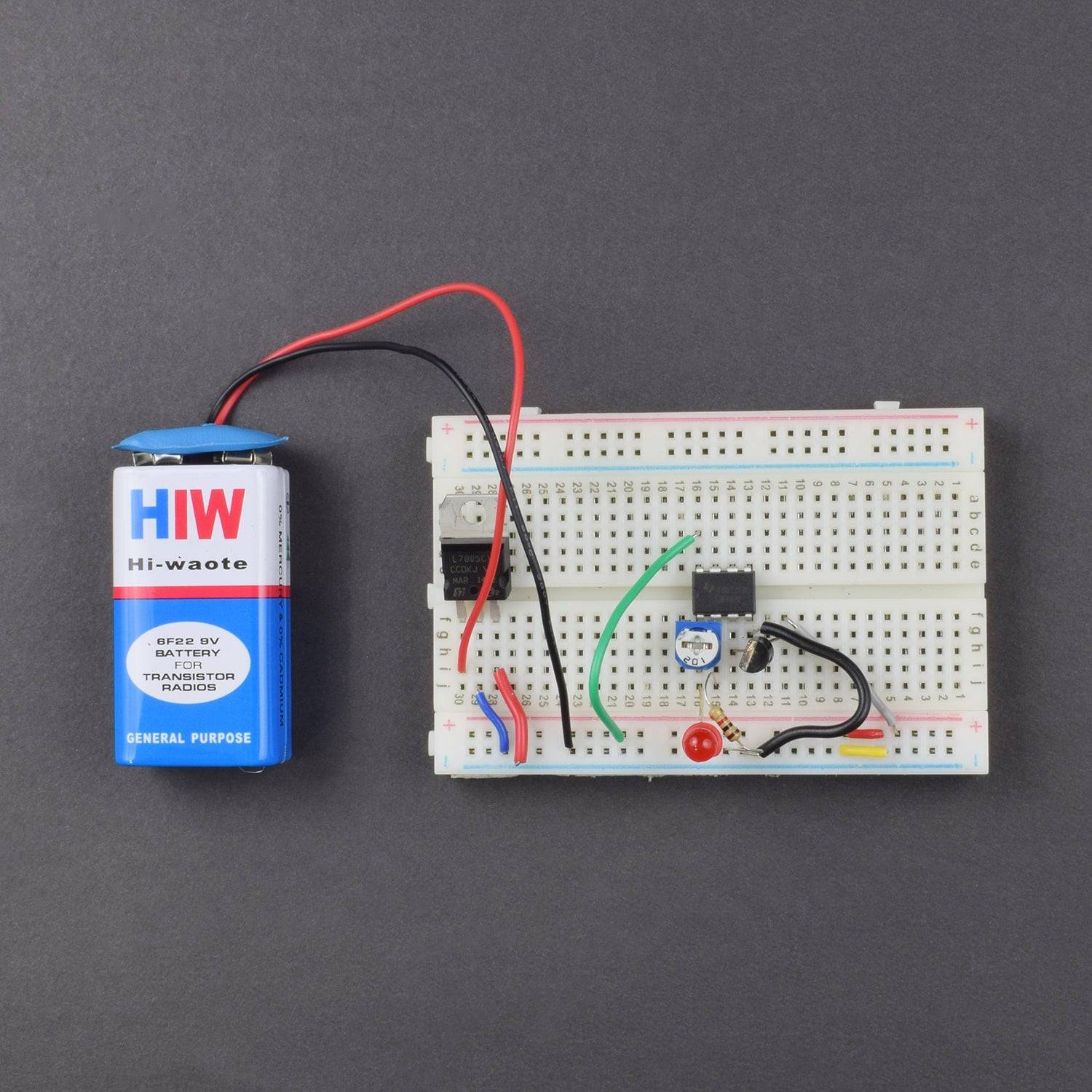

CIRCUIT CONNECTION

  • Connect LM358 pin 4 - negative rail of breadboard
  • Connect LM358 pin 8 - positive rail of breadboard
  • Connect LM358 pin 1 - pot variable pin
  • Connect LM358 pin 2 - pot any fixed pin
  • Connect LM358 pin 2 - 1k ohm resistor then connect to ground
  • Voltage regulator 7805 ic pin 2 - negative rail of breadboard
  • Voltage regulator 7805 ic pin 3 - positive rail of breadboard
  • Voltage regulator 7805 ic pin 1 - battery positive
  • Battery negative - negative rail of breadboard
  • LED positive - LM358 pin 2
  • LED negative - negative rail of breadboard
  • LM358 op amp ic pin 3 - LM35 pin 2
  • LM35 pin 1 – vcc (Positive rail of breadboard)
  • LM35 pin 3 - negative rail of breadboard

WORKING

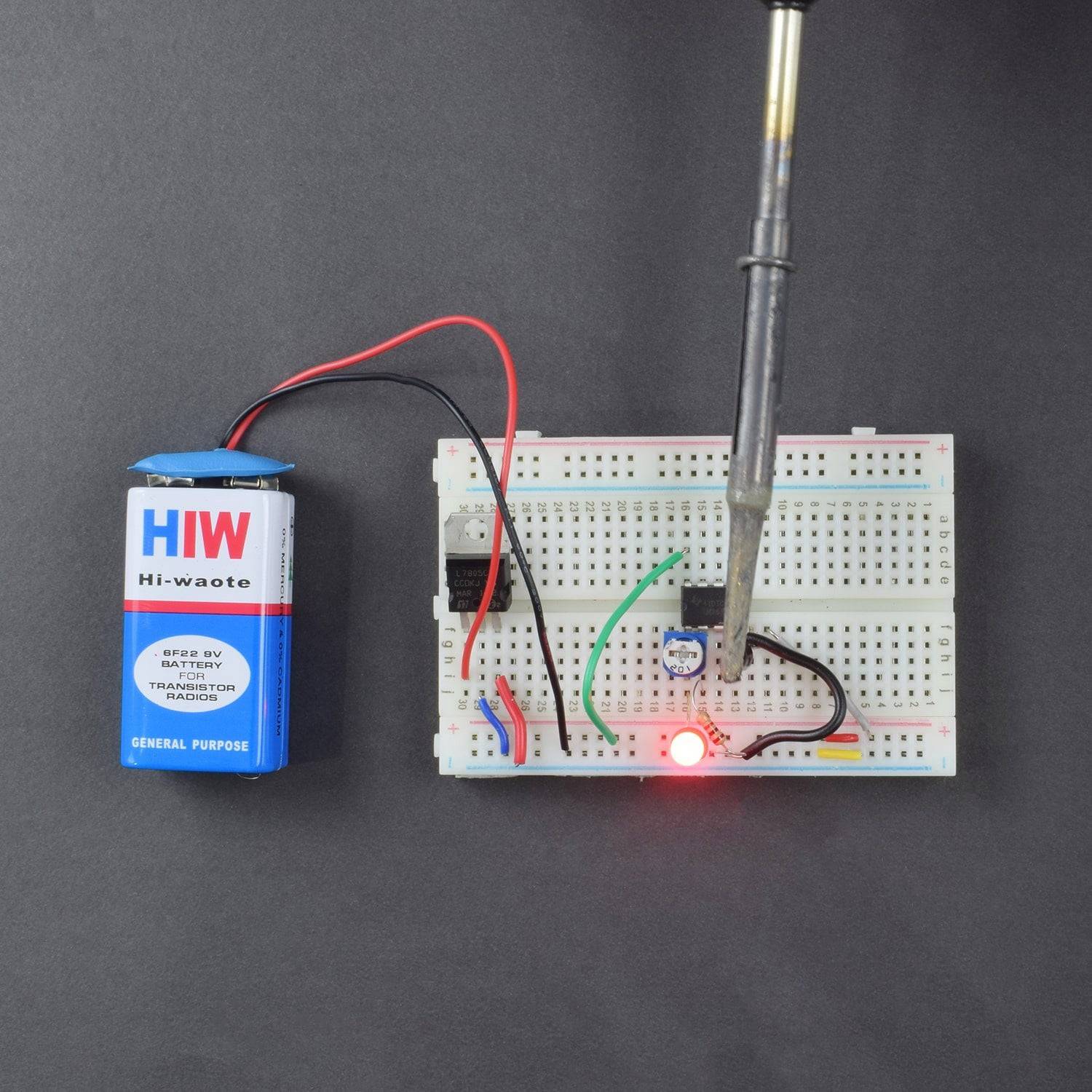

When you increase the temperature near to LM35 temperature sensor, circuit will complete and led will glow.
