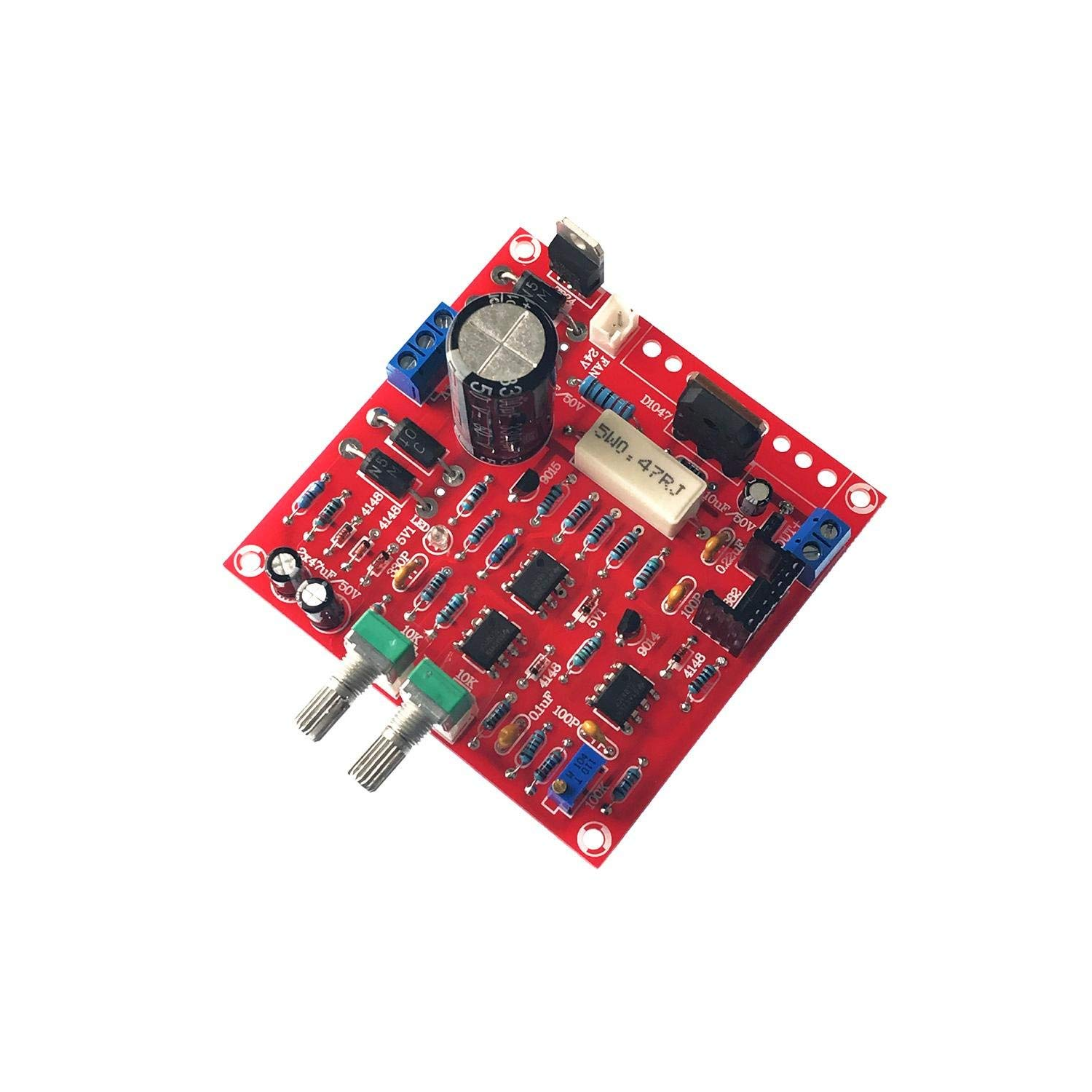

Global Original Hiland DIY kit 0-30V 2mA - 3A Adjustable DC Regulated Power Supply Module - RS1760

Global Original Hiland DIY kit 0-30V 2mA - 3A Adjustable DC Regulated Power Supply Module - RS1760

RS1760

Low stock: 9 left

Rs. 329.00
Rs. 329.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This Global Original Hiland DIY kit circuit voltage can be from 0 v, the output current can be made from 2 to 3 a continuously adjustable, set output current if the experiment circuit exceeds the current (including a short circuit), the circuit protection is immediate, not cause danger such as burning the device, it is electronic manufacture's, right-hand man. It is never afraid of the fireworks! Like making all kinds of audio circuit friends, often due to the different working voltage and circuit have a headache, this circuit can also two series into a dual power supply, which can meet the needs of all sorts of use.

Specifications:

  • Input voltage: 24V AC
  • Input current: 3A maximum
  • Output voltage: 0 to 30V continuous adjustable
  • Output current: 2mA - 3A continuously adjustable
  • output voltage ripple: minimum 0.01%

Features:

  • All straight-inserted elements, make it easy, only adjustable components ( used to adjust the voltage of 0 v )
  • LED indicator for output over current, when the current exceeds the set data circuit protection, LED lighting, overload, and short circuit protection Minimum current (2mA) under the measurable leds and zener diode.

Package Included:

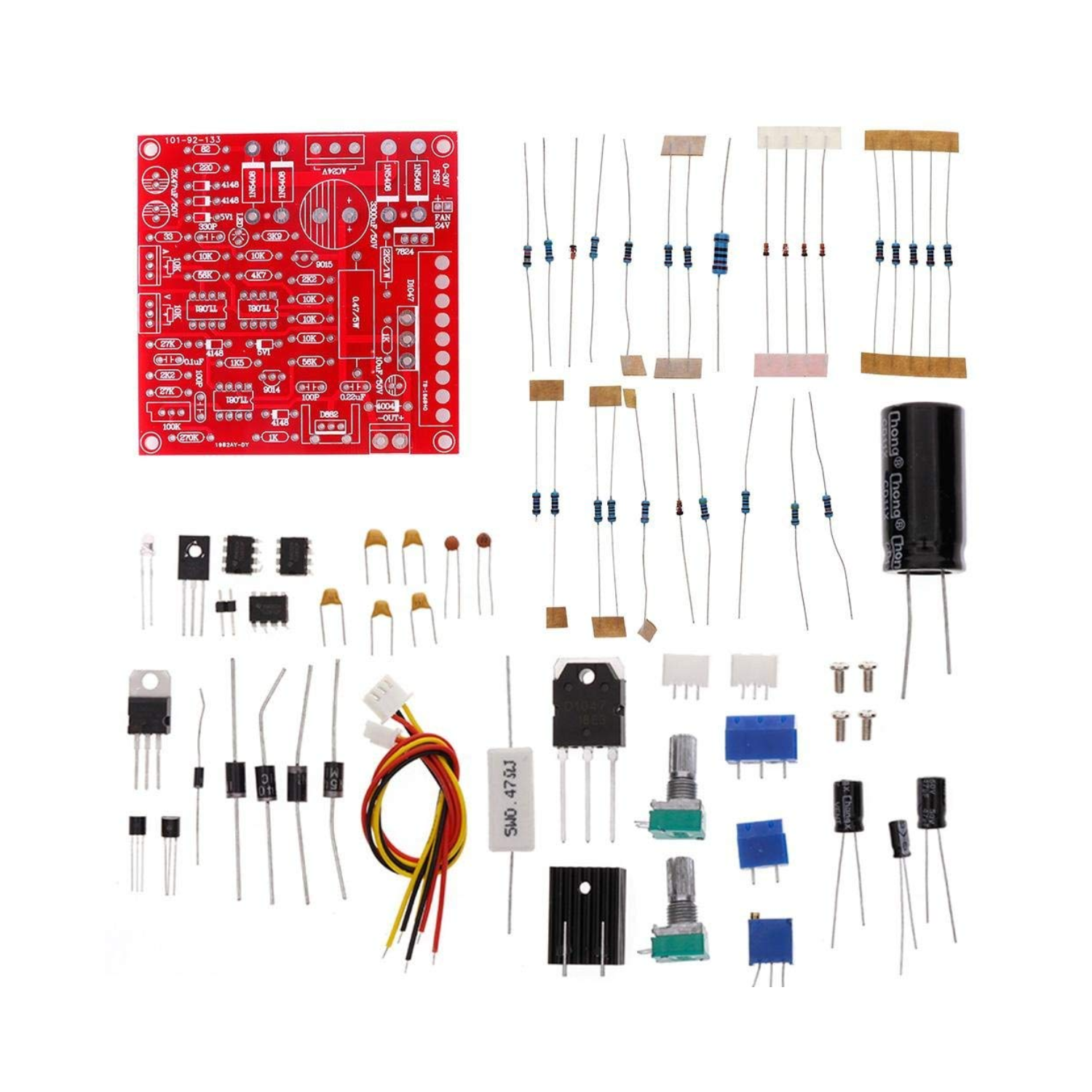

1 x Adjustable DC Regulated Power Supply DIY Kit

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
S
Sauvik Roy
An okay linear supply

This is a good day project to understand op-amp and transistor gain.

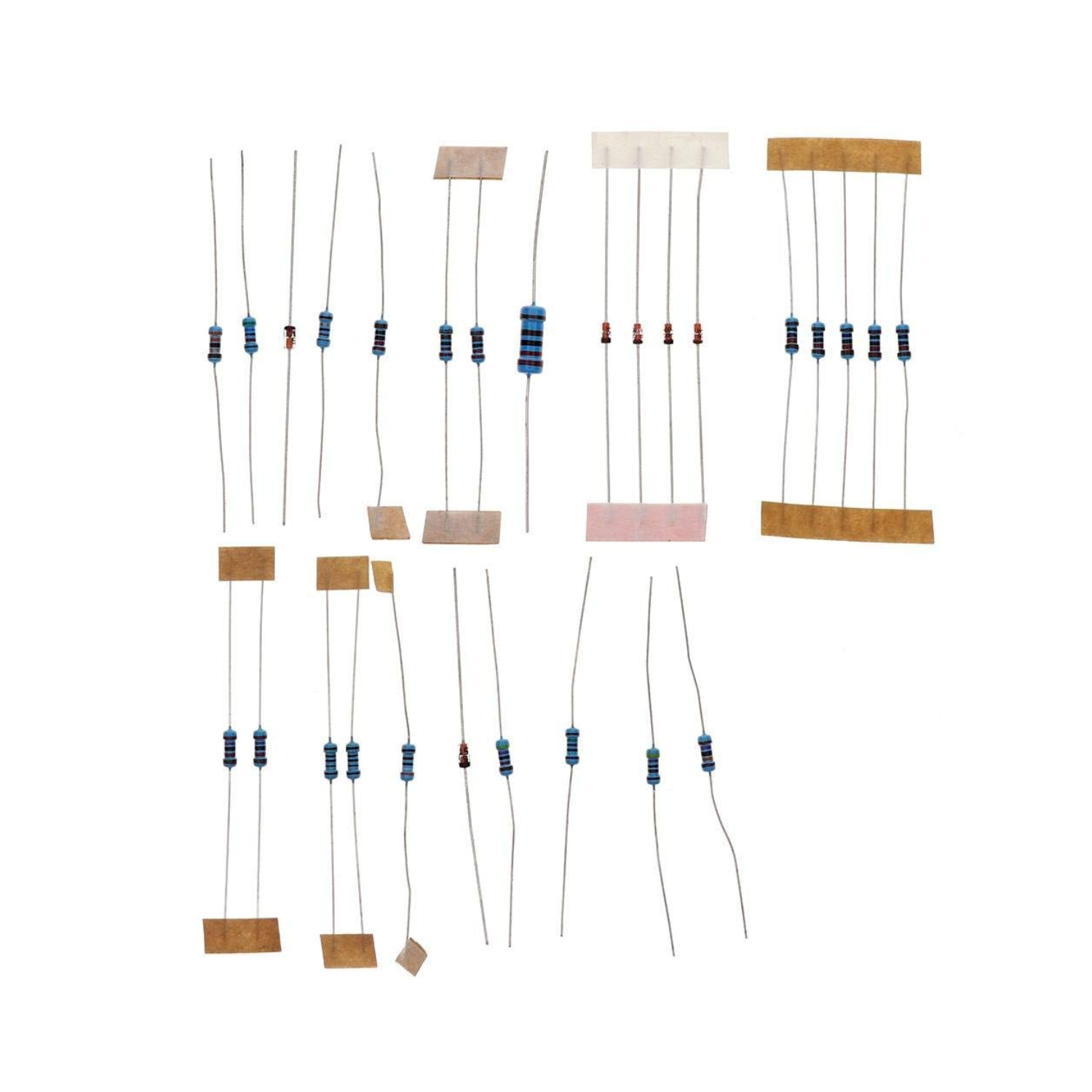

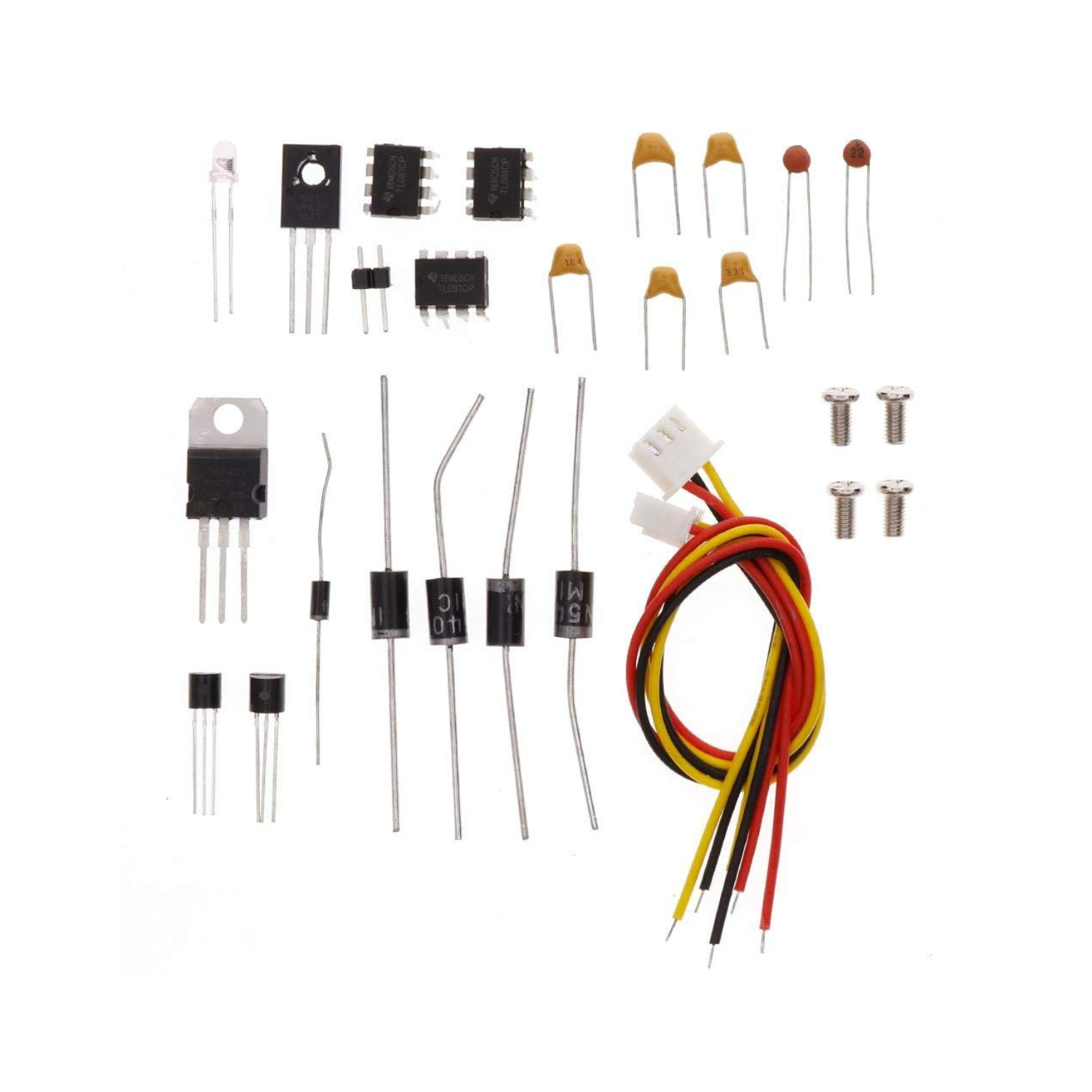

The components are several, but the package contains all of them.
The resistors showed some deviation from rated values, the op-amps were unlabelled. The D1047 transistor which I blew during testing still lies at my desk.
The circuit doesn't offer short-circuit protection. Current-limiting is also laggy.
I'd have liked that it came with proper heatsink for the power transistor. I'd absolutely not recommend running it without a fan. I'd replace the power transistor with 2 more commonly available TIP35C.
I recommend soldering IC bases for op-amps, and a 3-pin screw terminal for the power transistor.
You must use 24V/3A transformer for this project.
