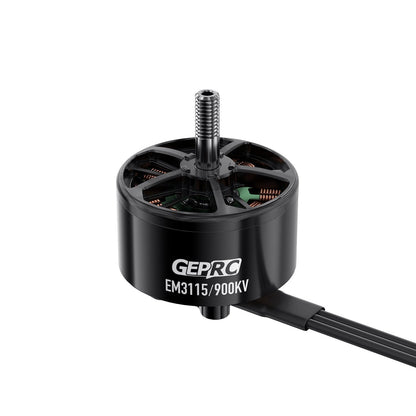

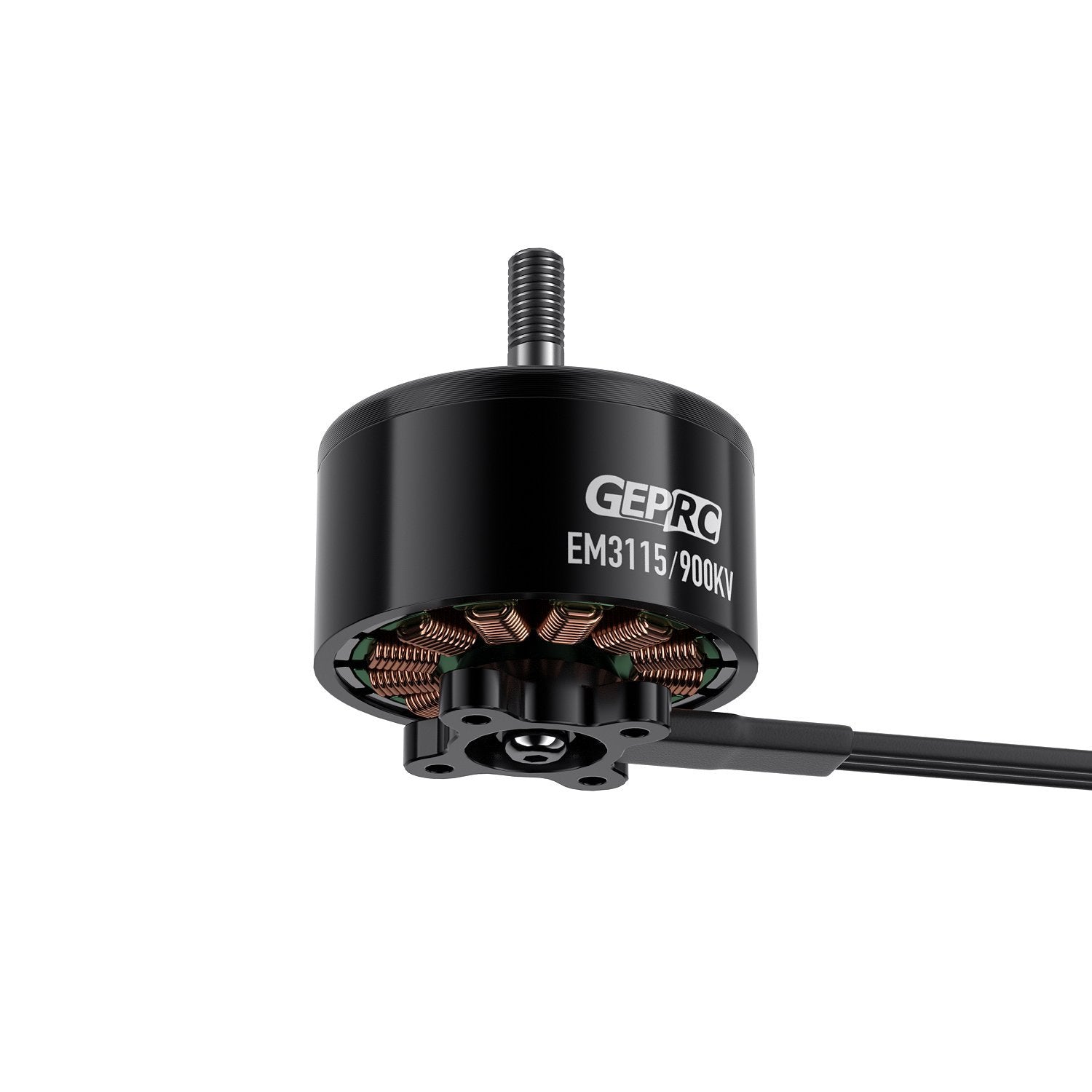

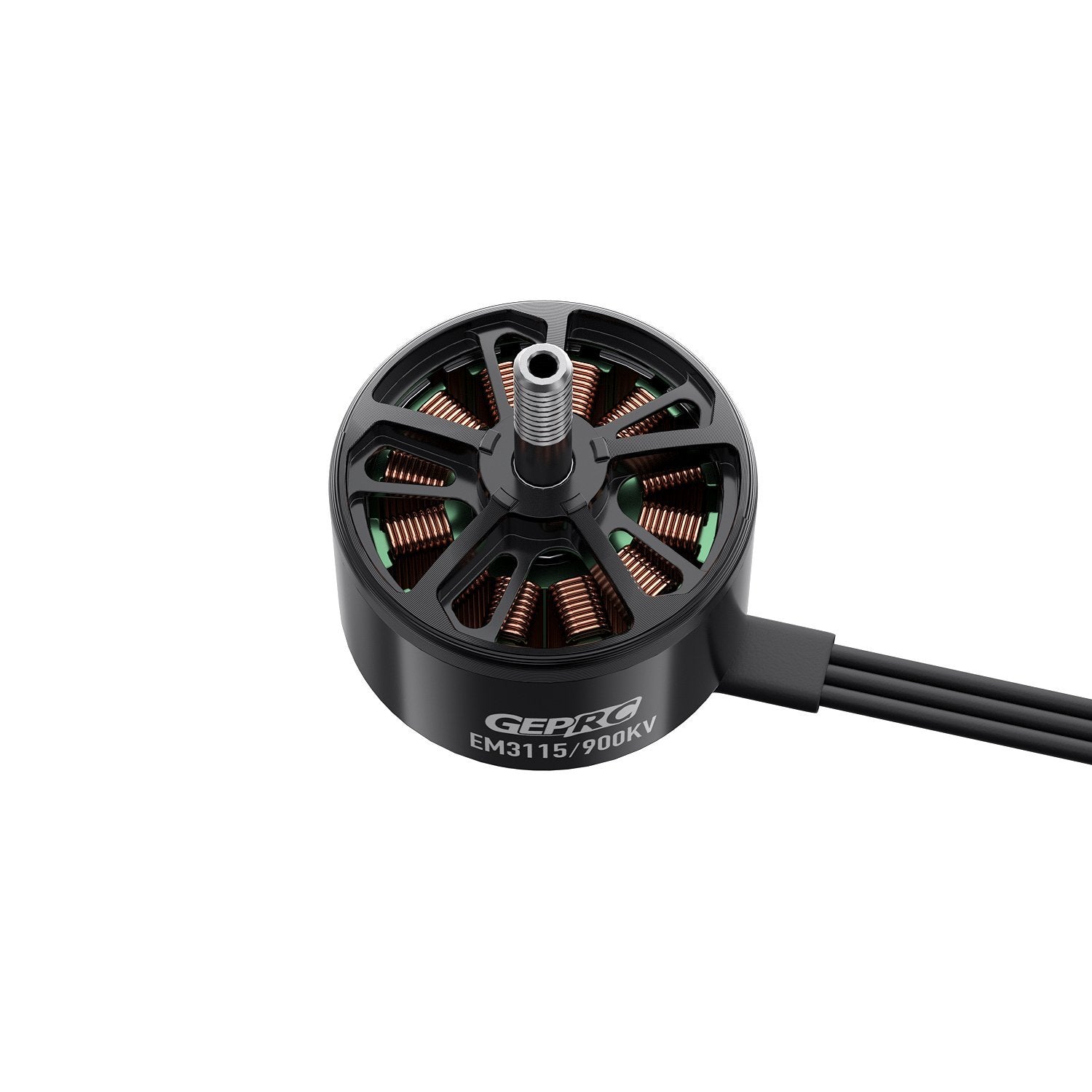

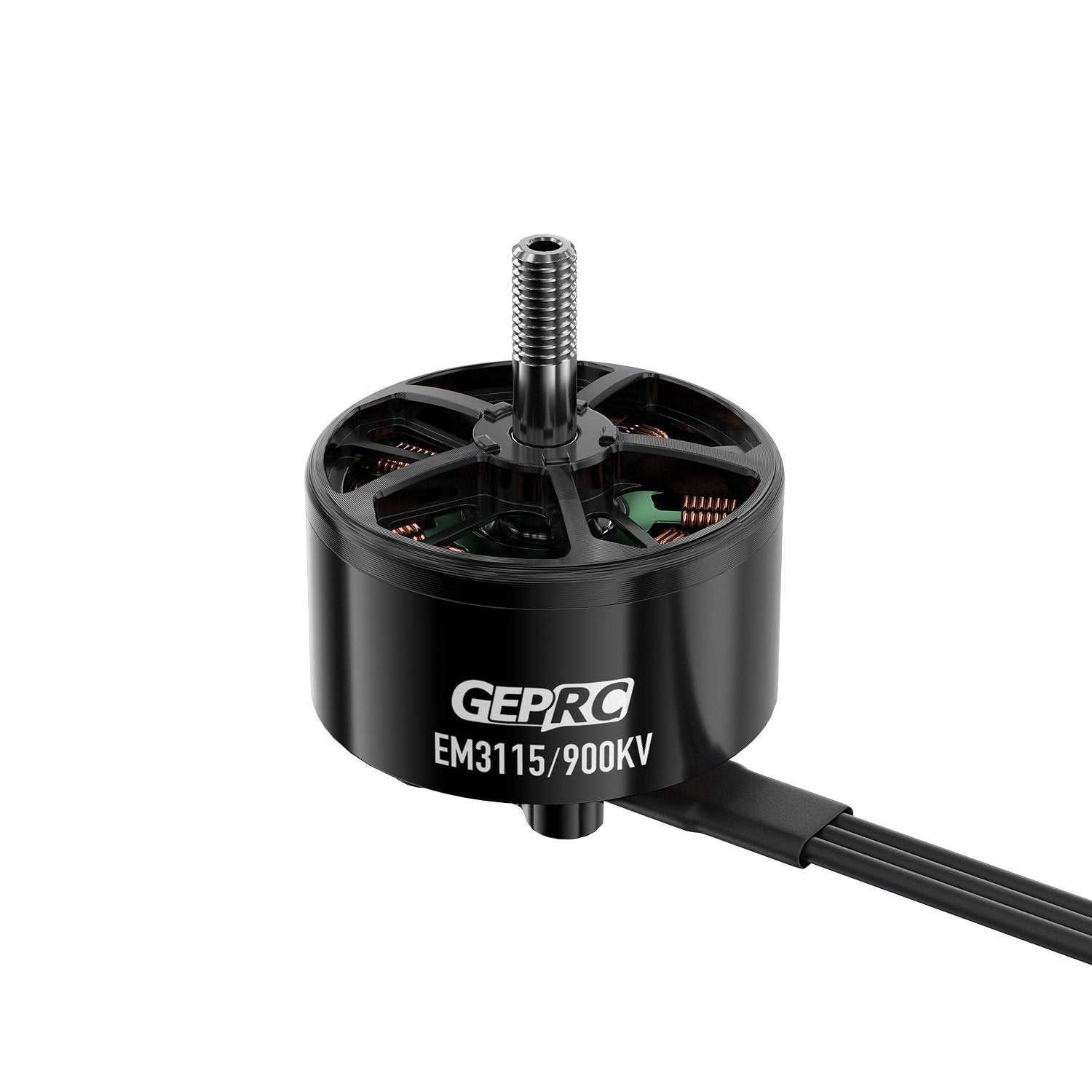

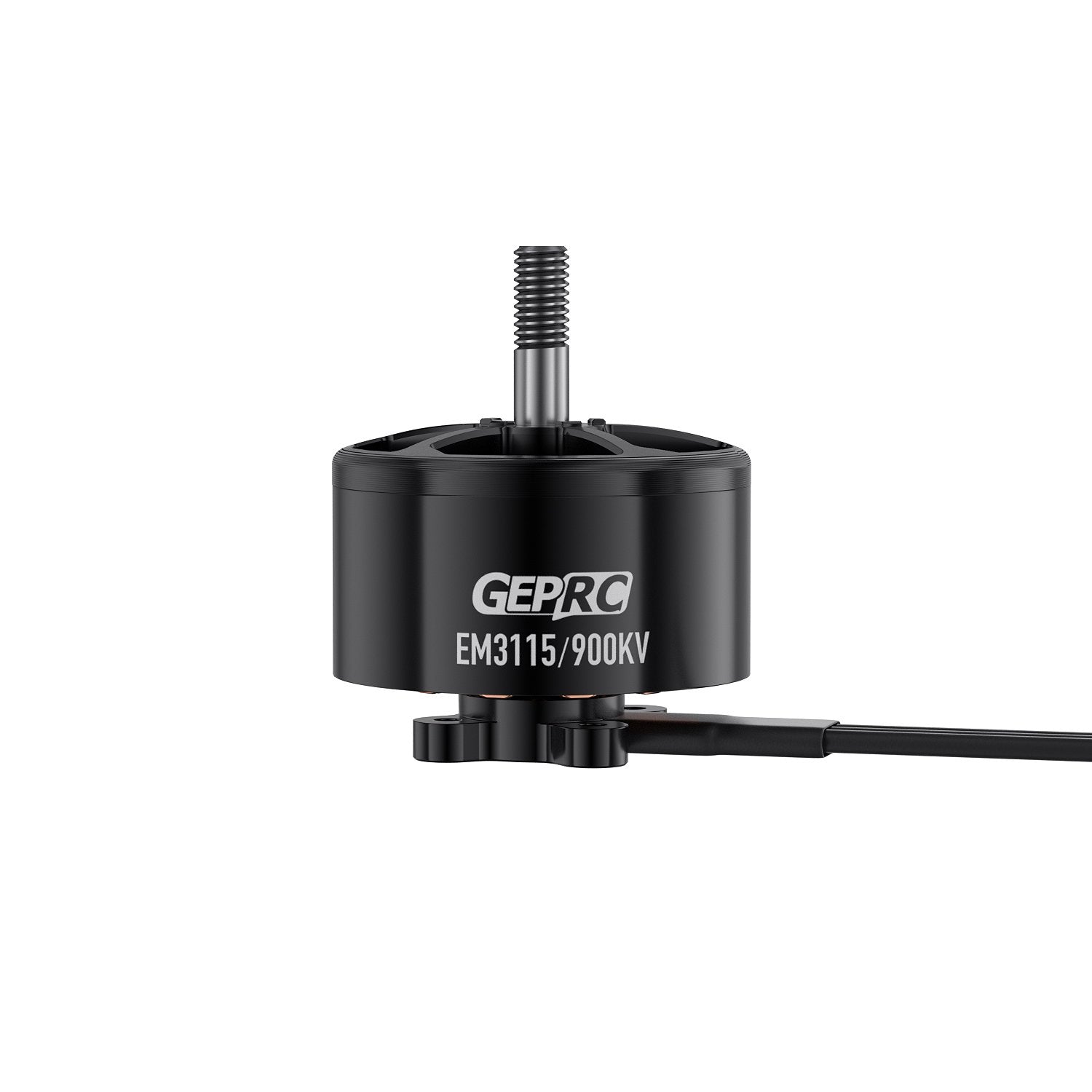

GEPRC EM3115 900KV Brushless Motor High Torque Long Range FPV Motor for 8–10 Inch Drones - RS10126

GEPRC EM3115 900KV Brushless Motor High Torque Long Range FPV Motor for 8–10 Inch Drones - RS10126

RS10126

In stock

Rs. 3,299.00
Rs. 3,299.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The GEPRC EM3115 900KV Brushless Motor is a high-performance motor designed specifically for 8–10 inch long-range FPV drones. It features a high-torque magnetic circuit design, high-strength M5 steel shaft, N52H magnets, and NSK/NMB bearings for reliable and efficient performance.

With a maximum power output of 1620W, 65A peak current, and support for 6S LiPo (25.2V) batteries, the EM3115 900KV delivers strong power and smooth operation for long-range FPV applications. Its 19×19mm mounting pattern makes it suitable for compatible FPV drone frames and builds.

Specifications:

  • Max Watt: 1620W
  • Peak current: 65A
  • Interphase resistance: 46mΩ
  • Propeller: 8-10inch Propeller
  • Magnet: N52H
  • Bearing type: NSK/NMB
  • Configuration: 12N14P
  • Dimension: φ37.5mmx30mm
  • Shaft Diameter: φ5mm
  • Shaft Protruding Length: 16mm
  • Mounting holes: 19 mm x 19 mm
  • Lead: 310mm/18AWG
  • ESC: 60A-80A
  • Input Volts: 25.2V (6S LiPo)
  • Winding: Single-strand copper winding
  • Weight: 115g (included wire)
  • Suitable for :8-10 inch long-range FPV

Features:

  • New EM series motors, mainly designed for long-range FPV.
  • High-strength M5 steel shaft
  • High-torque magnetic circuit design
  • 19 mm x 19 mm base

Package Included:

  • 1 x EM3115 motor
  • 4 x M3*11 round head screws
  • 1 x M5 anti-slip nut
