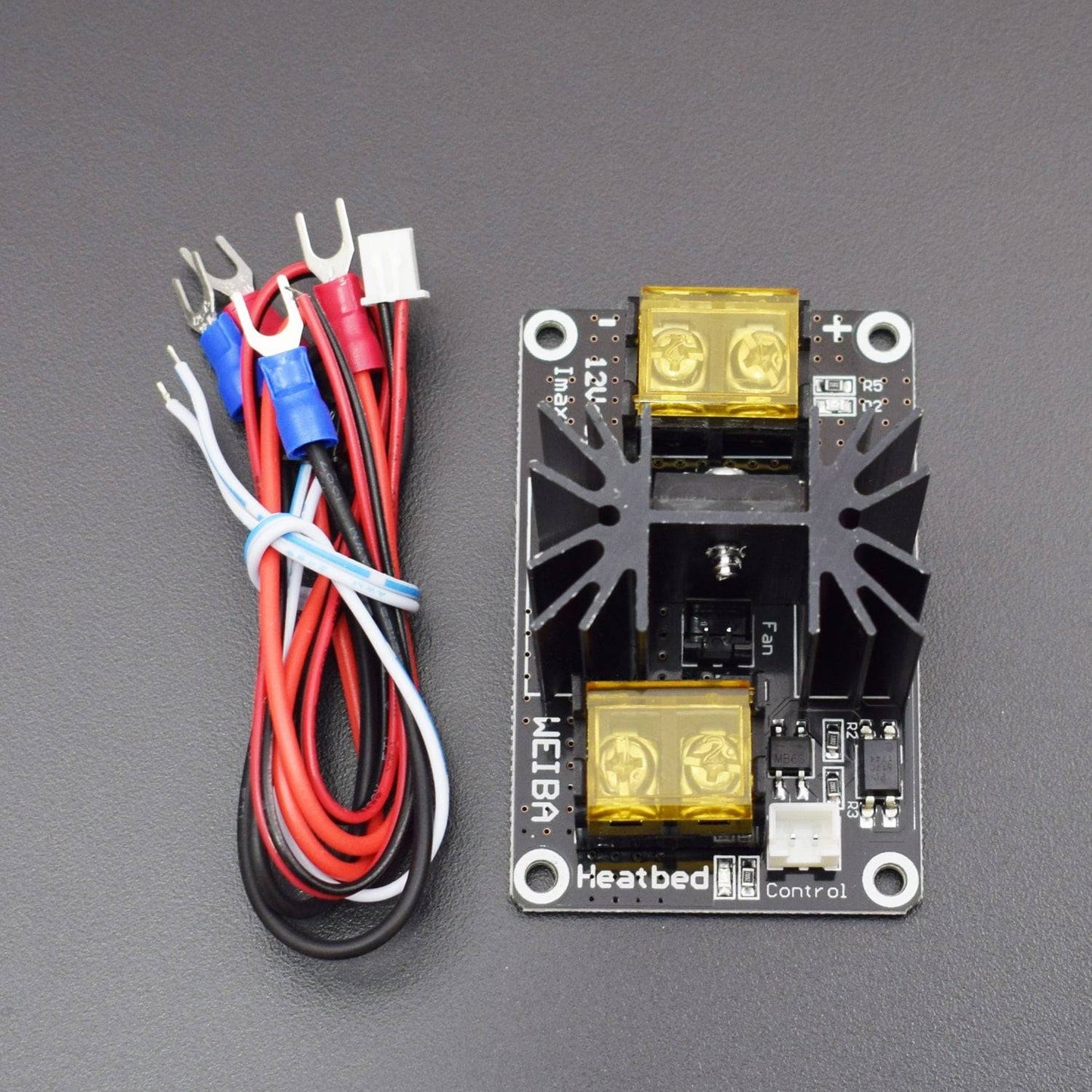

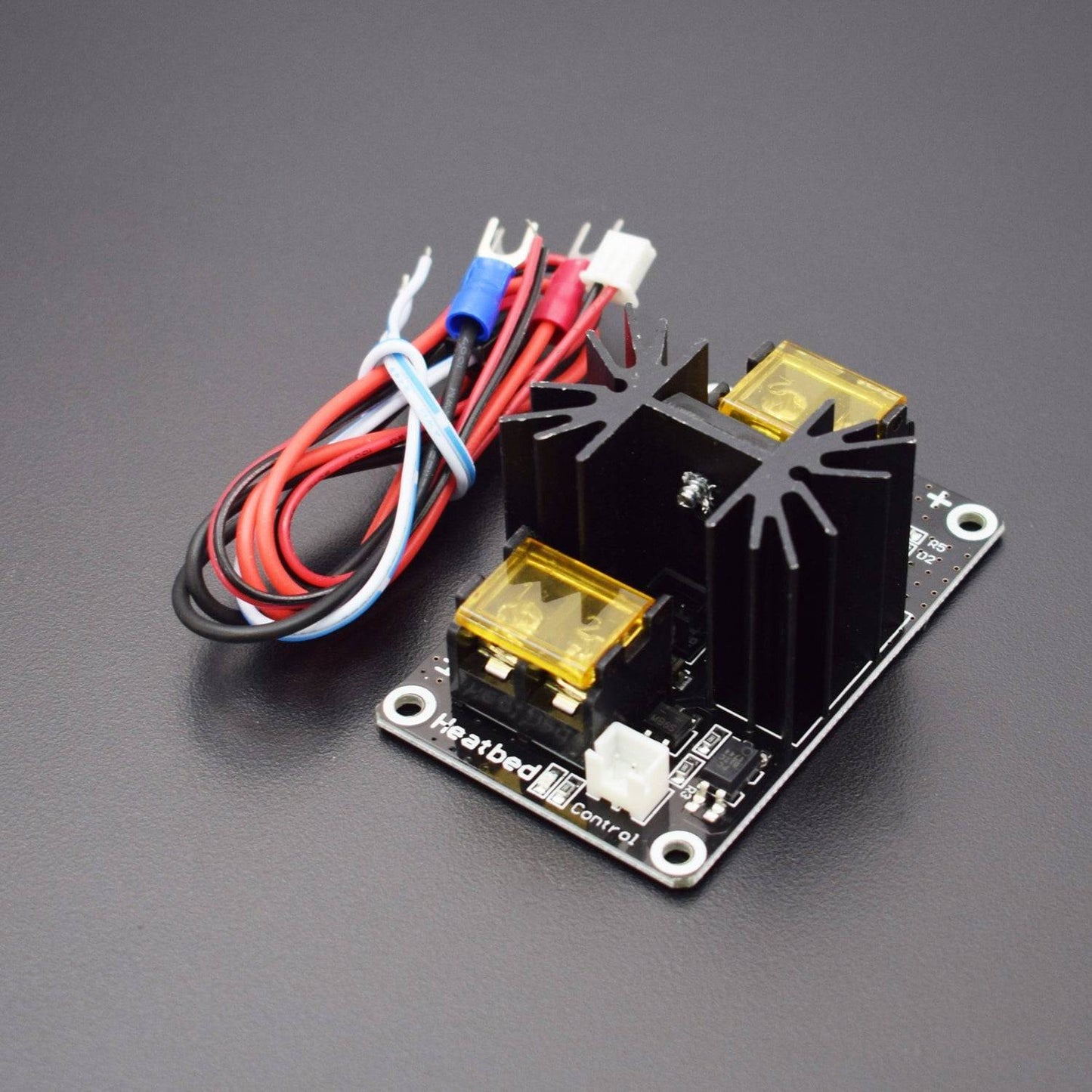

General Add-on Hot Bed 12V-50V Power Module Expansion Board for 3D Printer - RS1081

Heated bed high-power expansion module, with unique snowflake heatsink design, has a great cooling effect. This high power module helps your 3D printer equipped with the Lerdge board become even more powerful. The module can solve the current load problem when the heated bed power is too large. Under the normal heat dissipation, the module can be stable long-term work when measured I (Max) = 30A. When using the module, the current should not exceed 30A.

When using hot bed power greater than 150W, an external high power module is needed.

Features :

• APPLICATION: This high power module is a general add-on heated bed power expansion module for 3D printer. It can work with the Anet A8.
• UNIQUE DESIGN: With unique snowflake heatsink design, it has a great cooling effect. The heat bed power module can be used in both Lerdge motherboard and other 3D printer motherboards.
• 25A MAXIMUM CURRENT: This high power module helps your 3D printer equipped with the Lerdge controller board become even more powerful. The module can solve the current load problem when the heated bed power is too large. With this add-on module to board lead the maximum current up to 25A.
• GOOD PROTECTION: When using heated bed 3D printer for 12V power supply which may cause excessive current during times, with this module, it can well protect the connectors on the controller board from burning.
