Geekworm X1015 PCIe to M.2 Key-M NVMe SSD PIP HAT Raspberry Pi 5 High-Speed Storage Expansion Board

Description:

The X1015 is a PCIe extension board designed for the Raspberry Pi 5. It adheres to the official Raspberry Pi reference schematic and has the same features as the official M.2 HAT+, so the x1015 also supports the Hailo AI acceleration module built around the Hailo-8L chip from the Raspberry Pi AI Kit, guaranteeing ease of use and long-term support through updates to the Raspberry Pi OS. With its sleek and compact design, this shield allows for easy attachment of various M.2 SSD lengths (including 2280, 2260, 2242, and 2230) to your Raspberry Pi 5.

Equipped with a PCIe 2.0/3.0 interface, the X1015 offers lightning-fast data transfer speeds of up to 8Gbps, enabling you to transfer large amounts of data within seconds. Its compatibility with the Raspberry Pi official passive cooler ensures optimal heat dissipation without compromising performance. The inclusion of mounting holes and standoffs provides added protection for your solid-disk drives while effectively dissipating heat.

With the X1015, you no longer need to guess the reading or writing status of your SSD, as it features a built-in LED light that indicates the current activity. This makes it easier for you to monitor your SSD's performance

Specifications:

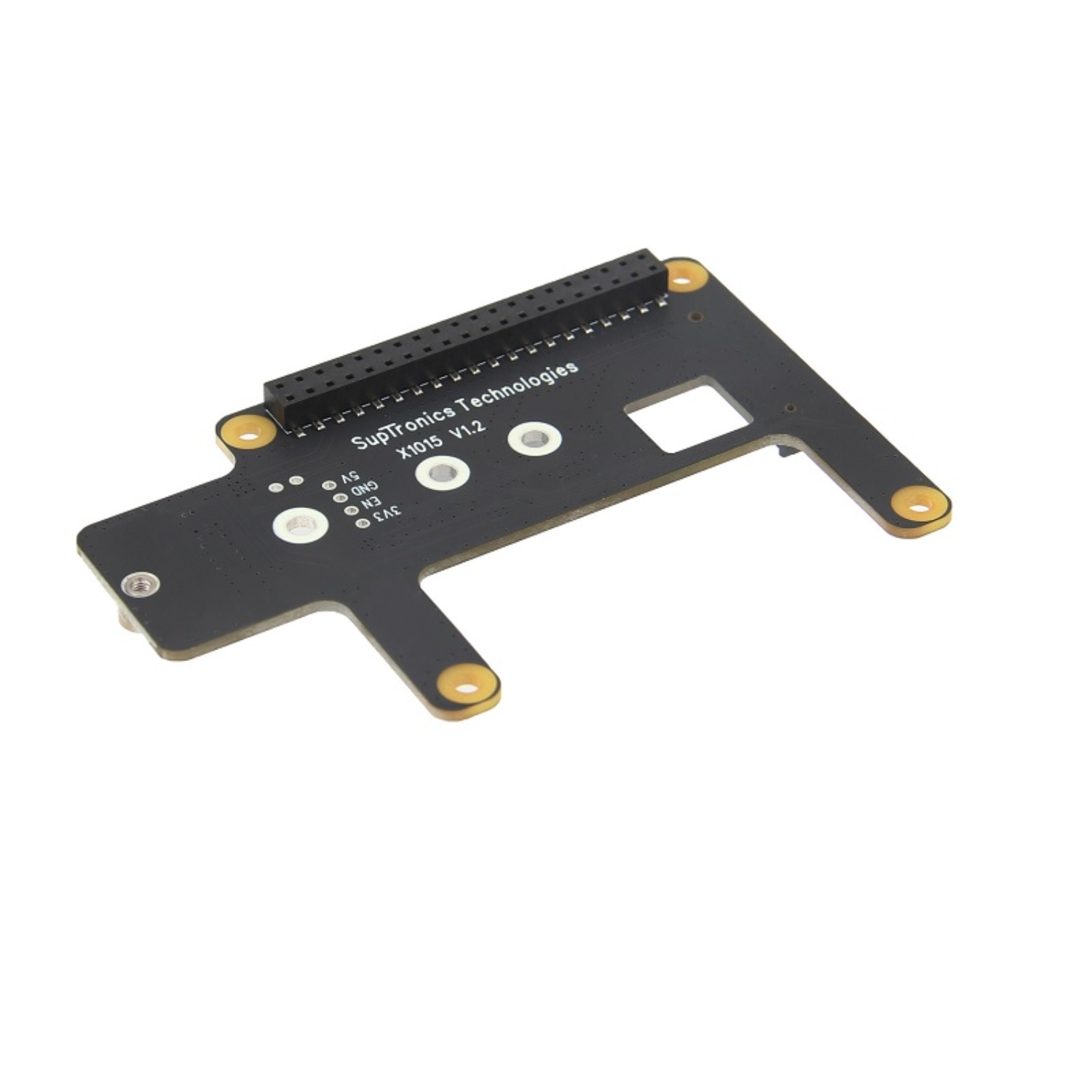

• Model Name: X1015 V1.2
• Compatibility: Raspberry Pi 5B
• Data Transfer Rate: 8Gbps (PCIe 3.0)
• Memory type: M.2 SSD up to 4TB
• Power supply: 5Vdc +/-5% power via GPIO pin header and FFC, converted to 3.3V max 3A to power the SSD
• Ports & Connectors:
• PCIe connector - 16-pin, pitch 0.5 mm
• SSD connector - M.2 KEY-M 67P
• PCIe cable length: 40mm

Features:

• Optimal storage solution designed specifically for Raspberry Pi 5 - M.2 NVMe SSD Shield
• Adheres to the official Raspberry Pi reference schematic
• Utilized the same key components as the Raspberry Pi official M.2 HAT+
• Has the same features as the Raspberry Pi official M.2 HAT+
• Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)
• Supports devices that use the M.2 M key edge connector
• Supports devices with the 2230 or 2242 form factor
• Capable of supplying up to 3A to connected M.2 devices
• Includes power and activity LEDs
• Supports high-capacity M.2 NVMe solid-state drives up to 4TB

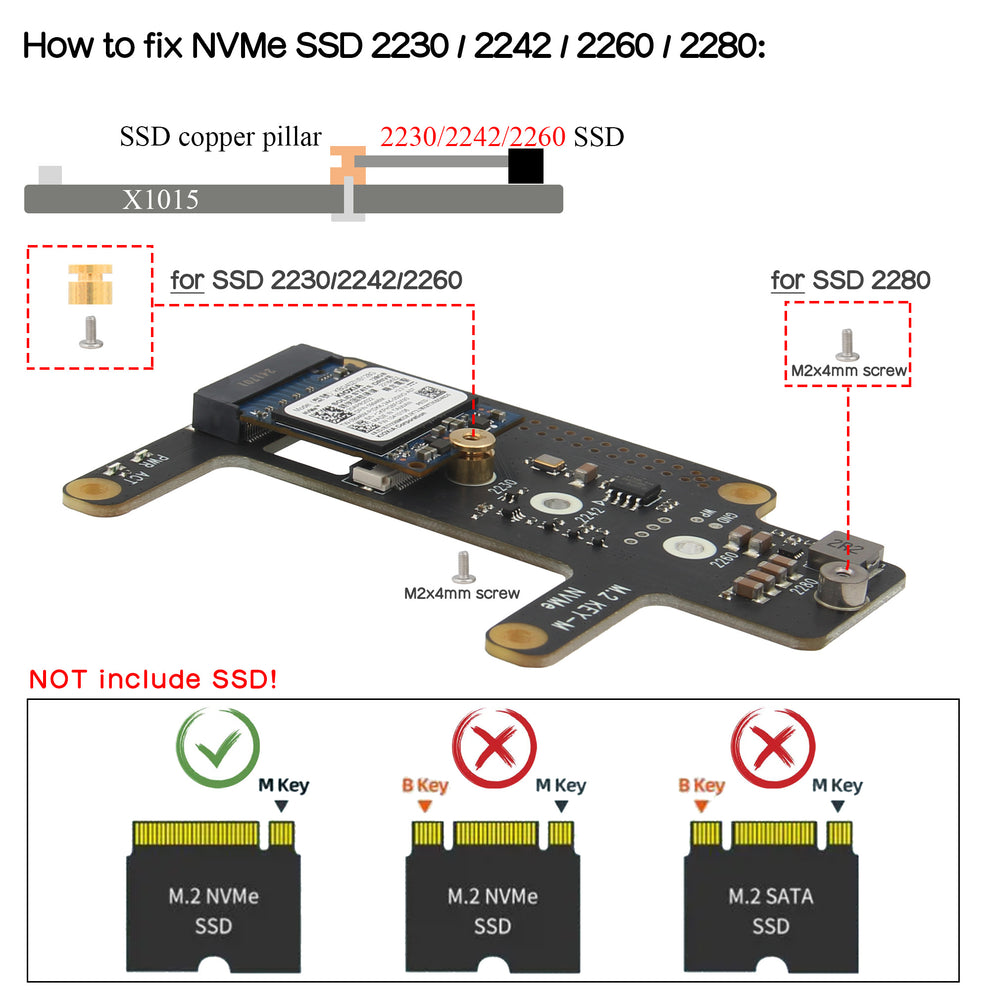

• Accommodates various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230
• Offers fast data transfer speeds with PCIe 2.0 5Gbps / PCIe 3.0 8Gbps
• Does not compromise cooling performance and is fully compatible with the official active cooler
• Powering via both GPIO pin header and FFC, ensuring sufficient power supply without any worries

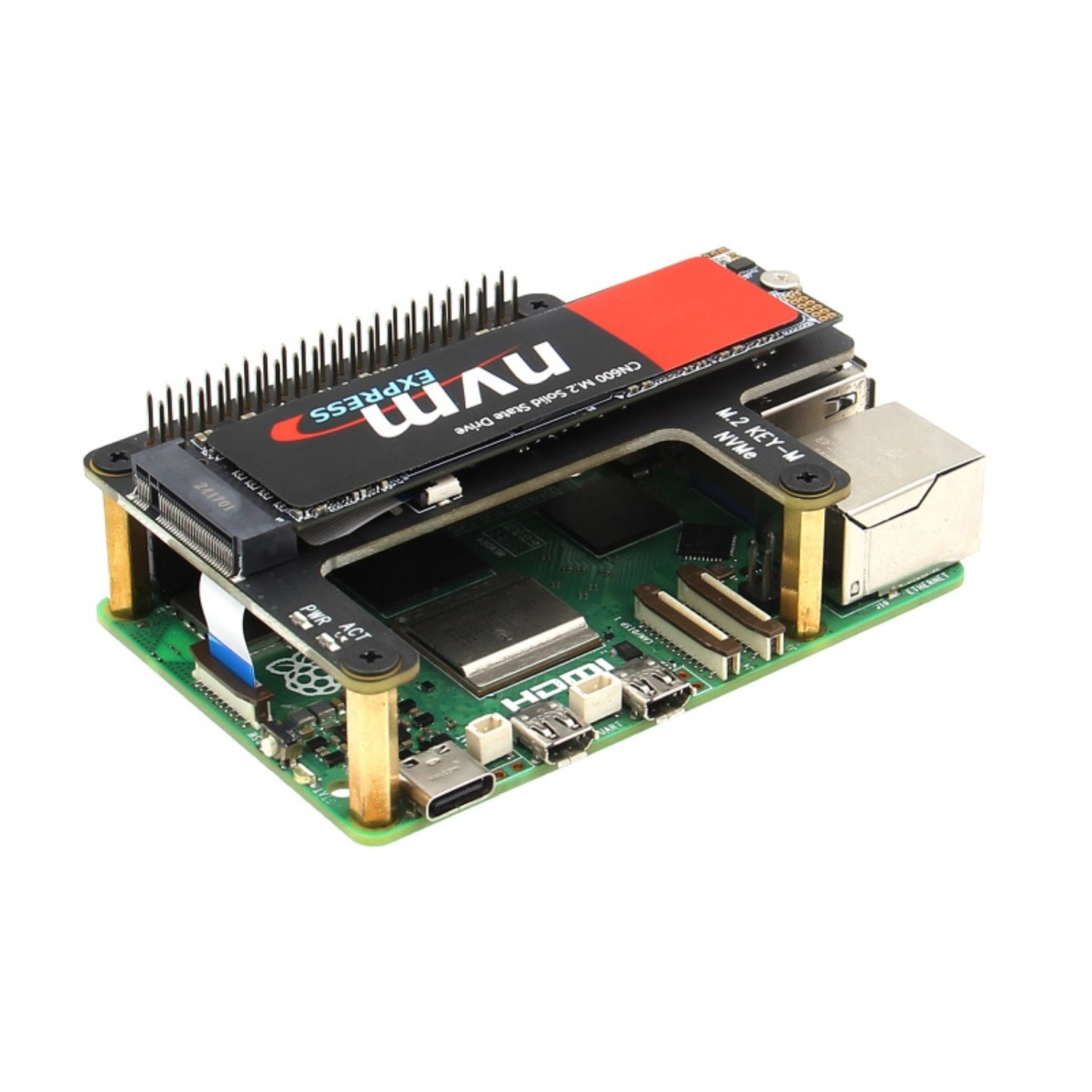

• Stackable design allows for attachment on bottom of other HATs

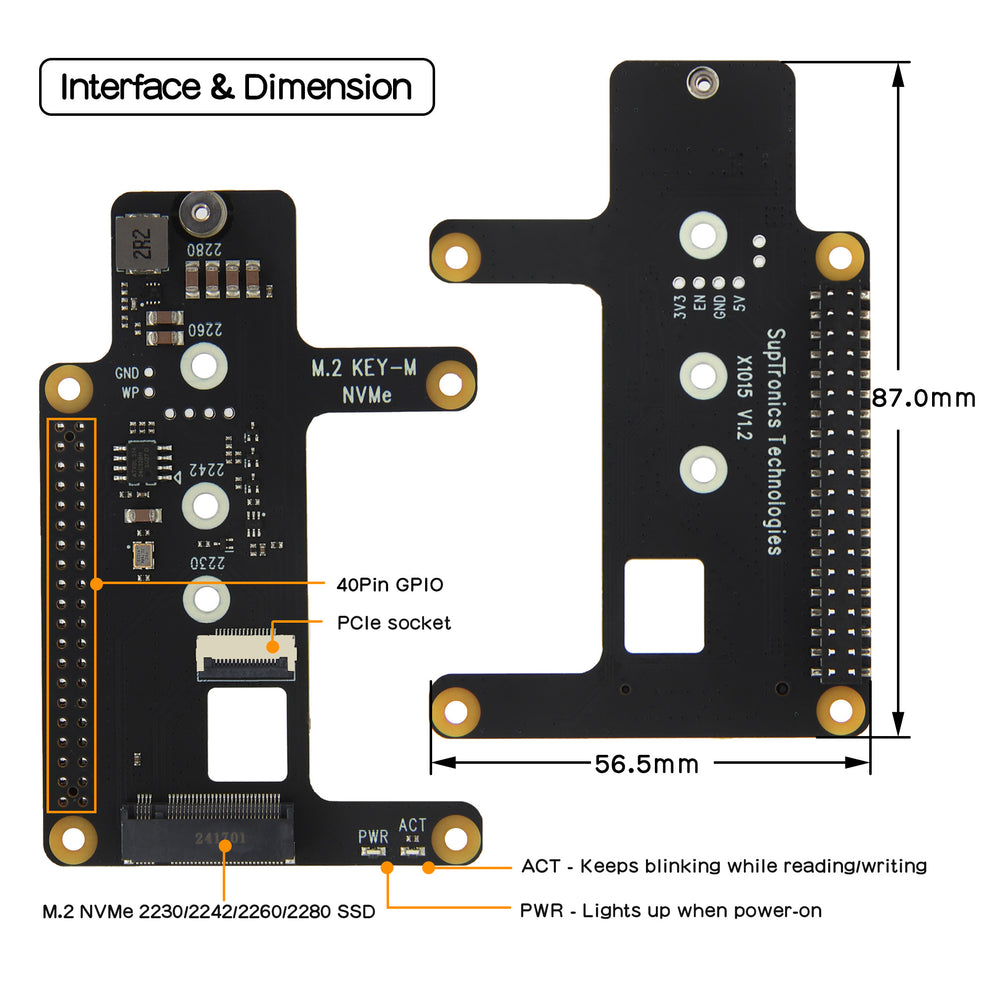

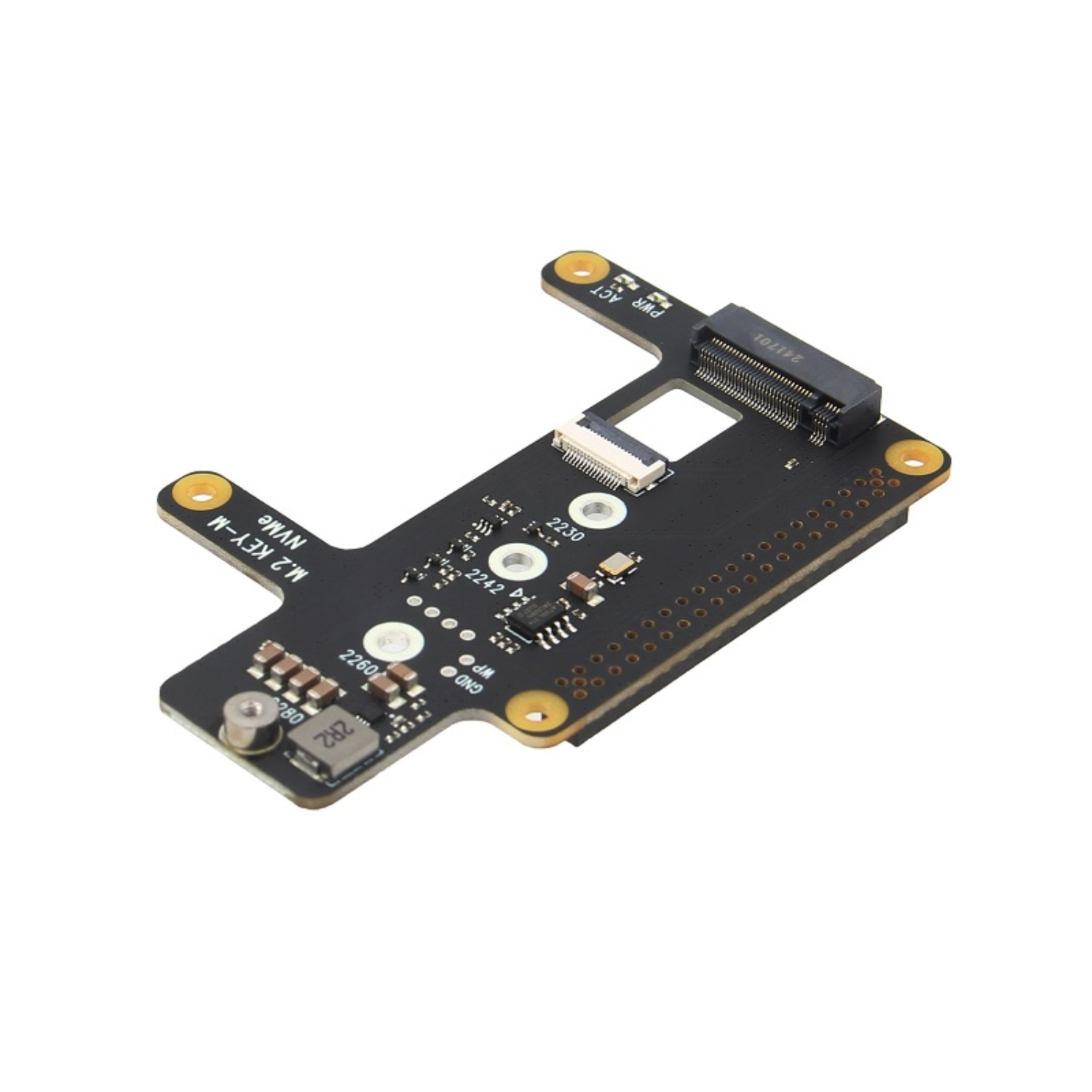

Product Interface:

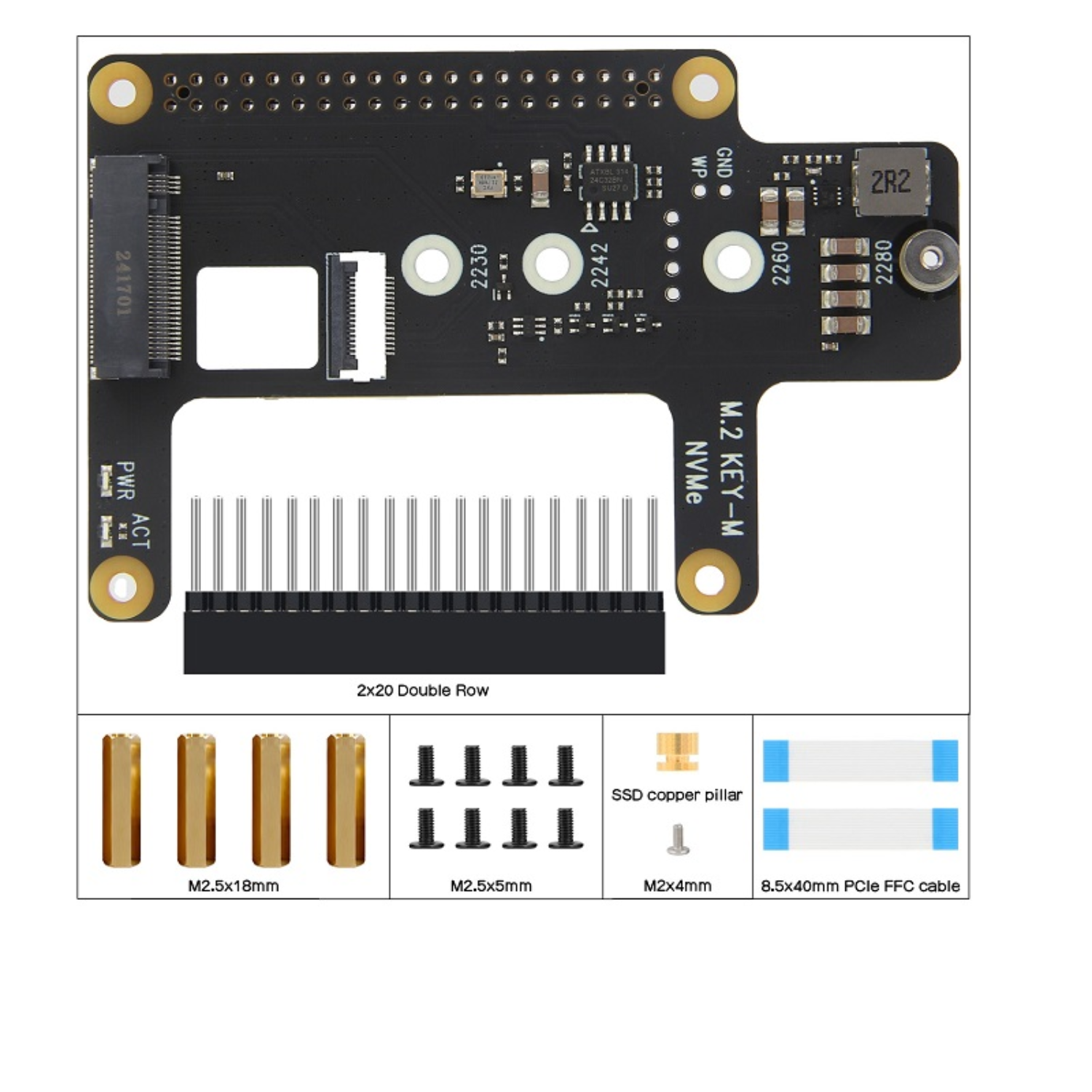

Package Included:

• 1 x X1015 V1.2 NVMe shield
• 1 x Screw pack
